1. ആമുഖം
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Fogatti 27kW Electric Tankless Water Heater. Please read all instructions carefully before installation and use.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The Fogatti 27kW Electric Tankless Water Heater is designed to provide instant and continuous hot water for residential use. It features a compact, wall-mounted design, high energy efficiency, and precise temperature control.
Image: Advanced Instant Heating System features, including shower, heating unit, controls, and water flow sensor.
പ്രധാന സവിശേഷതകൾ
- തൽക്ഷണ ചൂടുവെള്ളം: Provides hot water on demand with a flow rate up to 6.7 GPM.
- ഊർജ്ജ കാര്യക്ഷമത: Achieves 98% energy efficiency for reduced energy consumption.
- കൃത്യമായ താപനില നിയന്ത്രണം: Digital interface allows temperature settings from 86°F to 140°F in 1°F increments.
- കോംപാക്റ്റ് ഡിസൈൻ: Dimensions of 17.1" x 12.9" x 3.9" for flexible installation in small spaces.
- സുരക്ഷാ സവിശേഷതകൾ: ETL certified with overheat protection, leak detection technology, and water-electric isolation.
വീഡിയോ: കഴിഞ്ഞുview of the Fogatti Electric Tankless Water Heater, demonstrating instant heating, temperature control, and safety features.
2 സുരക്ഷാ വിവരങ്ങൾ
Your safety is paramount. This water heater is ETL certified and incorporates multiple safety mechanisms. Adhere to all local electrical and plumbing codes during installation and operation.
സംയോജിത സുരക്ഷാ സവിശേഷതകൾ
- അമിത ചൂട് സംരക്ഷണം
- Dry Burn Prevention
- Anti-scale Design Heating Chamber
- IPX4 Waterproof Protection
- ചോർച്ച സംരക്ഷണം
- Lightning-resistant Control Component
Image: ETL Certification details and icons representing six safety features: Water & Electricity Isolation, Anti Parched Protection, IPX4 Waterproof Protection, Overheat Protection, Anti Leakage Protection, and Automatic Fault Detection.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Professional installation is recommended. Ensure all electrical and plumbing connections comply with local codes and regulations.
ഇലക്ട്രിക്കൽ ആവശ്യകതകൾ
The Fogatti 27kW 240V electric tankless water heater requires a maximum draw of 113 Amps. It necessitates 3 x 40 AMP circuit breakers and 3 x (8AWG/2) wires. Ensure your electrical panel can accommodate these requirements.

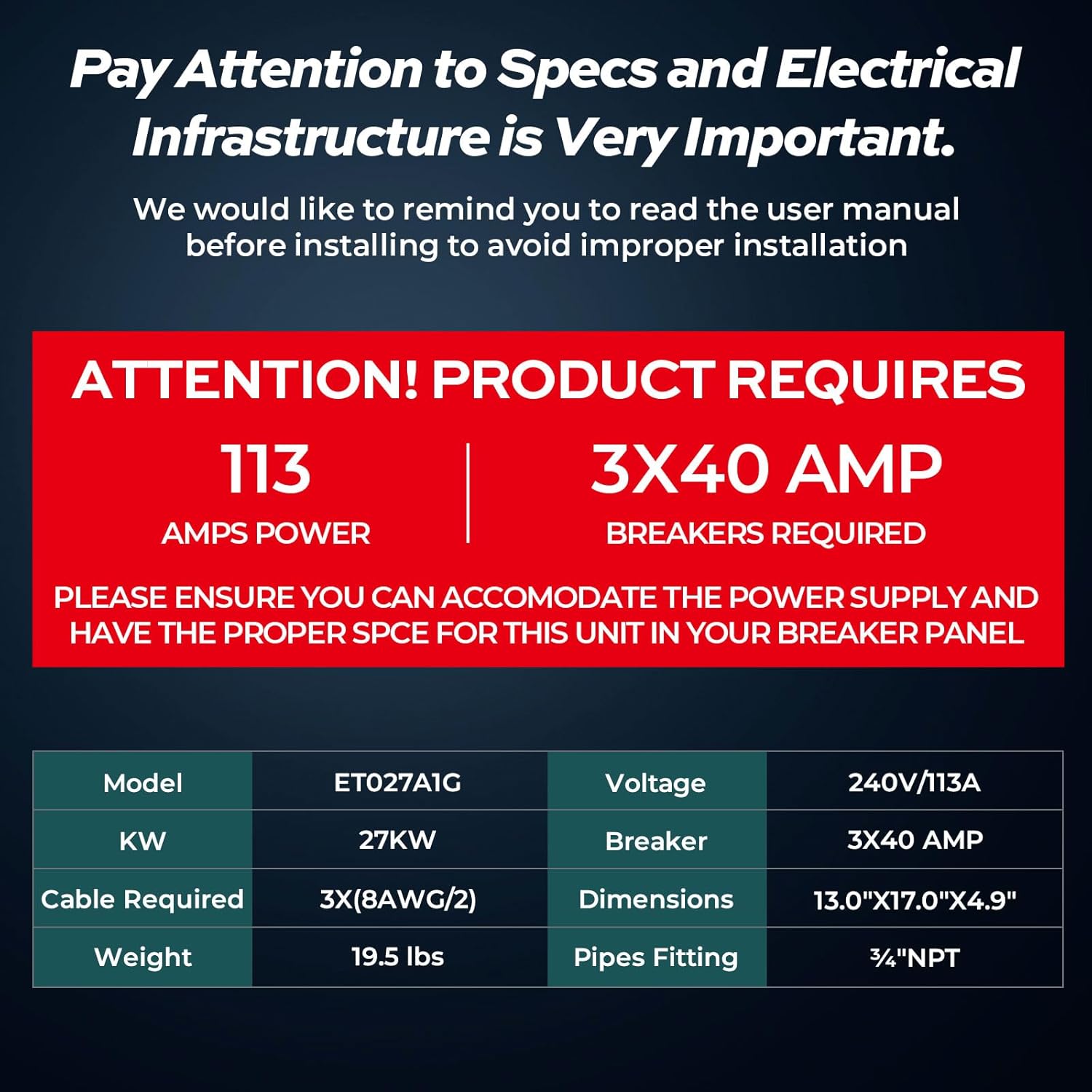

Image: Detailed table outlining electrical specifications (voltage, power, breaker size, wire size, max amperage) and plumbing connections (3/4" NPT).
വയറിംഗ് ഡയഗ്രം
Refer to the following diagram and video for correct wiring connections. The ET027A1G model must be connected to 3 sets of 240V power. Each set requires connection to a two-pole breaker. L1 & L2 lines must connect to breaker A, L1" & L2" to breaker B, and L1''' & L2''' to breaker C.
Image: Visual representation of the circuit diagram, showing connections from the water heater to the breaker panel with three two-pole breakers.
Video: A detailed demonstration of the electrical wiring process for the Fogatti 24/27kW Electric Tankless Water Heater, including connections to the circuit breakers.
ഫിസിക്കൽ ഇൻസ്റ്റലേഷൻ
The unit is designed for wall-mounting. Choose a location that allows for proper ventilation, access for maintenance, and is protected from freezing temperatures. Ensure the mounting surface is capable of supporting the unit's weight.
Image: The compact Fogatti 27kW water heater mounted on a bathroom wall, illustrating its minimal space requirement.
4. ഓപ്പറേഷൻ
Once installed, operating your Fogatti tankless water heater is straightforward using the digital interface.
താപനില നിയന്ത്രണം
Adjust the desired water temperature using the intuitive knob and monitor it on the clear LED display. Temperatures can be set between 86°F and 140°F in 1°F increments. The unit's smart chip and dual sensors ensure consistent hot water delivery, minimizing temperature fluctuations.
Image: A graph demonstrating the consistent temperature output of the Fogatti water heater, maintaining a stable temperature within ±1°F of the set point.
Water Flow and Performance
The 27kW model can deliver up to 6.7 GPM, sufficient for 3-4 fixtures simultaneously, depending on the incoming water temperature. Refer to the performance chart for expected flow rates based on ground water temperature.

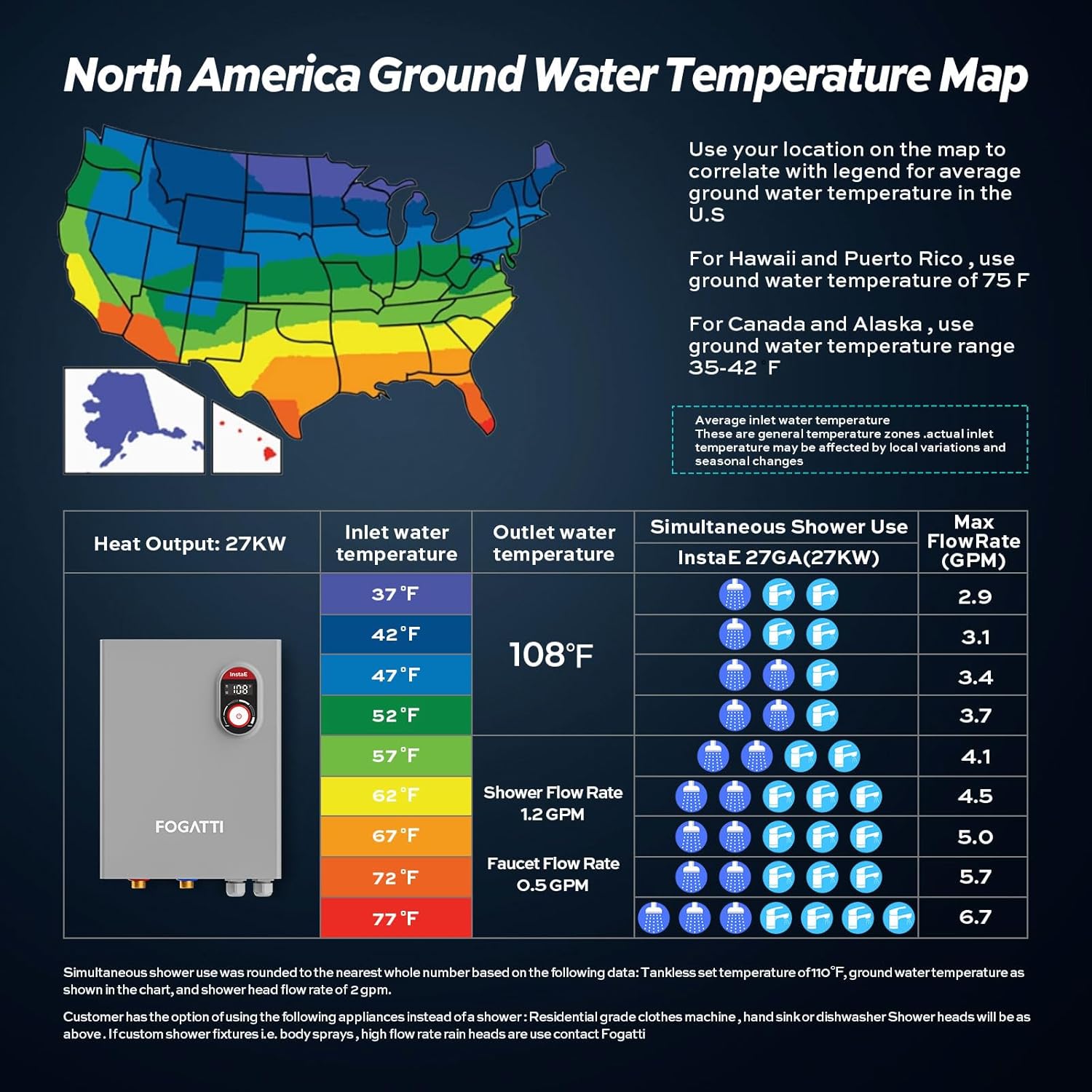

Image: A map showing average ground water temperatures across North America, alongside a performance chart detailing the maximum flow rate (GPM) and simultaneous shower use based on inlet water temperature for the 27kW model.
5. പരിപാലനം
Regular maintenance ensures optimal performance and longevity of your tankless water heater.
ഡെസ്കലിംഗ്
Depending on your water hardness, periodic descaling (flushing with a descaling solution) may be necessary to prevent mineral buildup in the heating elements. Consult a qualified plumber for this procedure, typically recommended annually in hard water areas.
വൃത്തിയാക്കൽ
Keep the exterior of the unit clean with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure air vents are clear of obstructions.
6. പ്രശ്നപരിഹാരം
നിങ്ങളുടെ വാട്ടർ ഹീറ്ററിൽ പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, താഴെ പറയുന്ന സാധാരണ ട്രബിൾഷൂട്ടിംഗ് ഘട്ടങ്ങൾ പരിശോധിക്കുക. സങ്കീർണ്ണമായ പ്രശ്നങ്ങൾക്ക്, ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.
Safety Thermal Cut-off Reset Instructions
If the product stops working due to the safety thermal cut-off protection function, you can reset it to restore normal operation. Warning: Ensure the unit is powered off before proceeding.
- Remove the outer shell: Carefully detach the unit's outer casing.
- Locate the safety thermal cut-off: Identify the thermal cut-off switch inside the unit.
- Press the reset button with a screwdriver: Use a screwdriver to press the reset button on the thermal cut-off.
- Install the outer shell: Reattach the outer casinഗ്രാം സുരക്ഷിതമായി.
To determine if the safety thermal cut-off has tripped: (1) The machine is not working (the display screen shows nothing); (2) The municipal power supply is normal (test whether other appliances at home are functioning properly); (3) The circuit breaker connected to the electric water heater has not tripped. If these three conditions are met simultaneously, the product's limiter may have tripped, requiring a reset.
Step 1: Remove outer shell
Step 2: Locate thermal cut-off
Step 3: Press reset button
Step 4: Install outer shell
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | FOGATTI |
| മോഡൽ നമ്പർ | 27kW |
| ഉൽപ്പന്ന അളവുകൾ | 3.9"ആംശം x 17.1"ആംശം |
| നിറം | ചാരനിറം |
| വാട്ട്tage | 27 കെ.ഡബ്ല്യു |
| വാല്യംtage | 240 വോൾട്ട് |
| പരമാവധി താപനില | 140 ഡിഗ്രി ഫാരൻഹീറ്റ് |
| കാര്യക്ഷമത | 98% |
| മൗണ്ടിംഗ് തരം | മതിൽ |
| ഇനത്തിൻ്റെ ഭാരം | 21 പൗണ്ട് |
| പ്രത്യേക സവിശേഷതകൾ | Overheat Protection, Leak Detection Technology |
8. വാറൻ്റിയും പിന്തുണയും
Fogatti is committed to providing reliable products and customer satisfaction.
വാറൻ്റി വിവരങ്ങൾ
ഈ ഉൽപ്പന്നത്തിൽ ഒരു ഉൾപ്പെടുന്നു 2-Year Complete Unit Service വാറന്റി. കൂടാതെ, ഒരു 30-Day Hassle-free Refund policy is in place for your peace of mind.
ഉപഭോക്തൃ പിന്തുണ
For any inquiries, technical assistance, or warranty claims, please contact Fogatti customer support:
- ഫോൺ പിന്തുണ: 24/7 ലഭ്യമാണ്
- ഇമെയിൽ സഹായം: 24 മണിക്കൂറും ലഭ്യമാണ്
Image: Customer support details, including 24/7 phone support and 24-hour email assistance.
