1. ആമുഖം
The LAMTTO Wireless Apple Carplay Screen is a portable car audio receiver designed to enhance your driving experience with smart connectivity. It supports wireless Apple CarPlay and Android Auto, offering features like GPS navigation, hands-free calling, music playback, and voice control. This manual will guide you through the installation, operation, and maintenance of your device.

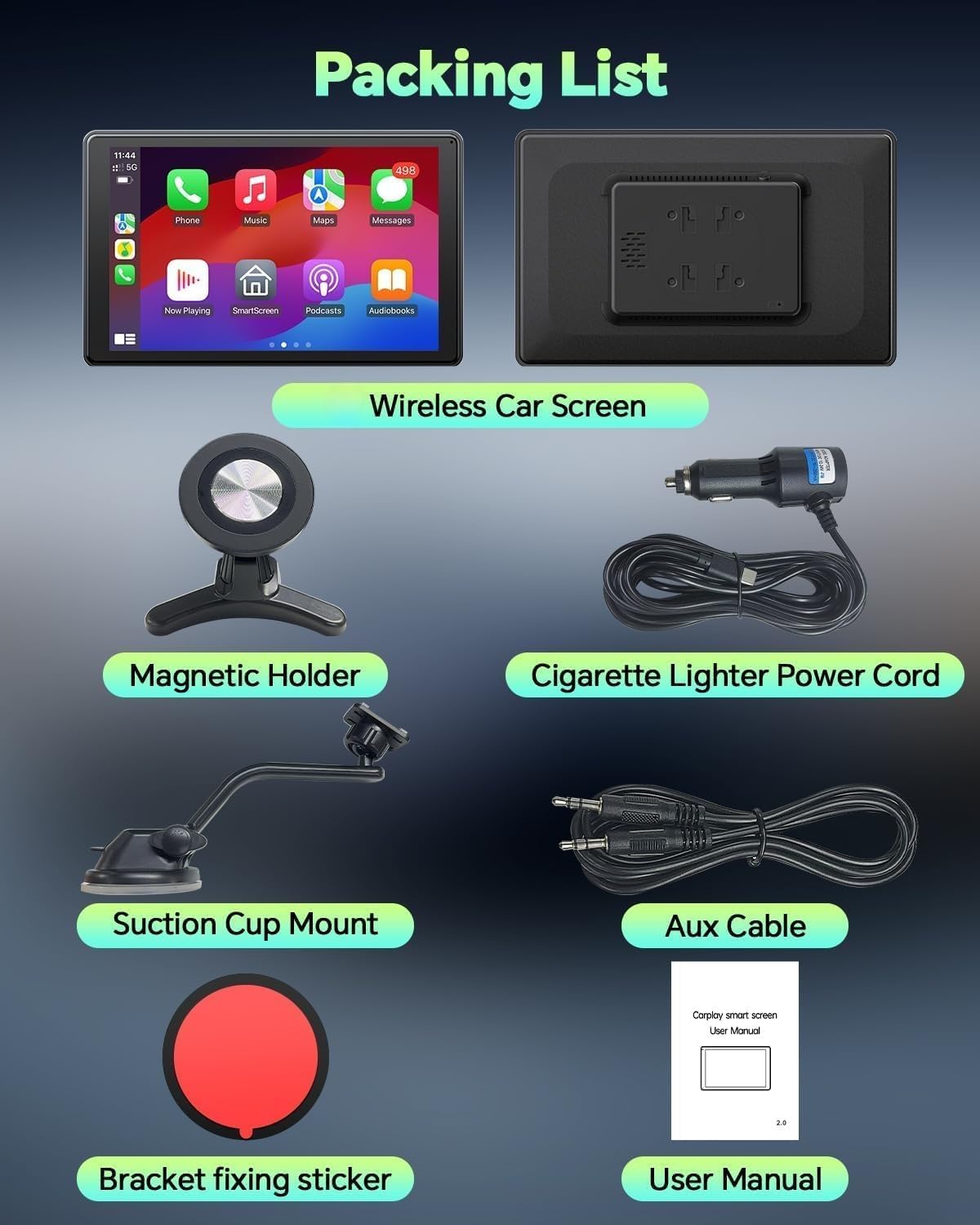

2. പാക്കേജ് ഉള്ളടക്കം
നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- 1 x Wireless Carplay Screen
- 1 x മാഗ്നറ്റിക് ഹോൾഡർ
- 1 x സക്ഷൻ കപ്പ് മൗണ്ട്
- 1 x Digital Cigarette Lighter (Power Cord)
- 1 x ഓക്സ് കേബിൾ
- 1 x Bracket Fixing Sticker
- 1 x ഉപയോക്തൃ മാനുവൽ
Video: This short video demonstrates the unboxing of the CarPlay screen, showing the various components included in the package.
3. ഉൽപ്പന്ന സവിശേഷതകൾ
- Portrait/Landscape Screen Modes: Flexible screen orientation for optimal viewing of videos or navigation.
- Ultra-Strong Magnetic Vent Mount: Securely displays the screen without obstructing driving vision.
- Lifetime OTA Updates: Ensures the system remains current with the latest features and improvements.
- വയർലെസ് കാർപ്ലേ/ആൻഡ്രോയിഡ് ഓട്ടോ: Seamless connectivity via Bluetooth & Wi-Fi for navigation, calls, messages, and music.
- Universal Phone Mirroring: Supports wireless mirroring for most Apple and Android phones for entertainment.
- Enhanced Safety & Stability: Constructed from fire-resistant and heat-resistant materials with stable connections and improved sound quality.
- ശബ്ദ നിയന്ത്രണം: Compatible with Siri and Google Voice Assistants for hands-free operation.
- ഒന്നിലധികം ഓഡിയോ ഔട്ട്പുട്ട് മോഡുകൾ: Built-in speakers, AUX to car's audio, FM transmitter, and Bluetooth to car's audio.
4. സജ്ജീകരണം
4.1 Mounting the Screen
The LAMTTO Carplay screen offers versatile mounting options to suit your vehicle's interior and ensure optimal visibility without obstructing your view.
Magnetic Vent Mount Installation:
- Insert the bracket into the car air conditioning vent and hook the small hook at the bottom onto the vent baffle. Ensure the two feet of the magnetic bracket face downwards for secure installation.
- Gently place the screen on the magnetic bracket.
- Adjust the screen to a comfortable angle and tighten the lock ring of the swivel ball to secure it.
Video: A detailed demonstration of how to install the magnetic mount for the CarPlay screen in a car, including attaching the mount to the dashboard and securing the screen.
സക്ഷൻ കപ്പ് മൌണ്ട് ഇൻസ്റ്റലേഷൻ:
- Fix the adhesive patch on the dashboard and leave it for 10 hours to ensure strong adhesion.
- Remove the protective film from the bottom of the suction cup holder.
- Place the suction cup on the previously placed patch. Press hard and depress the lock of the suction cup.
- Install the device, adjust the angle, and lock the screw.
4.2 പവർ കണക്ഷൻ
Connect the provided digital cigarette lighter power cord to your vehicle's 12V power outlet and the Type-C port on the CarPlay screen. Ensure the car charger provides at least 5V/3A power to activate the screen.
4.3 വയർലെസ് കാർപ്ലേ / ആൻഡ്രോയിഡ് ഓട്ടോ കണക്ഷൻ
Connect your smartphone to the CarPlay screen via Bluetooth and Wi-Fi for seamless integration.
For Apple CarPlay:
- Choose the Apple CarPlay option on the product screen.
- നിങ്ങളുടെ iPhone-ൽ Wi-Fi, Bluetooth എന്നിവ ഓണാക്കുക.
- Find the Bluetooth signal name of the Carplay screen in your mobile phone's Bluetooth list, click it, and select 'Use Carplay'.
- Wait a few seconds for the connection to succeed.
ആൻഡ്രോയിഡ് ഓട്ടോയ്ക്ക്:
- Choose the Android Auto option on the product screen.
- Turn on Wi-Fi and Bluetooth on your Android Phone.
- Find the Bluetooth signal name of the car stereo screen in your mobile phone's Bluetooth list, click it.
- Wait a few seconds for the connection to succeed.
Video: This video provides a step-by-step guide on how to install and connect the wireless CarPlay system in a vehicle.
4.4 Mirror Link Setup
The screen supports wireless mirroring for both iOS (AirPlay & Evelink) and Android (Super Link & Evelink).
For iOS (AirPlay & Evelink):
- According to your phone system, scan the QR code to download and install the 'Evelink' application.
- Open the 'Evelink' app on your iPhone. Add the device, select next to connect to Wi-Fi. Turn on the mirroring switch to add the device.
- Alternatively, use the phone to connect to this CarPlay screen's Bluetooth. Turn on the phone's Wi-Fi. Open the screen mirroring option and click SmartScreen.
For Android (Super Link & Evelink):
- According to your phone system, scan the QR code to download and install the 'Evelink' application.
- Open the 'Evelink' app on your Android Phone. Add the device, select next to connect to Wi-Fi. Turn on the mirroring switch to add the device.
4.5 Audio Output Modes
The device offers multiple ways to output audio to your car's sound system:
- ബിൽറ്റ്-ഇൻ സ്പീക്കറുകൾ: The screen has integrated speakers for direct audio output.
- Bluetooth to Car's Audio: Connect the screen to your car's Bluetooth for stable and clear audio.
- AUX to Car's Audio: Use the provided AUX cable to connect to your car's auxiliary input.
- എഫ്എം ട്രാൻസ്മിറ്റർ: Transmit audio to your car's FM radio by selecting an unused FM frequency.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
5.1 Screen Orientation
The screen supports both portrait and landscape modes. You can switch between modes to optimize viewing for navigation (portrait) or media consumption (landscape).
5.2 ശബ്ദ നിയന്ത്രണം
Activate Siri or Google Voice Assistant on your phone to use voice commands for navigation, calls, messages, and music playback, allowing you to focus on driving.
5.3 Online Navigation
Utilize CarPlay or Android Auto to display real-time maps and plan routes directly on the screen.
5.4 ഹാൻഡ്സ് ഫ്രീ കോളിംഗ്
Make and receive calls safely through the screen's interface, integrated with your smartphone's calling features.
5.5 മ്യൂസിക് പ്ലേബാക്ക്
Enjoy your favorite music from your smartphone through the CarPlay screen, with options for Bluetooth, AUX, or FM transmission.
5.6 OTA അപ്ഡേറ്റുകൾ
The device supports Over-The-Air (OTA) online upgrades. You can get the latest software version as soon as it's released without complicated procedures, ensuring a better user experience.
6. പരിപാലനം
To ensure the longevity and optimal performance of your LAMTTO Wireless Apple Carplay Screen, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Use a soft, dry, lint-free cloth to clean the screen. For stubborn smudges, lightly dampതുണിയിൽ വെള്ളം അല്ലെങ്കിൽ സ്ക്രീൻ-സേഫ് ക്ലീനർ ഉപയോഗിക്കുക. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളോ ഉള്ള വസ്തുക്കൾ ഒഴിവാക്കുക.
- താപനില: Avoid exposing the device to extreme temperatures, both hot and cold, for extended periods. While designed with heat-resistant materials, prolonged exposure can affect performance.
- സംഭരണം: ഉപകരണം ദീർഘനേരം സൂക്ഷിക്കുകയാണെങ്കിൽ, വൈദ്യുതിയിൽ നിന്ന് വിച്ഛേദിച്ച് നേരിട്ട് സൂര്യപ്രകാശം ഏൽക്കാത്ത തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.
- കേബിൾ മാനേജുമെന്റ്: എല്ലാ കേബിളുകളും വൃത്തിയായി റൂട്ട് ചെയ്തിട്ടുണ്ടെന്നും കേടുപാടുകൾ സംഭവിക്കാതിരിക്കാൻ നുള്ളിയെടുക്കുകയോ കുരുങ്ങുകയോ ചെയ്തിട്ടില്ലെന്നും ഉറപ്പാക്കുക.
7. പ്രശ്നപരിഹാരം
If you encounter issues with your LAMTTO Wireless Apple Carplay Screen, refer to the following common troubleshooting steps:
| പ്രശ്നം | പരിഹാരം |
|---|---|
| Screen does not power on. | Ensure the car charger is properly inserted and the vehicle's 12V outlet is functional. Verify the charger provides at least 5V/3A. Check the Type-C cable connection to the screen. |
| Wireless CarPlay/Android Auto fails to connect. | Ensure Bluetooth and Wi-Fi are enabled on your smartphone. Forget previous Bluetooth connections on both devices and try pairing again. Restart both the screen and your phone. |
| Poor audio quality or no sound. | Check the selected audio output mode (Bluetooth, AUX, FM). If using Bluetooth, ensure it's properly paired. If using FM, try a different frequency. If using AUX, ensure the cable is fully inserted. Adjust volume on both the screen and your car stereo. |
| സ്ക്രീൻ മിററിംഗ് പ്രവർത്തിക്കുന്നില്ല. | Ensure the 'Evelink' app is installed and updated on your phone. Verify Wi-Fi is connected and the mirroring switch is enabled in the app. Check phone compatibility (Android 11+ or iOS 11+). |
| സ്ക്രീൻ പ്രതികരിക്കുന്നില്ല അല്ലെങ്കിൽ നിശ്ചലമാണ്. | Perform a soft reset by disconnecting the power cable and reconnecting it after a few seconds. If the issue persists, check for available OTA updates. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ലാംട്ടോ |
| മോഡലിൻ്റെ പേര് | LAMTTO Wireless Apple Carplay Screen |
| ഭാഗം നമ്പർ | RC18 |
| റെസലൂഷൻ | 1080p |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Android phone (Android system updated to 11 or above), iPhone6S-iPhone16 Pro |
| പ്രത്യേക സവിശേഷതകൾ | Landscape & Portrait Screen Modes, OTA Updates, Ultra-Strong Magnetic Vent Mount, Wireless Carplay & Android Auto |
| കണക്റ്റർ തരം | Bluetooth, FM, Wi-Fi, Micro USB (for power) |
| പവർ ആവശ്യകത | 5V/3A (via Type-C car charger) |
| കൺട്രോളർ തരം | Touchscreen control, Voice Control |
| നിറം | കറുപ്പ് |
9. വാറൻ്റിയും പിന്തുണയും
LAMTTO provides a 2-year warranty for this wireless adapter. We are committed to offering professional technical support and excellent customer service. If you have any questions about usage or require assistance, please feel free to contact us via Amazon. We aim to reply within 24 hours.
Additionally, we offer a 30-day Money-Back guarantee.
