ആമുഖം
This manual provides comprehensive instructions for the installation, operation, and maintenance of your HANSSHOW Electric Sunshade Roof for Model Y Juniper. Designed for the New Model Y 2025 Upgrade 2.0, this retractable sunroof shade offers enhanced UV protection and heat insulation, improving your vehicle's interior comfort.

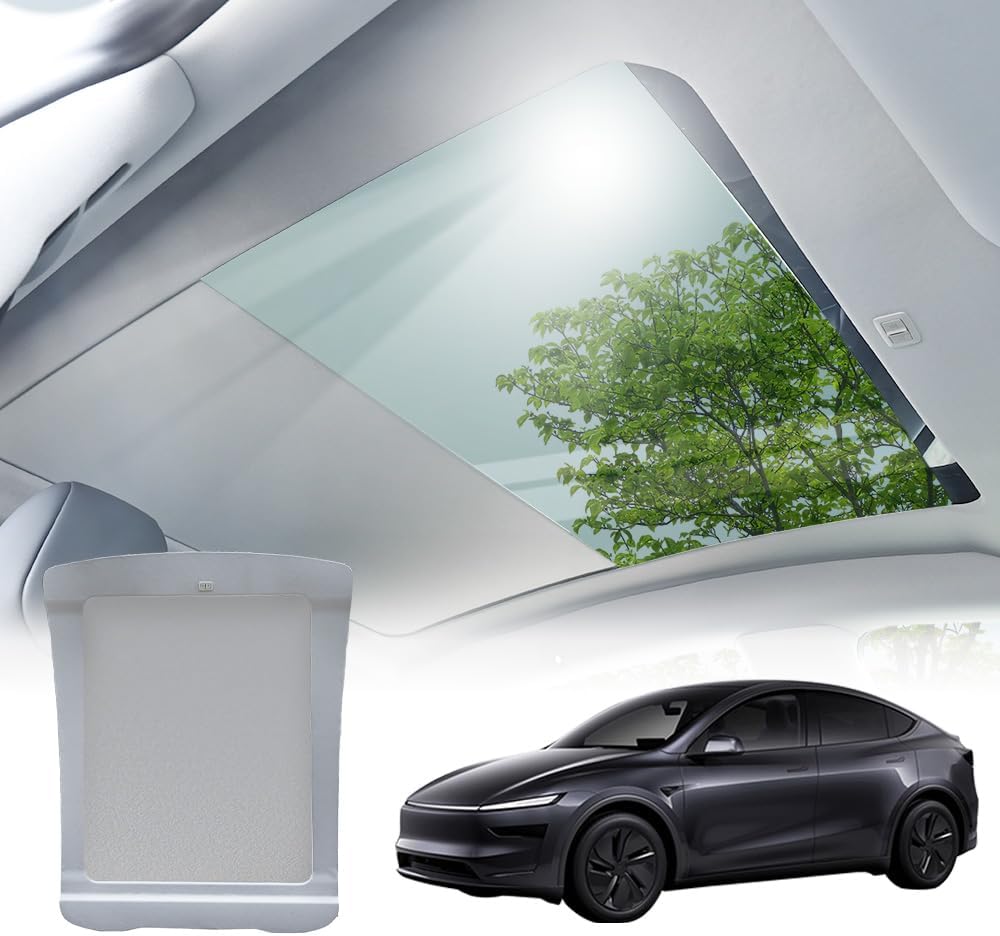

Image: The HANSSHOW Electric Sunshade Roof, shown with a Tesla Model Y, highlighting its integration and design.
സുരക്ഷാ വിവരങ്ങൾ
Please read all safety warnings and instructions carefully before installation and operation to prevent injury or damage to the product and vehicle.
- Ensure the vehicle is turned off and the power supply is disconnected before beginning installation.
- Installation should be performed by a qualified professional if you are not confident in your ability to follow the instructions precisely.
- Keep hands and objects clear of the sunshade's path during operation to avoid pinching. The product features an anti-pinch design, but caution is always advised.
- Do not attempt to force the sunshade open or closed manually if it encounters an obstruction.
- ഓപ്പറേറ്റിംഗ് വോളിയംtage: 9V~16V. Standard voltage: 12V. Ensure your vehicle's electrical system is compatible.
Image: Illustration of the anti-pinch design, demonstrating how the sunshade automatically stops when an obstacle is detected.
പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷനുമായി മുന്നോട്ടുപോകുന്നതിനുമുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക.
- Electric sunshade x 1
- Rocker x 1
- സ്ക്രീൻ x 3
- Cross screwdriver x 1
- കയ്യുറ x 1
- പവർ കോർഡ് x 1
- Rear plug x 2
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The installation process is designed to integrate seamlessly with your vehicle's existing structure. The power supply is wired discreetly to maintain vehicle integrity and warranty.
- തയ്യാറാക്കൽ: Ensure the vehicle is parked on a level surface and the ignition is off. Gather all tools and components listed in the package contents. It is recommended to wear the provided gloves during installation.
- Accessing the Roof Area: Carefully remove any existing trim or covers in the roof area as per your vehicle's specific instructions to expose the installation points for the sunshade.
- Positioning the Sunshade: Gently place the electric sunshade into the designated area of the glass roof. Ensure it aligns precisely with the contours of the original car glass roof to prevent gaps or sagging.
- Securing the Sunshade: Use the provided screws and cross screwdriver to securely fasten the sunshade in place. Refer to the specific mounting points on the sunshade unit.
- Wiring the Power Supply: Connect the power cord to the sunshade unit and route it discreetly to the vehicle's power source. The wiring is designed to be concealed and should not interfere with the vehicle's original wiring or warranty. Connect the rear plugs as instructed.
- ടെസ്റ്റിംഗ് പ്രവർത്തനം: Once secured and wired, carefully test the sunshade's operation using the smart switch and voice control before reassembling any removed trim.
- അന്തിമ അസംബ്ലി: Reinstall any removed trim or covers, ensuring all components are properly seated and secured.
Note: The sunshade is custom-made for Model Y Juniper 2025.03+ models, ensuring a perfect fit.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your HANSSHOW Electric Sunshade Roof offers convenient control options for ease of use.
ശബ്ദ നിയന്ത്രണം
The sunshade can be operated hands-free using voice commands.
- To activate voice control, say "Hello Tesla".
- To open the sunshade, say "open".
- To close the sunshade, say "close".
- To stop the sunshade at any point during its movement, say "Pause".
Image: Visual representation of the voice control feature, illustrating the commands "Open", "Close", and "Pause".
Smart Switch (Button Control)
For manual control, use the integrated smart switch.
- Press one button to initiate opening of the sunshade. Press again to stop it at your desired position.
- Press the other button to initiate closing of the sunshade. Press again to stop it at your desired position.
Image: A hand operating the one-touch smart switch for effortless electric control of the sunshade.
Image: Depiction of the sunshade's smooth and silent motion, indicating no creaks, squeaks, or friction sounds during operation.
മെയിൻ്റനൻസ്
Regular maintenance ensures the longevity and optimal performance of your electric sunshade.
- വൃത്തിയാക്കൽ: ഒരു സോഫ്റ്റ് ഉപയോഗിക്കുക, ഡിamp cloth to wipe down the sunshade fabric and frame. Avoid abrasive cleaners or solvents that could damage the material or finish.
- പരിശോധന: Periodically inspect the sunshade for any signs of wear, loose connections, or obstructions in its track.
- ഓപ്പറേഷൻ ചെക്ക്: Regularly test both voice and button controls to ensure smooth operation and responsiveness.
- മെറ്റീരിയൽ കെയർ: The sunshade is constructed from ABS engineering plastics, which are resistant to aging and cracking. No special treatments are typically required for the material itself.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter any issues with your HANSSHOW Electric Sunshade Roof, refer to the following common solutions.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Sunshade does not move. | വൈദ്യുതിയില്ല, കണക്ഷൻ അയഞ്ഞില്ല, മോട്ടോർ പ്രശ്നമില്ല. | Check power connections. Ensure vehicle ignition is on. If problem persists, contact support. |
| Sunshade stops midway or reverses. | Obstruction in the track, or anti-pinch sensor activated. | Inspect the track for any debris or objects. Clear any obstructions. |
| ശബ്ദ നിയന്ത്രണം പ്രതികരിക്കുന്നില്ല. | Incorrect command, background noise, or microphone issue. | Ensure clear pronunciation of commands ("Hello Tesla", "open", "close", "Pause"). Reduce cabin noise. Try button control. |
| പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദങ്ങൾ. | Debris in track or motor issue. | Inspect track for debris. If noises persist, contact support. |
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: HSTAB1078 (Model Y Juniper Sunshade)
- അനുയോജ്യത: Custom-made for Model Y Juniper 2025.03+
- മെറ്റീരിയൽ: എബിഎസ് എഞ്ചിനീയറിംഗ് പ്ലാസ്റ്റിക്
- നിയന്ത്രണം: Voice Control, Smart Button Control
- സ്റ്റാൻഡേർഡ് വോളിയംtage: 12V
- വർക്കിംഗ് വോളിയംtage: 9V~16V
- Anti-Pinch Strength: <100N
- UV സംരക്ഷണം: Blocks harmful UV rays, Reflectivity up to 90%
- Heat Insulation: Reduces heat and light entering the vehicle.
Image: Comparison chart illustrating the temperature difference inside the vehicle before and after using the sunshade, demonstrating improved heat insulation.
Image: Visual representation of the sunshade's ability to block harmful UV rays, with a stated reflectivity of up to 90%.
വാറൻ്റിയും പിന്തുണയും
HANSSHOW provides a 1 വർഷത്തെ വാറൻ്റി for this Electric Sunshade Roof.
This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modification.
For technical support, warranty claims, or any other inquiries, please contact HANSSHOW customer service. Refer to the contact information provided with your purchase or visit the official HANSSHOW webസൈറ്റ്.
Note: The concealed wiring ensures the integrity of the vehicle and its original factory warranty is not affected by the installation of this product.
