സാക്കർ മിനി മൾട്ടി-ഫങ്ഷണൽ ടേബിൾ സോ HSSJ13004 യൂസർ മാനുവൽ

1. ആമുഖം

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your Saker Mini Multi-Functional Table Saw, model HSSJ13004. Please read this manual thoroughly before initial use and retain it for future reference.

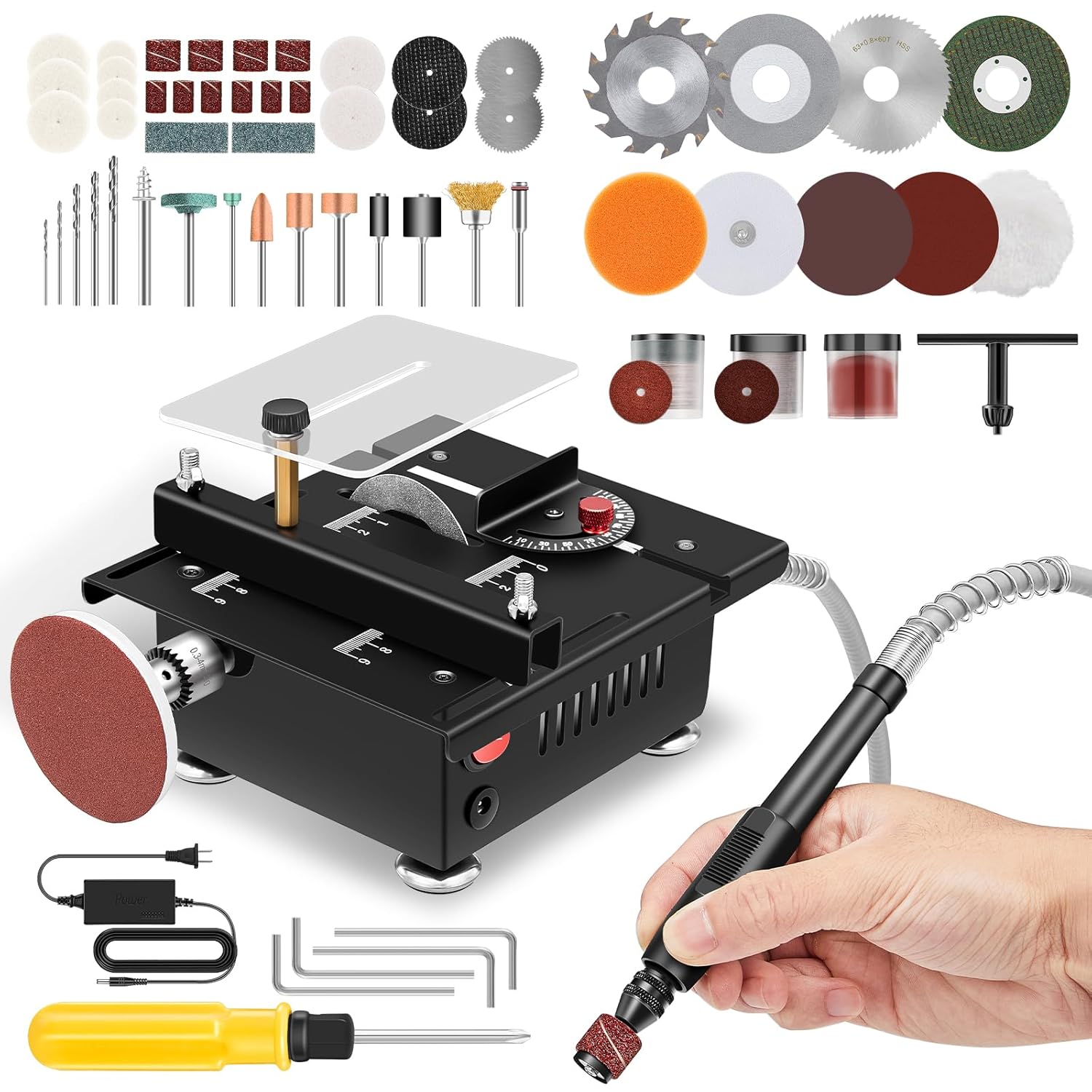

Figure 1: Saker Mini Multi-Functional Table Saw with included accessories, including various saw blades, sanding discs, drill bits, and the flexible shaft attachment.

The Saker Mini Multi-Functional Table Saw is designed for precision cutting of small materials such as PCB boards, wooden sticks, plastic sheets, thin wooden boards, cans, copper-clad panels, aluminum tubes, and copper tubes. It features adjustable height, variable speed control, and an adjustable cutting angle, making it suitable for various crafting and DIY projects.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

Always prioritize safety when operating power tools. Failure to follow these instructions may result in injury or damage to the tool.

• മാനുവൽ വായിക്കുക: പ്രവർത്തനത്തിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും മുന്നറിയിപ്പുകളും മനസ്സിലാക്കുക.
• ജോലി ഏരിയ: Keep your work area clean, well-lit, and free from clutter.
• വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (PPE): Always wear safety glasses, hearing protection, and a dust mask. Avoid loose clothing or jewelry that could get caught in moving parts.
• പവർ കണക്ഷൻ: Ensure the power button is in the "OFF" position before plugging in the saw.
• സുരക്ഷിത വർക്ക്പീസ്: Always secure the material being cut to prevent kickback.
• ബ്ലേഡ് ഗാർഡ്: Never operate the saw without the blade guard properly in place.
• പരിപാലനം: Disconnect power before performing any maintenance, blade changes, or adjustments.
• കുട്ടികളും കാഴ്ചക്കാരും: Keep children and bystanders at a safe distance from the operating saw.
• സ്ഥിരത: Ensure the saw is placed on a stable, level surface. The anti-slip rubber feet help prevent shifting during operation.

3. ഘടകങ്ങൾ കഴിഞ്ഞുview

Familiarize yourself with the main components of your Saker Mini Multi-Functional Table Saw.

• പ്രധാന യൂണിറ്റ്: The core table saw body with motor and cutting platform.
• Saw Blades: Includes PCB cutting blades, high-speed steel saw blades, alloy saw blades, and resin saw blades (63mm diameter, 16mm inner hole).
• Flexible Shaft: For precision sanding, engraving, and drilling with various grinding heads.
• പവർ അഡാപ്റ്റർ: Connects the saw to an electrical outlet.
• Push-Pull Chute: Guides material for straight cuts.
• ആംഗിൾ ക്രമീകരണ സംവിധാനം: 0° മുതൽ 90° വരെ കട്ടിംഗ് കോണുകൾ സജ്ജമാക്കാൻ അനുവദിക്കുന്നു.
• ഉയരം ക്രമീകരിക്കൽ നോബ്: Controls the cutting height of the blade.
• Transparent Baffle: Protects against debris splash.
• Speed Control Unit: Adjusts motor speed with 7 distinct settings.

4. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove all components from the packaging. Verify that all parts listed in the components overview നിലവിലുള്ളതും കേടുപാടുകളില്ലാത്തതുമാണ്.
2. പ്ലേസ്മെൻ്റ്: Position the table saw on a stable, level, and clean workbench. Ensure adequate space around the saw for safe operation and material handling. The anti-slip rubber feet should firmly grip the surface.
3. പവർ കണക്ഷൻ:
   • Ensure the saw's power switch is in the "OFF" position.
   • Connect the power adapter cable to the saw's power input port.
   • അനുയോജ്യമായ ഒരു ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് പവർ അഡാപ്റ്റർ പ്ലഗ് ചെയ്യുക.
4. Blade Installation (Refer to Figure 2):
   • Disconnect the power adapter from the outlet.
   • Carefully remove the transparent baffle and any securing screws if necessary.
   • Use the provided wrench to loosen the blade arbor nut.
   • Select the appropriate blade for your material (e.g., PCB cutting blade for circuit boards, high-speed steel for wood). Ensure the blade's teeth are oriented correctly for cutting.
   • Place the blade onto the arbor, ensuring it is seated properly.
   • Tighten the arbor nut securely with the wrench.
   • Reattach the transparent baffle.


   Figure 2: Illustration of different blade types and their installation for specific cutting tasks.

5. Flexible Shaft Attachment (Refer to Figure 3):
   • സോ പ്ലഗ് ഊരിമാറ്റിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
   • Locate the flexible shaft port on the side of the main unit.
   • Screw the flexible shaft connector onto the port until secure.
   • Insert the desired grinding head or drill bit (0.5-3.2mm shank diameter) into the flexible shaft's chuck and tighten it.


   Figure 3: The flexible shaft attachment in use for fine detail work, demonstrating its compatibility with various grinding heads.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Powering On and Speed Adjustment (Refer to Figure 4)

1. Ensure the saw is properly set up and plugged in.
2. Press the power button on the main unit to turn the saw on.
3. Use the speed control unit to adjust the motor speed. The saw features 7 adjustable speed settings, allowing for precise control up to 6000 RPM. Select a lower speed for delicate materials or higher precision, and a higher speed for faster cutting of appropriate materials.

Figure 4: The 100W motor and the speed control unit, highlighting the 7 distinct speed settings for varied applications.

5.2 Cutting Operations

1. ഉയരം ക്രമീകരിക്കൽ: Turn the height adjustment knob to raise or lower the saw blade to the desired cutting depth. The maximum cutting depth is 16mm.
2. Angle Adjustment (Refer to Figure 5):
   • Loosen the angle adjustment knob.
   • Adjust the cutting platform to the desired angle between 0° and 90°. The panel has clear markings for accurate angle setting.
   • Tighten the angle adjustment knob to secure the setting.
3. മെറ്റീരിയൽ ഫീഡിംഗ്:
   • Place the workpiece firmly against the push-pull chute for straight cuts.
   • Slowly and steadily feed the material into the rotating blade. Avoid forcing the material, as this can cause kickback or damage to the motor/blade.
   • Always keep your hands clear of the blade path. Use a push stick for smaller pieces.


   Figure 5: Adjustable cutting angle mechanism and the push-pull chute for guiding materials during cutting operations.

5.3 Using the Flexible Shaft (Refer to Figure 3)

The flexible shaft extends the functionality of your table saw for detailed work such as sanding, engraving, and drilling.

1. Ensure the flexible shaft is securely attached and the desired grinding head or drill bit is installed.
2. Turn on the main unit and adjust the speed as needed for the task.
3. Hold the flexible shaft like a pen and apply gentle, controlled pressure to the workpiece.
4. Always wear appropriate eye protection when using the flexible shaft, especially for tasks that generate dust or small particles.

ചിത്രം 6: ഉദാamples of drill chucks and attachments for cutting, polishing, and sanding with the flexible shaft.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your Saker Mini Multi-Functional Table Saw.

• പവർ വിച്ഛേദിക്കുക: Always unplug the saw before performing any cleaning or maintenance.
• വൃത്തിയാക്കൽ:
  • After each use, clear sawdust and debris from the table surface, blade area, and motor vents using a brush or compressed air.
  • പരസ്യം ഉപയോഗിച്ച് ബാഹ്യ പ്രതലങ്ങൾ തുടയ്ക്കുകamp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• ബ്ലേഡ് കെയർ:
  • Inspect blades regularly for dullness, damage, or missing teeth. Replace dull or damaged blades promptly.
  • Clean resin and pitch buildup from blades using a suitable blade cleaner.
• Flexible Shaft: Inspect the flexible shaft for any kinks or damage. Ensure the chuck operates smoothly.
• സംഭരണം: Store the saw in a clean, dry place, away from direct sunlight and moisture. Keep all accessories organized.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ ടേബിൾ സോ ഉപയോഗിച്ച് നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു.

ഇവിടെ പട്ടികപ്പെടുത്തിയിട്ടില്ലാത്ത പ്രശ്നങ്ങൾ നേരിടുന്നുണ്ടെങ്കിലോ പരിഹാരങ്ങൾ പ്രശ്നം പരിഹരിക്കുന്നില്ലെങ്കിലോ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

8 സ്പെസിഫിക്കേഷനുകൾ

Figure 7: Key performance specifications and blade dimensions of the Saker Mini Multi-Functional Table Saw.

9. വാറൻ്റി വിവരങ്ങൾ

Saker products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Saker webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

10. ഉപഭോക്തൃ പിന്തുണ

If you have any questions, require technical assistance, or need to order replacement parts, please contact Saker customer support through the following channels:

• Webസൈറ്റ്: Visit the official Saker webപതിവുചോദ്യങ്ങൾക്കും പിന്തുണാ കോൺടാക്റ്റ് വിവരങ്ങൾക്കുമുള്ള സൈറ്റ്.
• ഇമെയിൽ: Refer to your product packaging or warranty card for customer service email addresses.
• ഫോൺ: Refer to your product packaging or warranty card for customer service phone numbers.

When contacting support, please have your model number (HSSJ13004) and purchase date readily available.
