DrayTek VigorAP 905 High Performance WiFi 6 Access Point User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The DrayTek VigorAP 905 is a high-performance WiFi 6 Mesh Wireless Access Point designed for efficient network management in demanding environments. It delivers robust wireless connectivity and flexible wired options.

പ്രധാന സവിശേഷതകൾ:

• Fast Wi-Fi 6 Access Point: Experience lightning-fast speeds with a combined speed of up to 3000Mbps, ideal for businesses requiring efficient networks for demanding applications.
• Strong WPA3 Connection Encryption: Ensures robust wireless security with the latest WPA3-Personal or 802.1x Enterprise. Supports mixed WPA3/WPA2 and different SSIDs with varying security levels.
• Easy to Configure and Manage: Effortlessly manage up to 8 compatible mesh VigorAPs and up to 20 APs using the Wireless Virtual Controller module. Features auto-provisioning and AP monitoring.
• Flexible 2.5 Gigabit Ethernet Uplink & 4 x GbE Connectivity: Connects to the network via its 2.5Gb Ethernet interface. Additional Gigabit Ethernet interfaces provide wired connectivity for devices like laptops or printers.
• High Density Performance: Capable of linking up to 256 clients with 802.11ax dual-band antennas and Wi-Fi 6 2x2 Multi-User MIMO technology, suitable for high-density environments.
• Wall/Desk Form Factor Design: A versatile design that complements both business and home interiors. LED indicators can be scheduled or disabled.

ചിത്രം 1: മുൻഭാഗം view of the DrayTek VigorAP 905 Access Point, showcasing its compact design and two external antennas.

2. സജ്ജീകരണം

2.1 പാക്കേജ് ഉള്ളടക്കം

ആരംഭിക്കുന്നതിന് മുമ്പ്, എല്ലാ ഇനങ്ങളും പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• DrayTek VigorAP 905 ആക്സസ് പോയിന്റ്

2.2 ഫിസിക്കൽ ഇൻസ്റ്റലേഷൻ

The VigorAP 905 can be mounted on a wall or placed on a desk.

1. ഒരു ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a central location for optimal Wi-Fi coverage, away from obstructions and sources of interference.
2. പവർ കണക്ഷൻ: Connect the power adapter to the AP's PWR port and plug it into an electrical outlet. Alternatively, if using Power over Ethernet (PoE), connect an Ethernet cable from a PoE-enabled switch or injector to the 2.5G Ethernet port (P1/PoE).
3. നെറ്റ്വർക്ക് കണക്ഷൻ: Connect an Ethernet cable from your router or network switch to the 2.5G Ethernet port (P1/PoE) on the VigorAP 905.
4. Optional Wired Devices: Use the additional Gigabit Ethernet ports (P2, P3, P4, P5) to connect wired devices such as computers or printers.

ചിത്രം 2: വശം view of the VigorAP 905, illustrating the power input, reset button, WPS button, 2.5G Ethernet port (P1/PoE), and four Gigabit Ethernet ports (P2-P5).

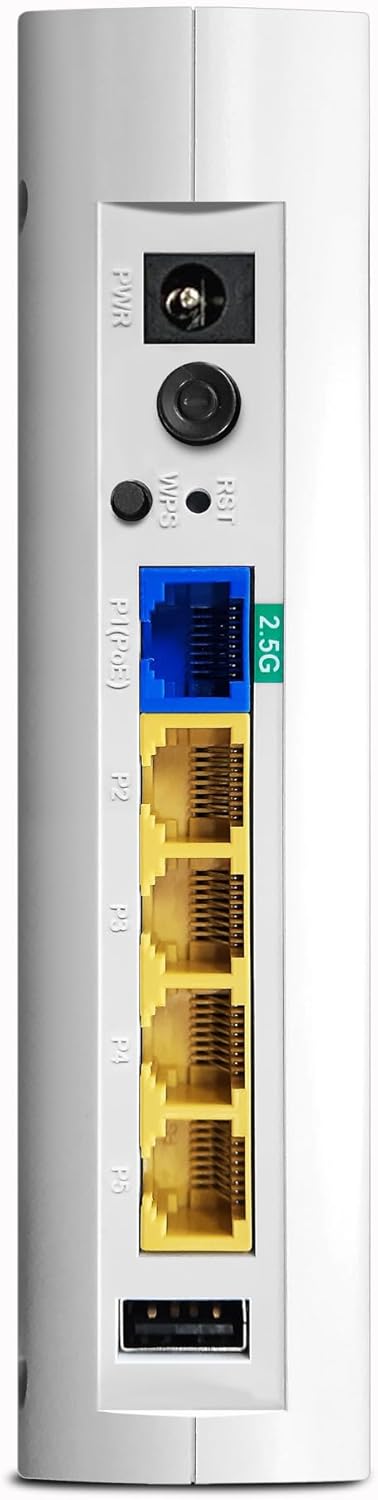

ചിത്രം 3: വിശദമായി view of the VigorAP 905's rear panel, highlighting the power port, reset/WPS buttons, 2.5G Ethernet port, and four standard Gigabit Ethernet ports.

2.3 പ്രാരംഭ കോൺഫിഗറേഷൻ

After physical installation, the VigorAP 905 requires initial configuration. Refer to the DrayTek official website or the included quick start guide for detailed instructions on accessing the web interface and setting up your Wi-Fi network (SSID, password, security settings).

• ആക്സസ് ചെയ്യുന്നു Web ഇൻ്റർഫേസ്: Typically, you connect a computer directly to one of the AP's LAN ports or connect wirelessly to its default SSID (usually printed on the device). Then, open a web browser and enter the default IP address (e.g., 192.168.1.1).
• ലോഗിൻ ക്രെഡൻഷ്യലുകൾ: Use the default username and password (also usually printed on the device or in the quick start guide) to log in.
• വിസാർഡ് സജ്ജീകരണം: Follow the on-screen wizard to configure basic settings such as Wi-Fi name (SSID), password, and security type (WPA3 recommended).

3. Operating the VigorAP 905

3.1 LED സൂചകങ്ങൾ

The VigorAP 905 features LED indicators on its front panel to provide status information:

• പവർ എൽഇഡി: ഉപകരണത്തിൻ്റെ പവർ സ്റ്റാറ്റസ് സൂചിപ്പിക്കുന്നു.
• WLAN LEDs: Indicate Wi-Fi activity for 2.4GHz and 5GHz bands.
• LAN LED-കൾ: Indicate activity on the Ethernet ports.
• Refer to the full user manual for a detailed explanation of each LED's behavior (e.g., solid, blinking, color).

ചിത്രം 4: കോണാകൃതിയിലുള്ളത് view of the VigorAP 905, highlighting the front panel with its array of LED indicators for various statuses.

3.2 വയർലെസ് കണക്റ്റിവിറ്റി

Once configured, devices can connect to the VigorAP 905 wirelessly using the configured SSIDs and passwords. The device supports Wi-Fi 6 (802.11ax) for enhanced performance and efficiency.

• ബന്ധിപ്പിക്കുന്ന ഉപകരണങ്ങൾ: On your wireless device (smartphone, laptop, tablet), search for available Wi-Fi networks, select your configured SSID, and enter the password.
• മെഷ് നെറ്റ്‌വർക്കിംഗ്: If you have multiple compatible VigorAPs, you can set up a mesh network for seamless roaming and extended coverage. Consult the DrayTek documentation for mesh setup procedures.

3.3 Wired Connectivity

The VigorAP 905 provides five Ethernet ports for wired connections:

• P1 (2.5G Ethernet/PoE): Primary uplink to your network, supporting 2.5 Gigabit speeds and Power over Ethernet.
• P2-P5 (Gigabit Ethernet): Standard Gigabit Ethernet ports for connecting wired devices.

4. പരിപാലനം

Regular maintenance ensures optimal performance and longevity of your VigorAP 905.

• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Periodically check the DrayTek website for new firmware versions. Updating firmware can provide new features, performance improvements, and security patches.
• വൃത്തിയാക്കൽ: Keep the device clean and free from dust. Use a soft, dry cloth. Do not use liquid cleaners.
• വെൻ്റിലേഷൻ: Ensure the device has adequate ventilation to prevent overheating. Do not block ventilation holes.
• ബാക്കപ്പ് കോൺഫിഗറേഷൻ: Regularly back up your device's configuration settings through the web interface. This allows for quick restoration in case of a reset or replacement.

5. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your VigorAP 905.

5.1 No Power / LEDs Off

• പവർ കണക്ഷൻ പരിശോധിക്കുക: Ensure the power adapter is securely connected to the AP and the electrical outlet.
• ഔട്ട്‌ലെറ്റ് പരിശോധിക്കുക: ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റ് പ്രവർത്തിക്കുന്നുണ്ടെന്ന് സ്ഥിരീകരിക്കാൻ മറ്റൊരു ഉപകരണം ഉപയോഗിച്ച് പരിശോധിക്കുക.
• PoE Check: If using PoE, ensure your PoE switch or injector is powered on and providing power.

5.2 വൈഫൈയിലേക്ക് കണക്റ്റുചെയ്യാൻ കഴിയില്ല

• Check SSID and Password: Verify that you are selecting the correct Wi-Fi network name (SSID) and entering the correct password. Passwords are case-sensitive.
• AP Status: Check the WLAN LEDs on the AP. If they are off, the Wi-Fi might be disabled or the AP is not functioning correctly.
• Reboot AP: Power cycle the VigorAP 905 by unplugging and re-plugging the power adapter.
• ദൂരം/ഇടപെടൽ: Move closer to the AP or check for sources of interference (e.g., microwaves, cordless phones).

5.3 കുറഞ്ഞ വൈ-ഫൈ വേഗത

• ചാനൽ ഇടപെടൽ: Use the AP's web interface to perform a site survey and select a less congested Wi-Fi channel.
• സിഗ്നൽ ശക്തി: Ensure your device has a strong Wi-Fi signal. Obstacles like walls can degrade performance.
• ഉപകരണങ്ങളുടെ എണ്ണം: Too many devices connected to the AP can impact performance.
• ഫേംവെയർ: Ensure the AP is running the latest firmware.

5.4 ആക്‌സസ് ചെയ്യാൻ കഴിയില്ല Web ഇൻ്റർഫേസ്

• IP വിലാസം: Confirm you are using the correct IP address for the AP. If the AP is connected to a router, it might have received a dynamic IP address.
• നെറ്റ്വർക്ക് കണക്ഷൻ: Ensure your computer is connected to the same network as the AP (either directly via Ethernet or wirelessly).
• ഫയർവാൾ/ആന്റിവൈറസ്: നിങ്ങളുടെ കമ്പ്യൂട്ടറിലെ ആക്‌സസ് തടഞ്ഞേക്കാവുന്ന ഏതെങ്കിലും ഫയർവാൾ അല്ലെങ്കിൽ ആന്റിവൈറസ് സോഫ്റ്റ്‌വെയർ താൽക്കാലികമായി പ്രവർത്തനരഹിതമാക്കുക.
• ഫാക്ടറി പുന et സജ്ജമാക്കുക: As a last resort, perform a factory reset by pressing and holding the reset button for several seconds (refer to the full manual for exact duration). Note: This will erase all configurations.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

7.1 വാറൻ്റി വിവരങ്ങൾ

DrayTek products typically come with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official DrayTek website for specific warranty terms and conditions applicable to the VigorAP 905.

7.2 സാങ്കേതിക പിന്തുണ

For technical assistance, product registration, or to download the latest drivers and firmware, please visit the official DrayTek support website. You may also find helpful resources, FAQs, and community forums there.

ഡ്രെയ്‌ടെക് ഔദ്യോഗികം Webസൈറ്റ്: www.draytek.com
