The Dogtra ARC-X E-Collar is a state-of-the-art remote training system designed for effective and humane dog training. Featuring a slim, ergonomic design, this collar is suitable for dogs 15 lbs and up, offering a 3/4 mile range and 100 levels of stimulation, along with vibration and tone options. Its IPX9K waterproof rating ensures durability in various environments.
Image: The Dogtra ARC-X E-Collar system, showcasing the remote transmitter and the slim receiver collar, packaged together.
പ്രധാന സവിശേഷതകൾ:
- അവസാനം വരെ രൂപകൽപ്പന ചെയ്തത്: Double-layered remote casing and IPX9K waterproof rating for extreme durability.
- സ്ലിം ഡിസൈൻ: 30% slimmer than previous models, weighing only 2.75 oz, with a curved receiver for comfortable fit.
- വിപുലീകരിച്ച ശ്രേണി: Reliable 3/4 mile range, ideal for open spaces and off-leash training.
- Multi-Dog Capability: Expandable to train up to 3 dogs with a single remote.
- വൈവിധ്യമാർന്ന പരിശീലന രീതികൾ: Offers Nick, Continuous, and XPP Vibration with 100 stimulation levels.
- മെച്ചപ്പെടുത്തിയ സുരക്ഷ: Features Boost and Level Lock for precise control.
- ദൃശ്യപരത: Integrated LED beacon light and audible tone for low-light conditions.
- USB-C ചാർജിംഗ്: Convenient and modern charging solution.
സജ്ജീകരണ ഗൈഡ്
1. പാക്കേജ് ഉള്ളടക്കം:
- ARC-X Remote Transmitter
- ARC-X Receiver Collar
- Battery Charger (USB-C cable and adapter)
- ടെസ്റ്റ് ലൈറ്റ്
- ഉടമയുടെ മാനുവൽ
2. യൂണിറ്റുകൾ ചാർജ് ചെയ്യുന്നു:
Before first use, fully charge both the remote transmitter and the receiver collar. Connect the USB-C charging cable to the charging ports on both units and plug the adapter into a standard wall outlet. The indicator lights will show charging status and turn solid when fully charged. Charging typically takes approximately 2 hours.
Care Instructions: Charge fully before first use.
3. Fitting the Receiver Collar:
Proper fit of the receiver collar is crucial for effective operation. The contact points must have direct contact with the dog's skin. To ensure a good fit:
- Center the receiver under the dog's neck, with the contact points touching the skin.
- The collar should be snug enough to allow only one finger to fit between the strap and the dog's neck.
- Adjust the collar strap as needed. For dogs with thick coats, you may need to trim some hair around the contact points to ensure proper contact.
- Periodically check the fit to prevent skin irritation.
Image: A dog wearing the Dogtra ARC-X slim fit collar, highlighting its compact and discreet design. The collar weighs only 2.75 oz and is over 30% slimmer than the 1900X receiver collar.
ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the ARC-X receiver collar, illustrating its removable male contact points, XPP Vibration, LED E-Collar Light, Audible Tone, and Safety Level Lock features.
Operating the ARC-X
Remote Transmitter Functions:
The ARC-X remote transmitter is designed for intuitive control with clearly labeled buttons and a bright LCD screen.
Image: A user holding the Dogtra ARC-X remote control, demonstrating its ergonomic design and the customizable main button for effortless control during training.
- റിയോസ്റ്റാറ്റ് ഡയൽ: Located on top of the remote, this dial allows you to adjust the stimulation level from 0 to 100.
- നിക്ക് ബട്ടൺ: ഉത്തേജനത്തിന്റെ ഒറ്റ, ദ്രുത സ്പന്ദനം നൽകുന്നു.
- സ്ഥിരമായ ബട്ടൺ: Delivers continuous stimulation for up to 12 seconds, or as long as the button is pressed.
- XPP Vibration Button: Activates the Extreme Performance Pager (XPP) vibration mode.
- ടോൺ ബട്ടൺ: Emits an audible tone from the receiver collar.
- ലൈറ്റ് ബട്ടൺ കണ്ടെത്തുക: Activates the LED beacon light on the receiver collar for visibility in low light.
- ബൂസ്റ്റഡ് കോൺസ്റ്റന്റ്: Provides a higher level of constant stimulation, programmable for specific needs.
- സുരക്ഷാ ലെവൽ ലോക്ക്: ഉത്തേജന തലത്തിലുണ്ടാകുന്ന ആകസ്മിക മാറ്റങ്ങൾ തടയുന്നു.
- Receiver Selector Toggle: Allows selection of up to 3 dogs for multi-dog training.
- LCD സ്ക്രീൻ: Displays the current stimulation level, battery life, and selected dog.

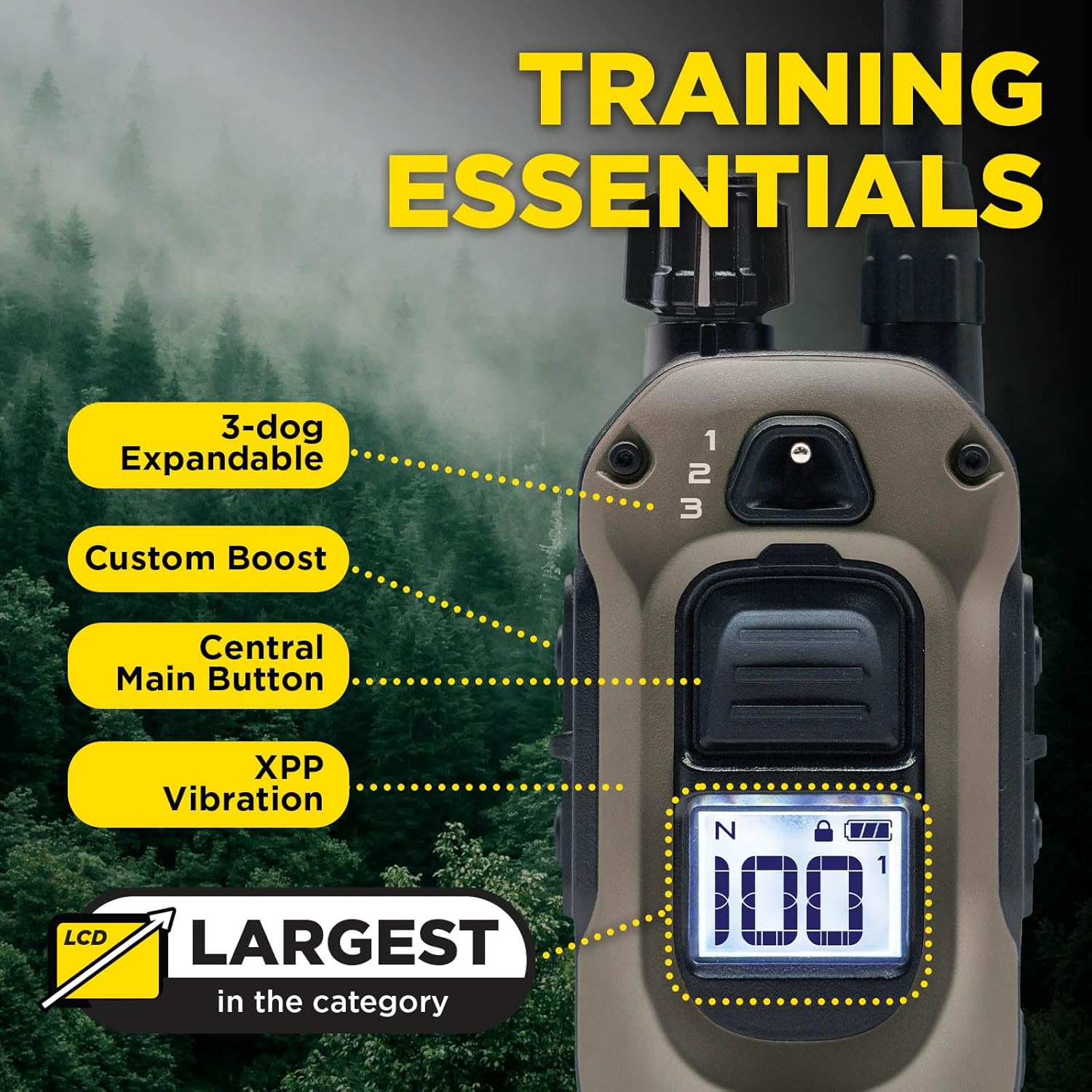

Image: A close-up of the Dogtra ARC-X remote, highlighting its large LCD screen displaying the stimulation level (100), and indicating features like 3-dog expandability, custom boost, central main button, and XPP Vibration.
പരിശീലന മോഡുകൾ:
The ARC-X offers various modes to suit different training needs:
- നിക്ക്: A very brief, single pulse of stimulation. Useful for quick corrections or gaining attention.
- സ്ഥിരാങ്കം: Continuous stimulation for up to 12 seconds. Use for more persistent behaviors or to reinforce commands.
- XPP Vibration: A non-stimulation pager vibration. Excellent for sensitive dogs or as a warning before stimulation.
- ടോൺ: An audible sound. Can be used as a positive reinforcement marker or a warning signal.
- ബൂസ്റ്റ്: Provides a higher level of stimulation than the set level, useful for high-distraction environments or stubborn dogs.
മെയിൻ്റനൻസ്
ശുചീകരണവും പരിചരണവും:
- Regularly clean the receiver collar and remote with a damp തുണി. കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക.
- Inspect the contact points for dirt or debris and clean as needed to ensure proper conductivity.
- For the Biothane collar strap, wipe clean with soap and water.
Battery Life and Storage:
- The ARC-X uses rechargeable Nonstandard Battery batteries.
- To prolong battery life, avoid storing the units in extreme temperatures.
- If storing for an extended period, ensure units are fully charged before storage and recharge periodically.
വാട്ടർപ്രൂഫ് റേറ്റിംഗ്:
The Dogtra ARC-X E-Collar boasts an IPX9K waterproof rating, meaning it is protected against close-range high-pressure, high-temperature spray downs. This makes it suitable for use in wet conditions, including rain, snow, and even submersion.
Image: Components of the Dogtra ARC-X remote casing, illustrating its double-layered protection designed for durability and resistance to drops.
Image: A dog running through water while wearing the Dogtra ARC-X collar, demonstrating its IPX9K fully waterproof capability.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your Dogtra ARC-X, please refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Collar not stimulating | Low battery; Improper fit; Contact points not touching skin; Remote not paired. | Charge units; Adjust collar fit; Ensure contact points are clean and making contact; Re-pair remote and receiver. |
| കുറഞ്ഞ പരിധി | Obstacles (trees, buildings); Low battery; Interference. | Move to an open area; Charge units; Avoid areas with strong electromagnetic interference. |
| ഇൻഡിക്കേറ്റർ ലൈറ്റ് പ്രവർത്തിക്കുന്നില്ല | Low battery; Unit turned off; Malfunction. | Charge unit; Turn unit on; Contact customer support if issue persists. |
| Skin irritation on dog's neck | Collar too tight; Worn for too long; Allergic reaction. | Loosen collar slightly; Do not leave collar on for more than 8-10 hours per day; Rotate collar position; Consult a veterinarian if irritation persists. |
കൂടുതൽ സഹായത്തിന്, ദയവായി വാറന്റി & പിന്തുണ വിഭാഗം പരിശോധിക്കുക.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | ARC-X |
| പരിധി | 3/4 മൈൽ |
| സ്റ്റിമുലേഷൻ ലെവലുകൾ | 100 (Nick, Constant, XPP Vibration, Tone) |
| വാട്ടർപ്രൂഫ് റേറ്റിംഗ് | IPX9K (റിസീവർ & റിമോട്ട്) |
| നായയുടെ വലിപ്പം ശുപാർശ | 15 പൗണ്ട് അല്ലെങ്കിൽ അതിൽ കൂടുതൽ |
| വിപുലീകരണക്ഷമത | 3 നായ്ക്കൾ വരെ |
| ബാറ്ററി തരം | Rechargeable Nonstandard Battery (included) |
| ഇനത്തിൻ്റെ ഭാരം | 1.43 pounds (overall package) |
| ഇനം പാക്കേജ് അളവുകൾ | 10.12 x 8.66 x 2.64 ഇഞ്ച് |
| മെറ്റീരിയൽ | ബയോതെയ്ൻ കോളർ സ്ട്രാപ്പ് |
| നിറം | Black & Beige |
Image: A comparison table detailing features like dog size suitability, e-collar size, range, correction output levels, and price across Dogtra 280X, ARC-X, and 1900X models.
വാറൻ്റി & പിന്തുണ
വാറൻ്റി വിവരങ്ങൾ:
The Dogtra ARC-X E-Collar comes with a 1 വർഷത്തെ പരിമിത വാറൻ്റി. സാധാരണ ഉപയോഗത്തിലുള്ള മെറ്റീരിയലുകളിലെയും നിർമ്മാണത്തിലെയും വൈകല്യങ്ങൾ ഈ വാറന്റി ഉൾക്കൊള്ളുന്നു. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
ഉപഭോക്തൃ പിന്തുണ:
For any questions, technical assistance, or warranty claims, please contact Dogtra's USA-based support team. Detailed contact information can be found in the included start guide instructions or on the official Dogtra webസൈറ്റ്.
