OSEE GoStream Duet 8 ISO Live Streaming Switcher User Manual

1. ആമുഖം

The OSEE GoStream Duet 8 ISO is an advanced 8-channel video switcher designed for professional live production environments. It offers extensive input compatibility, including 3G-SDI, 4K HDMI, NDI HX, USB webcams, SRT, RTMP, and direct web browser inputs. This versatility makes it suitable for a wide range of applications, from IP cameras and PTZ setups to camcorders and mirrorless cameras, eliminating the need for external converters.

This manual provides detailed instructions to help you set up, operate, and maintain your GoStream Duet 8 ISO switcher, ensuring optimal performance for your live streaming productions.

പ്രധാന സവിശേഷതകൾ

• 8 Inputs + ISO Recording: Simultaneously record all 8 input channels and the Program (PGM) output in high-quality MP4 (H.264) format. Includes built-in dual media players for instant video playback.
• പ്രൊഫഷണൽ ഓഡിയോ: Features two XLR inputs with 48V phantom power and studio-grade preamps (up to 75 dB gain), alongside 3.5mm mic support for various microphone types.
• Advanced Layouts & Graphics: Utilize SuperSource with 4 customizable windows, 2 Downstream Keyers (DSKs) for logos and lower-thirds, and 1 Upstream Keyer (USK) for green screen, Picture-in-Picture (PIP), and pattern effects.
• സുഗമമായ നിയന്ത്രണം: Offers auto-switching, integration with Stream Deck & Companion, a physical control panel with T-Bar, Preview (PVW)/Program (PGM) bus, macro and scene controls, and intuitive PC software for comprehensive management.

2. സജ്ജീകരണം

This section guides you through the initial setup of your GoStream Duet 8 ISO, including power connection, input/output connections, and software installation.

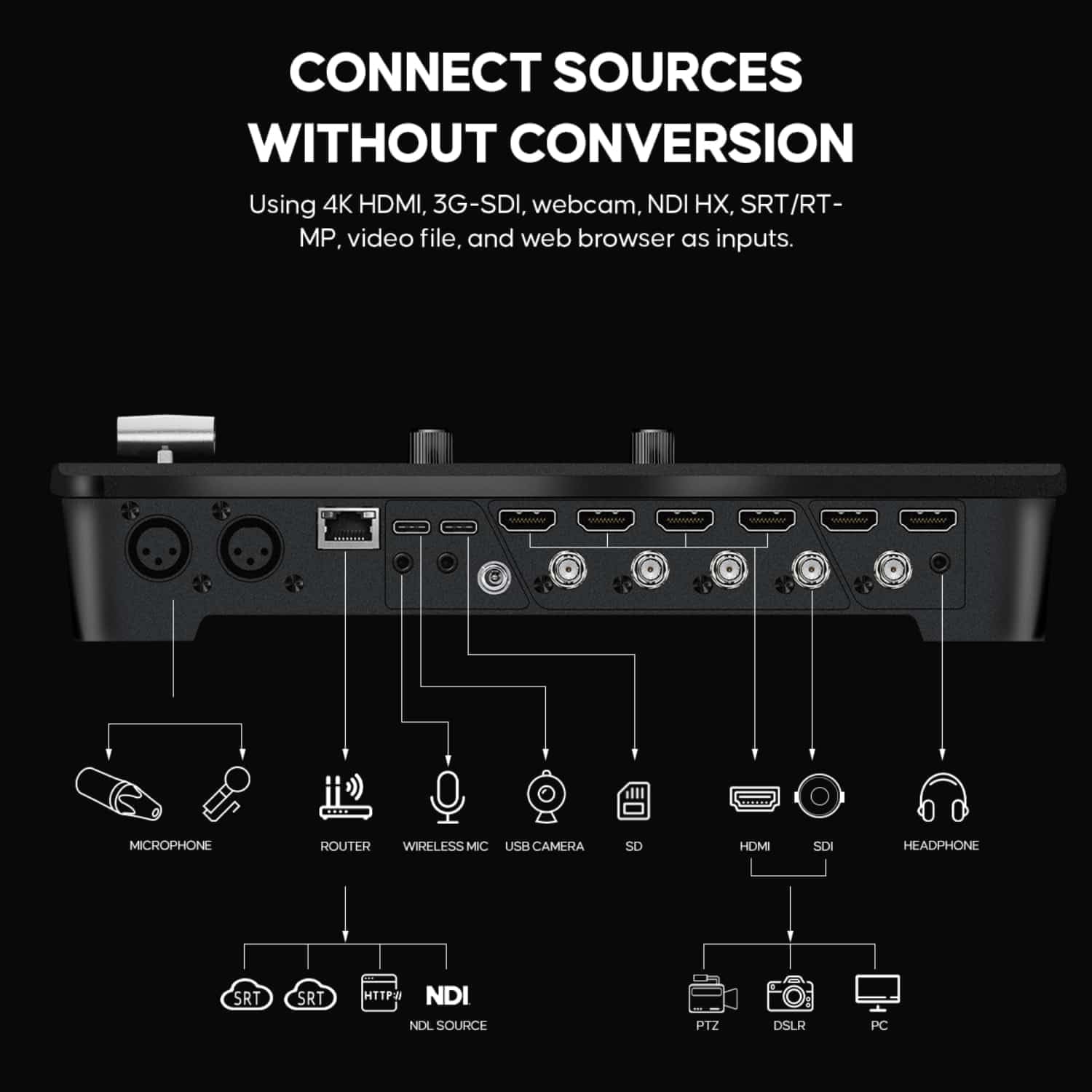

2.1. ഭൗതിക ബന്ധങ്ങൾ

Before powering on the device, ensure all necessary cables are securely connected.

• ശക്തി: Connect the provided power adapter to the DC input port on the rear panel and then to a power outlet.
• വീഡിയോ ഇൻപുട്ടുകൾ: Connect your video sources (cameras, computers, media players) to the available HDMI and SDI input ports. The GoStream Duet 8 ISO supports 4K HDMI and 3G-SDI.
• ഓഡിയോ ഇൻപുട്ടുകൾ: For professional audio, connect XLR microphones to the dedicated XLR inputs. For 3.5mm microphones, use the corresponding input.
• നെറ്റ്‌വർക്ക്: Connect an Ethernet cable from the LAN port to your network router for NDI HX, SRT, RTMP, and web browser inputs, as well as for PC software control.
• USB: Use the USB ports for connecting webcams or for data transfer.
• വീഡിയോ ഔട്ട്പുട്ടുകൾ: Connect your monitors or recording devices to the HDMI and SDI output ports for program and multi-view നിരീക്ഷണം.

2.2. സോഫ്റ്റ്‌വെയർ ഇൻസ്റ്റാളേഷൻ (ഓപ്ഷണൽ)

While the GoStream Duet 8 ISO can be operated via its physical panel, installing the intuitive PC software provides enhanced control and configuration options. Refer to the official OSEE website for the latest software downloads and installation instructions.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

This section covers the core functionalities of the GoStream Duet 8 ISO, from basic switching to advanced features.

3.1. വീഡിയോ സ്വിച്ചിംഗ്

The physical control panel allows for seamless switching between your video sources. Use the PVW (Preview) bus to select the next source to go live, and the PGM (Program) bus to select the source currently on air. The T-Bar or CUT/AUTO buttons can be used for transitions.

• PVW/PGM Bus: Press the numbered buttons under PVW to select a source for preview. Press the numbered buttons under PGM to immediately switch a source to the program output.
• ടി-ബാർ: Smoothly transition between the preview and program sources by moving the T-Bar.
• CUT Button: Performs an instant, hard cut between the preview and program sources.
• ഓട്ടോ ബട്ടൺ: Executes a pre-selected transition (e.g., dissolve, wipe) between the preview and program sources.

3.2. Audio Mixing

The GoStream Duet 8 ISO features an integrated audio mixer. Adjust audio levels for each input using the dedicated controls on the panel or via the PC software.

• XLR ഇൻപുട്ടുകൾ: Connect professional microphones. Ensure 48V phantom power is enabled if required by your condenser microphone.
• 3.5mm Mic Input: For connecting consumer-grade microphones or wireless mic receivers.
• ഓഡിയോ നിയന്ത്രണങ്ങൾ: Use the audio mixer section on the panel to adjust gain, volume, and mute individual audio sources.

3.3. Advanced Layouts and Graphics

• SuperSource: Create complex multi-window layouts with up to 4 customizable windows. This is ideal for panel discussions, news broadcasts, or online conferences. Configure SuperSource layouts using the PC software or dedicated panel buttons.
• DSK (Downstream Keyer): Overlay graphics such as logos, lower-thirds, or titles onto your program output. The GoStream Duet 8 ISO provides 2 DSKs for flexible graphic integration.
• USK (Upstream Keyer): Utilize the USK for chroma key (green screen) effects, Picture-in-Picture (PIP), or other pattern-based keying.

3.4. Recording and Streaming

• ISO Recording: The GoStream Duet 8 ISO can simultaneously record all 8 input channels and the final program output as individual MP4 (H.264) files. This allows for post-production flexibility.
• Media Players: Utilize the built-in dual media players to play back pre-recorded video clips or graphics during your live production.
• SRT/RTMP Streaming: Directly stream your program output to various platforms using SRT (Secure Reliable Transport) or RTMP (Real-Time Messaging Protocol). This feature also enables inviting remote guests worldwide.

4. പരിപാലനം

Proper maintenance ensures the longevity and reliable performance of your GoStream Duet 8 ISO.

• വൃത്തിയാക്കൽ: Regularly wipe the exterior of the unit with a soft, dry cloth. Avoid using abrasive cleaners or solvents. Ensure no liquids enter the device.
• വെൻ്റിലേഷൻ: Ensure the ventilation openings are clear and not obstructed to prevent overheating. Operate the device in a well-ventilated area.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Periodically check the official OSEE website for firmware updates. Firmware updates can provide new features, performance improvements, and bug fixes. Follow the instructions provided with the update package carefully.
• കേബിൾ മാനേജുമെന്റ്: Keep cables organized and free from kinks or excessive bending to prevent damage and ensure stable connections.

5. പ്രശ്‌നപരിഹാരം

This section provides solutions to common issues you might encounter with your GoStream Duet 8 ISO.

5.1. വീഡിയോ സിഗ്നൽ ഇല്ല

• കണക്ഷനുകൾ പരിശോധിക്കുക: Ensure all HDMI/SDI cables are securely connected to both the source and the switcher.
• Verify Source Output: Confirm that your video source (camera, computer) is powered on and outputting a signal. Try connecting the source directly to a monitor to verify its output.
• ഇൻപുട്ട് ഫോർമാറ്റ്: Ensure the input signal format (resolution, frame rate) is supported by the GoStream Duet 8 ISO. Refer to the specifications.
• Select Correct Input: Make sure you have selected the correct input channel on the switcher's control panel or software.

5.2. No Audio Output

• Check Audio Levels: Verify that the audio levels for the active input are not muted or set too low on the switcher.
• മൈക്രോഫോൺ കണക്ഷൻ: Ensure microphones are properly connected to the XLR or 3.5mm inputs. If using condenser mics, confirm 48V phantom power is enabled.
• ഉറവിട ഓഡിയോ: If audio is embedded in HDMI/SDI, ensure the source device is outputting audio.
• Putട്ട്പുട്ട് ഉപകരണം: Check the audio connection to your monitoring device (headphones, speakers) and its volume.

5.3. നെറ്റ്‌വർക്ക് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ

• ഇഥർനെറ്റ് കേബിൾ: Ensure the Ethernet cable is securely connected to the LAN port and your router/network switch.
• നെറ്റ്‌വർക്ക് ക്രമീകരണങ്ങൾ: Verify IP address settings (DHCP or static) on the switcher and your controlling PC.
• ഫയർവാൾ: Check if your computer's firewall is blocking communication with the switcher's software.
• റൂട്ടർ സ്റ്റാറ്റസ്: Confirm your router is functioning correctly and providing network access.

5.4. ഉപകരണം പ്രതികരിക്കുന്നില്ല

• പവർ സൈക്കിൾ: Disconnect the power adapter, wait 10 seconds, and then reconnect it.
• ഫേംവെയർ: Ensure the device is running the latest firmware.
• ഫാക്ടറി പുന et സജ്ജമാക്കുക: As a last resort, consult the OSEE support documentation for instructions on performing a factory reset. Note that this will erase all custom settings.

6 സ്പെസിഫിക്കേഷനുകൾ

Below are the technical specifications for the OSEE GoStream Duet 8 ISO Live Streaming Switcher.

7. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the documentation included with your purchase or visit the official OSEE webസൈറ്റ്. വാറന്റി നിബന്ധനകളും വ്യവസ്ഥകളും പ്രദേശത്തിനും റീട്ടെയിലർക്കും അനുസരിച്ച് വ്യത്യാസപ്പെടാം.

If you encounter issues not covered in this manual or require further assistance, please contact OSEE customer support. Have your product model (GoStream Duet 8 ISO) and serial number ready when contacting support.

നിർമ്മാതാവ്: ഒഎസ്ഇഇ

For the most up-to-date support resources, including FAQs, software downloads, and contact information, please visit the official OSEE support page.
