ഓർടൂർ R2 ലേസർ എൻഗ്രേവർ ആൻഡ് കട്ടർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective operation of your Ortur R2 Laser Engraver and Cutter. The Ortur R2 is a smart 20W machine designed for engraving and cutting various materials, including wood and metal. Please read this manual thoroughly before using the device.

Figure 1: Ortur R2 Laser Engraver and Cutter with its accompanying 40L Air Assist Pump.

2 സുരക്ഷാ വിവരങ്ങൾ

The Ortur R2 is a Class 1 laser product, meaning it is designed with safety features to prevent exposure to laser radiation during normal operation. However, it is crucial to adhere to all safety guidelines to ensure safe use.

• Always operate the device in a well-ventilated area.
• Do not attempt to bypass or disable any safety features.
• Ensure the enclosure is properly closed during operation.
• The built-in flame detection system will automatically shut off power if unusual heat or flames are detected. Do not interfere with this system.
• ഓപ്പറേഷൻ ഏരിയയിൽ നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.
• Refer to local regulations for proper disposal of materials and waste.

Figure 2: The Ortur R2 is a Class 1 Safety Certified device, ensuring a high level of user protection.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

The Ortur R2 Laser Engraver and Cutter incorporates several advanced features for enhanced performance and user experience:

• Plug-and-Play Minimalist Experience: Designed for immediate use with no complex installation required. Simply connect power to begin.
• 20W TOP Cutting Capability: This laser engraver offers powerful cutting capabilities, comparable to industrial CNC cutters. It can cut 10mm basswood plywood, 15mm pine board, and 8mm black acrylic in a single pass.

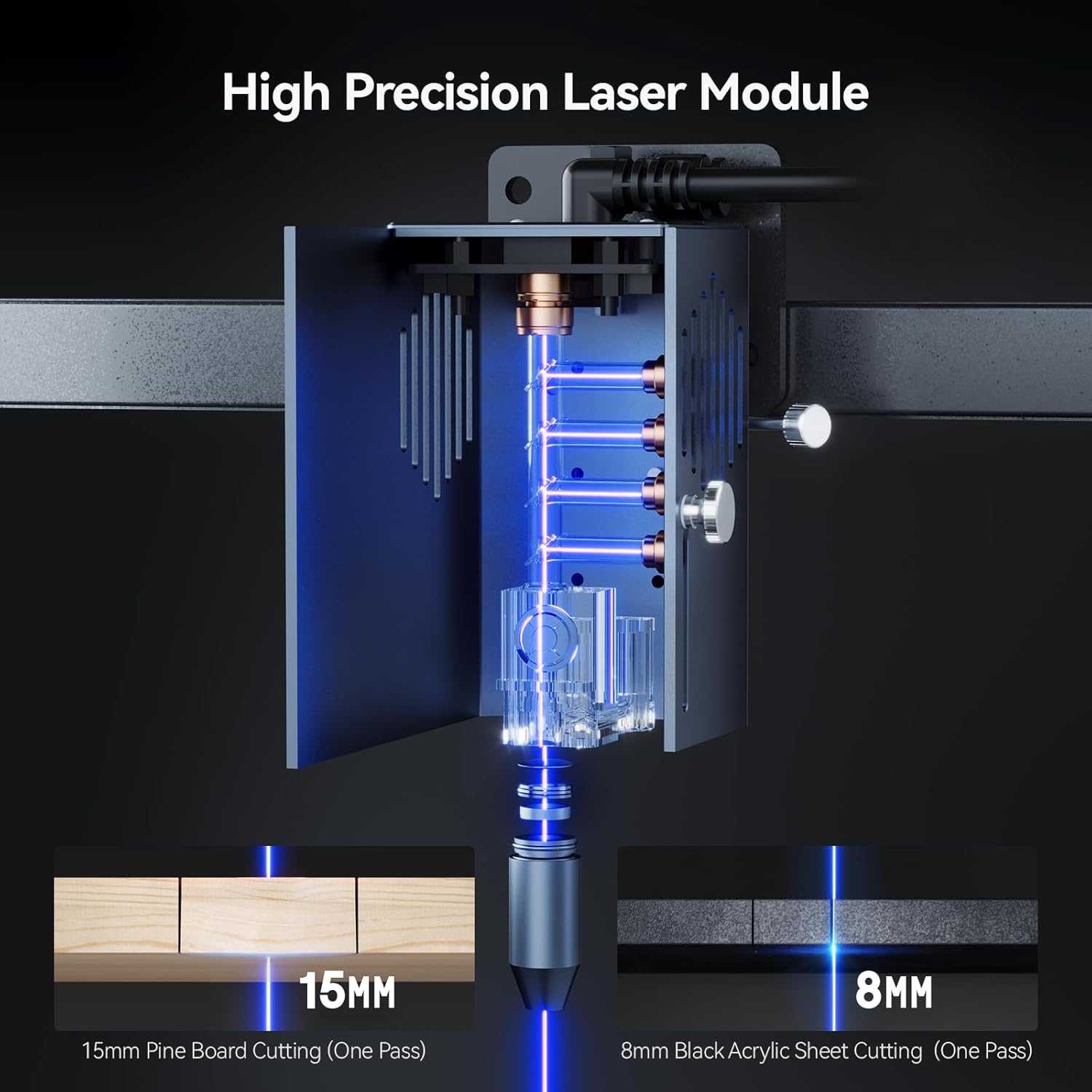

  Figure 3: The high-precision laser module demonstrating its ability to cut 15mm pine board and 8mm black acrylic in one pass.

• APP with Built-in AI Assist Function: The companion application features AI algorithms to optimize images for engraving, reducing design barriers. It supports hand-drawn engraving, a puzzle mode for customizable designs, and QR code generation from text, photos, or videos for permanent engraving.

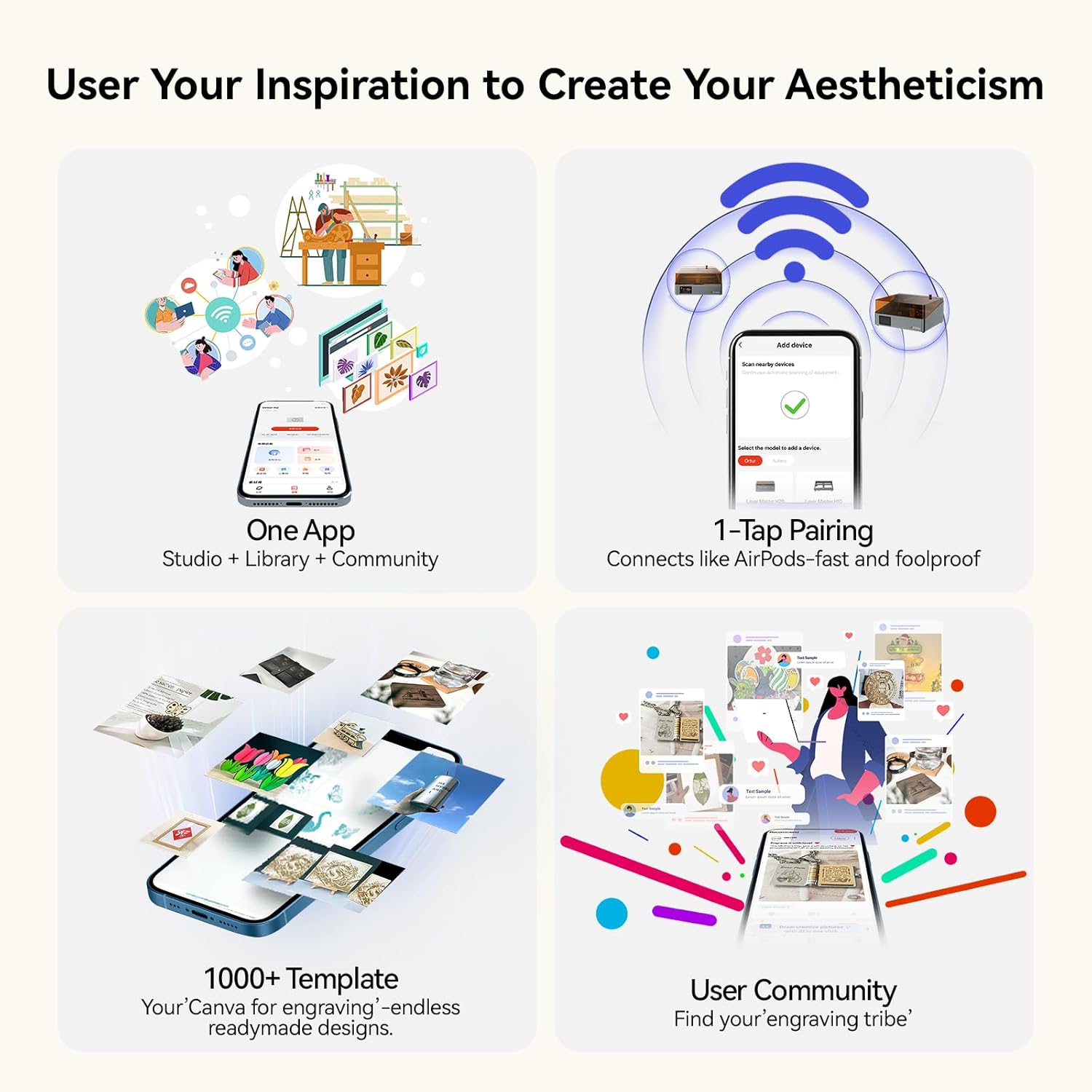

  ചിത്രം 4: ഓവർview of the Ortur R2 mobile application, highlighting its one-app solution, 1-tap pairing, extensive template library, and user community features.



  Figure 5: The AI-powered engraving assistant within the Ortur R2 app, showing how it enhances image suitability for engraving.
• Smart Camera for Enhanced Precision: An HD full-frame camera provides a clear view of the workspace, allowing precise positioning of designs by dragging and dropping them onto the material.
• Visual High-definition Display Screen: Real-time monitoring of device status, supporting self-checks and offline processing. The device preserves engraving history across devices for seamless batch production.
• Flip-UP Touch Screen: Offers ergonomic comfort and viewing flexibility, allowing users to find the perfect angle for productive work.
• Military-grade Safety Protection System: Includes a built-in flame detection system that instantly shuts off power upon detecting unusual heat or flames.
• 40L Air Assist Pump: Equipped with a dedicated air assist pump to improve cutting precision and efficiency.
• Engraving Performance: Features an engraving stroke of 11.81" x 8.26" (300 x 190mm) and a super engraving efficiency of 20000mm/min. The laser spot size is 0.01mm.


  ചിത്രം 6: വിശദമായി view of the Ortur R2's engraving area, speed, HD camera position, and precise laser spot size.

4. സജ്ജീകരണം

The Ortur R2 is designed for a minimalist setup. Follow these steps to prepare your device for operation:

1. അൺബോക്സിംഗ്: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. പാക്കിംഗ് ലിസ്റ്റിൽ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
2. പ്ലേസ്മെൻ്റ്: Place the Ortur R2 on a stable, level surface in a well-ventilated area, away from flammable materials. Ensure adequate space around the machine for air circulation and access.
3. പവർ കണക്ഷൻ: Connect the power adapter to the device and then to a suitable power outlet.
4. Air Assist Pump Connection: Connect the 40L air assist pump to the designated port on the Ortur R2. Ensure the hose is securely attached.
5. പ്രാരംഭ പവർ ഓൺ: Press the power button to turn on the device. The high-definition display screen will illuminate.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Operating the Ortur R2 involves preparing your design, setting up the material, and initiating the engraving or cutting process.

5.1 മെറ്റീരിയൽ തയ്യാറാക്കൽ

• Place the material to be engraved or cut securely within the working area of the machine.
• Ensure the material is flat and properly aligned.
• The Ortur R2 can engrave and cut a wide range of materials, including but not limited to:
  • Wood (basswood, pine, plywood)
  • അക്രിലിക്
  • Metal (for engraving)
  • മുള
  • റബ്ബർ
  • തോന്നി
  • പേപ്പർ
  • സെറാമിക്സ് (കൊത്തുപണികൾക്കായി)
  • Stainless Steel (for engraving)
  • Slate Stone (for engraving)
  • ഗ്ലാസ് (കൊത്തുപണികൾക്ക്)
  • Cake (for engraving)
  • Aluminum (for engraving)
  • തുകൽ


  ചിത്രം 7: ഉദാamples of various materials that can be processed by the Ortur R2 for cutting and engraving applications.

5.2. Design and Operation

• APP ഉപയോഗിക്കുന്നത്:
  • Download and install the Ortur R2 companion application on your mobile device.
  • Pair your device with the Ortur R2 via the app (1-tap pairing).
  • Import or create your design within the app. Utilize AI assist functions for image optimization, hand-drawn engraving, or puzzle mode.
  • Use the smart camera preview to drag and drop your design precisely onto the material on screen.
  • Adjust laser power, speed, and passes as needed for your material.
  • Initiate the engraving/cutting process from the app.
• Offline Processing:
  • Designs can be prepared and saved to the device for offline operation.
  • Use the visual high-definition display screen to select and start saved projects without needing a connected device.
  • The flip-up touch screen provides ergonomic control and monitoring.


    Figure 8: The Ortur R2's display screen allows for offline operation and is designed for comfortable viewing whether standing or sitting.

• നിരീക്ഷണം: Monitor the progress of your engraving/cutting job via the display screen or the app. The flame detection system provides an additional layer of safety during operation.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your Ortur R2. Always power off and unplug the device before performing any maintenance.

• ലേസർ ലെൻസ് വൃത്തിയാക്കൽ: Periodically inspect and gently clean the laser lens with a lint-free cloth and appropriate lens cleaning solution. Dust and debris can affect laser performance.
• Cleaning the Working Area: Remove any debris, dust, or material scraps from the engraving bed after each use.
• Air Assist Pump: Ensure the air assist pump is free from obstructions and operating correctly. Refer to the pump's specific manual for maintenance if provided separately.
• പൊതുവായ ശുചീകരണം: മെഷീനിന്റെ പുറംഭാഗം മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. കഠിനമായ രാസവസ്തുക്കൾ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.

7. പ്രശ്‌നപരിഹാരം

This section provides solutions to common issues you might encounter. If the problem persists, please contact Ortur customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official Ortur webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങലിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

കൂടുതൽ സഹായത്തിന്, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് Ortur Official Webസൈറ്റ് or contact their support team through the contact information provided on their site.
