ആമുഖം
This manual provides detailed instructions for the safe and effective use of your OLIGHT Baldr Pro R Tactical Weaponlight and i3E EOS EDC Flashlight. Please read this manual thoroughly before operation and retain it for future reference.
ഉൽപ്പന്നം കഴിഞ്ഞുview
OLIGHT Baldr Pro R
The Baldr Pro R is a high-performance tactical weaponlight featuring both a white LED and a green laser. It is designed for compatibility with GL and Picatinny rails, offering robust performance and versatile lighting options.
- White LED Output: Up to 1350 lumens.
- ഗ്രീൻ ലേസർ: Integrated for precise targeting.
- മോഡ് സെലക്ടർ റിംഗ്: Easily switch between white light only, green beam only, or combined modes.
- Ambidextrous Rear Switches: For momentary-on or constant-on activation.
- അനുയോജ്യത: Fits both GL rail and Picatinny rail systems.
- ജല പ്രതിരോധം: IPX4 rated (splash resistant from every direction).
OLIGHT i3E EOS
The i3E EOS is a compact and powerful AAA EDC (Everyday Carry) flashlight. It features a PMMA TIR lens for a soft and balanced beam, making it ideal for daily tasks.
- ഔട്ട്പുട്ട്: 180 ല്യൂമൻസ്.
- ബാറ്ററി: Powered by a single AAA alkaline battery.
- ലെൻസ്: PMMA TIR lens producing a soft and balanced beam.
- ഡിസൈൻ: Double helix body knurling for enhanced grip.
- ജല പ്രതിരോധം: IPX8 waterproof (designed for use in heavy rain).

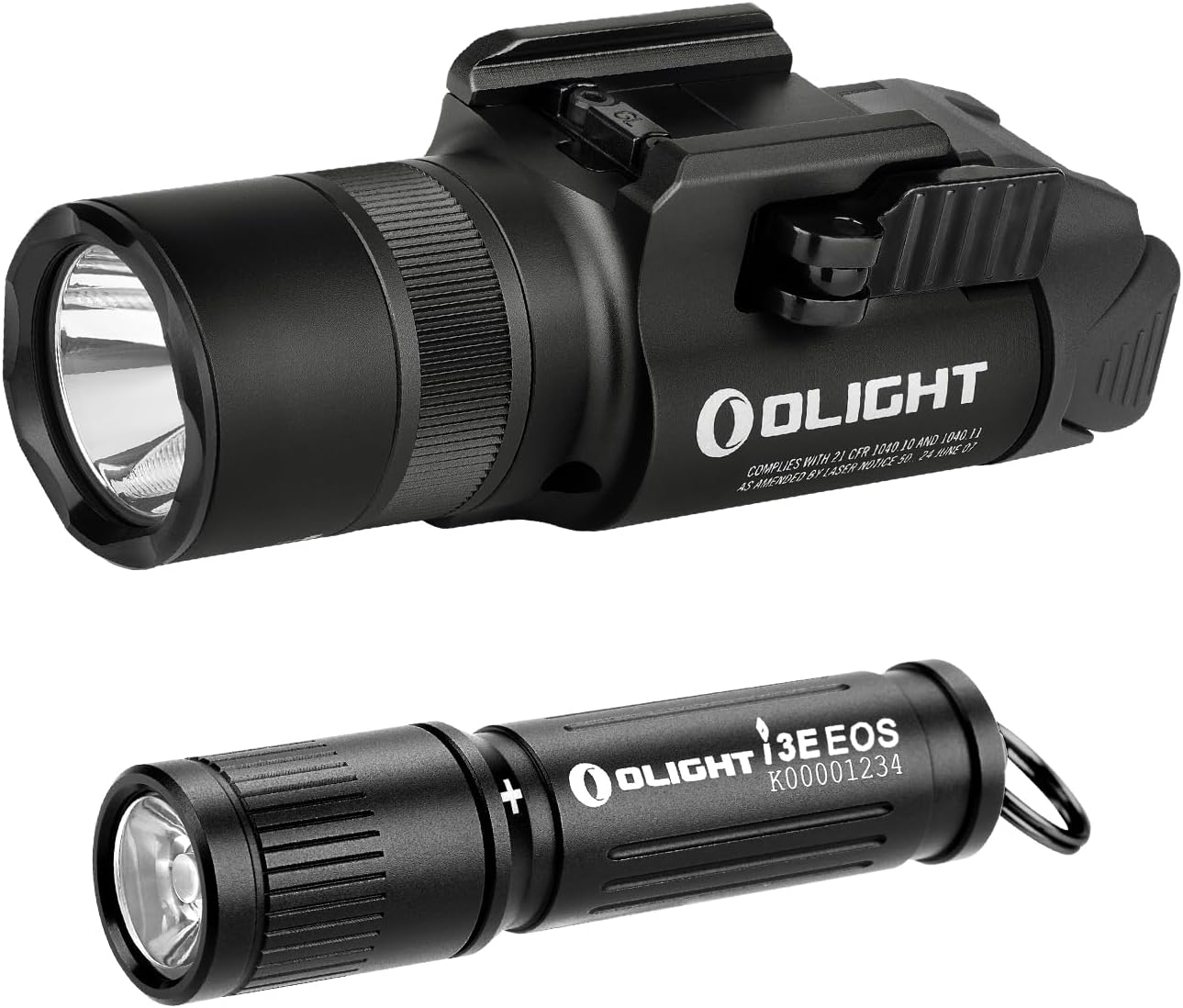

Image: The OLIGHT Baldr Pro R tactical weaponlight and the compact i3E EOS flashlight.
സജ്ജമാക്കുക
Baldr Pro R Initial Use & Installation
- First Use (Lockout Mode): The Baldr Pro R ships in lockout mode. To exit lockout mode, press and hold both rear switches simultaneously for approximately 2 seconds until the high white light or green laser beam activates.
- റെയിൽ അറ്റാച്ച്മെന്റ്:
- Identify the appropriate rail adapter (GL or Picatinny) for your firearm. The package includes adapters and an Allen wrench for installation.
- Loosen the screw on the light's mounting mechanism.
- Slide the light onto your firearm's rail.
- Tighten the screw securely using the provided Allen wrench to ensure a stable fit.
- Laser Adjustment: Use the small Allen wrench to adjust the laser's windage and elevation for precise aiming.
Image: Visual guide for exiting lockout mode on the Baldr Pro R by pressing both switches for 2 seconds.
Image: Illustrates the GL and Picatinny rail adapters for the Baldr Pro R.
i3E EOS Battery Installation
- Unscrew the head of the flashlight.
- Insert one AAA alkaline battery with the positive (+) end facing towards the head of the flashlight.
- Screw the head back on securely.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
OLIGHT Baldr Pro R
- പവർ ഓൺ/ഓഫ്: Press either of the ambidextrous rear switches for momentary-on. Press and release for constant-on.
- മോഡ് തിരഞ്ഞെടുക്കൽ: Rotate the mode selector ring located on the front of the light to choose between:
- White light only
- Green beam only
- White light and green beam combined
- സ്ട്രോബ് മോഡ്: Press both ambidextrous rear switches simultaneously to activate strobe mode.
Image: Close-up of the ambidextrous rear switches on the Baldr Pro R.
OLIGHT i3E EOS
- പവർ ഓൺ/ഓഫ്: Fully tighten the head to turn the flashlight on. Slightly loosen the head to turn it off.
Image: Demonstrates twisting the head of the i3E EOS to activate the light.
മെയിൻ്റനൻസ്
Baldr Pro R Charging
The Baldr Pro R features a magnetic charging port. Use the provided magnetic charging cable to recharge the device. Ensure the magnetic end of the cable is securely attached to the charging port on the underside of the light.
i3E EOS Battery Replacement
When the light output diminishes, replace the AAA alkaline battery by unscrewing the head, removing the old battery, and inserting a new one with the correct polarity.
ജനറൽ കെയർ
- Keep the lens clean to maintain optimal light output.
- Regularly check O-rings for wear and tear to ensure water resistance.
- Store the flashlights in a cool, dry place when not in use.
ട്രബിൾഷൂട്ടിംഗ്
- Baldr Pro R Not Turning On: Ensure the device is out of lockout mode (press and hold both switches for 2 seconds). Check battery charge level.
- i3E EOS Not Turning On/Dim Light: Ensure the head is fully tightened. Replace the AAA battery with a fresh one.
- Laser Not Visible/Misaligned: Adjust the laser using the provided Allen wrench for windage and elevation.
സ്പെസിഫിക്കേഷനുകൾ
OLIGHT Baldr Pro R
| ഫീച്ചർ | മൂല്യം |
|---|---|
| വെളുത്ത തെളിച്ചം | 1350 ല്യൂമെൻസ് |
| പ്രകാശ സ്രോതസ്സ് തരം | എൽഇഡി |
| പവർ ഉറവിടം | ബാറ്ററി പവർ |
| പ്രത്യേക ഫീച്ചർ | Adjustable Beam Focus, Mode Selector Ring |
| ജല പ്രതിരോധ നില | വാട്ടർപ്രൂഫ് (IPX4) |
| ഫിനിഷ് തരം | Knurled |
OLIGHT i3E EOS
| ഫീച്ചർ | മൂല്യം |
|---|---|
| തെളിച്ചം | 180 ല്യൂമെൻസ് |
| ബാറ്ററി തരം | AAA ആൽക്കലൈൻ |
| ജല പ്രതിരോധ നില | വാട്ടർപ്രൂഫ് (IPX8) |
ഉൽപ്പന്ന വീഡിയോകൾ
OLIGHT PL-3R Valkyrie Rechargeable Tactical Light Overview
വീഡിയോ: ഒരു ഉദ്യോഗസ്ഥൻview of the OLIGHT PL-3R Valkyrie, demonstrating its features and functionality. Note: This video is for a related product, the PL-3R Valkyrie, which shares similar features with the Baldr Pro R.
വാറൻ്റിയും പിന്തുണയും
For warranty information, technical support, or service inquiries, please visit the official OLIGHT webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
