ക്രിയാലിറ്റി ഫെററ്റ് പ്രോ 3D സ്കാനർ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The Creality Ferret Pro 3D Scanner is a versatile, handheld device designed for high-accuracy 3D scanning. It features 0.1mm accuracy, an RGB camera for true-to-life color capture, and a 30FPS scanning speed. Compatible with PC, iOS, and Android devices, it offers wireless connectivity via WiFi 6 and can scan challenging surfaces like black and metal without the need for scanning spray. This manual provides essential information for setting up, operating, and maintaining your Ferret Pro 3D Scanner.

2 സുരക്ഷാ വിവരങ്ങൾ

• ഉപകരണം പ്രവർത്തിപ്പിക്കുന്നതിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക.
• സ്കാനറിന്റെ പ്രകാശ സ്രോതസ്സിലേക്ക് നേരിട്ട് നോക്കരുത്.
• ഉപകരണം വെള്ളത്തിൽ നിന്നോ മറ്റ് ദ്രാവകങ്ങളിൽ നിന്നോ സൂക്ഷിക്കുക.
• Handle the scanner with care to avoid damage.
• പ്രവർത്തന സമയത്ത് ശരിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
• Use only manufacturer-approved accessories and power supplies.

3. പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Creality CR Scan Ferret Pro 3D Scanner
• USB കേബിൾ
• ഫോൺ ഹോൾഡർ
• ട്രൈപോഡ്
• ചുമക്കുന്ന കേസ്

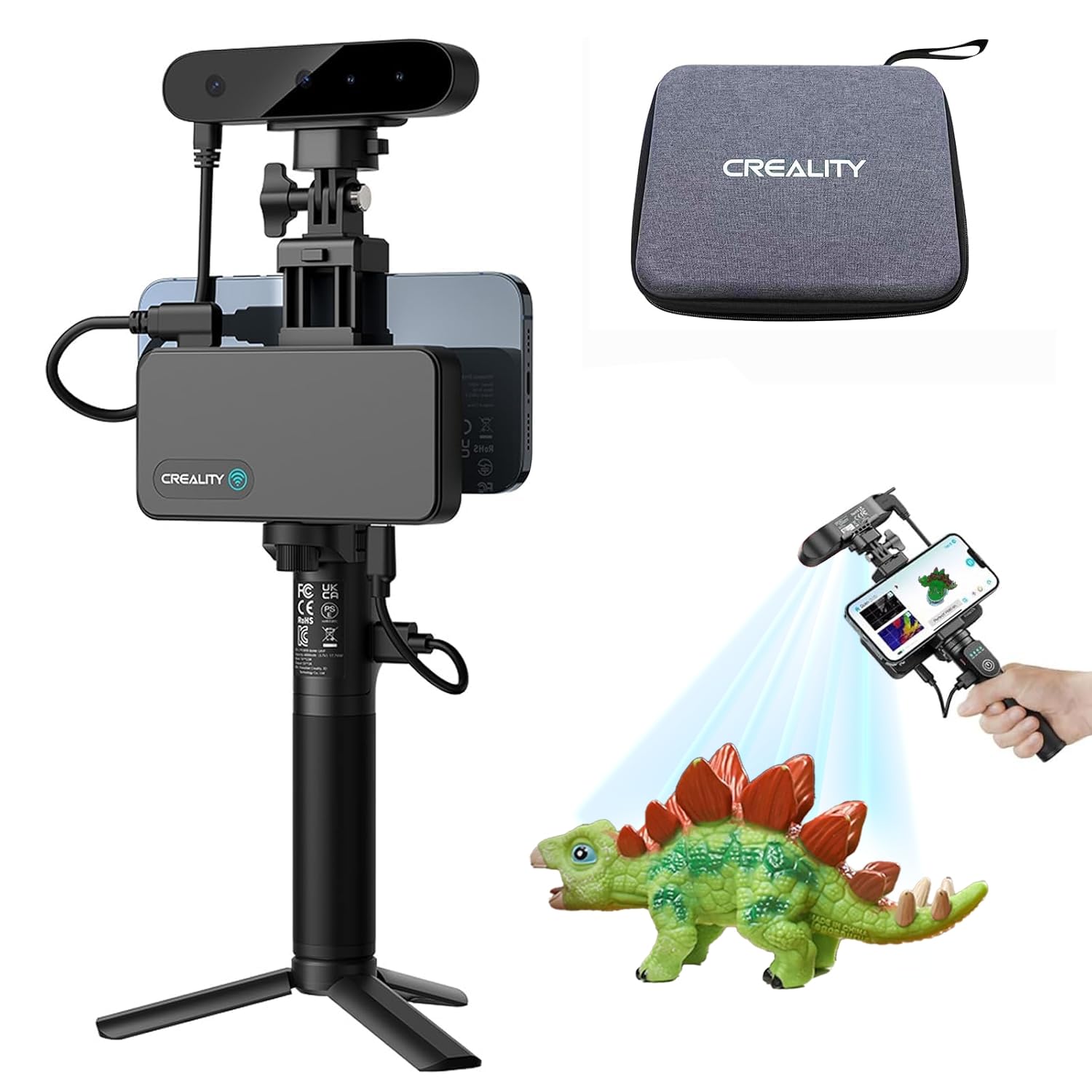

Image: Creality Ferret Pro 3D Scanner with its included accessories, demonstrating its portability and setup options.

4. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Ferret Pro 3D Scanner is engineered for precision and ease of use. Key features include:

• Pro-Grade Accuracy: Up to 0.1mm precision for detailed models.
• യഥാർത്ഥ നിറം: 2MP RGB camera for rich color and texture capture.
• Stable Scanning: Optical anti-shake tracking and smart exposure control for consistent results.
• വേഗത്തിലുള്ള ഫ്രെയിം നിരക്ക്: Up to 30FPS for smooth 3D scanning.
• ബഹുമുഖ അനുയോജ്യത: Connects wirelessly via WiFi 6 or USB to Windows, Mac, and Android devices. iPhone users connect via WiFi.
• ഒതുക്കമുള്ളതും കൊണ്ടുപോകാവുന്നതും: Weighs only 105g, making it easy to carry and use anywhere.

Image: The Creality CR-Scan Ferret Pro 3D Scanner, emphasizing its wireless capabilities, anti-shaking technology, and fast data transmission.

5. സജ്ജീകരണ ഗൈഡ്

5.1 സോഫ്റ്റ്‌വെയർ ഇൻസ്റ്റലേഷൻ

1. Download the latest Creality Scan software from the official Creality website or your device's app store (for iOS/Android).
2. Install the software on your PC, Mac, Android, or iOS device.

5.2 സ്കാനർ ബന്ധിപ്പിക്കുന്നു

• For PC/Mac/Android (USB): Connect the scanner to your device using the provided USB cable.
• For PC/Mac/Android/iOS (Wireless): Connect the scanner to your device via WiFi 6. Follow the on-screen instructions in the Creality Scan software for wireless pairing.

5.3 പ്രാരംഭ കാലിബ്രേഷൻ

Upon launching the software, follow any prompts for initial calibration to ensure optimal scanning performance.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

6.1 General Scanning Principles

To achieve the best scanning results, maintain an optimal distance between the scanner and the object. Move the scanner slowly and steadily. Rapid movements or quick rotations of the object can lead to tracking loss.

Video: This video demonstrates how to maintain optimal scanning distance and movement to prevent tracking loss during the 3D scanning process, showing an engine part being scanned.

6.2 സ്കാനിംഗ് മോഡുകൾ

The Ferret Pro offers different scanning modes to suit various object types:

• High-Quality Mode: Provides up to 0.1mm accuracy, ideal for capturing fine details on medium-sized objects (10-30 inches).
• Wide-Range Mode: Utilizes a dedicated 3D imaging ASIC chip for fast scanning of medium and large objects.

Image: Illustration of the scanner's multi-mode capabilities, including High-Quality mode for intricate details and Wide-Range mode for larger objects.

6.3 Scanning Challenging Surfaces

The Ferret Pro is equipped to handle surfaces that are typically difficult for 3D scanners:

• Black & Metal Surfaces: The built-in "dark mode" setting allows for scanning dark, black, or metallic surfaces without the need for scanning spray.

Image: The scanner capturing a black car tire, illustrating its capability to scan black and metal objects without requiring a scanning spray.

6.4 Outdoor Scanning

Engineered with optical anti-shake tracking and smart exposure control, the Ferret Pro delivers consistent results even in bright outdoor lighting conditions (up to 30,000 lux).

Image: A user scanning an eagle statue outdoors, highlighting the scanner's performance in various lighting conditions.

6.5 Using Markers for Scanning

For objects with few distinct geometric or textural features, using markers can significantly improve tracking stability and accuracy. This is particularly useful for small objects or those with uniform surfaces.

Video: An instructional video demonstrating the use of marker features for stable tracking during 3D scanning, showing a mug being scanned with markers.

Tips for Sticking Markers:

• Markers can be placed on the object's surface or on surrounding surfaces (e.g., a turntable) to aid tracking. Do not paste markers directly onto a turntable if the object itself has sufficient features.
• Ensure markers are stuck flat, without warping, folding, or overlapping.
• Maintain a distance greater than 10mm between markers and paste them irregularly to avoid creating a regular pattern.
• Avoid placing markers on the main features of the object. They are best used on large, flat, or curved surfaces lacking obvious features.
• Do not add markers while scanning is already in progress.

Scanning with Markers:

• In the Creality Scan software, select the 'Marker' feature option before starting a new scan.
• Ensure at least 4-6 valid marker points are visible in the scanner's frame for stable tracking.
• Move the scanner at a slow speed to prevent motion blur and image distortion, especially when scanning new areas with newly observed markers.

6.6 Exporting Models

After scanning and processing, your 3D models can be exported in common formats such as OBJ, STL, or PLY, making them compatible with most CAD, design, printing, and modeling software.

7. പരിപാലനം

• Regularly clean the scanner's lenses and sensors with a soft, dry cloth.
• Keep the scanner in its protective carrying case when not in use.
• Periodically check for and install software updates to ensure optimal performance and access to new features.

8. പ്രശ്‌നപരിഹാരം

• Tracking Loss: If tracking is lost (indicated by red areas in the software), return the scanner to its previous position and hold it steady for a few seconds to allow it to re-establish tracking. Ensure the object has sufficient features or markers.
• Insufficient Valid Scanned Points: Adjust the IR exposure manually or modify the scanning distance to ensure enough valid points are captured.
• കണക്ഷൻ പ്രശ്നങ്ങൾ: Verify that all cables are securely connected (for USB) or that your device is properly connected to the scanner's WiFi network (for wireless). Restart the software and scanner if necessary.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, technical support, and additional resources, please refer to the documentation included with your product or visit the official Creality website. You can also find community forums and FAQs for further assistance.
