GOKWH 12V 320Ah LiFePO4 ബാറ്ററി ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

Thank you for choosing the GOKWH 12V 320Ah LiFePO4 Battery. This high-performance deep cycle battery is engineered with Grade A prismatic LiFePO4 cells, offering exceptional longevity and reliability for various applications including RVs, trolling motors, and solar systems. With a built-in 200A Smart Battery Management System (BMS) and app monitoring capabilities, this battery provides stable, efficient, and safe power.

Figure 1.1: GOKWH 12V 320Ah LiFePO4 Battery. This image shows the main product with its branding and key specifications printed on the label.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety instructions before operating the battery. Failure to follow these instructions may result in serious injury, property damage, or voiding of the warranty.

• ചെയ്യരുത് reverse connections from charger to battery. Ensure correct polarity (+ to + and - to -) during all connections.
• ചെയ്യരുത് throw the battery into fire or incinerate it. LiFePO4 batteries can explode or release toxic gases when exposed to extreme heat.
• ചെയ്യരുത് expose the battery to temperatures above 70°C (158°F). High temperatures can damage the battery and pose a safety risk.
• ചെയ്യരുത് short circuit the battery terminals. This can cause high current flow, leading to heat, fire, or explosion.
• ചെയ്യരുത് disassemble the battery. The battery contains sensitive electronic components and chemicals. Disassembly can lead to electric shock, fire, or exposure to hazardous materials.
• ബാറ്ററി വെള്ളത്തിൽ നിന്നും ഈർപ്പത്തിൽ നിന്നും അകറ്റി നിർത്തുക.
• LiFePO4 ബാറ്ററികൾക്കായി രൂപകൽപ്പന ചെയ്ത അനുയോജ്യമായ ചാർജറുകൾ മാത്രം ഉപയോഗിക്കുക.
• Ensure adequate ventilation when charging or discharging the battery.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 പ്രധാന സവിശേഷതകൾ

• Ultra-Long Cycle Life: Engineered with Grade A prismatic LiFePO4 cells, providing over 8000 deep charge/discharge cycles at 80% Depth of Discharge (DOD), translating to 10+ years of dependable performance.
• Built-in 200A Smart BMS: Integrated Battery Management System ensures comprehensive protection including overcharge/over-discharge, overcurrent/short-circuit, and temperature monitoring.
• App Monitoring Support: Easily monitor real-time voltage, current, State of Charge (SOC), cycles, and more via a mobile app (iOS & Android supported).
• ഉയർന്ന പവർ ഔട്ട്പുട്ട്: 200A continuous discharge current supports heavy-duty devices like RV air conditioners, inverters up to 2400W, trolling motors, compressors, and solar generators.
• 4096Wh Energy Storage: Store and use up to 4096Wh of clean, stable power, ideal for off-grid systems, RVs, or emergency backup.
• ഭാരം കുറഞ്ഞ ഡിസൈൻ: Approximately 25kg (55.1 lbs) with a rugged case, making it easier to handle compared to lead-acid batteries.

3.2 ഘടകങ്ങൾ

The GOKWH 12V 320Ah LiFePO4 battery features a robust design with high-quality internal components.

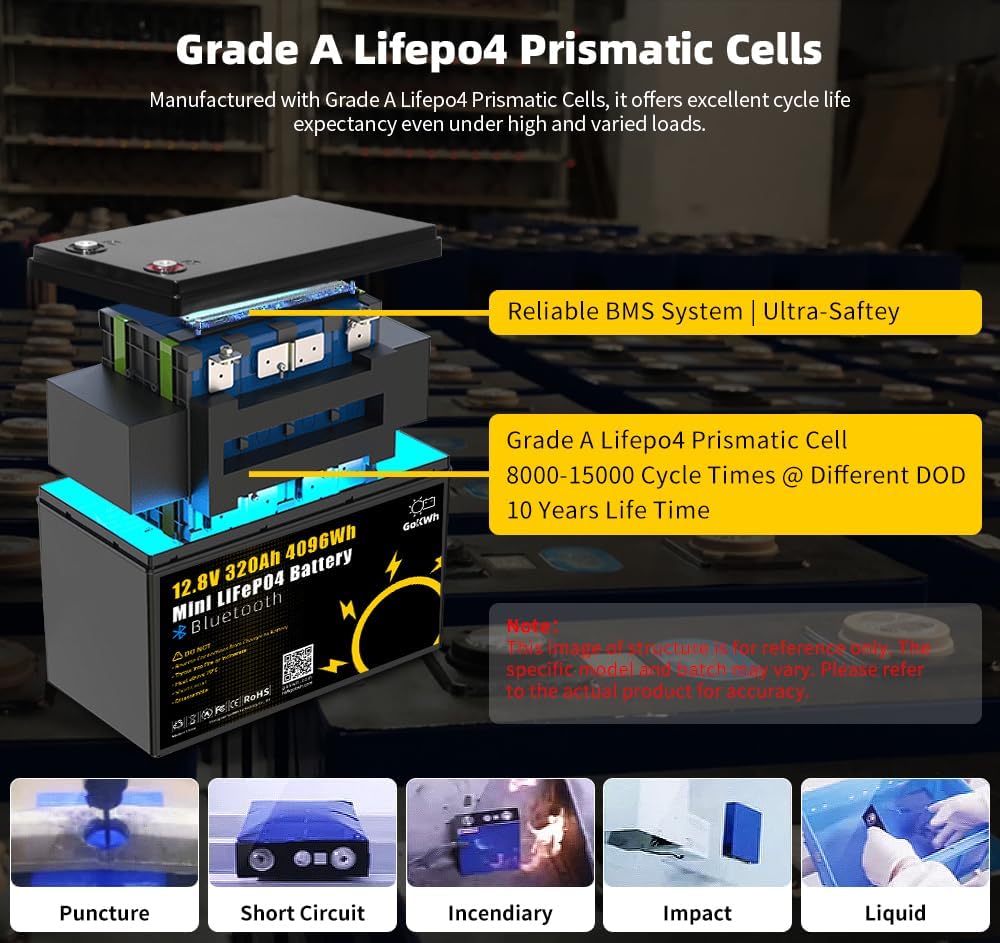

ചിത്രം 3.1: ആന്തരിക view highlighting the Grade A LiFePO4 Prismatic Cells and the Reliable BMS System. This image illustrates the internal components of the battery, showing the prismatic cells and the integrated Battery Management System (BMS) which ensures safety and performance.

Figure 3.2: Mini size LiFePO4 Battery with detailed dimensions. This image provides the physical dimensions of the battery, including length, width, and height, which are crucial for installation planning.

4. സജ്ജീകരണം

4.1 ഇൻസ്റ്റലേഷൻ

Install the battery in a clean, dry, and well-ventilated area. Ensure the battery is securely mounted to prevent movement or damage during operation. Avoid installing in direct sunlight or areas with extreme temperatures.

4.2 Wiring for Battery Bank Systems

The GOKWH 12V 320Ah battery can be configured in series or parallel to achieve higher voltage or capacity requirements.

• Parallel Connection (up to 4P): Connect batteries in parallel to increase total capacity while maintaining the same voltagഇ (12.8V). ഉദാample, 4 batteries in parallel yield 12.8V 1280Ah (16.384 kWh).
• Series Connection (up to 4S): Connect batteries in series to increase total voltage while maintaining the same capacity (320Ah). For example, 4 batteries in series yield 51.2V 320Ah (16.384 kWh).

Always use appropriate gauge cables and ensure all connections are tight and secure to prevent voltagഇ ഡ്രോപ്പ്, അമിത ചൂടാക്കൽ.

Figure 4.1: DIY Battery Bank System configurations. This diagram illustrates how to connect multiple batteries in parallel for increased capacity or in series for increased voltage, enabling flexible system design.

5. പ്രവർത്തിക്കുന്നു

5.1 ബാറ്ററി ചാർജ് ചെയ്യുന്നു

The GOKWH LiFePO4 battery can be recharged using various methods:

• ജനറേറ്റർ: Add a 20A DC to DC charger. Approximate charging time: 16 hours.
• സമർപ്പിത LiFePO4 ചാർജർ: Use a 12V (14.6V) 20A LiFePO4 battery charger. Approximate charging time: 16 hours.
• Solar Panel + MPPT: Recommend a solar panel of ≥400W with an MPPT charge controller. Approximate charging time: 2 sunny days.

Figure 5.1: Three ways to recharge the battery. This image illustrates different charging methods: using a generator, a dedicated charger, or a solar panel with an MPPT controller.

5.2 Discharging and Usable Energy

The battery provides 4096Wh of usable energy, suitable for a variety of home or outdoor devices. The 200A continuous discharge current supports high-power applications.

Figure 5.2: High Output Power and Usable Energy. This chart provides estimated run times for common outdoor and home backup appliances, demonstrating the versatility of the 4096Wh usable energy.

5.3 App Monitoring

The integrated Smart BMS allows for real-time monitoring of battery status via a mobile application. ഇതിനായി തിരയുക "Xiaoxiang Electric" or "Gorilla Lithium" in your app store (Google Play Store or Apple App Store) or scan the QR code on the product to download the app.

• Monitor real-time voltage, current, SOC (State of Charge), cycle count, and temperature.
• Access historical data and logs for performance analysis.

Figure 5.3: Built-in Smart App for battery monitoring. This image shows the mobile application interface, demonstrating how users can monitor various battery parameters in real-time.

6. പരിപാലനം

LiFePO4 batteries require minimal maintenance compared to lead-acid batteries. Follow these guidelines to ensure optimal performance and longevity:

• പതിവ് പരിശോധന: Periodically check battery terminals for corrosion or loose connections. Clean terminals if necessary.
• സംഭരണം: If storing the battery for an extended period, ensure it is charged to approximately 50% State of Charge (SOC) and stored in a cool, dry place. Avoid extreme temperatures.
• Avoid Deep Discharges: While LiFePO4 batteries can handle deep discharges, frequent extreme discharges can reduce overall cycle life.
• താപനില മാനേജ്മെൻ്റ്: Operate the battery within its specified temperature range. The BMS provides temperature protection, but avoiding extreme conditions is best practice.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your GOKWH LiFePO4 battery, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact GOKWH customer support for further assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the GOKWH 12V 320Ah LiFePO4 Battery:

9. വാറൻ്റിയും പിന്തുണയും

The GOKWH 12V 320Ah LiFePO4 Battery is designed for a long lifespan, with an expected 10+ years of dependable performance and 8000+ deep cycles. For specific warranty terms and conditions, please refer to the product documentation included with your purchase or visit the official GOKWH webസൈറ്റ്.

For technical support, troubleshooting assistance, or warranty claims, please contact GOKWH customer service through their official channels. You can find more information and contact details on the official webസൈറ്റ്: gokwh.com
