ആമുഖം
The iFi Audio GO Pod Max is a wearable lossless Bluetooth DAC designed to transform your In-Ear Monitors (IEMs) into a high-fidelity wireless stereo system. It features advanced audio technologies for superior sound quality and convenience, including aptX Lossless Bluetooth, K2HD processing, and a built-in UVC sterilization system for your IEMs.
ബോക്സിൽ എന്താണുള്ളത്
- GO Pod Max set (left and right units)
- ചാർജിംഗ് കേസ്
- 0.78mm 2-Pin Ear Loops (set)
- MMCX Ear Loops (set)
- USB-A to C Charging Cable
- Instruction Card / Quick Start Card

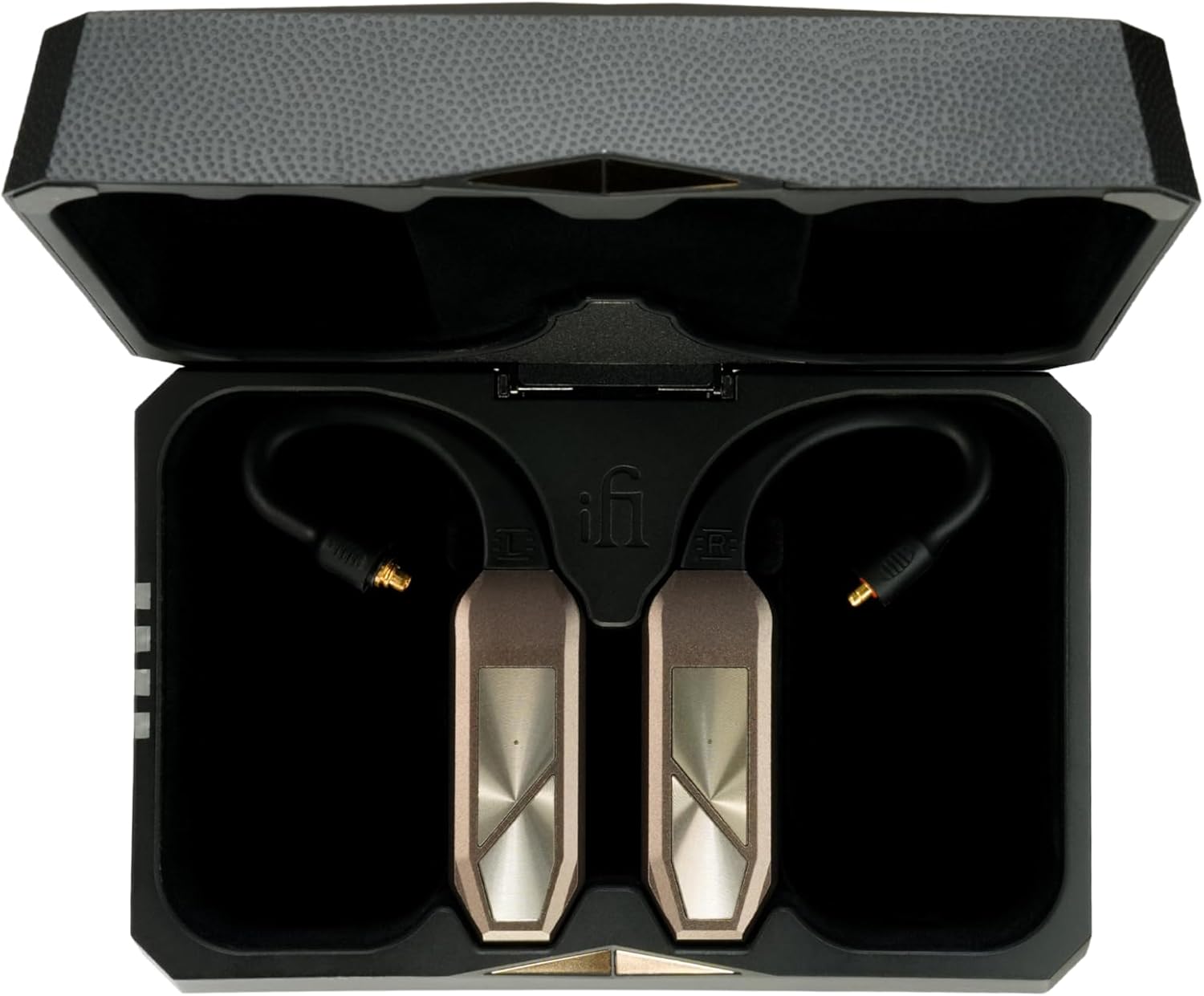

Image: The iFi Audio GO Pod Max units stored within their charging case, showcasing the compact design and storage solution.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The GO Pod Max consists of two main components: the wearable DAC units and the charging case. Each wearable unit integrates a Bluetooth receiver, DAC, and amplifier, designed to connect directly to your In-Ear Monitors (IEMs).
GO Pod Max Wearable Units
ചിത്രം: മുൻഭാഗം view of the left and right GO Pod Max wearable units, showing the main control surfaces and ear loops.
- നിയന്ത്രണ ബട്ടണുകൾ: Located on the front surface for playback, call management, and other functions.
- ഇയർ ലൂപ്പുകൾ: Flexible loops designed to fit over the ear, providing secure placement for connected IEMs.
- IEM Connectors: Interchangeable connectors (MMCX and 2-Pin 0.78mm) at the end of the ear loops for broad IEM compatibility.
- ചാർജിംഗ് കോൺടാക്റ്റുകൾ: Gold-plated contacts on the rear for charging within the case.
ചിത്രം: പിൻഭാഗം view of the left and right GO Pod Max wearable units, displaying the iFi logo and charging contacts.
ചിത്രം: വശം view of the GO Pod Max units, highlighting the profile ബട്ടൺ പ്ലെയ്സ്മെന്റും.
Image: A GO Pod Max unit with its ear loop detached, demonstrating the interchangeable connection system.
ചാർജിംഗ് കേസ്
Image: The GO Pod Max charging case shown open, with the units inside, illustrating the charging slots and UVC lights.
- ചാർജിംഗ് സ്ലോട്ടുകൾ: Custom-fit slots for the left and right GO Pod Max units.
- UVC Lights: Internal UVC lights for sterilizing connected IEMs during charging.
- യുഎസ്ബി-സി പോർട്ട്: കേസിന്റെ വയർഡ് ചാർജിംഗിനായി.
- Qi വയർലെസ് ചാർജിംഗ്: Supports wireless charging for convenience.
- ബാറ്ററി സൂചകം: LEDs on the case indicate battery status.
Image: The iFi Audio GO Pod Max charging case in its closed state, showcasing its sleek, geometric design.
സജ്ജമാക്കുക
1. Charging the GO Pod Max and Case
- പ്രാരംഭ ചാർജ്: Before first use, fully charge the GO Pod Max units and the charging case.
- കേസ് ചാർജ് ചെയ്യുന്നത്: Connect the supplied USB-A to C cable to the USB-C port on the charging case and to a USB power adapter (not included). Alternatively, place the case on a Qi-compatible wireless charging pad. The LED indicators on the case will show charging progress.
- Charging the GO Pod Max Units: Place the GO Pod Max units into their respective slots in the charging case. Ensure the charging contacts align. The units will begin charging automatically.
2. Connecting Your IEMs
The GO Pod Max comes with interchangeable ear loops to support both 0.78mm 2-Pin and MMCX IEM connectors.
- Select Ear Loops: Choose the ear loops that match your IEMs (0.78mm 2-Pin or MMCX).
- Attach Ear Loops: Gently attach the selected ear loops to the GO Pod Max units. Ensure a secure connection.
- Connect IEMs: Connect your IEMs to the corresponding connectors on the ear loops. Ensure the left (L) and right (R) channels are correctly matched.
3. ബ്ലൂടൂത്ത് ജോടിയാക്കൽ
- ജോടിയാക്കൽ മോഡ് നൽകുക: With the GO Pod Max units in the charging case, open the lid. The units will automatically enter pairing mode (indicated by a flashing LED on the units).
- ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കുക: On your source device (smartphone, tablet, computer), enable Bluetooth.
- ഉപകരണം തിരഞ്ഞെടുക്കുക: Look for "iFi GO Pod Max" in the list of available Bluetooth devices and select it to pair.
- സ്ഥിരീകരണം: Once paired, the LED on the GO Pod Max units will stop flashing and remain solid, indicating a successful connection.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
പവർ ഓൺ/ഓഫ്
- പവർ ഓൺ: Open the charging case lid, or remove the GO Pod Max units from the case. They will automatically power on and attempt to connect to the last paired device.
- പവർ ഓഫ്: Place the GO Pod Max units back into the charging case and close the lid. They will automatically power off and begin charging.
Audio Playback and Call Management
The control buttons on each GO Pod Max unit allow for various functions. Specific button configurations may vary; refer to the quick start guide for detailed button mapping.
- പ്ലേ/താൽക്കാലികമായി നിർത്തുക: Single press on either unit's main button.
- അടുത്ത ട്രാക്ക്: Double press on the right unit's main button.
- മുമ്പത്തെ ട്രാക്ക്: Double press on the left unit's main button.
- വോളിയം കൂട്ടുക/താഴ്ത്തുക: Use the volume controls on your connected source device.
- ഉത്തരം/അവസാന കോൾ: Single press on either unit's main button during an incoming call.
- കോൾ നിരസിക്കുക: Press and hold either unit's main button during an incoming call.
- വോയ്സ് അസിസ്റ്റന്റിനെ സജീവമാക്കുക: Triple press on either unit's main button.
Customizable Sound Features
The GO Pod Max offers user-selectable digital filters and auto impedance matching for sound customization.
- ഡിജിറ്റൽ ഫിൽട്ടറുകൾ: The GO Pod Max features user-selectable digital filters to tailor the sound signature to your preference. Consult the quick start guide or iFi's official resources for instructions on how to cycle through these filters.
- Auto Impedance Matching: This feature automatically adjusts the output to match the impedance of your connected IEMs, ensuring optimal performance and a silent background, especially with sensitive IEMs.
മെയിൻ്റനൻസ്
വൃത്തിയാക്കൽ
- Units and Case: Use a soft, dry, lint-free cloth to wipe the surfaces of the GO Pod Max units and the charging case. Avoid abrasive materials or harsh chemicals.
- ചാർജിംഗ് കോൺടാക്റ്റുകൾ: If necessary, gently clean the gold-plated charging contacts on the units and inside the case with a dry cotton swab to ensure proper connection.
UVC വന്ധ്യംകരണം
The charging case is equipped with internal UVC lights designed to sterilize your IEMs while they are stored and charging. This process helps maintain hygiene.
- സജീവമാക്കൽ: The UVC sterilization process activates automatically when the GO Pod Max units are placed in the charging case and the lid is closed.
- കാലാവധി: The sterilization cycle runs for a set period during charging.
- സുരക്ഷ: The UVC lights are internal and designed to operate safely within the closed case. Do not expose eyes or skin to UVC light.
സംഭരണം
When not in use, store the GO Pod Max units in their charging case to protect them and ensure they remain charged and sterilized.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No power / Units not turning on | Low battery in units or charging case. | Ensure the charging case is charged. Place units in the case and close the lid to charge them. |
| ഉപകരണവുമായി ജോടിയാക്കാൻ കഴിയില്ല | Units not in pairing mode; Bluetooth off on source device; previously paired device interfering. | Ensure units are in pairing mode (flashing LED). Turn Bluetooth off and on again on your source device. Forget "iFi GO Pod Max" from your device's Bluetooth list and try pairing again. |
| No sound from IEMs | IEMs not properly connected; volume too low; units not connected to source device. | Check IEM connections to the ear loops. Increase volume on both the source device and ensure the GO Pod Max is connected via Bluetooth. |
| Connection drops / Unstable audio | Interference; distance from source device; low battery. | Move closer to the source device. Avoid environments with strong wireless interference. Ensure units are fully charged. |
| UVC sterilization not working | Case lid not fully closed; units not properly seated. | Ensure the GO Pod Max units are correctly placed in their slots and the charging case lid is fully closed. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്ലൂടൂത്ത് പതിപ്പ് | ബ്ലൂടൂത്ത് 5.4 |
| ബ്ലൂടൂത്ത് കോഡെക്കുകൾ | aptX Lossless, LDAC, LHDC/HWA, aptX Adaptive, aptX, AAC, SBC |
| Impedance Detection | 16/32/64/300Ω |
| Output Power (Max/RMS) | ≥120mW/1.96V @ 32Ω ≥53mW/4.0V @300Ω |
| എസ്.എൻ.ആർ | ≥129dBA @ 32Ω |
| ഡിഎൻആർ | ≥129dBA @ 32Ω |
| ഫ്രീക്വൻസി പ്രതികരണം | 10-40kHz (-3dB) LDAC |
| ബാറ്ററി | Pod: 160mAh, Charging Case: 1500mAh |
| ബാറ്ററി ലൈഫ് | Pod: ~7h + Charging Case: ~30h |
| പവർ സിസ്റ്റം | 5V/1A or 5V/2A (Qi certified charger) |
| അളവുകൾ | Pod: 47.5 x 16.1 x 9.5mm (1.71 x 0.63 x 0.37") Charging Case: 116 x 76 x 47.8mm (4.56 x 3 x 1.88") |
| മൊത്തം ഭാരം | Pod: 24.5 g (0.86 oz) ചാർജിംഗ് കേസ്: 185g (6.53 oz) |
Image: Technical drawing illustrating the dimensions of the GO Pod Max units and the charging case.
Image: Visual representation of key features: K2HD, MasterHIFI 32bit DAC, True Balance amplification, UVC case lights, Qualcomm Snapdragon Sound, and Hi-Res Audio Wireless support.
വാറൻ്റിയും പിന്തുണയും
വാറൻ്റി വിവരങ്ങൾ
The iFi Audio GO Pod Max comes with a limited warranty, typically 12 months, or as permitted/required by local reseller laws. Please retain your proof of purchase for warranty claims.
ഉപഭോക്തൃ പിന്തുണ
For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please visit the official iFi Audio website or contact their customer service department. You can find contact information on the iFi Audio webസൈറ്റ്: ifi-audio.com
