SKYRC MC5000 സിലിണ്ടർ ബാറ്ററി ചാർജറും അനലൈസർ ഉപയോക്തൃ മാനുവലും

1. ആമുഖം

The SKYRC MC5000 is an advanced cylindrical battery charger and analyzer designed for comprehensive battery management. This device provides precise control and analysis capabilities for a wide range of battery types and sizes, catering to both enthusiasts and professionals.

Key features include four independent charging slots, support for over 44 battery sizes and 10+ chemistries, multiple operating modes, high-precision voltage accuracy, internal resistance measurement, Bluetooth connectivity for app control, and robust safety protections.

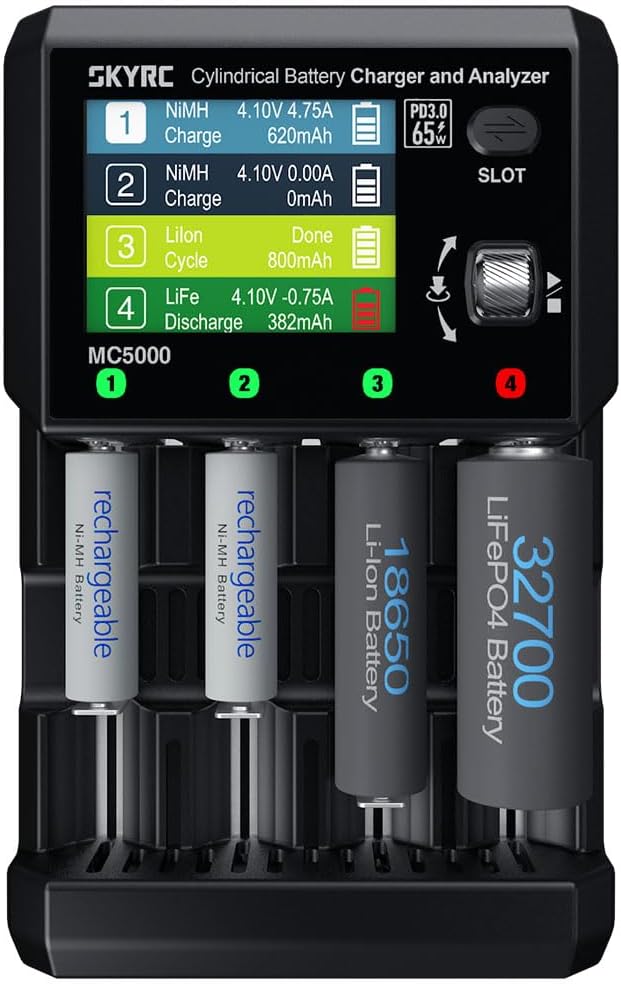

Image 1.1: The SKYRC MC5000 Cylindrical Battery Charger and Analyzer with batteries inserted, displaying operational data on its screen.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

To ensure safe operation and prevent damage to the device or batteries, please adhere to the following safety guidelines:

• Read this entire manual before using the charger.
• Use only the specified power adapter (PD 3.0 65W USB-C) to power the device.
• Ensure proper ventilation during operation. Do not cover the charger or block its cooling vents.
• Only charge battery types and sizes supported by the MC5000. Attempting to charge incompatible batteries may result in damage or injury.
• Do not short-circuit the battery slots or connect batteries with reversed polarity.
• Keep the charger away from water, moisture, and flammable materials.
• Always supervise the charging process, especially when charging new or unfamiliar battery types.
• If the charger emits smoke, unusual odors, or excessive heat, immediately disconnect it from the power source and remove batteries.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.

3. സജ്ജീകരണം

3.1 അൺബോക്‌സിംഗും പരിശോധനയും

Carefully remove the MC5000 charger and all accessories from its packaging. Inspect the device for any signs of damage. If any damage is found, do not use the charger and contact your retailer.

3.2 ബന്ധിപ്പിക്കുന്ന പവർ

1. Connect a compatible PD 3.0 65W USB-C power adapter (not included) to the USB-C input port on the MC5000.
2. പവർ അഡാപ്റ്റർ അനുയോജ്യമായ ഒരു മതിൽ ഔട്ട്ലെറ്റിലേക്ക് പ്ലഗ് ചെയ്യുക.
3. The charger's 2.8-inch full-color LCD display will illuminate, indicating it is powered on and ready for use.

3.3 Initial Interface Overview

The MC5000 features a 2.8-inch full-color LCD and a scroll wheel for navigation. The display shows real-time information for each of the four independent battery slots.

ചിത്രം 3.1: വിശദമായത് view of the MC5000's LCD screen, illustrating the charge setting menu for a Li-ion battery.

3.4 Bluetooth Connectivity and App Control

The MC5000 can be controlled and monitored via the SkyCharger app, available for Android and iOS devices.

1. Download the "SkyCharger" app from your device's app store.
2. നിങ്ങളുടെ സ്മാർട്ട്‌ഫോണിലോ ടാബ്‌ലെറ്റിലോ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കുക.
3. Open the SkyCharger app and follow the on-screen instructions to pair with your MC5000 charger.
4. Once connected, you can monitor charging status, adjust settings, and view detailed battery data from your mobile device.

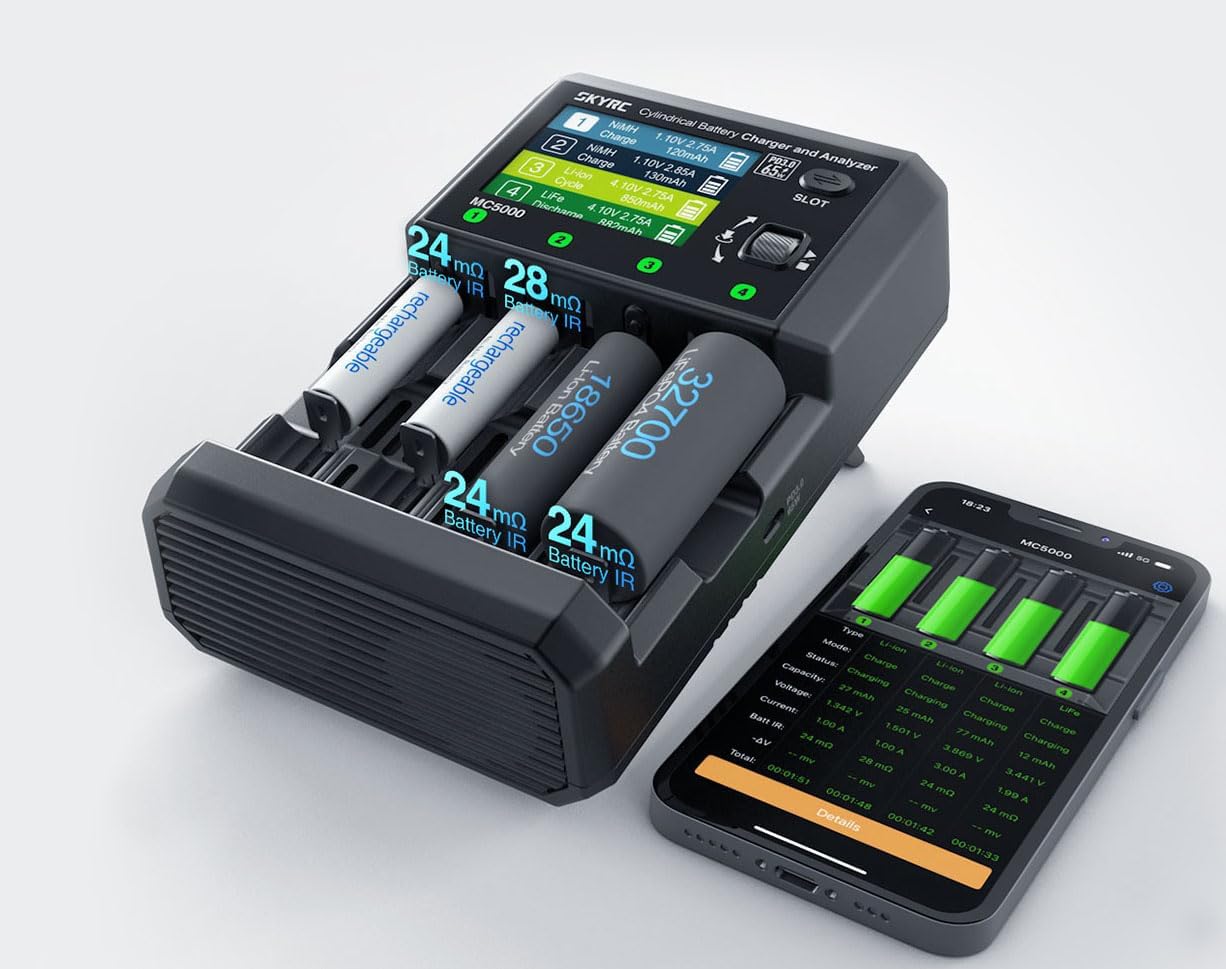

Image 3.2: The MC5000 charger shown alongside a smartphone running the SkyCharger application, demonstrating remote monitoring capabilities.

4 ഓപ്പറേറ്റിംഗ് മോഡുകൾ

The MC5000 offers six distinct operating modes to manage your cylindrical batteries effectively. Use the scroll wheel on the device or the SkyCharger app to select and configure these modes for each independent slot.

• ചാർജ്ജ്: This mode charges the battery to its full capacity. You can set the charge current and target voltage based on the battery chemistry.
• സംഭരണം: Charges or discharges the battery to a specific voltage level, typically around 3.8V for Li-ion batteries, which is ideal for long-term storage to preserve battery health.
• ഡിസ്ചാർജ്: Discharges the battery to a user-defined voltage or until a specified capacity is removed. Useful for testing actual capacity or preparing batteries for storage.
• സൈക്കിൾ: Performs a sequence of charge and discharge cycles to measure battery capacity and improve performance. You can configure the number of cycles and charge/discharge parameters.
• പുതുക്കുക: Designed to rejuvenate older NiMH/NiCd batteries by repeatedly discharging and charging them to break down memory effect and restore capacity.
• Break-in: A specialized mode for new batteries, particularly NiMH/NiCd, to condition them for optimal performance by performing a slow charge followed by a discharge and then a full charge.

Image 4.1: The MC5000 demonstrating its compatibility with multiple battery chemistries, including Li-ion, NiMH, LiFePO4, and Na-ion.

Image 4.2: The MC5000's display presenting a real-time discharge curve for a Li-ion battery, highlighting its analytical capabilities.

5. പരിപാലനം

5.1 വൃത്തിയാക്കൽ

To maintain optimal performance and longevity of your MC5000 charger:

• Ensure the charger is disconnected from power before cleaning.
• ഉപകരണത്തിൻ്റെ പുറംഭാഗം തുടയ്ക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക.
• അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്, അല്ലെങ്കിൽ ഉപകരണം വെള്ളത്തിൽ മുക്കരുത്.
• Periodically check the battery slots and cooling vents for dust or debris and gently remove them using a soft brush or compressed air.

5.2 സംഭരണം

When not in use, store the MC5000 in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure no batteries are left in the slots during storage.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your MC5000 charger.

Image 6.1: The MC5000 and its companion app displaying the "Break-in" mode in progress for four batteries, indicating detailed status for each slot.

7 സ്പെസിഫിക്കേഷനുകൾ

Image 7.1: An infographic summarizing the main features of the MC5000, including 4 slots, 10+ chemistries, 44+ sizes, and high resolution.

8. വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage, technical support, or service, please refer to the official SKYRC webനിങ്ങളുടെ അംഗീകൃത റീട്ടെയിലറെ സൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങലിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
