PETNF PF124 സ്മാർട്ട് ഡോഗ് ഹൗസ് ഹീറ്റർ ഉപയോക്തൃ മാനുവൽ

ആമുഖം

This manual provides detailed instructions for the safe and efficient operation of your PETNF PF124 Smart Dog House Heater. Designed to provide warmth and comfort for your pets in various outdoor shelters, this heater features smart controls, energy-saving modes, and robust safety mechanisms. Please read this manual thoroughly before installation and use to ensure optimal performance and pet safety.

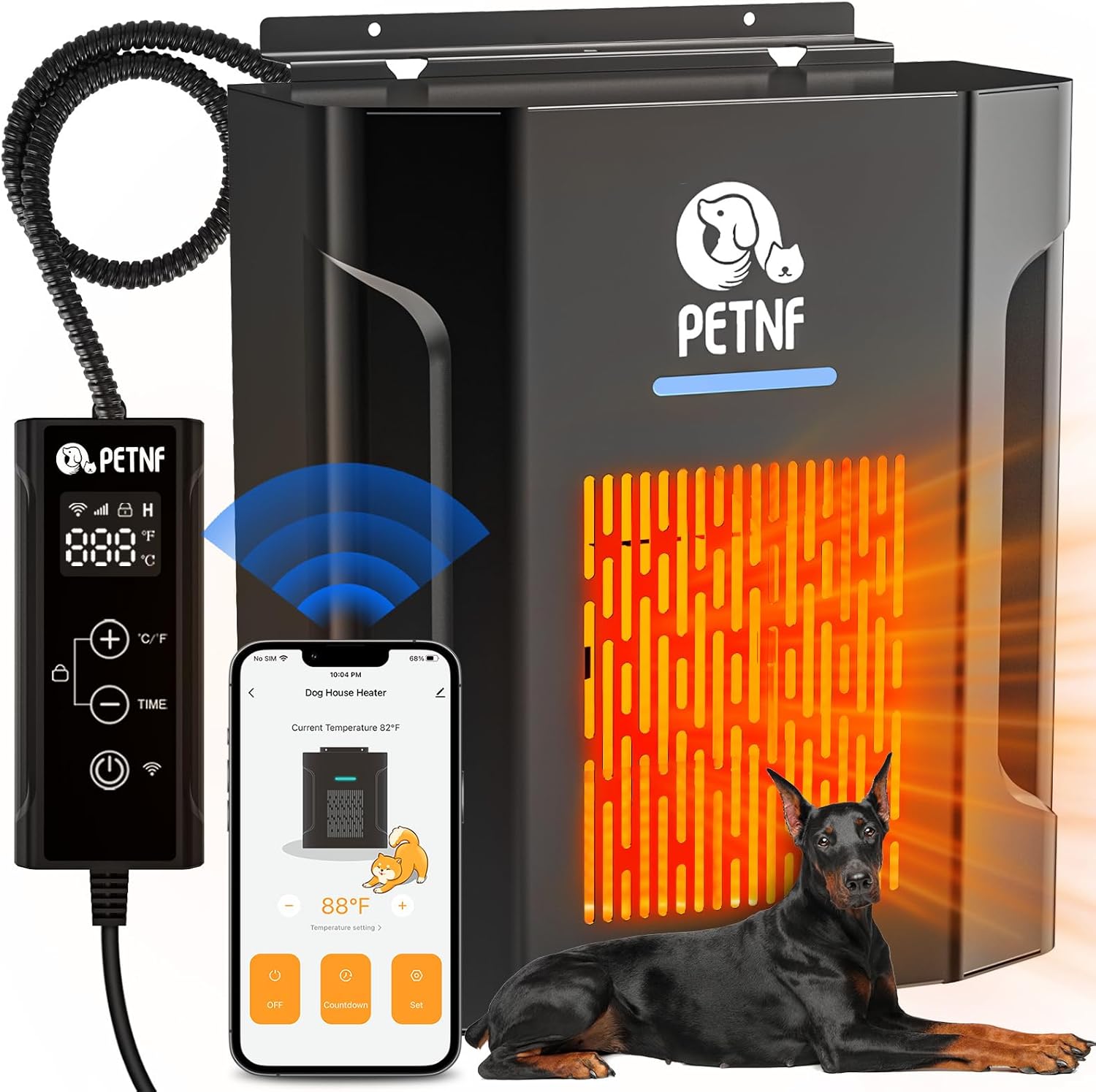

Image: The PETNF PF124 Smart Dog House Heater, showcasing its main unit, wired remote control, and a smartphone displaying the control app. A Doberman dog rests beside the heater, illustrating its intended use.

പ്രധാനപ്പെട്ട സുരക്ഷാ നിർദ്ദേശങ്ങൾ

Failure to follow these safety instructions may result in fire, electric shock, injury, or property damage. Keep this manual for future reference.

• Always ensure the heater is installed in a well-ventilated area, away from flammable materials.
• ഹീറ്റർ മൂടുകയോ എയർ ഇൻലെറ്റുകൾ/ഔട്ട്ലെറ്റുകൾ തടയുകയോ ചെയ്യരുത്.
• The heater is equipped with അമിത ചൂട് സംരക്ഷണം; it will automatically shut down if it reaches unsafe temperatures.
• The power cord is a 6FT Anti-Chew Cord, designed to resist damage from pets. Regularly inspect the cord for any signs of wear or damage.
• The unit features V-0 ഫ്ലേം റിട്ടാർഡന്റ് materials for enhanced safety.
• കൺട്രോളർ ആണ് IPX5 വാട്ടർപ്രൂഫ്, suitable for outdoor use, but avoid direct submersion.
• Ensure the heater is securely mounted to prevent tipping.
• Keep children and pets away from the heater during operation to prevent burns.
• ഉപയോഗത്തിലില്ലാത്തപ്പോഴോ വൃത്തിയാക്കുന്നതിന് മുമ്പോ ഹീറ്റർ അൺപ്ലഗ് ചെയ്യുക.

Image: Two golden retrievers relaxing in a doghouse equipped with the PETNF heater. Safety icons at the bottom highlight V-0 flame retardant materials, overheat protection, and a 6-foot anti-chew cord.

ഉൽപ്പന്ന സവിശേഷതകൾ

• Thermostat & Smart Wi-Fi Control: Remotely adjust temperature via the SmartLife App (45°F to 113°F).
• Powerful 300W Rapid Heating: Advanced ceramic heating technology provides warmth in three seconds, covering up to 150 cubic feet.
• Energy Saving ECO Mode: Automatically adjusts heating cycles to reduce energy consumption.
• മൾട്ടി-സീൻ ആപ്ലിക്കേഷനുകൾ: Suitable for dog houses, chicken coops, small barns, rabbit hutches, greenhouses, and patios.
• മെച്ചപ്പെടുത്തിയ ഈട്: Robust, weather-resistant casing for demanding outdoor conditions.
• ശാന്തമായ പ്രവർത്തനം: Operates at less than 45dB, ensuring a peaceful environment for pets.
• Customizable Timer Function: Set heating schedules to match your pet's routine.

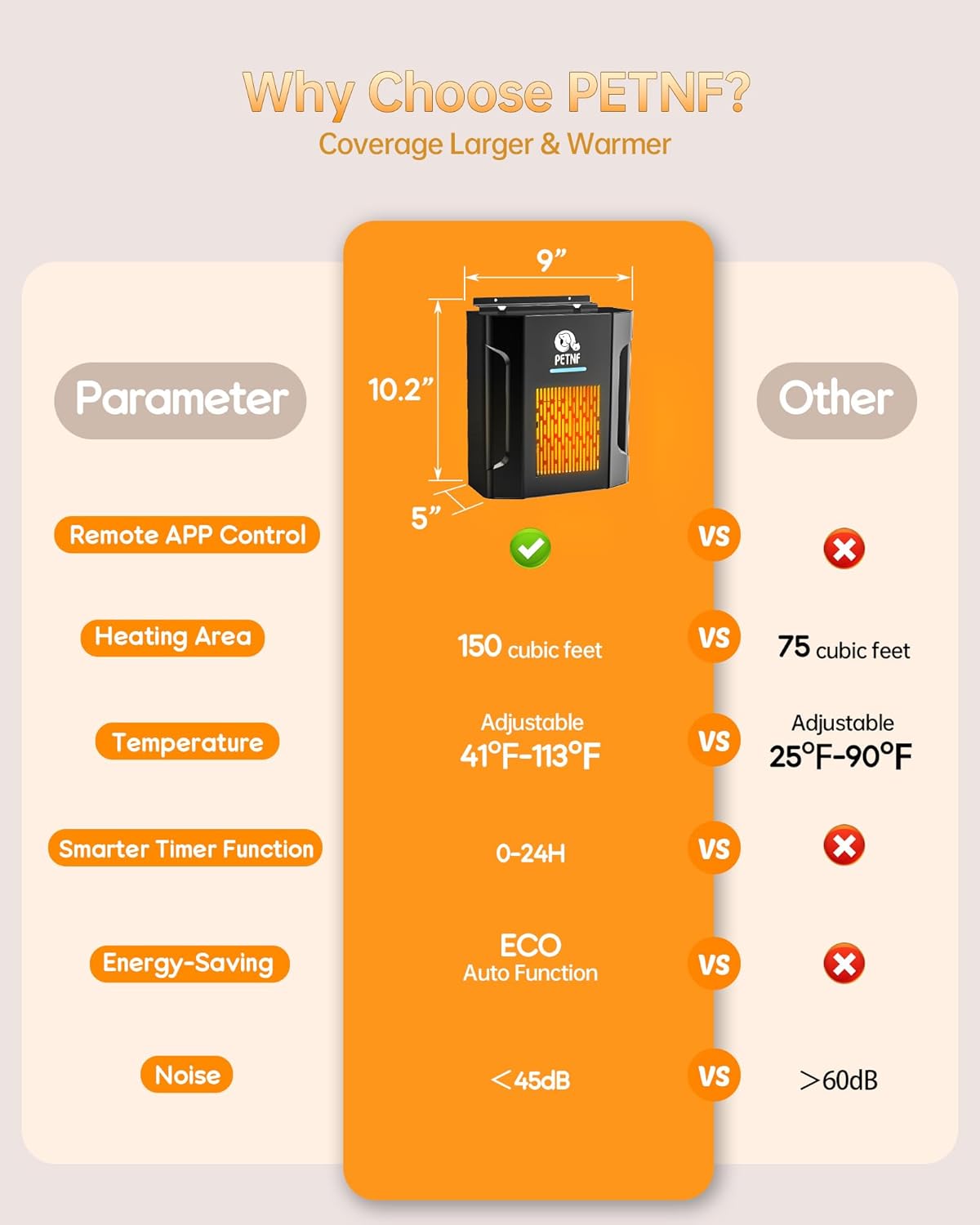

Image: A comparison table illustrating the superior features of the PETNF heater, including remote app control, a larger heating area of 150 cubic feet, a wider temperature range, a smarter timer, ECO auto function, and low noise levels compared to other heaters.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to properly install your PETNF PF124 Smart Dog House Heater. The package includes the heater, controller, hanging board, screws, and a safety bolt.

1. ഒരു ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a suitable location within the pet shelter, ensuring it is protected from direct weather exposure and has access to a power outlet. The heater can be wall-mounted or floor-mounted.
2. Install the Hanging Board: Securely attach the provided hanging board to a sturdy surface inside the shelter using the included screws.
3. Drill a Hole for the Controller (if needed): If routing the controller outside the enclosure, drill a hole of at least 66mm diameter to accommodate the controller and its cable.
4. Guide the Controller: Pass the controller and its cable through the drilled hole (if applicable) or position it conveniently within the shelter.
5. Mount the Heater: Hang the main heater unit onto the installed hanging board. Ensure it is stable and securely attached.
6. പവറിലേക്ക് ബന്ധിപ്പിക്കുക: ഒരു സാധാരണ 120V പവർ ഔട്ട്ലെറ്റിലേക്ക് ഹീറ്റർ പ്ലഗ് ചെയ്യുക.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

മാനുവൽ നിയന്ത്രണം

The wired controller allows for direct adjustment of settings.

• പവർ ഓൺ/ഓഫ്: കൺട്രോളറിലെ പവർ ബട്ടൺ അമർത്തുക.
• താപനില ക്രമീകരണം: Use the '+' and '-' buttons to set the desired temperature between 45°F and 113°F.
• താപനില യൂണിറ്റ്: Press the 'C/F' button to switch between Celsius and Fahrenheit.
• ടൈമർ പ്രവർത്തനം: Press the 'TIME' button to set a countdown timer for operation.
• ചൈൽഡ് ലോക്ക്: To activate/deactivate the child lock, press and hold the lock icon button on the controller.

SmartLife App Control

Control your heater remotely using the SmartLife application on your smartphone.

1. ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: Scan the QR code on the heater or controller, or search for "SmartLife" in your app store. You can also visit https://smartapp.tuya.com/smartlife.
2. Connect Heater to Wi-Fi: Power on the heater. In the SmartLife app, select "Add Device" and follow the on-screen instructions to connect your heater to your 2.4GHz Wi-Fi network. Ensure your phone is connected to the same Wi-Fi network during the initial setup.
3. ഉപകരണം ചേർക്കുക: The app will guide you through the process of discovering and adding your PETNF Dog House Heater.
4. റിമോട്ട് കൺട്രോൾ: Once connected, you can remotely power on/off, adjust temperature, set timers, and activate ECO mode from anywhere.

ഇക്കോ മോഡ്

Activate ECO mode via the SmartLife app to optimize energy consumption. The heater will intelligently adjust its heating cycles to maintain the set temperature while minimizing electricity usage.

Image: The PETNF heater prominently displayed with the word "ECO" and a "45% Energy Savings" icon, illustrating the energy-saving benefits of its ECO auto function.

ഷെഡ്യൂളിംഗും ടൈമറുകളും

Utilize the SmartLife app to create personalized heating schedules or set countdown timers for specific heating durations.

Image: A golden retriever sleeping comfortably in a heated doghouse, accompanied by smartphone screenshots demonstrating the SmartLife app's personalized scheduling and countdown timer features.

മെയിൻ്റനൻസ്

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ ഹീറ്ററിന്റെ ദീർഘായുസ്സും കാര്യക്ഷമമായ പ്രവർത്തനവും ഉറപ്പാക്കുന്നു.

• വൃത്തിയാക്കൽ: Before cleaning, always unplug the heater from the power outlet. Use a soft, dry cloth to wipe down the exterior of the heater. Do not use abrasive cleaners or immerse the unit in water.
• പരിശോധന: Periodically inspect the power cord for any signs of damage, fraying, or chew marks. Ensure the heater's air inlets and outlets are free from dust, debris, or obstructions.
• സംഭരണം: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place, protected from extreme temperatures and moisture.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your PETNF PF124 heater, refer to the following common problems and solutions.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and customer support, please refer to the official PETNF webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

• നിർമ്മാതാവ്: പി.ഇ.ടി.എൻ.എഫ്
• Webസൈറ്റ്: Visit the PETNF Store on Amazon (പൊതു ബ്രാൻഡ് വിവരങ്ങൾക്ക്)
• ബന്ധപ്പെടുക: Refer to the product packaging or the official PETNF website for specific customer support contact details.
