1. ആമുഖം
This manual provides detailed instructions for the ESSAGER 8-in-1 USB C Hub with SSD Enclosure. It covers product features, setup, operation, maintenance, troubleshooting, and specifications to ensure optimal performance and user experience. Please read this manual thoroughly before using the device.

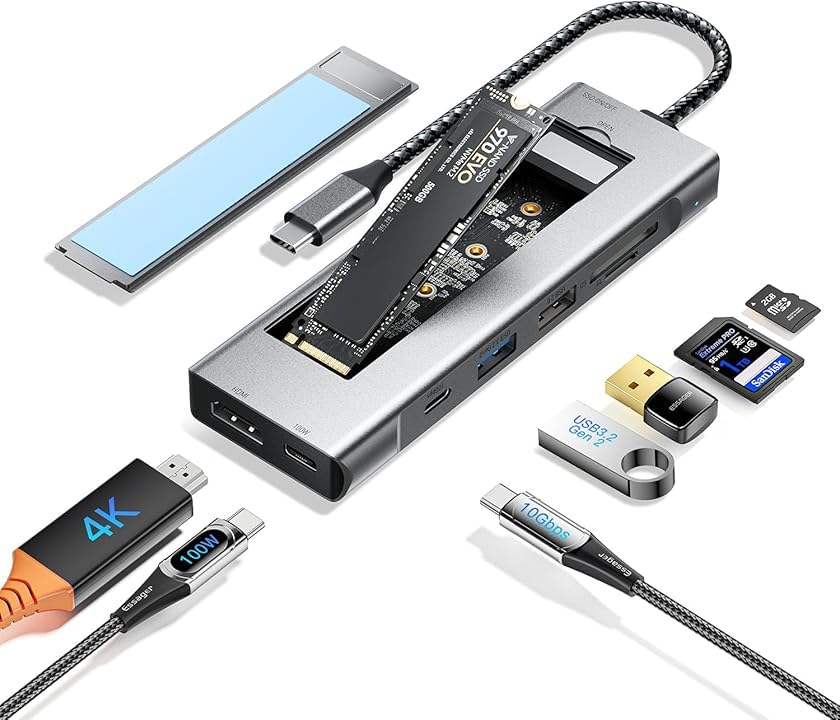

Figure 1: ESSAGER 8-in-1 USB C Hub with SSD Enclosure and included accessories.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The ESSAGER 8-in-1 USB C Hub is a versatile docking station designed to expand the connectivity of your USB-C enabled devices. It integrates an M.2 NVMe/SATA SSD enclosure, multiple USB ports, an HDMI output, a PD charging port, and an SD/TF card reader.
പ്രധാന സവിശേഷതകൾ:
- 8-in-1 Expansion: Combines M.2 NVMe/SATA SSD enclosure, PD100W fast charging, 4K HDMI, 10Gbps USB-C, USB 3.2 Gen 2, USB 2.0, and SD/TF card reader.
- ഹൈ-സ്പീഡ് ഡാറ്റ ട്രാൻസ്ഫർ: M.2 NVMe/SATA SSD interface supports up to 10 Gbps, with read/write speeds up to 900 MB/s. USB 3.2 Gen 2 ports also offer 10Gbps.
- 4K HD Video Output: HDMI 1.4 port supports 4K (3840 x 2160) resolution at 30Hz for immersive display.
- PD100W ഫാസ്റ്റ് ചാർജിംഗ്: Power Delivery port ensures rapid charging for your connected devices.
- Rapid Card Reading: SD/TF card reader supports transfer speeds up to 104 MB/s.
- വിശാലമായ അനുയോജ്യത: Compatible with Windows, macOS, Linux, Chrome OS, Android, and devices like MacBook Pro/Air, Huawei P30/Mate30, Samsung Note10/S10, Steam Deck, and Switch.
- മോടിയുള്ള ഡിസൈൻ: Crafted from aluminum alloy for effective heat dissipation, ensuring portability and longevity.

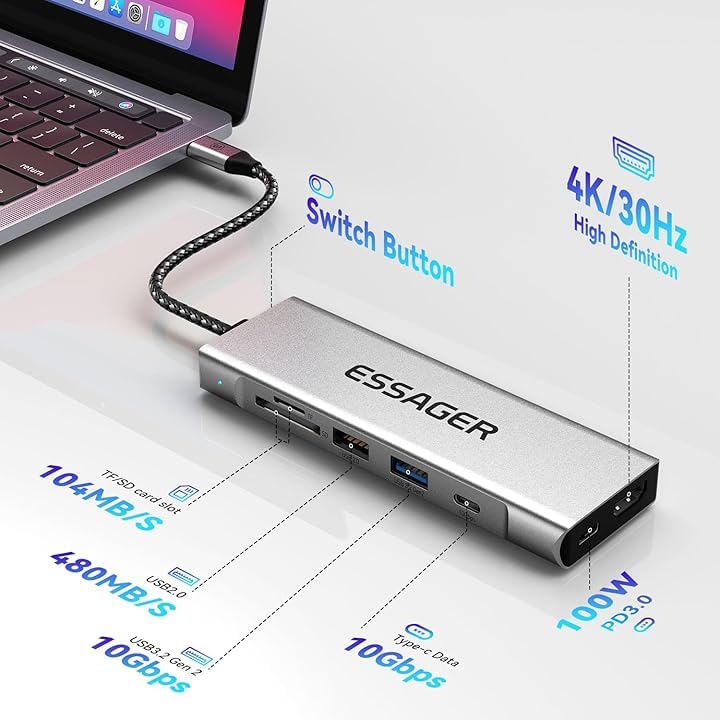

ചിത്രം 2: വിശദമായി view of the hub's ports and their respective data transfer and power specifications.
3. സജ്ജീകരണം
3.1 എസ്എസ്ഡി ഇൻസ്റ്റലേഷൻ
The hub features an integrated M.2 NVMe/SATA SSD enclosure. Follow these steps to install your M.2 SSD:
- Prepare the Enclosure: Open the SSD enclosure cover. If included, install the heat dissipation silicone pad onto the SSD slot.
- SSD ചേർക്കുക: Carefully insert your M.2 NVMe or SATA SSD into the M.2 slot. Ensure it is fully seated.
- സുരക്ഷിത SSD: Use the provided screw to fix the SSD securely in place.
- കവർ അടയ്ക്കുക: Close the hard drive cover until it clicks into place.
കുറിപ്പ്: A brand new SSD must be initialized and formatted before it can be used by your operating system. Refer to your operating system's documentation for instructions on disk initialization (e.g., Disk Management on Windows, Disk Utility on macOS).

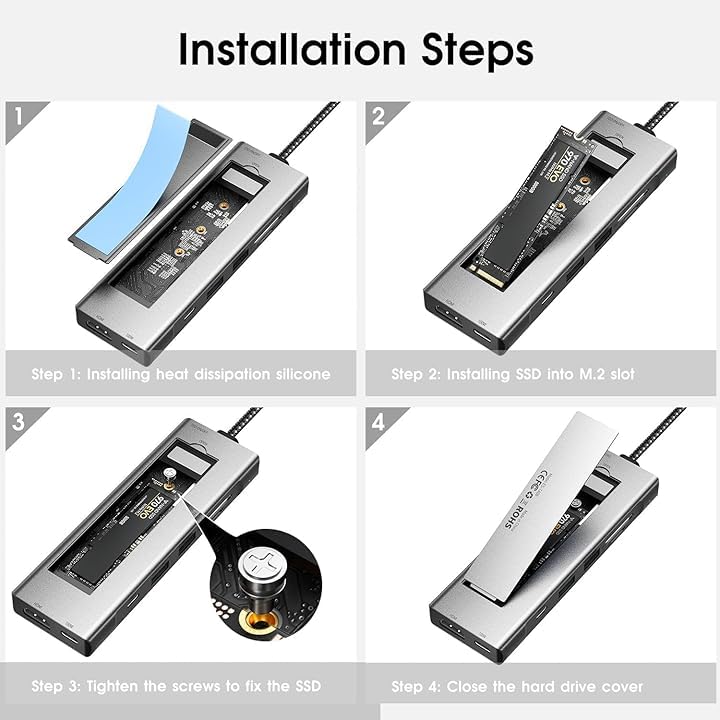

Figure 3: Step-by-step guide for installing an M.2 SSD into the enclosure.

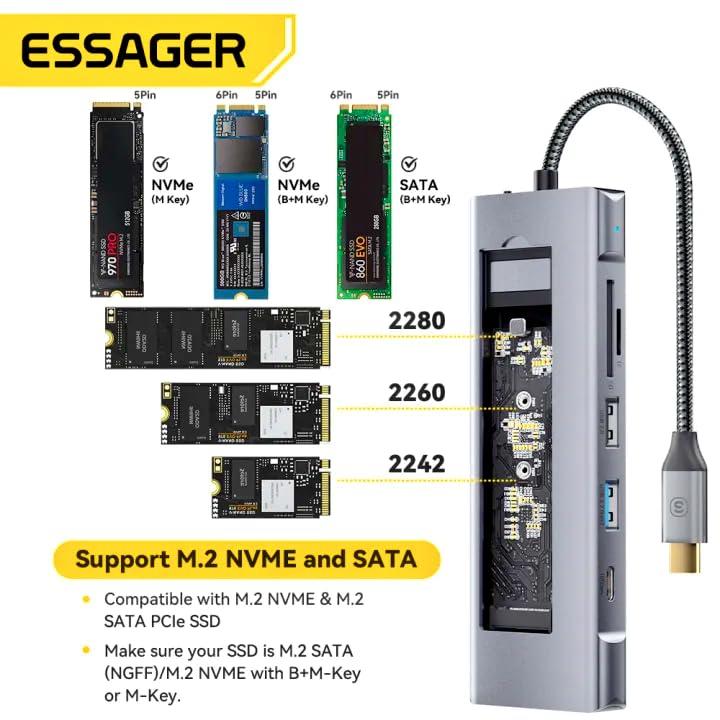

Figure 4: Illustration of compatible M.2 NVMe (M Key, B+M Key) and SATA (B+M Key) SSD types and supported sizes (2242, 2260, 2280).
Figure 5: Visual representation of M.2 NVMe and SATA SSD compatibility with the hub's enclosure.
3.2 Connecting the Hub to Your Device
Connect the integrated USB-C cable of the ESSAGER hub to a compatible USB-C port on your laptop, tablet, or smartphone. The hub is plug-and-play and typically requires no additional drivers for basic functionality.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 Using the USB Ports
- USB 3.2 Gen 2 (10Gbps): Connect high-speed peripherals such as external hard drives, SSDs, or high-resolution cameras for fast data transfer.
- USB 2.0: Ideal for connecting standard peripherals like keyboards, mice, or printers.
- USB-C ഡാറ്റ പോർട്ട് (10Gbps): Use this port for connecting USB-C devices that require high-speed data transfer.
4.2 HDMI വീഡിയോ ഔട്ട്പുട്ട്
Connect an HDMI cable from the hub's HDMI port to an external monitor, TV, or projector. The hub supports 4K (3840 x 2160) resolution at 30Hz. Ensure your display device and HDMI cable support 4K resolution for optimal performance.
ചിത്രം 6: ഉദാamples of using the hub for screen projection and data sharing with laptops, tablets, and mobile phones.
4.3 പവർ ഡെലിവറി (പിഡി) ചാർജിംഗ്
Connect your original USB-C power adapter to the hub's PD port (marked "PD" or with a lightning bolt icon) to charge your host device (laptop, tablet) while using the hub. The hub supports up to 100W Power Delivery.
4.4 SD/TF കാർഡ് റീഡർ
Insert your SD or TF (Micro SD) card into the corresponding slot. The hub supports high-speed data transfer for quick photo and video transfers, up to 104 MB/s.
4.5 Data Sharing Switch
The hub features a switch to control data sharing. When the switch is in the "On" position, data sharing is enabled, allowing full functionality of connected peripherals and storage. When "Off", data sharing is disabled, which can be useful for privacy or security in certain scenarios.
Figure 7: Location and function of the On/Off switch for data sharing.
5. പരിപാലനം
To ensure the longevity and optimal performance of your ESSAGER USB C Hub, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the exterior of the hub. Avoid using liquid cleaners or aerosols, as they may damage the device.
- സംഭരണം: നേരിട്ടുള്ള സൂര്യപ്രകാശവും കടുത്ത താപനിലയും ഏൽക്കാത്ത തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ഹബ് സൂക്ഷിക്കുക.
- കൈകാര്യം ചെയ്യൽ: Handle the hub with care. Avoid dropping it or subjecting it to strong impacts. Do not bend the integrated USB-C cable excessively.
- താപ വിസർജ്ജനം: The aluminum alloy design aids in heat dissipation. Ensure the hub is placed in a well-ventilated area during prolonged use to prevent overheating.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your ESSAGER USB C Hub, refer to the following common troubleshooting steps:
- ഉപകരണം തിരിച്ചറിഞ്ഞിട്ടില്ല:
- Ensure the hub's USB-C cable is securely connected to your host device.
- Try connecting the hub to a different USB-C port on your device.
- നിങ്ങളുടെ ഹോസ്റ്റ് ഉപകരണം പുനരാരംഭിക്കുക.
- SSD കണ്ടെത്തിയില്ല:
- Verify that the SSD is correctly installed within the enclosure and securely fastened.
- For new SSDs, ensure they have been initialized and formatted through your operating system's disk management utility.
- Check if the SSD is compatible (M.2 NVMe or SATA, correct size).
- HDMI ഡിസ്പ്ലേ പ്രശ്നങ്ങൾ:
- HDMI കേബിൾ ഹബ്ബിലേക്കും ഡിസ്പ്ലേയിലേക്കും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
- Verify that your display is set to the correct input source.
- Check if your host device's display settings are configured to extend or duplicate the display.
- മറ്റൊരു HDMI കേബിളോ ഡിസ്പ്ലേയോ പരീക്ഷിച്ചുനോക്കൂ.
- Charging Not Working (PD Port):
- Ensure your USB-C power adapter is connected to the hub's PD port and is functioning correctly.
- നിങ്ങളുടെ പവർ അഡാപ്റ്റർ ആവശ്യത്തിന് വൈദ്യുതി നൽകുന്നുണ്ടെന്ന് ഉറപ്പാക്കുക.tage for your host device (up to 100W supported by the hub).
- മന്ദഗതിയിലുള്ള ഡാറ്റ കൈമാറ്റം:
- Ensure you are using the correct USB ports for high-speed devices (USB 3.2 Gen 2 or USB-C data port).
- Check the specifications of your connected device and cable to ensure they support the desired speeds.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡൽ | B0FG1B11P6 |
| ബ്രാൻഡ് | എസ്സാഗർ |
| ഉൽപ്പന്ന അളവുകൾ | 1.7 x 4.4 x 14 സെ.മീ |
| ഇനത്തിൻ്റെ ഭാരം | 150 ഗ്രാം |
| മെറ്റീരിയൽ | അലുമിനിയം അലോയ് |
| ഓപ്പറേറ്റിംഗ് സിസ്റ്റം അനുയോജ്യത | Windows, macOS, Linux, Chrome OS, Android |
| ഹാർഡ്വെയർ ഇന്റർഫേസ് | യുഎസ്ബി ടൈപ്പ് സി |
| തുറമുഖങ്ങളുടെ എണ്ണം | 8 |
| SSD എൻക്ലോഷർ | M.2 NVMe/SATA (10Gbps) |
| HDMI ഔട്ട്പുട്ട് | 4K (3840 x 2160) @ 30Hz |
| പവർ ഡെലിവറി (PD) | 100W വരെ |
| USB ഡാറ്റ പോർട്ടുകൾ | 1x USB 3.2 Gen 2 (10Gbps), 1x USB 2.0, 1x USB-C Data (10Gbps) |
| കാർഡ് റീഡർ | SD/TF (up to 104 MB/s) |
| പ്രത്യേക സവിശേഷതകൾ | Fast Data Transfer, Heat Resistant, Portable, NVMe Enclosure with HDMI Hub |
8. വാറൻ്റിയും പിന്തുണയും
This product comes with a manufacturer's warranty. Please refer to the warranty card included in the product packaging for specific terms and conditions, including warranty period and coverage.

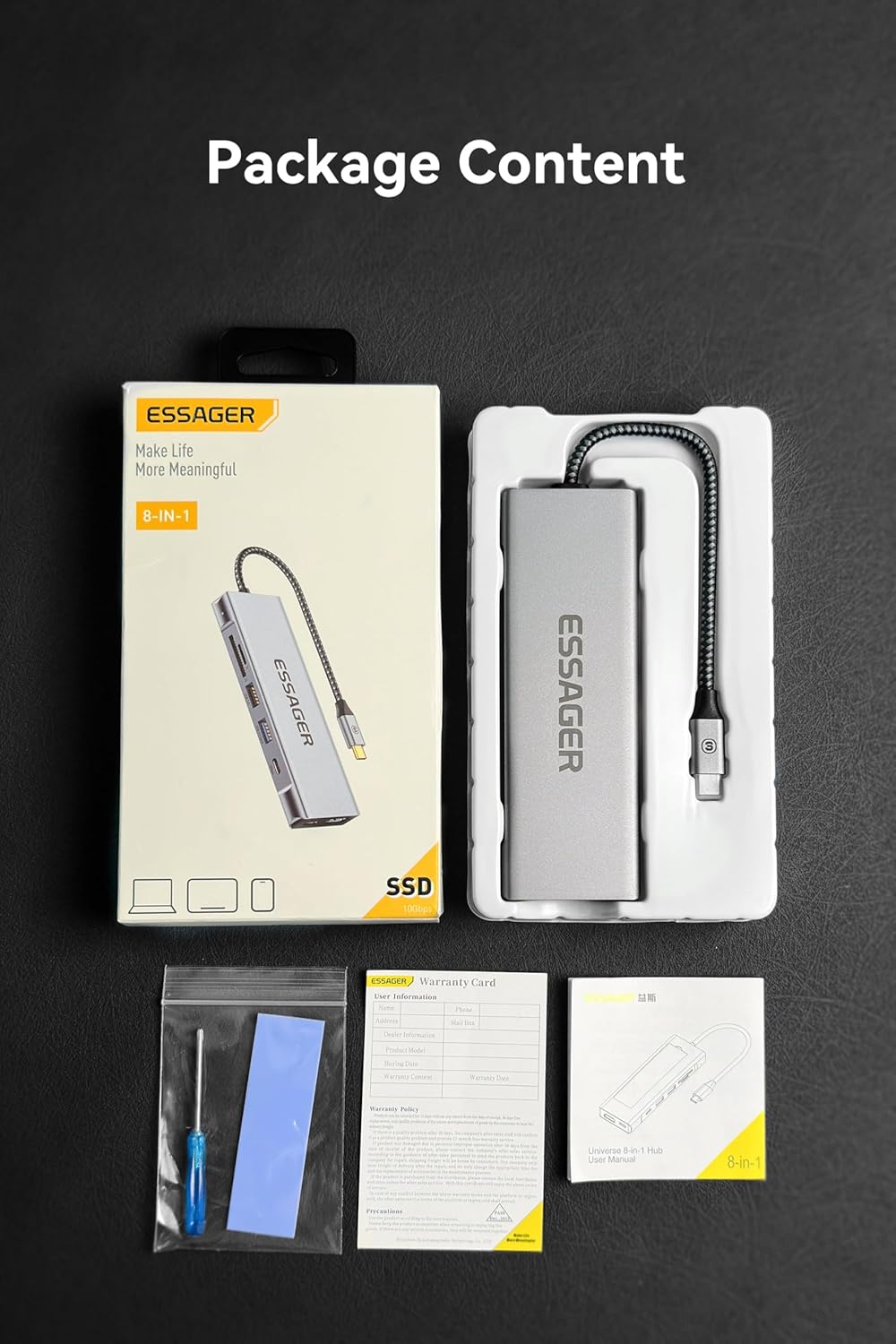

Figure 8: Product package content, including the warranty card and user manual.
ഉപഭോക്തൃ പിന്തുണ:
For technical assistance, troubleshooting, or warranty claims, please contact the importer/packer:
MRJ ELECTRONICS AHMEDABAD
ബന്ധപ്പെടുക: 9023265213
Please have your product model number (B0FG1B11P6) and purchase details ready when contacting support.
