ലോർഡിയർ 33x19 ഇഞ്ച് ബ്ലാക്ക് സ്മാർട്ട് വാട്ടർഫാൾ ഡ്രോപ്പ്-ഇൻ കിച്ചൺ സിങ്ക്, ഫൗസറ്റ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

Thank you for choosing the Lordear 33x19 Inch Black Smart Waterfall Drop-In Kitchen Sink. This manual provides essential information for the proper installation, operation, and maintenance of your new kitchen sink. Please read these instructions carefully before beginning installation and retain them for future reference.

This workstation sink is crafted from premium T-304 stainless steel with a 16-gauge thickness and features an elegant gunmetal black finish. It is designed for durability and functionality in your kitchen.

2. പാക്കേജ് ഉള്ളടക്കം

Verify that all components listed below are present and undamaged before proceeding with installation. If any parts are missing or damaged, please contact Lordear customer support.

• 33x19 Black Kitchen Sink (Drop-In) x1
• Cutting Board x1
• Waterfall Faucet x1
• Glass Rinser x1
• Roll-Up Rack for Drying x1
• Sink Bottom Grid x1
• Colander x1
• Drain Assembly x1
• Mounting Clips (1 set)
• Cutout Template Paper x1
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ x1

ചിത്രം 1: കഴിഞ്ഞുview of the Lordear 33x19 inch black smart waterfall drop-in kitchen sink and its complete set of accessories.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്‌ലിസ്റ്റ്

• ആവശ്യമായ ഉപകരണങ്ങൾ: Phillips screwdriver, adjustable wrench, silicone sealant, measuring tape, jigsaw (for countertop cutout), safety glasses, gloves.
• കൗണ്ടർടോപ്പ് തയ്യാറാക്കൽ: Ensure your countertop is clean, dry, and properly supported. The recommended minimum cabinet base size is 36 inches.
• കട്ട്ഔട്ട് അളവുകൾ: Use the provided cutout template paper. The recommended cutout size is 32.2 inches (L) x 18.2 inches (W).

Image 2: Detailed dimensions and cutout specifications for the sink installation.

3.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. കൗണ്ടർടോപ്പ് തയ്യാറാക്കുക: Place the cutout template on your countertop and trace the outline. Carefully cut the opening using a jigsaw.
2. Install Faucet and Accessories: Attach the waterfall faucet, glass rinser, and any other desired accessories (e.g., soap dispenser) to the designated holes on the sink deck before dropping the sink into the countertop. Follow the individual instructions provided with each accessory.
3. സീലന്റ് പ്രയോഗിക്കുക: Apply a bead of silicone sealant around the perimeter of the countertop cutout.
4. പൊസിഷൻ സിങ്ക്: Carefully lower the sink into the countertop opening, ensuring it is centered and aligned.
5. ക്ലിപ്പുകൾ ഉപയോഗിച്ച് സുരക്ഷിതമാക്കുക: From underneath the countertop, attach and tighten the mounting clips to secure the sink firmly in place. Ensure even pressure around the sink.
6. പ്ലംബിംഗ് ബന്ധിപ്പിക്കുക: Install the drain assembly and connect the water supply lines to the faucet. Ensure all connections are tight to prevent leaks.
7. ടെസ്റ്റ്: Turn on the water supply and check for any leaks around the faucet, drain, and sink edges.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Faucet Operation

The included faucet features multiple water flow modes for various tasks:

• Pull-Out Faucet: The main faucet head can be pulled out for extended reach and flexibility. It offers three distinct spraying modes: Powerful Mode, Spray Mode, and Stream Mode. Switch between modes using the button on the faucet head.
• Waterfall Mode: An independent water mode control activates the waterfall feature, providing a broad, gentle flow of water.
• Hot/Cold Regulation: Adjust water temperature using the faucet handle.

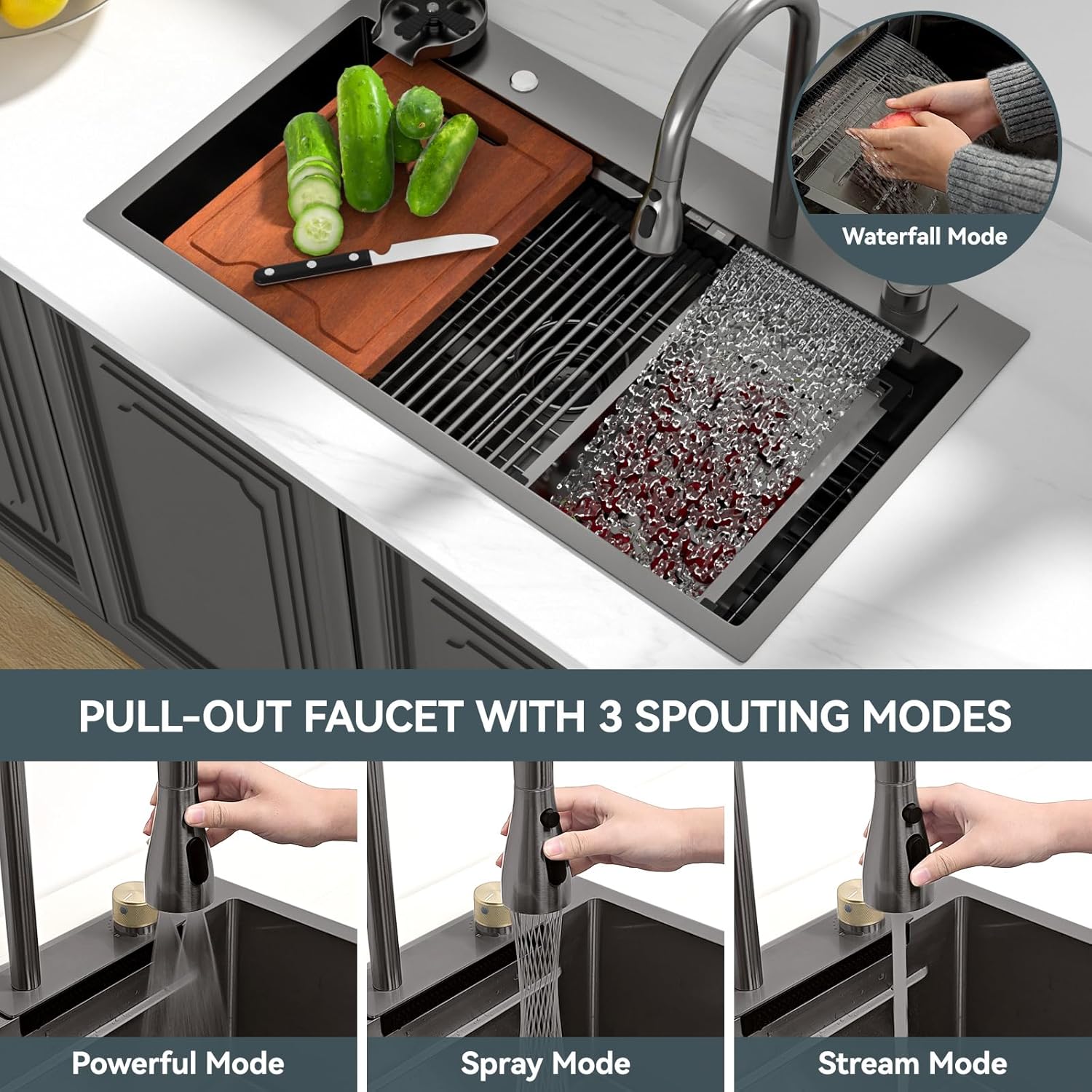

Image 3: Illustration of the faucet's three distinct water flow modes.

Image 4: Close-up of the various water features and controls on the sink.

4.2 Workstation Accessories

This sink is designed as a workstation, allowing you to slide custom accessories across the integrated ledge to maximize usable space. These accessories include:

• കട്ടിംഗ് ബോർഡ്: Use for food preparation directly over the sink.
• പാത്രം വയ്ക്കാനുള്ള അലമാര: Provides a convenient space for drying dishes.
• Drainage Basket: Ideal for washing fruits and vegetables or draining small items.
• Roll-Up Rack: A versatile accessory for drying or holding items.

Image 5: The sink configured as a workstation with various accessories.

4.3 Cup Rinser

The integrated cup rinser provides multi-angle strong flushing for quick and efficient cleaning of cups and glasses. Simply press down on the rinser to activate the water spray.

5. പരിപാലനവും പരിചരണവും

Proper care will ensure the longevity and appearance of your Lordear kitchen sink.

• പ്രതിദിന ശുചീകരണം: Use a soft towel or sponge with mild soap and water to clean the sink surface. Rinse thoroughly and wipe dry to prevent water spots.
• ഉരച്ചിലുകൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the gunmetal black finish and the Nano-PVD layer.
• പോറലുകൾ തടയുക: Avoid dropping sharp or heavy objects into the sink. The 16-gauge stainless steel is durable, but excessive force can cause damage.
• R10 Round Corners: The R10 round corners are designed for easier cleaning, preventing dirt and grime buildup in tight angles.
• X-Shape Flow Line: The X-shape diversion waterlines on the bottom of the sink facilitate efficient drainage, preventing water pooling.
• ശബ്ദം കുറയ്ക്കൽ: The sink features thickened rubber pads (3.0mm thick panel) to effectively reduce noise during use.
• During Remodeling: Keep the sink away from decoration materials during remodeling projects to prevent accidental damage or staining.

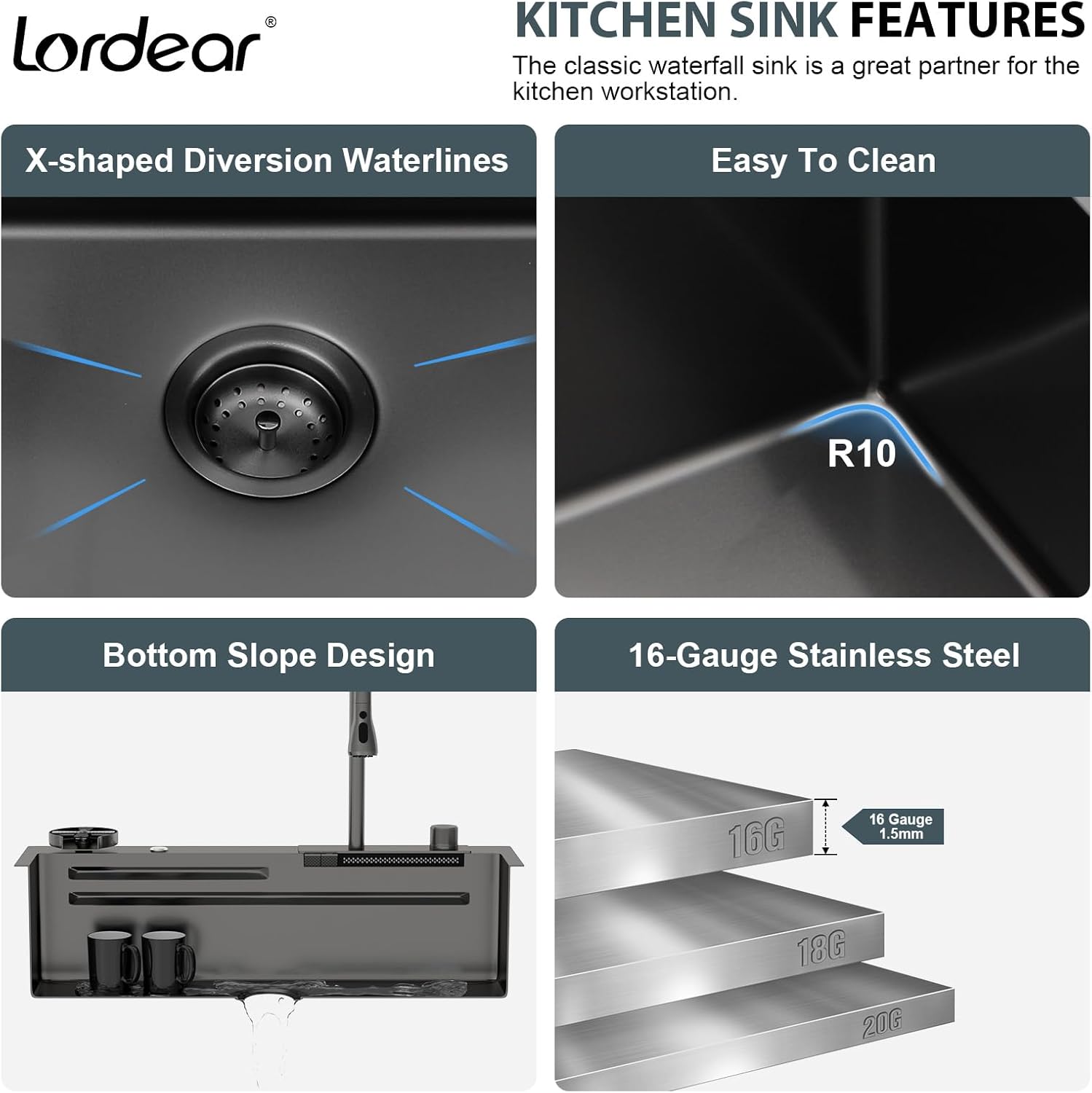

Image 6: Key design features contributing to the sink's durability and ease of maintenance.

Image 7: Sound reduction technology with 3mm thickened mat for quiet operation.

6. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your Lordear kitchen sink, please refer to the following common solutions:

• മന്ദഗതിയിലുള്ള ഡ്രെയിനേജ്: Check the drain assembly for any obstructions. Ensure the X-shape flow lines are clear. If using a garbage disposal, ensure it is functioning correctly.
• ചോർച്ച: Inspect all plumbing connections under the sink. Tighten any loose fittings. If leaks persist, re-apply silicone sealant around the sink rim or consult a professional plumber.
• വെള്ളക്കെട്ടുകൾ/കറകൾ: These are often caused by mineral deposits. Use a non-abrasive cleaner specifically designed for stainless steel sinks. Always rinse thoroughly and dry the sink after each use.
• Faucet Malfunction: If the faucet has low pressure or inconsistent spray, check the aerator for mineral buildup and clean it if necessary. Ensure water supply lines are fully open.

For complex issues or if problems persist, it is recommended to contact a qualified plumber or Lordear customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Lordear is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any warranty claims, technical assistance, or support inquiries, please contact Lordear customer service through their official channels or the retailer where the product was purchased.

Manufacturer: Lordear
