System Sensor P2GRKLED L-Series Outdoor Horn Strobe Instruction Manual

Model: P2GRKLED

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of the System Sensor P2GRKLED L-Series Outdoor Compact Wall-Mounted Horn Strobe. This device is designed for use in fire alarm and emergency signaling systems, providing both audible and visual alerts. Please read this manual thoroughly before installation and operation to ensure proper functionality and safety.

2 സുരക്ഷാ വിവരങ്ങൾ

Installation and wiring of this device must be performed by qualified personnel in accordance with all local and national electrical codes, as well as the National Fire Protection Association (NFPA) standards. Failure to follow these instructions may result in property damage, serious injury, or death.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview ഫീച്ചറുകളും

The System Sensor P2GRKLED is an L-Series outdoor compact wall-mounted horn strobe designed for reliable fire alarm notification. It features advanced LED technology for the strobe, offering improved efficiency and reduced power consumption.

പ്രധാന സവിശേഷതകൾ:

System Sensor P2GRKLED L-Series Outdoor Horn Strobe, side view

ചിത്രം 1: വശം view of the System Sensor P2GRKLED L-Series Outdoor Horn Strobe, showing its compact red housing and the 'FIRE' label.

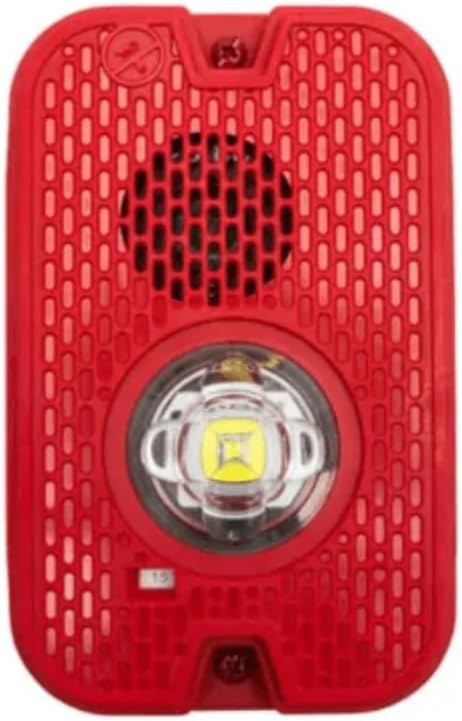

System Sensor P2GRKLED L-Series Outdoor Horn Strobe, front view

ചിത്രം 2: മുൻഭാഗം view of the System Sensor P2GRKLED L-Series Outdoor Horn Strobe, highlighting the horn grille and the central LED strobe light.

4. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

5 സ്പെസിഫിക്കേഷനുകൾ

ആട്രിബ്യൂട്ട്സ്പെസിഫിക്കേഷൻ
മോഡൽ നമ്പർP2GRKLED
ബ്രാൻഡ്സിസ്റ്റം സെൻസർ
നിറംചുവപ്പ്
ആകൃതിദീർഘചതുരം
ഫിനിഷ് തരംചായം പൂശി
പ്രകാശ സ്രോതസ്സ് തരംലൈറ്റ് എമിറ്റിംഗ് ഡയോഡ് (എൽഇഡി)
പവർ ഉറവിടംകോർഡഡ് ഇലക്ട്രിക്
ഇനത്തിൻ്റെ ഭാരം2 പൗണ്ട് (0.91 കി.ഗ്രാം)
ശൈലിഒതുക്കമുള്ളത്
മൗണ്ടിംഗ് തരംമതിൽ മൗണ്ട്
ഉൽപ്പന്ന അളവുകൾ5"L x 5"W x 5"H (12.7 സെ.മീ x 12.7 സെ.മീ x 12.7 സെ.മീ)
കാലാവസ്ഥാ പ്രൂഫ് റേറ്റിംഗ്NEMA 4X, IP56
യു.പി.സി783863060038

6. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the reliable operation of the horn strobe. Refer to the specific installation instructions provided with the product packaging for detailed diagrams and wiring schematics. The following is a general guide.

6.1 മൗണ്ടിംഗ്

  1. ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Choose a wall-mount location that complies with local codes and provides optimal visibility and audibility. Ensure the surface is flat and secure.
  2. Prepare Mounting Box: Install a suitable electrical box (e.g., a 4-inch square box with an extension ring, or a weather-resistant outdoor box) according to local codes.
  3. മൗണ്ടിംഗ് പ്ലേറ്റ് അറ്റാച്ചുചെയ്യുക: Secure the device's mounting plate to the electrical box. Ensure the plate is oriented correctly for the desired device position.
  4. കാലാവസ്ഥാ സീലിംഗ്: As the device is NEMA 4X and IP56 rated, additional caulk or sealant on the backbox is generally not required, simplifying installation. However, ensure the mounting surface is flush and the device gasket creates a proper seal.

6.2 വയറിംഗ്

  1. പവർ വിച്ഛേദിക്കുക: Ensure all power to the Notification Appliance Circuit (NAC) is disconnected before wiring.
  2. വയറുകൾ ബന്ധിപ്പിക്കുക: Route the NAC wiring through the electrical box. Connect the positive and negative wires from the NAC to the corresponding terminals on the horn strobe. Refer to the product's specific wiring diagram for terminal identification and proper polarity.
  3. Candela Setting: Adjust the candela setting switch on the device to the desired output level as required by local codes and system design.
  4. സുരക്ഷിത ഉപകരണം: Once wiring is complete and verified, carefully attach the horn strobe unit to the mounting plate, ensuring it snaps or screws securely into place.
  5. പവർ പുനഃസ്ഥാപിക്കുകയും പരിശോധിക്കുകയും ചെയ്യുക: After installation, restore power to the NAC and perform a functional test of the horn strobe in accordance with NFPA 72 and local requirements.

7. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The System Sensor P2GRKLED L-Series Horn Strobe operates as part of a fire alarm control panel (FACP) system. It is designed to activate automatically upon receiving a signal from the FACP.

8. പരിപാലനം

Regular maintenance ensures the continued reliable operation of your System Sensor P2GRKLED horn strobe.

9. പ്രശ്‌നപരിഹാരം

If the horn strobe is not functioning as expected, consult the following table for common issues and solutions. For persistent problems, contact a qualified fire alarm technician.

പ്രശ്നംസാധ്യമായ കാരണംപരിഹാരം
Horn/Strobe does not activateNo power to NAC; Incorrect wiring; Device fault; FACP not in alarm.Check NAC power supply; Verify wiring connections and polarity; Test FACP for alarm condition; Replace device if faulty.
Strobe flashes, but horn does not soundHorn circuit fault; Damaged horn component.Inspect horn wiring; Replace device if horn is damaged.
Horn sounds, but strobe does not flashStrobe circuit fault; Damaged LED strobe.Inspect strobe wiring; Replace device if strobe is damaged.
ഇടയ്ക്കിടെയുള്ള പ്രവർത്തനംഅയഞ്ഞ വയറിംഗ് കണക്ഷൻ; വൈദ്യുതിയിലെ ഏറ്റക്കുറച്ചിലുകൾ.Secure all wiring connections; Consult FACP manual for power stability.

10. പിന്തുണ

For technical assistance, warranty information, or to report issues not covered in this manual, please contact System Sensor customer support or your authorized distributor. Always provide the model number (P2GRKLED) when seeking support.

System Sensor Contact Information:
Refer to the official System Sensor webഏറ്റവും പുതിയ കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായി സൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗ്.
