1. ഉൽപ്പന്നം കഴിഞ്ഞുview
This manual provides instructions for the GHB ABM600 Version D Baby Monitor Camera. This product is an add-on camera designed to expand your existing GHB ABM600 Version D baby monitor system. It allows for additional viewing angles or monitoring of multiple rooms. Please note that this package includes only the camera unit and does not come with a monitor screen.
പാക്കേജ് ഉള്ളടക്കം
- 1 x GHB ABM600 Version D Camera Unit
- 1 x Power Adapter for Camera
- 1 x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

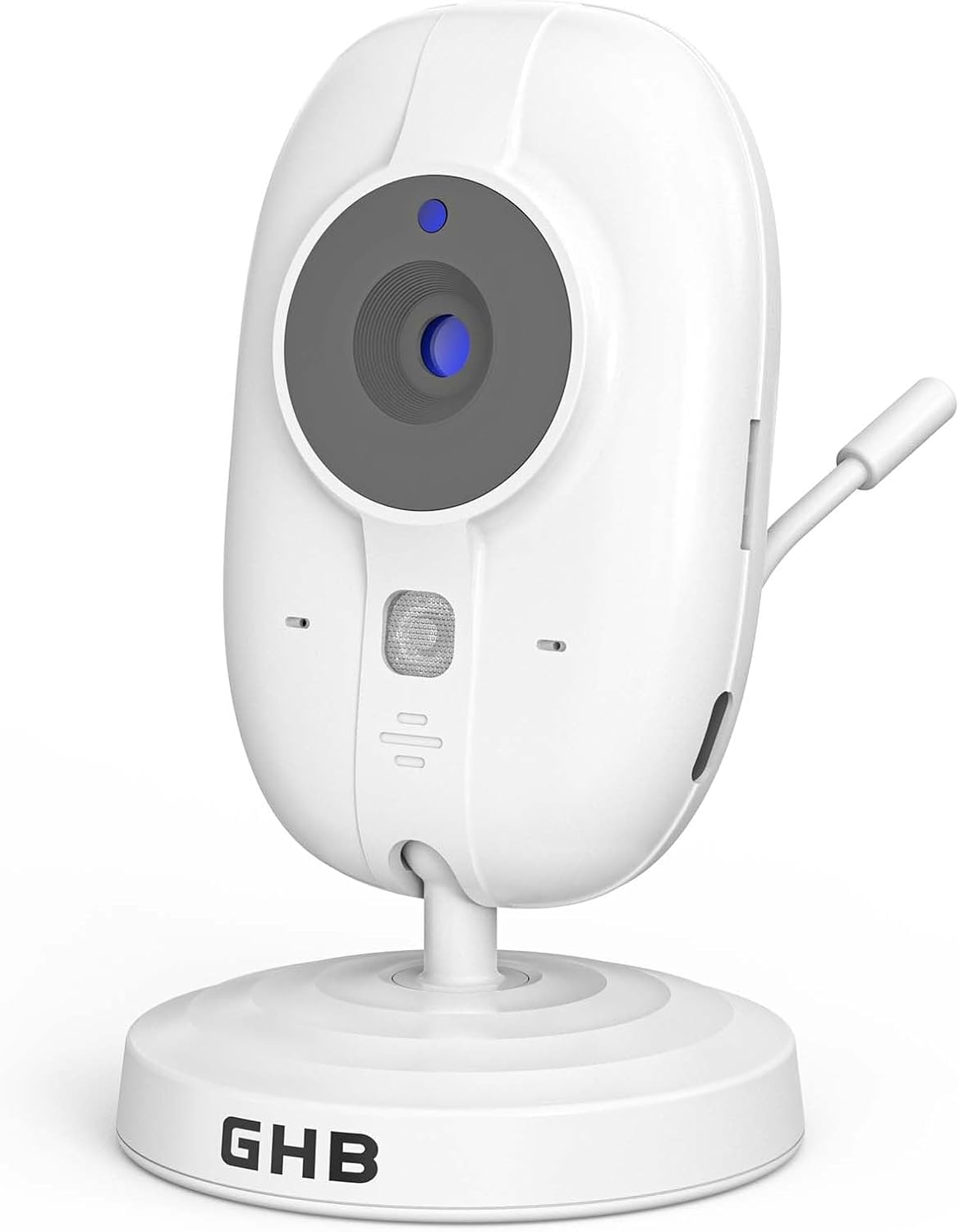

Image 1.1: GHB ABM600 Version D Baby Monitor Camera. This image shows the compact camera unit, typically white or light-colored, with a lens at the front and an antenna. It is designed for indoor use and can be wall-mounted.
2. അനുയോജ്യതാ വിവരങ്ങൾ
പ്രധാനപ്പെട്ടത്: ഈ ക്യാമറയാണ് ONLY compatible with the GHB ABM600 Baby Monitor System, Version D. It will not function with other versions of the ABM600 or any other baby monitor models.
How to Determine Your Monitor Version:
To ensure compatibility, please check the serial number (S/N) located on the back of your existing monitor screen or at the bottom of your current camera unit. If the serial number ends with H or I (e.g., S/N:250102H or S/N:250402I), then you have Version D, and this camera will be compatible.
If you are unsure about your monitor's version, please contact GHB customer support before attempting to set up this camera.
3 സുരക്ഷാ വിവരങ്ങൾ
- ശ്വാസംമുട്ടൽ അപകടം: Keep all small parts, packaging materials, and power cords out of reach of children.
- കഴുത്ത് ഞെരിച്ച് കൊല്ലുന്ന അപകടം: Never place the camera or its power cord within 3 feet (1 meter) of the crib or playpen. Secure the cord to a wall or furniture using cable clips to prevent entanglement.
- ഊർജ്ജ സ്രോതസ്സ്: നൽകിയിരിക്കുന്ന പവർ അഡാപ്റ്റർ മാത്രം ഉപയോഗിക്കുക. അനധികൃത അഡാപ്റ്ററുകൾ ഉപയോഗിക്കുന്നത് ഉപകരണത്തിന് കേടുപാടുകൾ വരുത്തുകയും വാറന്റി അസാധുവാക്കുകയും ചെയ്തേക്കാം.
- ജലവും ഈർപ്പവും: Do not expose the camera to water, moisture, or extreme temperatures. This device is for indoor use only.
- താപ സ്രോതസ്സുകൾ: Keep the camera away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
- വെൻ്റിലേഷൻ: Ensure proper ventilation around the camera. Do not cover the camera or block its ventilation openings.
- വൃത്തിയാക്കൽ: Unplug the camera before cleaning. Use a dry, soft cloth. Do not use liquid or aerosol cleaners.
- സേവനം: Do not attempt to open or repair the camera yourself. Refer all servicing to qualified service personnel.
4. സജ്ജീകരണം
4.1 ക്യാമറ പ്ലെയ്സ്മെന്റ്
Place the camera on a flat surface or mount it to a wall using appropriate hardware (not included). Ensure the camera has a clear, unobstructed view of the area you wish to monitor. For optimal performance, place the camera within 3-6 feet (1-2 meters) of the baby's crib or play area, but always at a safe distance to prevent cord entanglement.
4.2 ക്യാമറയിൽ പവർ ചെയ്യൽ
- Connect the small end of the power adapter to the DC input port on the back of the camera.
- പവർ അഡാപ്റ്ററിന്റെ മറ്റേ അറ്റം ഒരു സാധാരണ ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് പ്ലഗ് ചെയ്യുക.
- The camera does not have an internal battery and must remain plugged in to operate.
- A power indicator light (usually blue or green) on the camera will illuminate, indicating it is powered on.
4.3 Pairing the Camera with Your Monitor
To add this new camera to your existing GHB ABM600 Version D monitor, follow these steps:
- Ensure your monitor unit is turned on and fully charged or plugged in.
- Turn on the new camera by plugging it into a power outlet as described in Section 4.2.
- On your monitor unit, navigate to the "Camera Settings" or "Add Camera" menu. Refer to your original ABM600 Version D monitor manual for specific menu navigation.
- Select the option to "Add Camera" or "Pair Camera."
- The monitor will typically display a message like "Press PAIR button on camera."
- കണ്ടെത്തുക ജോടിയാക്കുക button on the back or side of the new camera unit. Press and hold this button for approximately 3-5 seconds.
- The monitor should then display a confirmation message indicating successful pairing. The camera's video feed should appear on the monitor screen.
- If pairing fails, ensure both units are within range and try the process again. If issues persist, consult the Troubleshooting section.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once the camera is successfully paired with your GHB ABM600 Version D monitor, its operation is controlled primarily through the monitor unit. This camera provides a 720p video feed and supports two-way audio communication.
5.1 Viewing Camera Feed
The video feed from the camera will automatically display on your monitor screen. If you have multiple cameras paired, you can switch between them using the monitor's controls (refer to your monitor manual).
5.2 ടു-വേ ഓഡിയോ
The camera features a built-in microphone and speaker, enabling two-way audio communication. To speak through the camera to your baby, press and hold the "Talk" button on your monitor unit. Release the button to hear audio from the camera's location.
5.3 മറ്റ് സവിശേഷതകൾ
For information on other features such as night vision, zoom, temperature monitoring, or lullabies, please refer to the comprehensive user manual provided with your GHB ABM600 Version D monitor unit. This camera unit functions as an extension of that system.
6. പരിപാലനം
6.1 ക്യാമറ വൃത്തിയാക്കൽ
To clean the camera, first unplug it from the power outlet. Use a soft, dry, lint-free cloth to gently wipe the camera body and lens. Do not use abrasive cleaners, solvents, or chemical cleaning agents, as these can damage the plastic components or the lens coating.
6.2 സംഭരണം
If you need to store the camera for an extended period, unplug it, clean it as described above, and store it in a cool, dry place away from direct sunlight and extreme temperatures.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ക്യാമറ ഓണാക്കുന്നില്ല | പവർ അഡാപ്റ്റർ ബന്ധിപ്പിച്ചിട്ടില്ല അല്ലെങ്കിൽ ഔട്ട്ലെറ്റ് തകരാറിലാണ്. | Ensure the power adapter is securely plugged into both the camera and a working electrical outlet. Try a different outlet. |
| Camera not pairing with monitor | Incorrect pairing procedure; camera or monitor out of range; compatibility issue. |
|
| No video/audio on monitor | Camera not powered; camera out of range; interference. |
|
| മോശം വീഡിയോ നിലവാരം | Low light conditions; camera lens dirty; poor signal. |
|
8 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: GHB ABM600 (Version D Camera)
- കണക്റ്റിവിറ്റി ടെക്നോളജി: 2.4 GHz FHSS
- വീഡിയോ മിഴിവ്: 720p
- പ്രത്യേക സവിശേഷതകൾ: ടു-വേ ഓഡിയോ
- ഉപയോഗം: ഇൻഡോർ
- മൗണ്ടിംഗ് തരം: Wall Mount (hardware not included)
- ഊർജ്ജ സ്രോതസ്സ്: AC Power Adapter (no built-in battery)
- അളവുകൾ (L x W x H): ഏകദേശം 18 x 13 x 5.6 സെ.മീ
- ഭാരം: ഏകദേശം 210 ഗ്രാം
- ഉൾപ്പെടുന്ന ഘടകങ്ങൾ: 1 Camera Unit
9. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
For warranty information, please refer to the documentation included with your original GHB ABM600 Version D baby monitor system or visit the official GHB website. If you encounter any issues not covered in this manual or require further assistance, please contact GHB customer support. Have your product model number (ABM600) and serial number ready when contacting support.
ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Please refer to your product packaging or the official GHB webഏറ്റവും കാലികമായ ഉപഭോക്തൃ സേവന കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായി സൈറ്റ്.
