1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Dogtra ARC-X Additional Receiver is designed to expand your existing Dogtra e-collar training system, allowing you to train up to three dogs with a single remote. This receiver is engineered for durability and comfort, featuring a slim, ergonomic design that fits dogs 15 lbs and up. It is IPX9K waterproof, ensuring reliable performance in various environmental conditions.
The ARC-X receiver offers 100 levels of static stimulation, along with vibration and tone functions, to match the capabilities of your main ARC-X remote. Its built-in LED light enhances visibility in low-light conditions, making it suitable for early morning or evening training sessions.
Image: Dogtra ARC-X Additional Receiver and its product packaging, highlighting its compact design.

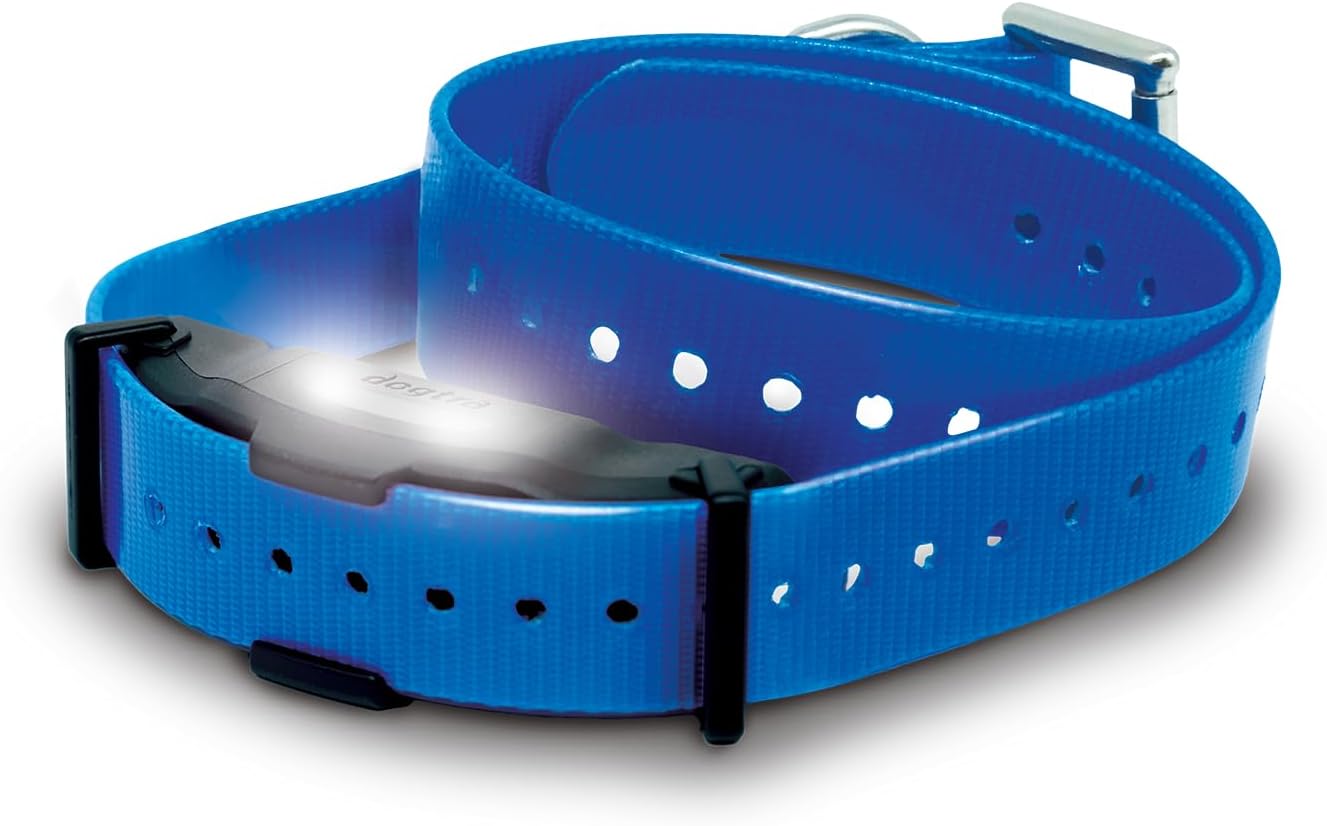

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the Dogtra ARC-X Additional Receiver, showcasing ഇത് സ്ലിം പ്രോ ആണ്file and integrated LED light.
Image: A promotional banner for the Dogtra ARC-X, emphasizing its slim, ergonomic design and key features like locate light, audible tone, removable contact points, and 3-dog expandability.
ചിത്രം: ഒരു ഓവർview banner for the Dogtra ARC-X, detailing its features such as 3/4-mile range, high output, suitability for dogs 15 lbs+, 100-level rheostat dial, safety level lock, programmable nick or constant, XPP vibration, 1000 lux LED light, curved-shaped receiver, expandable to 3 dogs, audible tone, 1" LCD display, USB-C charging, and IPX9K waterproof rating.
2 പ്രധാന സവിശേഷതകൾ
- Multi-Dog Ready: Easily add this ARC-X receiver to expand your system, allowing you to train up to 3 dogs with a single remote.
- Engineered to Last: Built for daily use in challenging conditions, featuring IPX9K waterproofing and a double-cased design for extreme durability.
- Compact & Comfortable: Approximately 30% slimmer than standard models, with an ergonomic curved design for a secure, low-profile fit on dogs 15 lbs and up.
- പൂർണ്ണമായ പ്രവർത്തനം: Provides 100 static levels, vibration, and tone, syncing seamlessly with the ARC-X remote for comprehensive training.
- ഉയർന്ന ദൃശ്യപരത: Integrated LED light assists in locating your dog in low-light environments or dense brush.
Image: A banner highlighting the Dogtra ARC-X as a slim, lightweight collar, 30% slimmer than the 1900X, with features like LED light, 5/8" male contact points, 3/4 mile range, curved-shape receiver, IPX9K waterproof rating, and 3-dog expandability.
3. സജ്ജീകരണവും ജോടിയാക്കലും
3.1 Charging the Receiver
Before first use, fully charge the receiver. Connect the charging cable to the receiver's charging port and a power source. The LED indicator will show charging status.
3.2 Pairing with Your Remote Transmitter
To pair the additional ARC-X receiver with your existing ARC-X remote transmitter, follow these steps:
- Ensure both the remote and the new receiver are turned off.
- റിമോട്ട് ട്രാൻസ്മിറ്റർ ഓണാക്കുക.
- On the remote, select the desired dog number (1, 2, or 3) that you wish to assign to this new receiver.
- Press and hold the power button on the ARC-X receiver until the LED light flashes rapidly.
- While the receiver's LED is flashing, press the Pager (P) button on the remote transmitter.
- The receiver's LED will turn solid, indicating successful pairing.
- Test the functions (Nick, Constant, Pager, Tone) to ensure proper communication.
3.3 Remote Transmitter Button Overview
Image: Close-up of a remote transmitter button, likely for stimulation control.
Image: Another close-up of a remote transmitter button, possibly for a different function like vibration.
Image: A third close-up of a remote transmitter button, indicating a primary control button.
Image: A fourth close-up of a remote transmitter button, likely for the tone function.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 Fitting the Receiver Collar
Proper fit of the receiver collar is crucial for effective and humane training. The contact points must make direct contact with the dog's skin. Ensure the collar is snug enough to prevent movement but not so tight as to restrict breathing or cause discomfort.
Image: A dog wearing the Dogtra ARC-X collar, demonstrating proper fit around the neck.
4.2 Stimulation Levels and Modes
The ARC-X receiver offers 100 levels of static stimulation, adjustable via the rheostat dial on your remote. It also includes vibration (Pager) and audible tone functions. Always start with the lowest stimulation level and gradually increase until your dog responds.
4.3 US Dog Collars Size Guide
| ബ്രാൻഡ് വലുപ്പം | Neck Girth (in) |
|---|---|
| ഒരു വലിപ്പം | 10 - 22 |
4.4 Product Comparison
The following table provides a comparison of the ARC-X receiver with other Dogtra models to help understand its positioning and capabilities.
Image: A comparison table detailing features like minimum dog size, neck size, suitability for different dog sizes, e-collar size, range, correction output levels, and price for Dogtra 280X, ARC-X, and 1900X models.
5. പരിപാലനവും പരിചരണവും
5.1 Cleaning the Receiver
റിസീവറും പരസ്യമുള്ള കോൺടാക്റ്റ് പോയിന്റുകളും പതിവായി വൃത്തിയാക്കുക.amp cloth. Ensure no debris or dirt accumulates around the charging port or contact points, as this can affect performance and charging.
5.2 ബാറ്ററി കെയർ
To prolong battery life, avoid fully discharging the receiver frequently. Charge the unit when the battery indicator is low. If storing for an extended period, charge the battery to about 50% and recharge every few months.
5.3 Proper Storage
Store the receiver in a cool, dry place away from extreme temperatures and direct sunlight. Keep it out of reach of children and pets.
6. പ്രശ്നപരിഹാരം
6.1 Receiver Not Turning On
- Check battery level. Recharge the receiver if the battery is low.
- Ensure the power button is pressed and held correctly until the LED illuminates.
6.2 No Stimulation/Vibration/Tone
- Verify the receiver is properly paired with the remote transmitter. Re-pair if necessary.
- Ensure the receiver collar is fitted snugly and the contact points are touching the dog's skin.
- Check the stimulation level on the remote; increase if it's too low.
- Confirm the remote transmitter's battery is charged.
6.3 Shortened Range
- Environmental factors such as terrain, weather, and electromagnetic interference can affect range.
- Ensure both the remote and receiver are fully charged.
7. ഉൽപ്പന്ന സവിശേഷതകൾ
| സ്പെസിഫിക്കേഷൻ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | ARC - X ADD RX |
| ഇനം മോഡൽ നമ്പർ | ARC - X ADD RX |
| ASIN | B0FH45KB36 |
| ബ്രാൻഡ് | ഡോഗ്ട്ര |
| നിർമ്മാതാവ് | ഡോഗ്ട്ര |
| ഇനത്തിൻ്റെ ഭാരം | 14.4 ഔൺസ് |
| ഇനം പാക്കേജ് അളവുകൾ L x W x H | 5 x 3 x 2 ഇഞ്ച് |
| ബാറ്ററികൾ | 1 നിലവാരമില്ലാത്ത ബാറ്ററി ബാറ്ററികൾ ആവശ്യമാണ്. (ഉൾപ്പെടുന്നു) |
| നിറം | കറുപ്പ് |
| വലിപ്പം | ARC-X - Additional Receiver |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Receiver Collar Only |
| ഉൽപ്പന്നത്തിൻ്റെ പ്രത്യേക ഉപയോഗങ്ങൾ | പെരുമാറ്റം |
| അടയ്ക്കൽ തരം | ബക്കിൾ |
| യൂണിറ്റ് എണ്ണം | 1 എണ്ണം |
| ആദ്യ തീയതി ലഭ്യമാണ് | ജൂലൈ 9, 2025 |
8. വാറൻ്റിയും പിന്തുണയും
8.1 വാറൻ്റി വിവരങ്ങൾ
The Dogtra ARC-X Additional Receiver comes with a 1 വർഷത്തെ പരിമിത വാറൻ്റി. This warranty covers defects in materials and workmanship under normal use. Please refer to the official Dogtra website or contact customer service for full warranty terms and conditions.
8.2 ഉപഭോക്തൃ പിന്തുണ
For technical assistance, troubleshooting, or warranty claims, please contact Dogtra customer support. Visit the official Dogtra webബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങൾ, പതിവുചോദ്യങ്ങൾ, അധിക ഉറവിടങ്ങൾ എന്നിവയ്ക്കായി സൈറ്റ്.
