VINGLI 16-inch Sand Pool Filter with 3/4HP Pump and 24H Timer User Manual

1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Read all instructions thoroughly before installing, operating, or performing maintenance on this product. Failure to follow these instructions could result in serious injury or property damage.

• ഇലക്ട്രിക്കൽ സുരക്ഷ: Always disconnect power before servicing. Ensure the pump is connected to a properly grounded 115V electrical outlet. Do not use extension cords.
• ജല സുരക്ഷ: Never operate the pump dry. Ensure the pool water level is adequate before starting the system.
• രാസ സുരക്ഷ: Handle pool chemicals with care and follow manufacturer guidelines.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep children and pets away from the pool equipment during operation.
• ഇൻസ്റ്റലേഷൻ: Install the filter system on a firm, level surface with adequate drainage.
• സമ്മർദ്ദം: Do not exceed the maximum operating pressure of the filter system.

2. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• Sand Filter Tank (16-inch)
• Pool Pump (3/4HP)
• മൾട്ടി-പോർട്ട് വാൽവ്
• പ്രഷർ ഗേജ്
• Hose Connections (1.5-inch)
• പമ്പ് സ്‌ട്രെയ്‌നർ ബാസ്‌ക്കറ്റ്
• Base for Filter Tank
• ഉപയോക്തൃ മാനുവൽ

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The VINGLI 16-inch Sand Pool Filter system is designed for efficient water circulation and purification in above-ground swimming pools. It features a durable sand tank, a powerful 3/4HP pump, and a versatile 7-function multi-port valve to maintain crystal-clear pool water. An integrated 24-hour timer allows for automated operation.

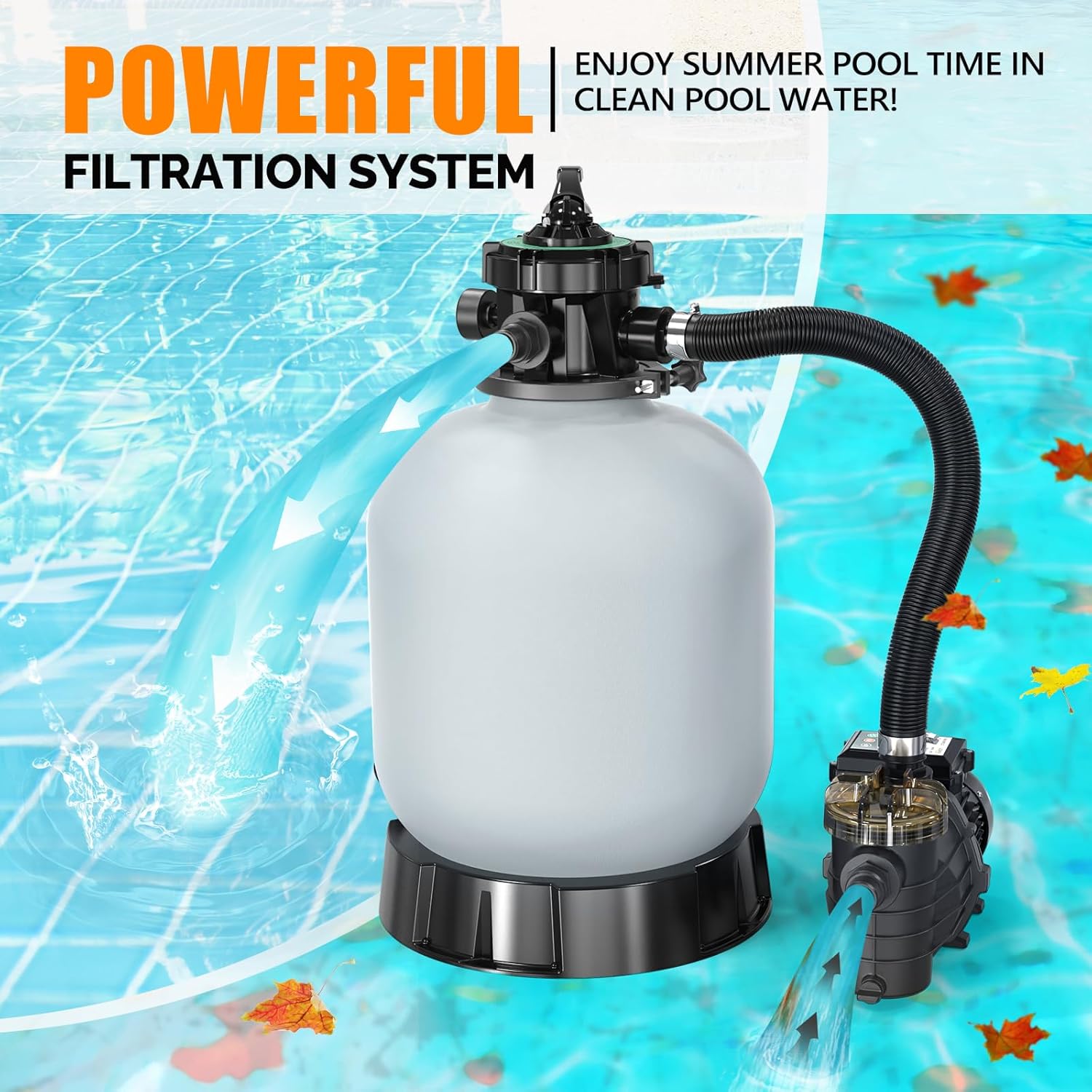

Image: The VINGLI Sand Pool Filter system demonstrating its powerful filtration capabilities, with water flowing through the tank and pump.

Image: The complete VINGLI 16-inch Sand Pool Filter and 3/4HP pump assembly, ready for installation.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper installation of your VINGLI Sand Pool Filter system:

1. അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്ത് എന്തെങ്കിലും കേടുപാടുകൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക.
2. സ്ഥാനനിർണ്ണയം: Place the filter system on a firm, level surface, ideally close to the pool and a grounded electrical outlet. Ensure the location allows for proper drainage when backwashing.
3. അടിസ്ഥാനം കൂട്ടിച്ചേർക്കുന്നു: Securely attach the filter tank to its designated base.
4. Filling with Filter Media:
   • Remove the multi-port valve from the top of the tank.
   • Place the standpipe inside the tank, ensuring the opening is covered to prevent sand from entering.
   • Slowly add the recommended amount of filter sand (approximately 88 lbs for the 16-inch model) or filter balls. Ensure the media level is appropriate, typically about 2/3 full.
   • Remove the standpipe cover.
5. Installing the Multi-port Valve: Carefully place the multi-port valve onto the tank, aligning it with the standpipe. Secure the valve with the provided clamp or bolts, ensuring a tight seal.
6. പമ്പ് ബന്ധിപ്പിക്കുന്നു:
   • Attach the pump to the multi-port valve's port labeled "PUMP".
   • Connect the pump's suction port to the pool's skimmer line.
   • Connect the multi-port valve's port labeled "RETURN" to the pool's return line.
   • Connect the multi-port valve's port labeled "WASTE" to a suitable waste line or drainage area.
   • Secure all hose connections with clampചോർച്ച തടയാൻ എസ്.
7. ഇലക്ട്രിക്കൽ കണക്ഷൻ: Ensure the pump is connected to a properly grounded 115V electrical outlet.

Image: The VINGLI Sand Pool Filter system properly installed and connected to an above-ground pool, ready for operation.

Image: Illustration indicating that both sand and filter balls can be used as filter media for the system.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

പ്രവർത്തനത്തിന് മുമ്പ്:

• Ensure the pool is filled to the proper operating level.
• Prime the pump by filling the pump's strainer basket with water.
• Ensure all valves in the plumbing system are open to allow water flow.

Multi-port Valve Functions:

പ്രധാനപ്പെട്ടത്: Always turn off the pump before changing the multi-port valve position to prevent damage.

Image: The multi-port valve clearly showing its seven operational settings.

• ഫിൽട്ടർ: This is the normal operating position for daily filtration. Water flows through the filter media, and clean water is returned to the pool.
• ബാക്ക്വാഷ്: Used for cleaning the filter media. Water flow is reversed, flushing accumulated debris out through the waste port. Run until the water running clear in the sight glass.
• കഴുകുക: Used after backwashing to flush any remaining dirty water from the valve and lines to the waste port. Run for 30-60 seconds.
• പുനഃക്രമീകരിക്കുക: Water circulates through the pump and valve, returning to the pool without passing through the filter media. Useful for distributing chemicals quickly.
• മാലിന്യം: Drains water directly from the pool to the waste port, bypassing the filter. Useful for lowering pool water level or vacuuming heavy debris directly to waste.
• അടച്ചു: Shuts off all water flow through the filter and pump. Use this position only when performing maintenance or servicing the system.
• ശീതകാലം: Used for draining water from the filter system for storage during cold weather to prevent freezing damage.

24-Hour Timer Operation:

The integrated digital timer allows you to set automatic operation cycles for your pump. The timer can be set for 1 to 20 hours or for continuous operation.

Image: The electronic digital display and control buttons for setting the 24-hour timer on the pump.

• Refer to the pump's digital display and control buttons for specific setting instructions.
• Typically, pressing the timer button will cycle through preset durations (e.g., 1H, 2H, ..., 20H) or continuous mode. Select your desired operating time.

6. പരിപാലനം

Regular maintenance ensures optimal performance and longevity of your VINGLI Sand Pool Filter system:

• പതിവ് ബാക്ക് വാഷിംഗ്: Backwash the filter when the pressure gauge reads 8-10 PSI above its clean starting pressure, or when you notice a decrease in water flow. Always follow backwashing with a rinse cycle.
• പമ്പ് സ്‌ട്രൈനർ ബാസ്‌ക്കറ്റ്: Regularly check and clean the pump's strainer basket for leaves and other debris. Turn off the pump before opening the basket.
• ഫിൽട്ടർ മീഡിയ മാറ്റിസ്ഥാപിക്കൽ: Filter sand typically needs replacement every 3-5 years, depending on usage and water quality. If using filter balls, refer to their specific replacement guidelines.
• ശീതകാലം: In regions with freezing temperatures, it is crucial to properly winterize your pool filter system. Drain all water from the pump, filter tank, and plumbing lines. Store the pump and multi-port valve indoors in a dry, protected area.

7. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും അറിയാൻ ഈ വിഭാഗം കാണുക:

• കുറഞ്ഞ ജലപ്രവാഹം:
  • Check the pump strainer basket for debris and clean if necessary.
  • Perform a backwash and rinse cycle.
  • Inspect for air leaks in the suction lines.
  • Ensure all plumbing valves are fully open.
• മേഘാവൃതമായ പൂൾ വെള്ളം:
  • Backwash and rinse the filter thoroughly.
  • Test and adjust pool chemical balance.
  • Ensure the filter system is running for adequate periods each day.
  • Check the filter sand for channeling or if it needs replacement.
• Pump Not Priming:
  • Ensure the pump basket is completely filled with water before starting.
  • Check for air leaks in the suction line, especially around connections.
  • Verify that the pool water level is sufficient.
• പമ്പ് ആരംഭിക്കുന്നില്ല:
  • Check the electrical connection and ensure the circuit breaker has not tripped.
  • Verify that the 24-hour timer is set correctly and not in an 'off' cycle.

8 സ്പെസിഫിക്കേഷനുകൾ

Image: A detailed table outlining specifications for various VINGLI sand filter tank sizes, including recommended pool size, flow rate, pump horsepower, and sand requirements.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical assistance, or any questions regarding your VINGLI Sand Pool Filter system, please contact VINGLI customer support. Refer to your purchase documentation for specific warranty terms and contact details.
