വാട്ട്സൈക്കിൾ 12V 100Ah LiFePO4 ലിഥിയം മിനി ബാറ്ററി യൂസർ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and efficient operation of your Wattcycle 12V 100Ah LiFePO4 Lithium Mini Battery. Please read this manual thoroughly before installation or use to ensure proper handling and to maximize battery performance and longevity.

Image: The Wattcycle 12V 100Ah LiFePO4 Lithium Mini Battery, a compact black battery with blue and yellow branding, featuring a built-in handle and visible terminals.

2. ബോക്സിൽ എന്താണുള്ളത്?

Upon unpacking, verify that all items listed below are included:

• 1 x Wattcycle 12V 100Ah LiFePO4 Lithium Mini Battery
• 4 x M8 സ്ക്രൂകൾ
• 2 x Insulated Terminal Caps (Red and Black)
• 1 x ഇൻസ്ട്രക്ഷൻ മാനുവൽ

Image: A visual representation of the battery, M8 screws, insulated caps, and instruction manual, illustrating the contents of the product packaging.

3 സ്പെസിഫിക്കേഷനുകൾ

4 പ്രധാന സവിശേഷതകൾ

• കോംപാക്റ്റ് ഡിസൈൻ: This 12V 100Ah lithium battery is 11% lighter and 39% smaller than previous generations, offering a 63Wh/lbs energy density. It is designed to fit BCI Group 24 battery boxes.
• Smart Bluetooth Monitoring: Utilize the WattCycle app to monitor battery voltage, current, and other parameters via Bluetooth for efficient and safe operation.
• Premium A+ Cells: Constructed with Grade A+ EV cells, this battery offers a 10-year lifespan and up to 15,000 cycles. It supports configurations up to 4S4P for a total of 20.48kWh.
• Robust BMS Protection: Operates effectively from -4°F to 158°F, featuring automatic shut-off at low temperatures. The integrated Battery Management System (BMS) provides safeguards against overcharge, over-discharge, over-current, short circuit, and high/low temperature conditions.
• വിശ്വാസ്യത: Backed by a 5-year assurance.

Image: A visual comparison highlighting the Wattcycle LiFePO4 battery's advantages in weight, size, capacity, cycles, and lifespan over a traditional lead-acid battery.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper installation and connection of your Wattcycle battery:

1. അൺപാക്ക് ചെയ്ത് പരിശോധിക്കുക: Carefully remove the battery and all accessories from the packaging. Inspect for any signs of damage.
2. ടെർമിനൽ കണക്ഷൻ: Use the provided M8 screws and insulated caps to securely connect your cables to the battery terminals. Ensure correct polarity (red for positive, black for negative).
3. പ്ലേസ്മെൻ്റ്: Position the battery in a secure, well-ventilated area. The LiFePO4 battery can be installed in various orientations (upright, on its side) without affecting performance.
4. സിസ്റ്റം ഇൻ്റഗ്രേഷൻ: Connect the battery to your RV, marine, boat, or trailer system according to your system's wiring diagram. Ensure all connections are tight and secure.

Image: A visual representation of the battery's compact dimensions (9 x 5.4 x 8.2 inches) and weight (20.94 lbs).

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your Wattcycle battery is designed for ease of use with smart monitoring capabilities:

• പ്രാരംഭ ചാർജ്: മികച്ച പ്രകടനത്തിന്, ആദ്യമായി ഉപയോഗിക്കുന്നതിന് മുമ്പ് ബാറ്ററി പൂർണ്ണമായും ചാർജ് ചെയ്യുക.
• ബ്ലൂടൂത്ത് ആപ്പ്: Download the WattCycle app from your device's app store. Connect to your battery via Bluetooth to monitor its status in real-time. The app provides data on voltage, current, temperature, and state of charge.
• ചാർജിംഗ്: The battery supports various charging methods including LiFePO4 chargers, solar panels (with appropriate controller), and alternators. Ensure your charging source is compatible with LiFePO4 batteries.
• ഡിസ്ചാർജ് ചെയ്യുന്നു: The battery is suitable for powering a wide range of applications such as RVs, marine equipment, and general power backup. The integrated BMS protects against over-discharge.

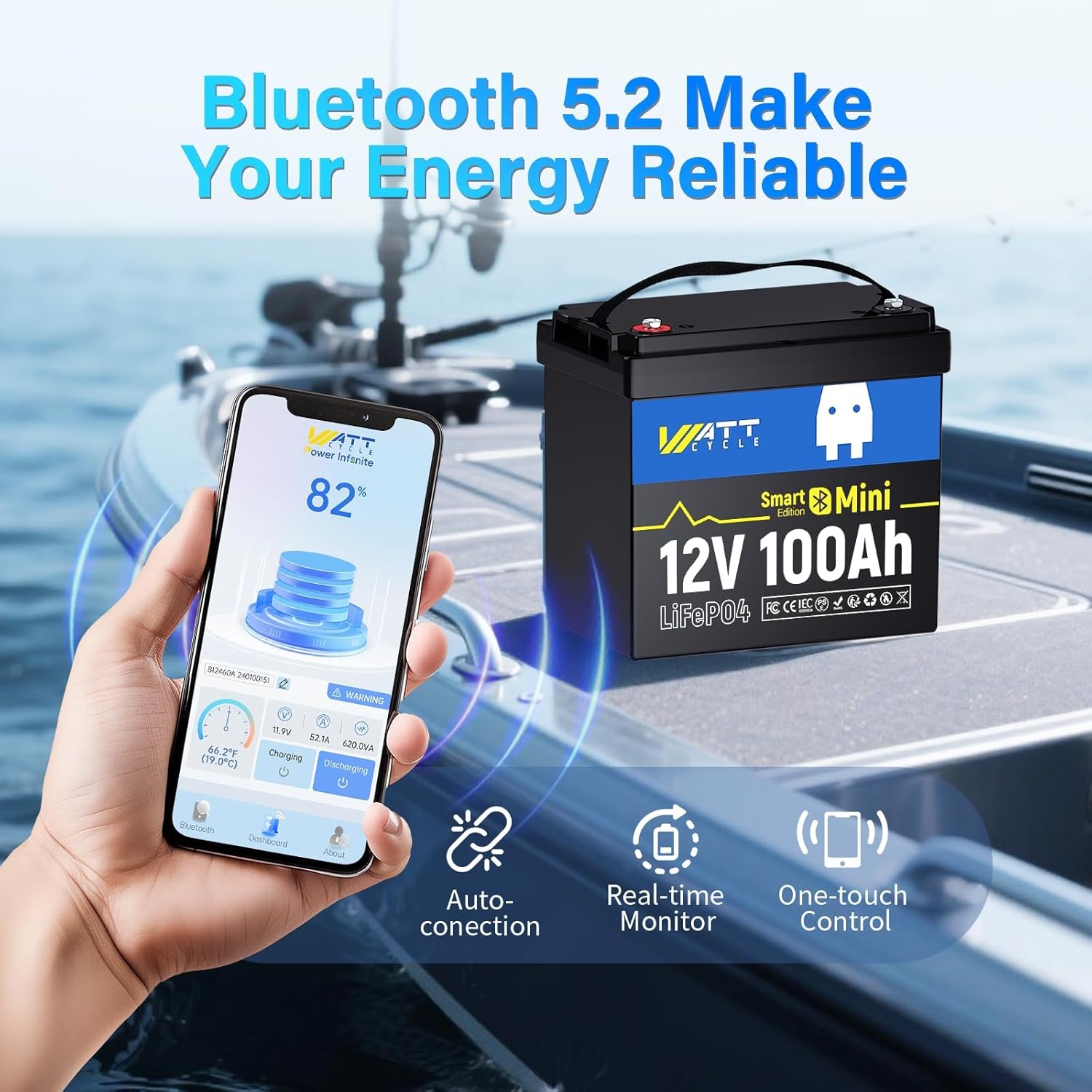

Image: A smartphone displaying the Wattcycle app interface, showing real-time battery monitoring data including voltagഇ, കറൻ്റ്, താപനില.

7. പരിപാലനവും സംഭരണവും

ശരിയായ അറ്റകുറ്റപ്പണി നിങ്ങളുടെ ബാറ്ററിയുടെ ദീർഘായുസ്സും പ്രകടനവും ഉറപ്പാക്കുന്നു:

• പതിവ് പരിശോധന: ബാറ്ററി ടെർമിനലുകൾ ഇടയ്ക്കിടെ പരിശോധിച്ച് നാശമുണ്ടോ എന്ന് ഉറപ്പുവരുത്തുക, കണക്ഷനുകൾ ഇറുകിയതാണെന്ന് ഉറപ്പാക്കുക.
• വൃത്തിയാക്കൽ: Keep the battery clean and dry. Use a soft, dry cloth to wipe down the battery casing.
• സംഭരണം: If storing the battery for an extended period, ensure it is charged to approximately 50% State of Charge (SOC) and stored in a cool, dry place. The BMS will protect against low-temperature damage.
• താപനില പരിഗണനകൾ: Avoid operating or storing the battery in extreme temperatures outside the specified range (-4°F to 158°F). The battery's low-temperature cut-off feature will prevent charging below 32°F.

Image: The Wattcycle battery shown in a snowy setting, emphasizing its low-temperature cut-off protection feature for safe operation in cold conditions.

8. പ്രശ്‌നപരിഹാരം

The Smart BMS provides comprehensive protection. If you experience issues, check the following:

• പവർ ഔട്ട്പുട്ട് ഇല്ല: Check battery connections for tightness and correct polarity. Verify the battery's state of charge via the app. The BMS may have activated a protection mode (e.g., over-discharge, low temperature).
• ചാർജിംഗ് പ്രശ്നങ്ങൾ: Ensure your charger is compatible with LiFePO4 batteries and operating correctly. Check for low-temperature cut-off if charging in cold conditions.
• ആപ്പ് കണക്റ്റിവിറ്റി: Ensure Bluetooth is enabled on your device and the battery is within range. Restart the app or battery if connection issues persist.
• BMS Fault: If the battery enters a fault state, the BMS will typically shut down to protect the cells. Refer to the app for specific fault codes or contact support.

9. വാറൻ്റിയും പിന്തുണയും

Your Wattcycle battery is backed by a 5-year assurance against manufacturing defects. For any inquiries, technical assistance, or warranty claims, please contact our support team. We aim to respond within 24 hours.

• നിർമ്മാതാവ്: വാട്ട്സൈക്കിൾ
• പിന്തുണ കോൺടാക്റ്റ്: Please refer to the contact information provided in your product manual or on the official Wattcycle webസൈറ്റ്.
