DWVO Vanity Table with LED Mirror and Stool - Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the assembly, operation, and maintenance of your DWVO Vanity Table with LED Mirror and Stool. Please read all instructions carefully before assembly and use to ensure safe and proper functionality.

Image 1: Fully assembled DWVO Vanity Table with LED Mirror and Stool in a bedroom setting.

2 സുരക്ഷാ വിവരങ്ങൾ

• വാൾ ആങ്കറിംഗ്: To prevent accidental tipping, especially in households with children or pets, mandatory wall-anchoring hardware is included. Install this hardware securely to a wall stud or use appropriate anchors for your wall type. Failure to do so may result in serious injury.
• ഇലക്ട്രിക്കൽ സുരക്ഷ: The vanity table includes built-in AC power sockets and USB charging ports. Ensure the power cord is properly connected to a grounded outlet. Do not overload the sockets. Keep liquids away from electrical components.
• അസംബ്ലി: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all screws and fasteners are tightened securely before use. Do not overtighten.
• ഭാരം ശേഷി: Do not place excessively heavy items on the table surface or inside the drawers.
• Stool Use: The included stool is designed for seating one person. Do not stand on the stool or use it for purposes other than intended.

3. പാക്കേജ് ഉള്ളടക്കം

Your DWVO Vanity Table is shipped in two separate boxes, which may arrive at different times. Please verify all components are present before beginning assembly.

Image 2: Visual representation of the product being shipped in two separate boxes.

Carefully unpack all components and compare them against the parts list (typically found in a separate leaflet or on the packaging). If any parts are missing or damaged, contact customer support immediately.

പ്രതീക്ഷിക്കുന്ന ഘടകങ്ങൾ:

• Vanity Tabletop and Frame Components
• LED Bulb Mirror Assembly
• Stool Components
• 4 Drawer Units (various sizes)
• Hair Dryer Rack
• Built-in Plug Socket Unit (with AC outlets and USB ports)
• LED Bulbs (11 units)
• അസംബ്ലി ഹാർഡ്‌വെയർ (സ്ക്രൂകൾ, ഡോവലുകൾ, ക്യാം ലോക്കുകൾ മുതലായവ)
• Wall Anchoring Hardware
• പവർ കോർഡ്

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly requires two people. Please follow the steps below carefully. Refer to the included diagrammatic instructions for visual guidance.

4.1. Prepare the Workspace

1. അസംബ്ലിക്കായി വിശാലമായ ഒരു സ്ഥലം വൃത്തിയാക്കുക.
2. Lay down a blanket or cardboard to protect components from scratches.
3. Organize all hardware and components for easy access.

4.2. Assemble the Main Table Frame

1. Identify the main side panels and the tabletop.
2. Attach the support beams and back panel to the side panels using the provided screws and cam locks. Ensure all connections are secure.
3. Carefully place the tabletop onto the assembled frame, aligning pre-drilled holes, and secure it with screws.

4.3. Install Drawers

1. Assemble each drawer unit according to the separate drawer assembly instructions. Ensure drawer slides are correctly oriented.
2. Install the drawer slides into the main table frame.
3. Insert the assembled drawers into their respective slots. Test for smooth operation.

Image 3: Illustration of the vanity table's storage capacity, including a large drawer and three smaller drawers.

4.4. Attach the LED Mirror

1. Carefully position the LED mirror assembly onto the back of the tabletop.
2. Secure the mirror to the table using the designated brackets and screws.
3. Screw the 11 LED bulbs into their sockets on the mirror frame.

4.5. Install Electrical Components and Hair Dryer Rack

1. Locate the built-in plug socket unit.
2. Mount the unit into the designated slot on the side of the vanity table.
3. Attach the hair dryer rack to the side of the table, typically near the plug socket unit.

Image 4: Detail of the integrated power strip with two AC outlets and two USB ports.

4.6. Assemble the Stool

1. Attach the legs to the stool base using the provided hardware.
2. Secure the cushioned seat to the stool base.

4.7. വാൾ ആങ്കറിംഗ്

1. Position the assembled vanity table against the desired wall.
2. Mark the wall through the pre-drilled holes on the anti-tipping strap/bracket.
3. Drill pilot holes and install the wall anchors (if necessary for your wall type).
4. Securely attach the anti-tipping strap/bracket to both the vanity table and the wall.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. LED Mirror Lighting

The integrated lighting system features 11 LED bulbs with 3 customizable color temperatures.

• പവർ ഓൺ/ഓഫ്: കണ്ണാടി പ്രതലത്തിൽ ടച്ച് സെൻസർ കണ്ടെത്തുക. ലൈറ്റുകൾ ഓണാക്കാനോ ഓഫാക്കാനോ ഒരു തവണ ടാപ്പ് ചെയ്യുക.
• വർണ്ണ താപനില ക്രമീകരിക്കുക: ലൈറ്റുകൾ ഓണായിരിക്കുമ്പോൾ, വാം വൈറ്റ്, കൂൾ വൈറ്റ്, വാം യെല്ലോ എന്നീ മൂന്ന് കളർ മോഡുകളിലൂടെ കടന്നുപോകാൻ ടച്ച് സെൻസറിൽ ആവർത്തിച്ച് ടാപ്പ് ചെയ്യുക.
• തെളിച്ചം ക്രമീകരിക്കുക: Press and hold the touch sensor to dim or brighten the lights. Release when the desired brightness is achieved.

Image 5: Visual demonstration of the three adjustable color lighting modes of the LED mirror.

5.2. Built-in Power Sockets and USB Ports

The vanity table includes two standard AC power sockets and two USB charging ports for convenience.

• Plug the main power cord from the vanity table into a wall outlet.
• Insert your hair dryer, curling iron, or other small appliances into the AC power sockets.
• Connect your mobile devices or other USB-powered accessories to the USB charging ports.
• പരമാവധി വാട്ട് കവിയരുത്tage rating for the AC outlets (refer to specifications).

6. പരിപാലനം

• ഉപരിതല വൃത്തിയാക്കൽ: Wipe the table surfaces with a soft, damp തുണി. ഫിനിഷിനെ തകരാറിലാക്കുന്ന ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ കഠിനമായ രാസവസ്തുക്കളോ ഒഴിവാക്കുക.
• കണ്ണാടി വൃത്തിയാക്കൽ: Use a glass cleaner specifically designed for mirrors and a lint-free cloth. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components.
• ബൾബ് മാറ്റിസ്ഥാപിക്കൽ: If an LED bulb needs replacement, ensure the power is disconnected. Unscrew the old bulb and screw in a new compatible LED bulb.
• ഹാർഡ്‌വെയർ പരിശോധന: എല്ലാ സ്ക്രൂകളും ഫാസ്റ്റനറുകളും ഇറുകിയതാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക. ആവശ്യാനുസരണം വീണ്ടും മുറുക്കുക.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your DWVO Vanity Table, refer to the following common problems and solutions:

• പ്രശ്നം: The LED mirror lights do not turn on.
  പരിഹാരം:
  • Ensure the main power cord is securely plugged into a functional wall outlet.
  • Check if the power switch on the vanity table (if present) is in the "On" position.
  • Verify that all LED bulbs are screwed in tightly.
  • Gently tap the touch sensor on the mirror. If it's unresponsive, try unplugging the unit for a few minutes and plugging it back in.
  • If individual bulbs are out, replace them.
• പ്രശ്നം: Drawers do not slide smoothly or do not fit properly.
  പരിഹാരം:
  • Review the assembly instructions for the drawers and drawer slides. Ensure they are installed in the correct orientation and position.
  • Check that all screws securing the drawer slides are tightened.
  • Ensure the drawer components themselves are assembled correctly and not warped.
• പ്രശ്നം: The vanity table feels unstable or wobbly.
  പരിഹാരം:
  • Ensure all assembly screws and fasteners are fully tightened.
  • Verify that the table is placed on a level surface.
  • Confirm that the wall-anchoring hardware is securely installed to both the table and the wall.
• പ്രശ്നം: AC outlets or USB ports are not working.
  പരിഹാരം:
  • Ensure the main power cord is plugged into a live wall outlet.
  • Check if the device you are trying to power is functional.
  • Do not exceed the maximum power rating for the built-in strip.

8 സ്പെസിഫിക്കേഷനുകൾ

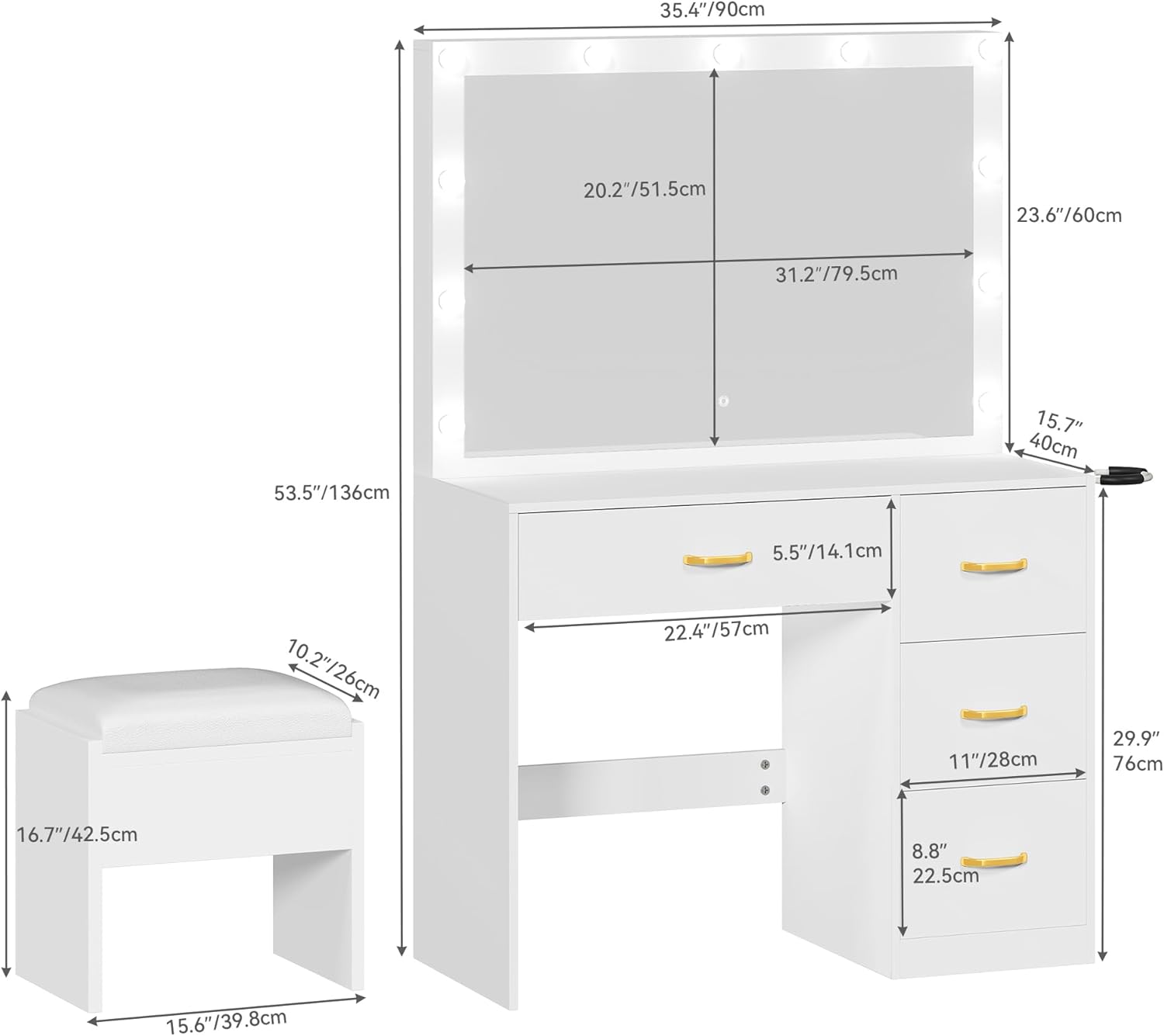

Image 6: Dimensional drawing illustrating the measurements of the vanity table and stool.

9. വാറൻ്റിയും പിന്തുണയും

DWVO products are designed for quality and durability. For specific warranty information, please refer to the warranty card included with your product or visit the official DWVO website. If you require assistance with assembly, missing parts, or troubleshooting that is not covered in this manual, please contact DWVO customer support.

DWVO Customer Support: ആമസോണിലെ DWVO സ്റ്റോർ സന്ദർശിക്കുക
