Razer Kraken Kitty V3 Pro Wireless RGB Gaming Headset User Manual

1. ആമുഖം

This manual provides instructions for setting up, operating, and maintaining your Razer Kraken Kitty V3 Pro Wireless RGB Gaming Headset. Please read this guide thoroughly to ensure proper usage and to maximize your gaming experience.

Image 1.1: The Razer Kraken Kitty V3 Pro Wireless RGB Gaming Headset.

2. ബോക്സിൽ എന്താണുള്ളത്?

• Razer Kraken Kitty V3 Pro Gaming Headset
• USB Type C Razer HyperSpeed Wireless Dongle
• യുഎസ്ബി ടൈപ്പ് എ മുതൽ ടൈപ്പ് സി കേബിൾ വരെ
• യുഎസ്ബി ടൈപ്പ് എ മുതൽ ടൈപ്പ് സി വരെയുള്ള അഡാപ്റ്റർ കേബിൾ
• ഉപയോക്തൃ മാനുവൽ

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Razer Kraken Kitty V3 Pro is a versatile gaming headset designed for immersive audio and clear communication. Key features include:

• Reactive Chroma RGB Kitty Ears: Customizable lighting effects that react to in-game events.
• Three Modes of Connectivity: Razer HyperSpeed Wireless (2.4 GHz), Bluetooth 5.3, and USB Wired.
• Retractable Razer HyperClear Super Wideband Microphone: For high-definition voice quality.
• Razer TriForce Titanium 40mm Drivers: Delivering clear highs, rich mids, and powerful bass.
• THX സ്പേഷ്യൽ ഓഡിയോ: Advanced 7.1 surround sound for realistic positional audio.
• Protein Leatherette with Memory Foam Ear Cushions: Designed for comfort and sound isolation.

ചിത്രം 3.1: മുൻഭാഗം view of the headset showcasing the reactive RGB kitty ears.

ചിത്രം 3.2: വശം view of the headset, highlighting the retractable microphone.

4. സജ്ജീകരണം

4.1 ഹെഡ്‌സെറ്റ് ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the headset using the provided USB Type A to Type C cable and adapter. Connect the USB-C end to the headset's charging port and the USB-A end to a powered USB port. The LED indicator will show charging status.

4.2 Connecting via Razer HyperSpeed Wireless (2.4 GHz)

1. Insert the USB Type C Razer HyperSpeed Wireless Dongle into a compatible USB-C port on your PC, Mac, PlayStation, or Nintendo Switch. Use the USB Type A to Type C adapter cable if a USB-A port is required.
2. Power on your headset. It will automatically connect to the dongle.
3. നിങ്ങളുടെ സിസ്റ്റം ക്രമീകരണങ്ങളിൽ ഹെഡ്‌സെറ്റ് ഓഡിയോ ഔട്ട്‌പുട്ട്, ഇൻപുട്ട് ഉപകരണമായി തിരഞ്ഞെടുത്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.

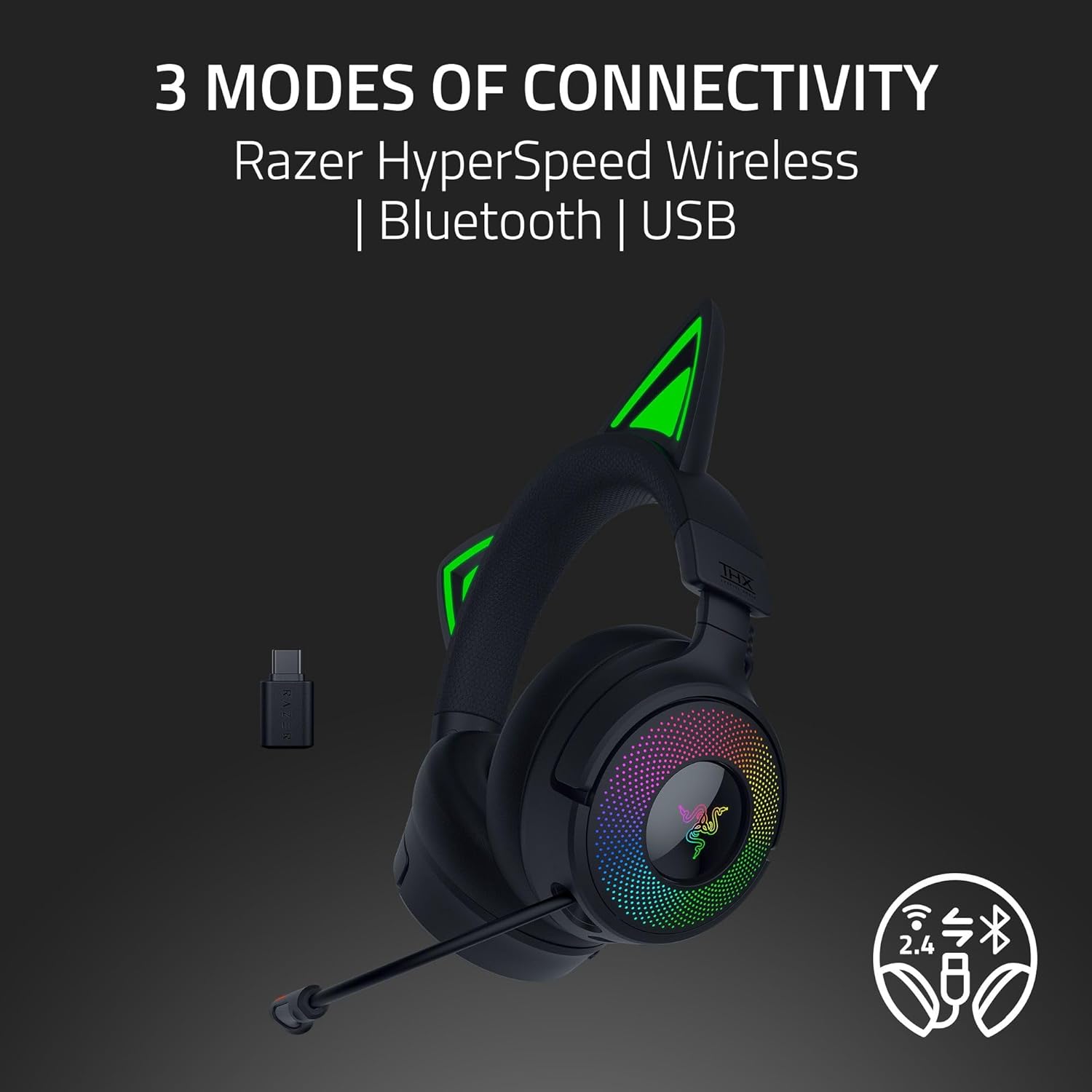

Image 4.1: The headset illustrating its three connectivity options.

4.3 ബ്ലൂടൂത്ത് 5.3 വഴി ബന്ധിപ്പിക്കുന്നു

1. With the headset powered on, press and hold the Bluetooth button until the LED indicator blinks, indicating pairing mode.
2. On your device (smartphone, PC, etc.), enable Bluetooth and select "Razer Kraken Kitty V3 Pro" from the list of available devices.
3. The LED indicator will turn solid when connected.

4.4 യുഎസ്ബി വയർഡ് വഴി ബന്ധിപ്പിക്കുന്നു

Connect the headset directly to your device using the USB Type A to Type C cable. This mode provides power and audio without requiring wireless connectivity.

4.5 സോഫ്റ്റ്‌വെയർ ഇൻസ്റ്റാളേഷൻ (റേസർ സിനാപ്‌സ്)

For full customization of Chroma RGB lighting, THX Spatial Audio, and other advanced settings, download and install the Razer Synapse software from the official Razer website. This software allows for personalized audio profileഎസ്, ലൈറ്റിംഗ് ഇഫക്റ്റുകൾ.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 പവർ ഓൺ/ഓഫ്

Press and hold the power button on the headset for a few seconds to turn it on or off. An audible cue and LED indicator will confirm the status.

5.2 വോളിയം ക്രമീകരിക്കൽ

Use the volume wheel located on the earcup to adjust the audio output level. Rotate up to increase volume, down to decrease.

5.3 മൈക്രോഫോൺ ഉപയോഗം

The Razer HyperClear Super Wideband Microphone is retractable. Pull it out when needed for communication and push it back into the earcup when not in use. A dedicated mute button on the microphone allows for quick muting/unmuting.

Image 5.1: The retractable microphone in extended position.

5.4 Chroma RGB Customization

Utilize the Razer Synapse software to customize the 16.8 million colors and various lighting effects for the kitty ears and earcup lighting. You can sync these effects with compatible games and devices.

5.5 THX Spatial Audio

Activate THX Spatial Audio through the Razer Synapse software to experience enhanced 7.1 surround sound. Custom-tuned THX Game Profiles are available for select titles to provide realistic positional audio.

Image 5.2: Visual representation of THX Spatial Audio technology.

5.6 ഗെയിം/ചാറ്റ് ബാലൻസ്

Adjust the balance between game audio and chat audio using the dedicated controls on the headset or through the Razer Synapse software to ensure clear communication without sacrificing game immersion.

6. പരിപാലനം

6.1 വൃത്തിയാക്കൽ

Gently wipe the headset with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials. For ear cushions, follow specific cleaning instructions provided by Razer or use a damp cloth with mild soap if necessary, ensuring they are completely dry before use.

6.2 ബാറ്ററി കെയർ

To prolong battery life, avoid fully discharging the headset frequently. Store the headset in a cool, dry place when not in use. If storing for an extended period, charge the battery to approximately 50%.

7. പ്രശ്‌നപരിഹാരം

• No Audio/Microphone Issues: Ensure the headset is properly connected (wireless dongle, Bluetooth, or USB cable). Check system audio settings to confirm the headset is selected as the default input/output device. Verify microphone is not muted.
• കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: For wireless connections, ensure the dongle is securely plugged in and within range. For Bluetooth, try re-pairing the device. Update drivers and Razer Synapse software to the latest version.
• RGB ലൈറ്റിംഗ് പ്രവർത്തിക്കുന്നില്ല: Check Razer Synapse software for lighting settings and ensure the headset firmware is up to date.
• ആശ്വാസ പ്രശ്നങ്ങൾ: The protein leatherette with memory foam ear cushions are designed for comfort. If discomfort occurs, adjust the headband or take short breaks during extended use.

For further assistance, visit the official Razer support webസൈറ്റ് അല്ലെങ്കിൽ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുക.

8 സ്പെസിഫിക്കേഷനുകൾ

9. ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ

10. വാറൻ്റിയും പിന്തുണയും

Razer products come with a limited warranty. For detailed warranty information, product registration, and technical support, please visit the official Razer webസൈറ്റ് www.razer.com. You can also find FAQs and troubleshooting guides online.
