ആമുഖം
The OLIGHT PL X is an advanced tactical flashlight designed for reliability and versatility. Featuring innovative dual-beam technology, it offers both a powerful spotlight and a wide floodlight, adaptable to various situations. Its robust metal construction, broad rail compatibility, and convenient USB-C charging make it an essential tool for tactical applications.
പാക്കേജ് ഉള്ളടക്കം
Upon unboxing your OLIGHT PL X, please ensure all the following items are present:
- OLIGHT PL X x 1
- USB-C ചാർജിംഗ് കേബിൾ x 1
- KM2.5×5 Screw x 1
- Multi Tool x 1
- Retaining Clip x 1
Image: The OLIGHT PL X flashlight, USB-C charging cable, KM2.5x5 screw, multi-tool, and retaining clip are shown neatly arranged next to the product box.
ഉൽപ്പന്ന സവിശേഷതകൾ
- Innovative Dual Beams: Seamlessly switch between a powerful 1,200 lumens wide floodlight for area illumination and a focused 22,500 candela spotlight with a throw of up to 300 meters.
- കരുത്തുറ്റ നിർമ്മാണം: Crafted from high-strength 6061 aluminum with a Type III hard anodized finish, ensuring durability. It is IPX7 waterproof and rigorously tested to withstand impacts from drops up to 1.5 meters.
- Broad Compatible Rail Mount: Features a patented anti-loosening ratchet mounting system for a wobble-free fit on various rails, including 1913 and GL rails (1913 insert pre-installed).
- USB-C റീചാർജ് ചെയ്യാവുന്നത്: Equipped with a USB-C charging port for convenient and rapid recharging from multiple power sources, ensuring the light is always ready.
- എളുപ്പമുള്ള പ്രവർത്തനം: Supports both forward-push and downward-press activation for immediate response, designed for ambidextrous use.
- Holster Compatibility: Designed with support from major holster manufacturers for secure retention and quick access.
സജ്ജമാക്കുക
Mounting the Flashlight
The OLIGHT PL X features a patented anti-loosening ratchet mounting system for secure attachment to your rail. It is compatible with both 1913 (Picatinny) and GL (Glock) rails. The 1913 insert comes pre-installed.
ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the OLIGHT PL X with dimensions and illustrations of the GL and 1913 rail adapters.
Changing Rail Adapters
The rail adapters feature a 180° reversible design to fit multiple models. Use the included multi-tool and KM2.5x5 screw to change between the 1913 and GL rail adapters as needed. An additional anti-loosening mechanism with a screw-clamp mount ensures rock-solid retention and consistent alignment under recoil.
Video: This video demonstrates how to install and uninstall the rail adapters and utilize the screw-clamp mount for secure attachment.
ചാർജിംഗ്
The OLIGHT PL X is equipped with a USB-C charging port for convenient recharging. Use the provided USB-C charging cable to connect the flashlight to any standard USB-C charger, vehicle outlet, or portable power bank.
A battery indicator light on the device provides real-time battery status:
- പച്ച: ബാറ്ററി നില > 60%
- മഞ്ഞ: Battery level 10% - 60%
- ചുവപ്പ്: Battery level < 10% (Recharge soon)

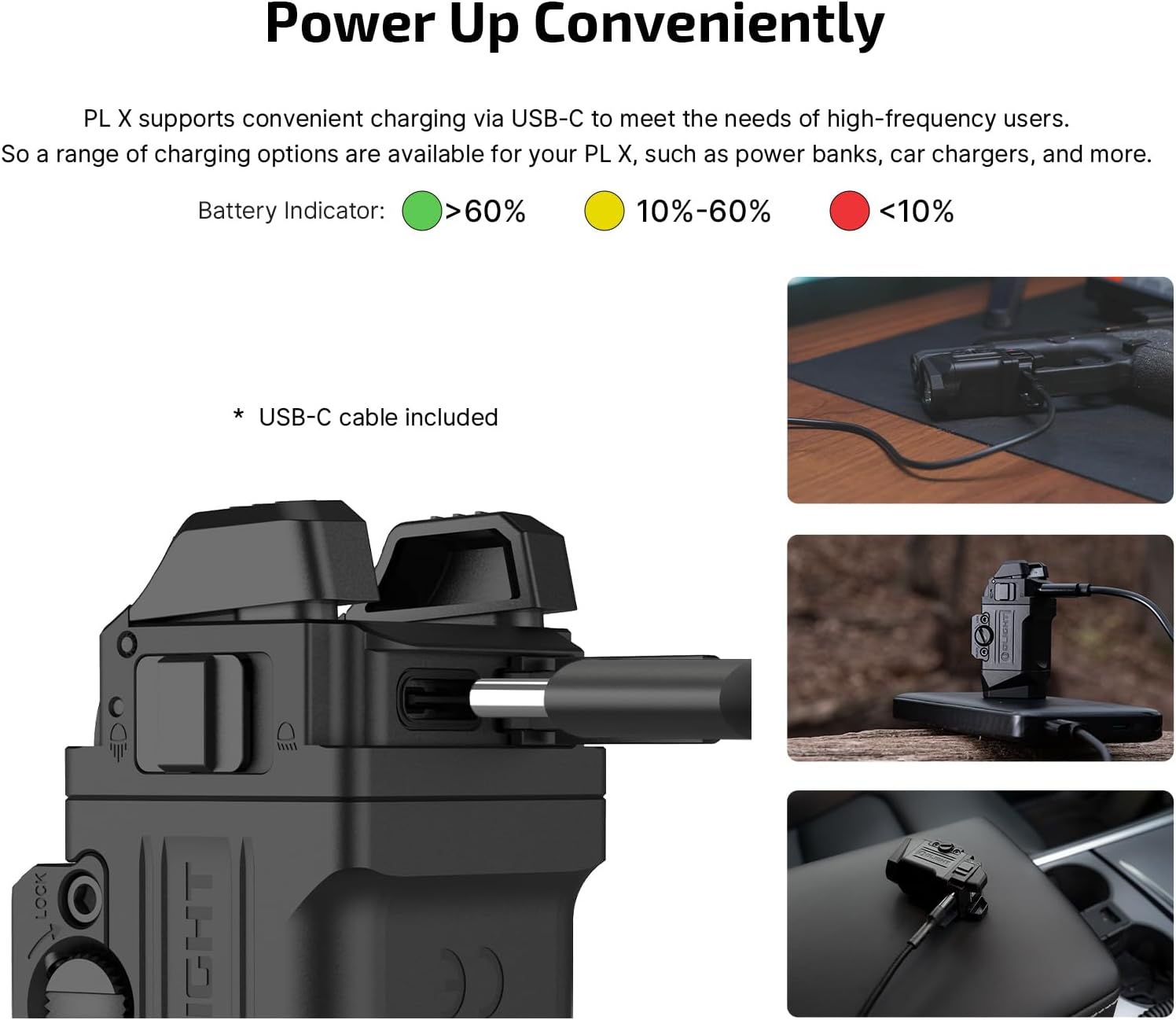

Image: The flashlight's USB-C port is highlighted, with illustrations of the battery indicator and different charging scenarios.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The PL X features ambidextrous controls for intuitive operation.
പവർ ഓൺ/ഓഫ്
- മൊമെന്ററി ഓൺ: Press and hold either activation button. The light will remain on as long as the button is held and turn off upon release.
- സ്ഥിരമായ ഓൺ/ഓഫ്: Quickly press and release either activation button. The light will turn on and stay on. Press and release again to turn it off.
Mode Switching (Spotlight / Floodlight)
The PL X allows for seamless switching between spotlight and floodlight modes using the dedicated toggle switch located on the side of the unit. Slide the toggle up for spotlight mode and down for floodlight mode.
Image: A visual comparison of the wide area illumination provided by the floodlight and the concentrated beam of the spotlight.

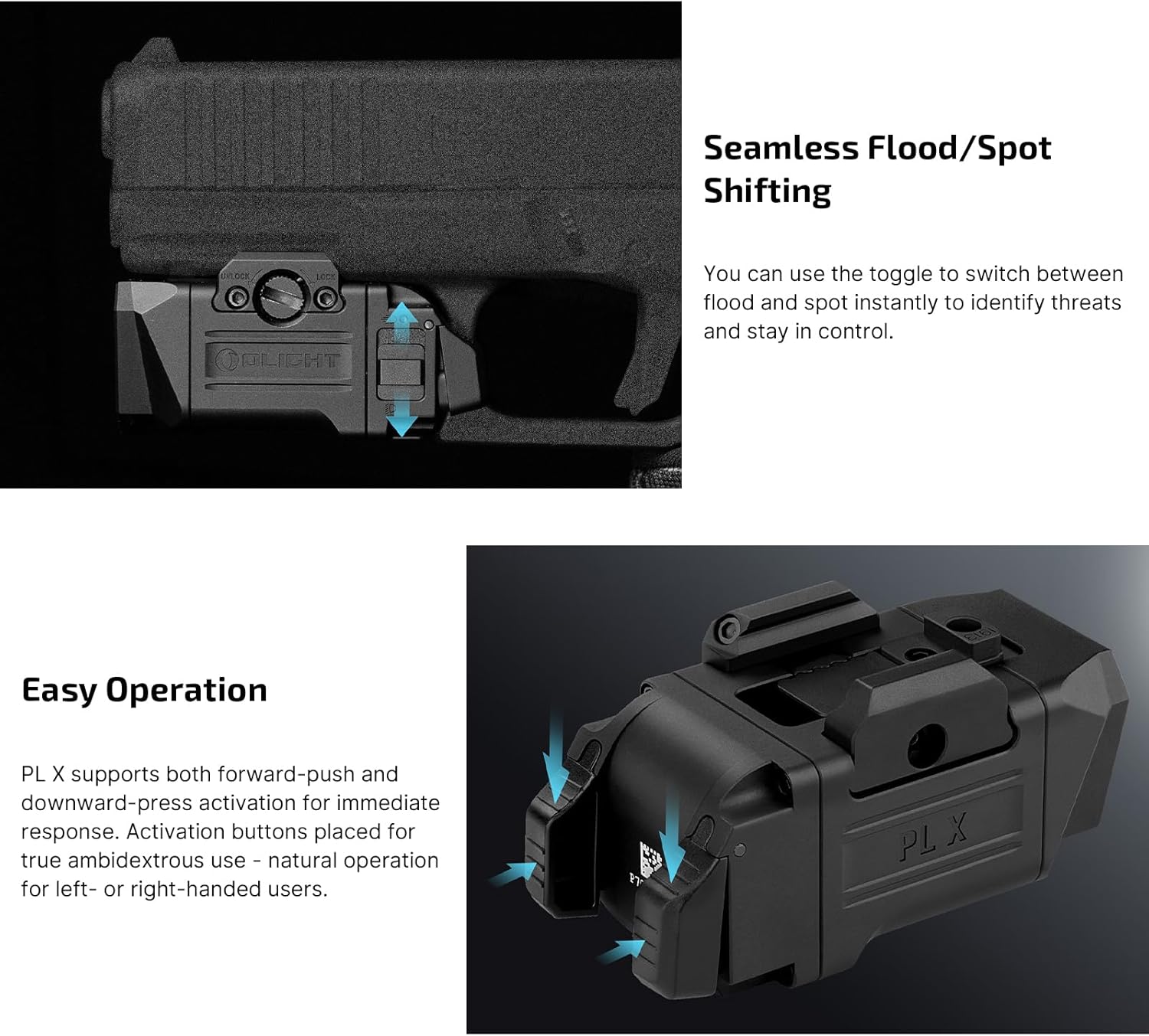

Image: The flashlight mounted on a firearm, highlighting the toggle switch for beam selection and the forward/downward press activation buttons.
തെളിച്ചം ക്രമീകരിക്കൽ
While the light is on in either mode (spotlight or floodlight), quickly double-tap either activation button to cycle between high and low brightness settings.
സ്ട്രോബ് ഫംഗ്ഷൻ
To activate the strobe mode, quickly triple-press either activation button. Alternatively, press both activation buttons simultaneously. A single press of either button will turn off the strobe.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Regularly clean the lens with a soft, clean cloth to maintain optimal light output. For the body, use a damp ആവശ്യമെങ്കിൽ തുണിയും വീര്യം കുറഞ്ഞ സോപ്പും.
- ബാറ്ററി കെയർ: Recharge the flashlight when the battery indicator shows yellow or red to ensure readiness. Avoid fully depleting the battery for extended periods.
- സംഭരണം: നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും തീവ്രമായ താപനിലയിൽ നിന്നും അകലെ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ഫ്ലാഷ്ലൈറ്റ് സൂക്ഷിക്കുക.
ട്രബിൾഷൂട്ടിംഗ്
- ലൈറ്റ് ഓണാക്കുന്നില്ല:
- Ensure the battery is charged. Connect to a USB-C power source and check the indicator light.
- Verify the activation buttons are pressed correctly (momentary hold or quick press for constant on).
- ഡിം ലൈറ്റ് ഔട്ട്പുട്ട്:
- The battery might be low. Recharge the device.
- The lens might be dirty. Clean it gently with a soft cloth.
- Ensure the correct brightness mode is selected (double-tap to cycle).
- ലൂസ് മൗണ്ട്:
- സ്ക്രൂ-cl മുറുക്കുകamp mount using the provided multi-tool to ensure a secure fit on the rail.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | മൂല്യം |
|---|---|
| Max Lumens (Floodlight) | 1,200 lm |
| Max Candela (Spotlight) | 22,500 cd |
| മാക്സ് ത്രോ | 300 മീറ്റർ |
| ബാറ്ററി ശേഷി | 960 mAh |
| ചാർജിംഗ് തരം | USB-C |
| വാട്ടർപ്രൂഫ് റേറ്റിംഗ് | IPX7 |
| ഡ്രോപ്പ് ടെസ്റ്റ് | 1.5 മീ |
| ബോഡി മെറ്റീരിയൽ | 6061 അലുമിനിയം |
| ഭാരം | 3.07 z ൺസ് (87 ഗ്രാം) |
| ഉൽപ്പന്ന അളവുകൾ | 2.48"D x 1.18"W x 1.24"H |
| വർണ്ണ താപനില | 6500 കെൽവിൻ |
Image: A visual representation of the key specifications of the OLIGHT PL X flashlight.
അനുയോജ്യത
Compatible Models (for reference purposes only)
The OLIGHT PL X is designed for broad compatibility with various firearm models. Below is a list of compatible models. For detailed information, please refer to the safety documents and user guide included with your product.
Image: A table showing compatible firearm models for the PL X, including specific variants for Sig Sauer, Smith & Wesson, Glock, and Beretta.
Compatible Holster Brands (for reference purposes only)
The PL X is backed by support from major holster manufacturers, ensuring users can easily find matching holsters for secure retention and quick access.
Image: A table listing various holster brands that offer compatibility with the OLIGHT PL X.
വാറൻ്റിയും പിന്തുണയും
The OLIGHT PL X Tactical Flashlight comes with a ആജീവനാന്ത വാറൻ്റി, reflecting our commitment to quality and durability. For any support inquiries, technical assistance, or warranty claims, please visit the official OLIGHT webസൈറ്റ് അല്ലെങ്കിൽ ഞങ്ങളുടെ ഉപഭോക്തൃ സേവന ടീമിനെ ബന്ധപ്പെടുക.
