Pard Leopard LE256-11 Thermal Monocular

ആമുഖം

This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your Pard Leopard LE256-11 Thermal Monocular. Designed for hunting, surveillance, and outdoor exploration, this device offers advanced thermal imaging capabilities. Please read this manual thoroughly before using the monocular to ensure optimal performance and safety.

ചിത്രം 1: മുൻഭാഗം view of the Pard Leopard LE256-11 Thermal Monocular, showcasing its compact design and objective lens.

ഉൽപ്പന്നം കഴിഞ്ഞുview കൂടാതെ പ്രധാന സവിശേഷതകൾ

The Pard Leopard LE256-11 Thermal Monocular is equipped with several advanced features to enhance your viewഅനുഭവം:

• High Sensitivity Thermal Sensor: Features a NETD ≤25mK sensor with 12µm pixel size, allowing detection of subtle temperature differences for clear object identification in various conditions.
• വിശാലമായ ഫീൽഡ് View: Offers up to 15.9° (28m@100m) horizontal Field of View for efficient target location and tracking.
• ഉപയോക്തൃ-സൗഹൃദ ഇൻ്റർഫേസ്: Brand new UI icons for simultaneous observation and menu settings.
• Smart Screen Recording: Records home screen icons alongside photos and videos for richer information.
• ഒന്നിലധികം ഇമേജ് മോഡുകൾ: Five distinct image modes (WT-HOT, BK-HOT, RD-HOT, IN-HOT, SKY) to highlight targets based on preference.
• ഒതുക്കമുള്ളതും ഭാരം കുറഞ്ഞതുമായ ഡിസൈൻ: Weighing only 300g with dimensions of 172*36*48mm, designed for comfortable prolonged use.
• Versatile Scene Modes: Three scene modes (City, Rain, Forest) for optimal adaptability across different environments.
• Hot Track Function: Enables swift detection and tracking of heat signatures.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: IP67 rating ensures reliable performance in extreme weather.
• കണക്റ്റിവിറ്റി: Built-in WiFi for connecting to a smartphone as an external viewfinder and easy firmware updates.

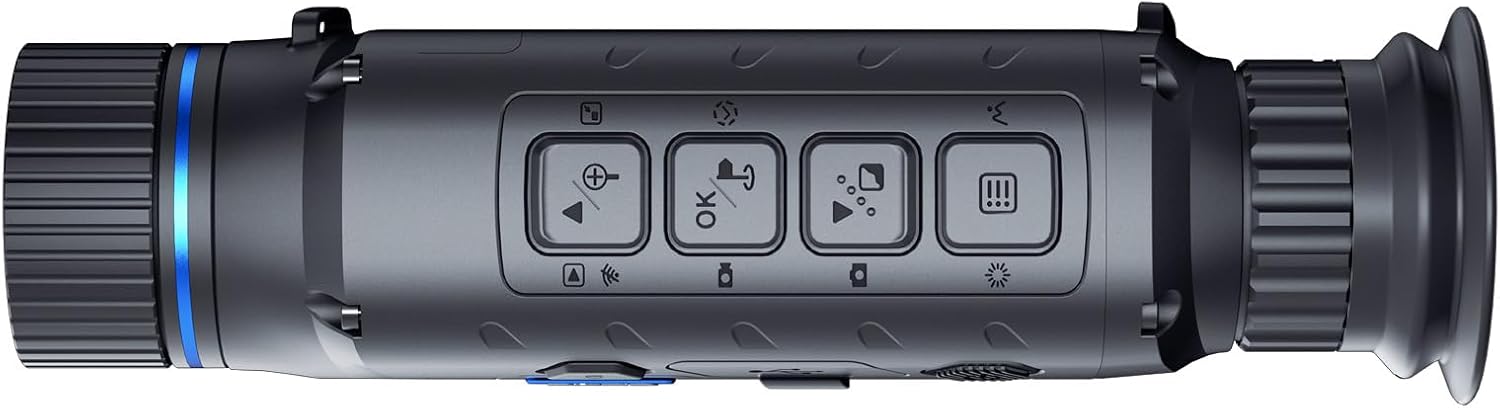

ചിത്രം 2: മുകളിൽ view of the monocular, highlighting the accessible control buttons for various functions.

Figure 3: Illustration of the NETD ≤25mK sensitivity, demonstrating the monocular's ability to detect subtle temperature differences.

Figure 4: The compact and lightweight design of the monocular, emphasizing its portability and ease of handling.

Figure 5: Diagram illustrating the wide field of view, which aids in effortless scanning and target acquisition.

ചിത്രം 6: ഓവർview of additional key features such as 3 scene modes, hot track, standby mode, IP67 rating, WiFi connectivity, and firmware update capability.

സജ്ജമാക്കുക

1. അൺബോക്‌സിംഗും പ്രാരംഭ പരിശോധനയും

Carefully remove the monocular and all accessories from the packaging. Inspect for any signs of damage. Retain the packaging for future storage or transport.

2. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

Locate the battery compartment. Insert the recommended battery type (not specified in product data, assume standard rechargeable monocular battery) according to the polarity indicators. Ensure the compartment cover is securely closed.

3. പവർ ഓൺ/ഓഫ്

Press and hold the power button (refer to Figure 2 for button layout) for a few seconds to power on the device. The display will illuminate. To power off, press and hold the power button again until the device shuts down.

4. ഡയോപ്റ്റർ ക്രമീകരണം

If the image appears blurry, adjust the diopter ring on the eyepiece until the display text and icons are sharp and clear for your vision.

5. വൈഫൈ വഴി ബന്ധിപ്പിക്കുന്നു

The monocular features built-in WiFi. To connect to a smartphone or tablet:

1. Download the official Pard app (check manufacturer's website for app name and availability).
2. Turn on the monocular's WiFi function via the device menu.
3. On your smartphone, go to WiFi settings and select the monocular's network (e.g., "PARD_XXXX").
4. Enter the default password (usually "12345678" or check the device manual/manufacturer's webസൈറ്റ്).
5. Open the Pard app to use your phone as an external viewfinder, share content, or view റെക്കോർഡിംഗുകൾ.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. ഫോക്കസ് അഡ്ജസ്റ്റ്മെന്റ്

Rotate the objective lens focus ring to achieve a clear image of your target at varying distances.

2. Changing Image Modes

The Leopard LE256-11 offers five image modes: WT-HOT, BK-HOT, RD-HOT, IN-HOT, and SKY. Navigate through the menu using the control buttons (refer to Figure 2) to select the desired mode. Each mode highlights thermal signatures differently, optimizing for various observation scenarios.

Figure 7: Visual representation of the five available image modes, each designed to optimize target visibility under different conditions.

3. Selecting Scene Modes

Choose from three scene modes: City, Rain, and Forest. These modes adjust image processing to provide optimal clarity and detail based on the environment. Access these settings through the device menu.

4. Smart Screen Recording and Photo Capture

To record video or capture photos, use the dedicated recording/capture button (refer to Figure 2). The Smart Screen Recording feature captures not only the thermal image but also the on-screen UI icons, providing comprehensive data. Recorded files are stored internally and can be accessed via WiFi connection or by connecting the device to a computer.

Figure 8: Depiction of the Smart Screen Recording feature, showing how on-screen information is captured along with the thermal image.

5. Using Hot Track

Activate the Hot Track function through the menu. This feature automatically identifies and tracks the hottest point in the field of view, making it easier to follow moving targets.

6. സ്റ്റാൻഡ്ബൈ മോഡ്

A single press of the power key can put the device into standby mode. This conserves battery power while allowing for quick reactivation when needed.

മെയിൻ്റനൻസ്

1. ഉപകരണം വൃത്തിയാക്കൽ

• ലെൻസുകൾ: Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lens surfaces. For stubborn smudges, use a small amount of lens cleaning solution applied to the cloth, not directly to the lens.
• ശരീരം: മോണോക്യുലർ ബോഡി മൃദുവായ, ഡി ഉപയോഗിച്ച് തുടയ്ക്കുക.amp cloth. Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the finish and internal components.

2. സംഭരണം

When not in use, store the monocular in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided protective case or a similar padded container to prevent physical damage.

3. ബാറ്ററി പരിചരണം

• Ensure the battery is fully charged before extended storage to maintain battery health.
• If storing for long periods, remove the battery to prevent leakage.
• Use only the manufacturer-recommended charger and batteries.

4. ജല പ്രതിരോധം (IP67)

The device has an IP67 rating, meaning it is protected from dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. While durable, avoid prolonged submersion and ensure all port covers are securely closed before exposure to water or dust.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Pard Leopard LE256-11, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Pard customer support for further assistance.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, please refer to the warranty card included with your product or visit the official Pard webസൈറ്റ്. വാറന്റി നിബന്ധനകളും വ്യവസ്ഥകളും പ്രദേശത്തിനും റീട്ടെയിലർക്കും അനുസരിച്ച് വ്യത്യാസപ്പെടാം.

For technical support, service, or inquiries, please contact Pard customer service through their official channels. You can also visit the Pard Store on Amazon കൂടുതൽ ഉൽപ്പന്ന വിവരങ്ങൾക്കും പിന്തുണാ ഉറവിടങ്ങൾക്കും.
