1. ആമുഖം
Thank you for choosing the hygger Mini Aquarium Heater 30W. This digital, adjustable temperature heater is designed to maintain a stable and optimal water temperature for small aquariums, including Betta and turtle tanks, ranging from 11 to 30 liters (3-8 gallons). Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product.
This heater features advanced safety mechanisms, including explosion-proof components, overheat protection, and low water level detection, providing a reliable heating solution for your aquatic environment.
2 സുരക്ഷാ വിവരങ്ങൾ
- ഹീറ്റർ എപ്പോഴും പൂർണ്ണമായും മുങ്ങി in water during operation. Operating the heater out of water will cause it to overheat and trigger the "Er" error code, leading to automatic shutdown.
- Before performing any maintenance, water changes, or cleaning of the aquarium, ഹീറ്റർ ഊരിവെക്കുക from the power outlet. Allow the heater to cool down for at least 15 minutes before removing it from the water.
- Do not operate the heater if the power cord or plug is damaged.
- ഈ ഉപകരണം, അവരുടെ സുരക്ഷയ്ക്ക് ഉത്തരവാദിയായ ഒരു വ്യക്തി ഉപകരണത്തിൻ്റെ ഉപയോഗത്തെ സംബന്ധിച്ച മേൽനോട്ടമോ നിർദ്ദേശമോ നൽകിയിട്ടില്ലെങ്കിൽ, ശാരീരികമോ ഇന്ദ്രിയപരമോ മാനസികമോ ആയ കഴിവുകൾ കുറഞ്ഞതോ അനുഭവത്തിൻ്റെയും അറിവിൻ്റെയും അഭാവം ഉള്ള വ്യക്തികൾക്ക് (കുട്ടികൾ ഉൾപ്പെടെ) ഉപയോഗിക്കാൻ ഉദ്ദേശിച്ചുള്ളതല്ല.
- ഹീറ്റർ ഇൻഡോർ ഉപയോഗത്തിനായി മാത്രം രൂപകൽപ്പന ചെയ്തിട്ടുള്ളതാണ്.
- Ensure the power outlet is equipped with a Ground Fault Circuit Interrupter (GFCI) for added safety.
- The heater's internal components include insulated explosion-proof quartz heating tubes and an ABS outer casing designed not to melt at high temperatures, enhancing safety and durability.
- In case of an error (e.g., "EE" for overheat, "EU" for low temperature, "Er" for out of water), the system will emit a buzzing sound and automatically shut off. Address the issue immediately. While the system cuts power, residual heat may still be present.
3. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക:
- 1 x hygger Mini Aquarium Heater (30W)
- 1 x External Digital Temperature Controller
- 2 x Suction Cups for mounting
ചിത്രം 1: The hygger Mini Aquarium Heater with its external digital temperature controller and two suction cups.
4. ഉൽപ്പന്ന സവിശേഷതകൾ
- Safety and Explosion Protection: Features nickel-chrome heating wires for rapid heating and extended lifespan. Insulated explosion-proof quartz heating tubes internally and an ABS anti-scald shell externally ensure safety and durability.
- Smart External Control: Digital external controller with real-time indicators for heating (red), energy-saving (blue), and error status.
- താപനില പ്രദർശനം: Shows the set temperature during adjustment, then automatically displays the current water temperature.
- മെമ്മറി പ്രവർത്തനം: Retains the last set temperature even after a power outage.
- പിശക് സൂചകങ്ങൾ: Provides visual and audible alerts for over-temperature ("EE"), low-temperature ("EU"), and out-of-water ("Er") conditions.
- കോംപാക്റ്റ് ഡിസൈൻ: Ideal for small to medium-sized aquariums (11-30L / 3-8 gallons), fitting discreetly in corners or hidden areas.
ചിത്രം 2: Visual representation of the heater's key features, including beep alarm, out of water protection, anti-scald shell, overheat protection, and thickened quartz glass.
5. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
- പ്ലേസ്മെൻ്റ്: Position the heater vertically or horizontally inside the aquarium. Ensure it is fully submerged in water. Use the provided suction cups to secure the heater firmly to the aquarium glass.
- ജലചംക്രമണം: For optimal performance and even heat distribution, it is recommended to install a water pump or filter to maintain good water circulation around the heater. This prevents localized overheating.
- കൺട്രോളർ പ്ലേസ്മെന്റ്: Place the external digital temperature controller in a dry location, easily accessible for temperature adjustments. Ensure it is not exposed to water splashes.
- പവർ കണക്ഷൻ: ഹീറ്റർ സുരക്ഷിതമായി സ്ഥാപിച്ച് പൂർണ്ണമായും വെള്ളത്തിൽ മുക്കിക്കഴിഞ്ഞാൽ, പവർ കോർഡ് അനുയോജ്യമായ ഒരു ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് പ്ലഗ് ചെയ്യുക.

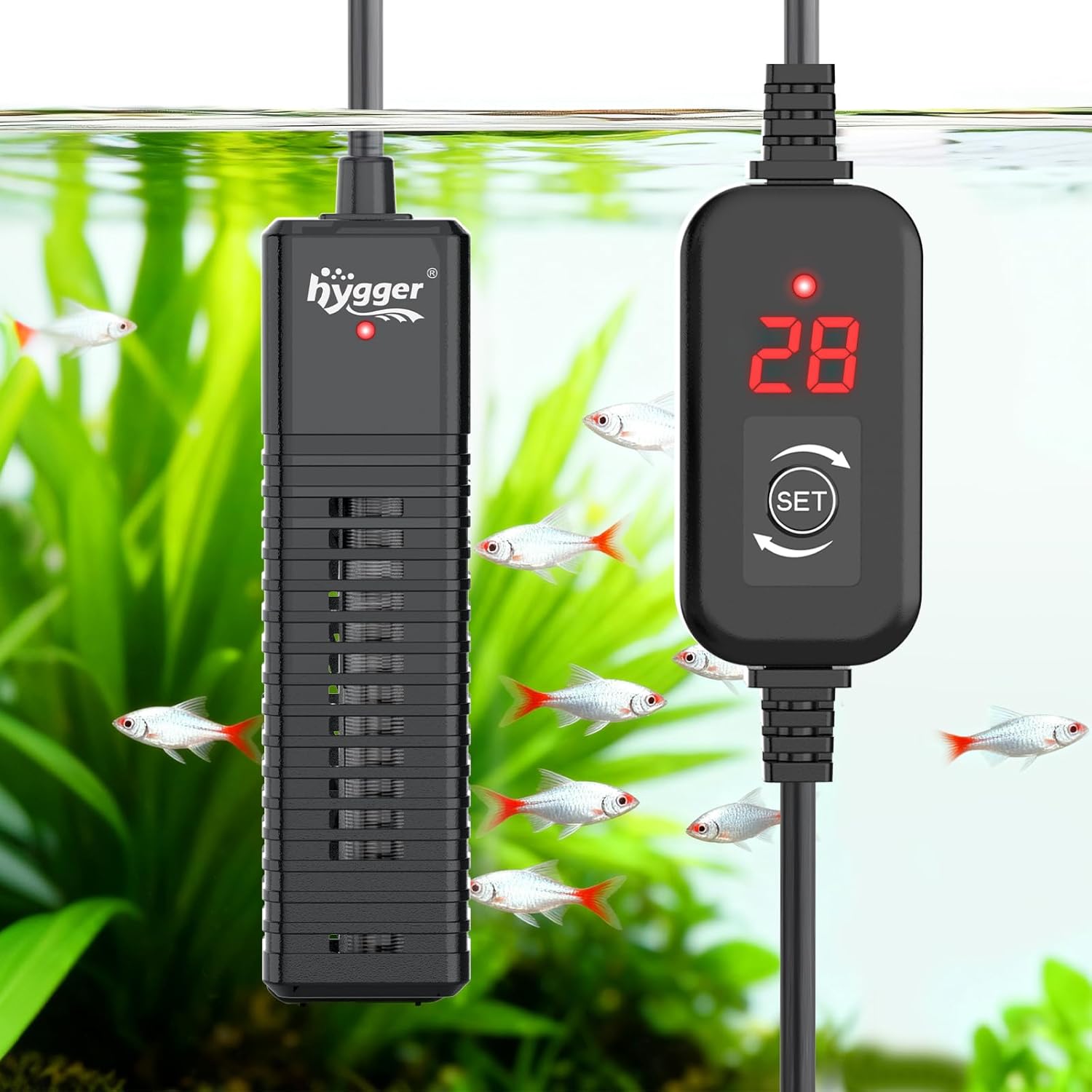

ചിത്രം 3: The hygger Mini Aquarium Heater and its controller installed in an aquarium, demonstrating full submersion.
ചിത്രം 4: Diagram illustrating correct (fully submerged, vertical or horizontal) and incorrect (partially submerged) installation methods for the heater.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1 താപനില ക്രമീകരിക്കുന്നു
- After plugging in the heater, the digital display on the external controller will show the current water temperature.
- Press the "SET" button on the controller. The display will flash, showing the currently set temperature.
- Continue pressing the "SET" button to cycle through the desired temperature range (15°C - 34°C). Each press will increase the set temperature by 1°C.
- Once your desired temperature is displayed, stop pressing the "SET" button. The display will flash a few times and then return to showing the current water temperature, indicating that the new setting has been saved.
- The heater will automatically begin heating if the current water temperature is below the set temperature. A red indicator light on the controller signifies active heating. A blue indicator light signifies that heating has stopped (temperature reached or exceeded set point).
ചിത്രം 5: വിശദമായി view of the external temperature controller, showing the digital display, SET button, and temperature control range (15°C-34°C).
6.2 Error Indicators and Protection
- Over Temperature Protection ("EE"): If the water temperature reaches or exceeds 36°C (96.8°F), the LED display will show "EE", and the heater will emit a buzzing sound before automatically switching off. This protects your aquatic life from excessive heat.
- Low Temperature Protection ("EU"): If the water temperature drops below 12°C (53.6°F), the LED display will show "EU", and the heater will emit a buzzing sound before switching off. This indicates a potential issue with heating or an extremely cold environment.
- Out of Water Protection ("Er"): If the heater is not fully submerged or leaves the water, it will automatically power off and flash an "Er" error code, accompanied by a buzzing sound. The heater will resume normal operation once fully submerged again.
ചിത്രം 6: Illustration of the "EE" error code for over-temperature protection, showing the display and heater status.
ചിത്രം 7: Illustration of the "EU" error code for low-temperature protection, showing the display and heater status.
ചിത്രം 8: Illustration of the "Er" error code for out-of-water protection, showing the heater partially exposed and the error display.
7. പരിപാലനം
- വൃത്തിയാക്കൽ: Regularly inspect the heater for algae or mineral buildup. To clean, unplug the heater and allow it to cool completely (at least 15 minutes) before removing it from the water. Gently wipe the heater surface with a soft cloth or sponge. Do not use abrasive cleaners or harsh chemicals.
- ജല മാറ്റങ്ങൾ: Always unplug the heater and allow it to cool before performing water changes in your aquarium. This prevents thermal shock to the heater and potential injury.
- പരിശോധന: Periodically check the power cord and the heater body for any signs of damage, cracks, or wear. If any damage is observed, discontinue use immediately and replace the unit.
8. പ്രശ്നപരിഹാരം
| പ്രശ്നം | Error Code / Indication | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|---|
| Heater not heating / Display off | None / Display blank | No power, loose connection, power outage. | Check power plug and outlet. Ensure power is supplied. |
| വെള്ളം വളരെ ചൂടാണ് | "EE" (Over Temperature) | Water temperature ≥ 36°C. Heater malfunction or external heat source. | Unplug immediately. Allow water to cool. Check for external heat sources. If "EE" persists after cooling, the heater may be faulty. |
| വെള്ളം വളരെ തണുത്തതാണ് | "EU" (Low Temperature) | Water temperature < 12°C. Heater malfunction or insufficient power for tank size. | Check if heater is plugged in and set correctly. Ensure tank size is within recommended range (11-30L). If "EU" persists, heater may be faulty. |
| Heater stops working / Flashing "Er" | "Er" (Out of Water) | Heater is not fully submerged in water. | Ensure the heater is completely submerged. Check water level in the aquarium. The heater will resume once fully submerged. |
| പൊരുത്തമില്ലാത്ത താപനില | ഒന്നുമില്ല | Poor water circulation, heater placed in a dead spot. | Ensure adequate water circulation around the heater (e.g., with a filter or pump). Reposition the heater if necessary. |
9 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | ഹൈഗർ |
| മോഡൽ നമ്പർ | HG206-EU |
| ശക്തി | 30W |
| ശുപാർശ ചെയ്യുന്ന ടാങ്ക് വലുപ്പം | 11-30 Liters (3-8 Gallons) |
| താപനില നിയന്ത്രണ പരിധി | 15°C - 34°C (59°F - 93.2°F) |
| താപനില കൃത്യത | ±1°C |
| Heating Rod Dimensions | 34 x 26.3 x 125 മിമി (1.34 x 1.04 x 4.9 ഇഞ്ച്) |
| കേബിൾ നീളം | 0.8m + 1.2m (2.6ft + 3.9ft) |
| നിറം | കറുപ്പ് |
| പാക്കേജ് അളവുകൾ | 16.4 x 13.1 x 4.7 സെ.മീ |
| പാക്കേജ് ഭാരം | 320 ഗ്രാം |
ചിത്രം 9: Diagram summarizing key specifications such as power, cable length, control range, application, temperature accuracy, and heating rod dimensions.
10. വാറൻ്റിയും പിന്തുണയും
Specific warranty information for the hygger Mini Aquarium Heater 30W is not provided in this manual. Please refer to the product packaging or contact hygger customer support directly for details regarding warranty coverage and technical assistance.
For further support or inquiries, please visit the official hygger webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.
