1. ആമുഖം
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your eufy Robot Vacuum E28. Please read this manual thoroughly before using the product and retain it for future reference.

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
To reduce the risk of injury or damage, read these safety instructions carefully and keep them accessible during product use. This device is for indoor use only. Do not use it in commercial or industrial environments.
- Always operate the device according to the instructions provided.
- ഉപകരണവും അതിന്റെ അനുബന്ധ ഉപകരണങ്ങളും കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- Use only the original power adapter and accessories supplied by the manufacturer.
- Do not handle the power cord or device with wet hands.
- വോളിയം ഉറപ്പാക്കുകtage matches the local power supply before use. (Voltagഇ: 110 വോൾട്ട്)
- Avoid using the device on wet surfaces or in areas with standing water.
- Do not block the air vents or exhaust openings.
- Regularly inspect the device for any damage. Do not operate if damaged.
- For detailed safety guidelines, refer to the Safety Sheet included in your package.
3. പാക്കേജ് ഉള്ളടക്കം
അൺപാക്ക് ചെയ്യുമ്പോൾ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും നല്ല നിലയിലാണെന്നും ഉറപ്പാക്കുക.

- ഓമ്നി സ്റ്റേഷൻ
- റോബോട്ട് വാക്വം
- വേർപെടുത്താവുന്ന അടിസ്ഥാനം
- Portable Deep Cleaner (PDC)
- ദ്രുത ആരംഭ ഗൈഡ്
- സുരക്ഷാ ഷീറ്റ്
- Battery (included in robot)
- Water Tank (included in Omni Station)
4. ഉൽപ്പന്നം കഴിഞ്ഞുview
The eufy Robot Vacuum E28 is an advanced cleaning system designed for comprehensive floor and fabric care. It integrates a robotic vacuum and mop with a versatile portable deep cleaner, all managed by an intelligent Omni Station.
4.1 പ്രധാന സവിശേഷതകൾ
- HydroJet Deep Cleaning System with Roller Mop: Self-cleans the mop in real-time, ensuring continuous fresh cleaning.
- FlexiOne Portable Deep Cleaner: Detachable unit for targeted cleaning of carpets, stairs, and fabric surfaces.
- 20,000 Pa Turbo Suction: Powerful suction for effective removal of dust and hair from various surfaces.

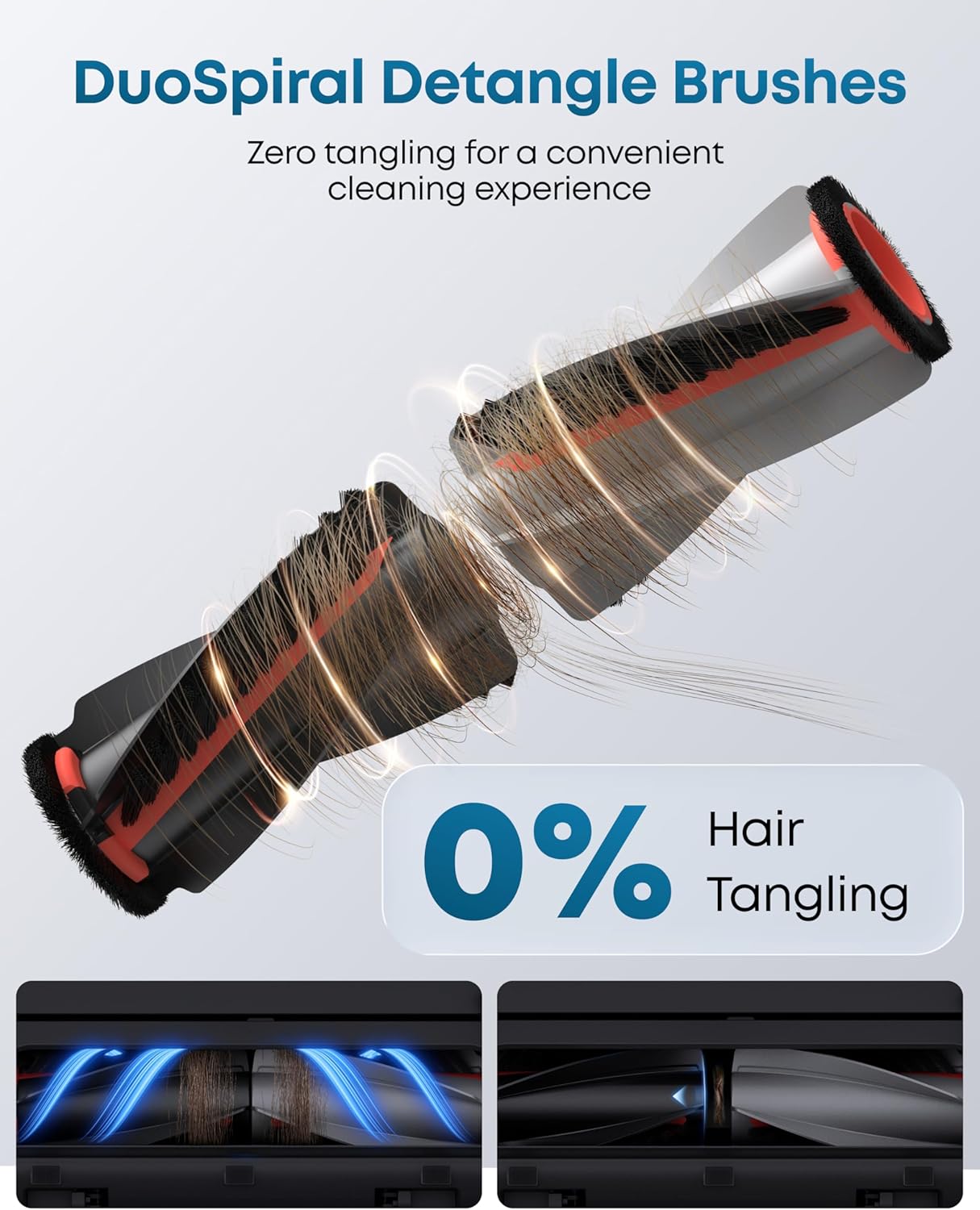

- DuoSpiral Detangle Brushes: Designed to minimize hair tangling for consistent performance.
- CornerRover Arm: Extends to achieve 100% edge coverage for thorough cleaning.
- All-in-One Omni Station: Provides automated self-emptying, self-washing, self-refilling, hot air drying, automatic detergent dispensing, and wastewater storage.
- Advanced AI Recognition and Obstacle Avoidance: Identifies and avoids over 200 objects, equipped with LED lights for low-light environments.
- സമഗ്ര ആപ്പ് നിയന്ത്രണം: Features smart map management, multi-floor cleaning, personalized carpet cleaning modes, and voice control compatibility.
4.2 Component Details








5. സജ്ജീകരണം
5.1 അൺപാക്കിംഗും പ്ലേസ്മെന്റും
- പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
- Choose a suitable location for the Omni Station. Ensure it is placed against a wall on a hard, level surface, with at least 1.5 feet (0.5 meters) of clear space on either side and 5 feet (1.5 meters) in front.
- Connect the Omni Station to a power outlet.
5.2 പ്രാരംഭ ചാർജിംഗ്
Place the robot vacuum onto the Omni Station. Ensure the charging contacts align. The robot will begin charging automatically. For first-time use, fully charge the robot before operation, which may take several hours.
5.3 ആപ്പ് ഇൻസ്റ്റാളേഷനും കണക്ഷനും
- Download the eufy Clean app from your smartphone's app store.
- Create an account and follow the in-app instructions to add your E28 robot vacuum.
- Ensure your Wi-Fi network is 2.4GHz, as 5GHz networks are not supported for device connection.
- Perform any available firmware updates through the app to ensure optimal performance and access to the latest features.
6. ഓപ്പറേഷൻ
6.1 Starting, Pausing, and Stopping Cleaning
- വൃത്തിയാക്കൽ ആരംഭിക്കുക: Press the power button on the robot or use the eufy Clean app to initiate a cleaning cycle.
- താൽക്കാലികമായി വൃത്തിയാക്കൽ: Press the power button once during operation or use the app.
- Stop Cleaning: Press and hold the power button for a few seconds or use the app to send the robot back to the Omni Station.
6.2 ക്ലീനിംഗ് മോഡുകൾ
The E28 offers various cleaning modes accessible via the eufy Clean app:
- വാക്വം-ഒൺലി മോഡ്: ഉണങ്ങിയ അവശിഷ്ട ശേഖരണത്തിനായി.
- വാക്വം & മോപ്പ് മോഡ്: കട്ടിയുള്ള നിലങ്ങൾക്കായി ഒരേസമയം വാക്വം ചെയ്യലും മോപ്പിംഗും.
- സ്പോട്ട് ക്ലീനിംഗ്: Targets specific dirty areas.
- Personalized Carpet Cleaning Mode: Customize settings for different carpet types (avoidance, mop lifting, increased suction).
6.3 Using the Portable Deep Cleaner (PDC)
The FlexiOne Portable Deep Cleaner is integrated into the Omni Station for convenient spot cleaning of various surfaces.



- Detach the Portable Deep Cleaner from the Omni Station.
- Fill the clean water tank with water and an appropriate fabric cleaning solution (eufy's Floor Cleaner and Fabric Cleaner recommended).
- Use the spray and suction functions to clean targeted stains on carpets, upholstery, or other fabric surfaces.
- After use, perform the self-cleaning function by holding the self-cleaning button for 5 seconds to clear residual water from the hose.
- Reattach the PDC to the Omni Station for storage and charging.

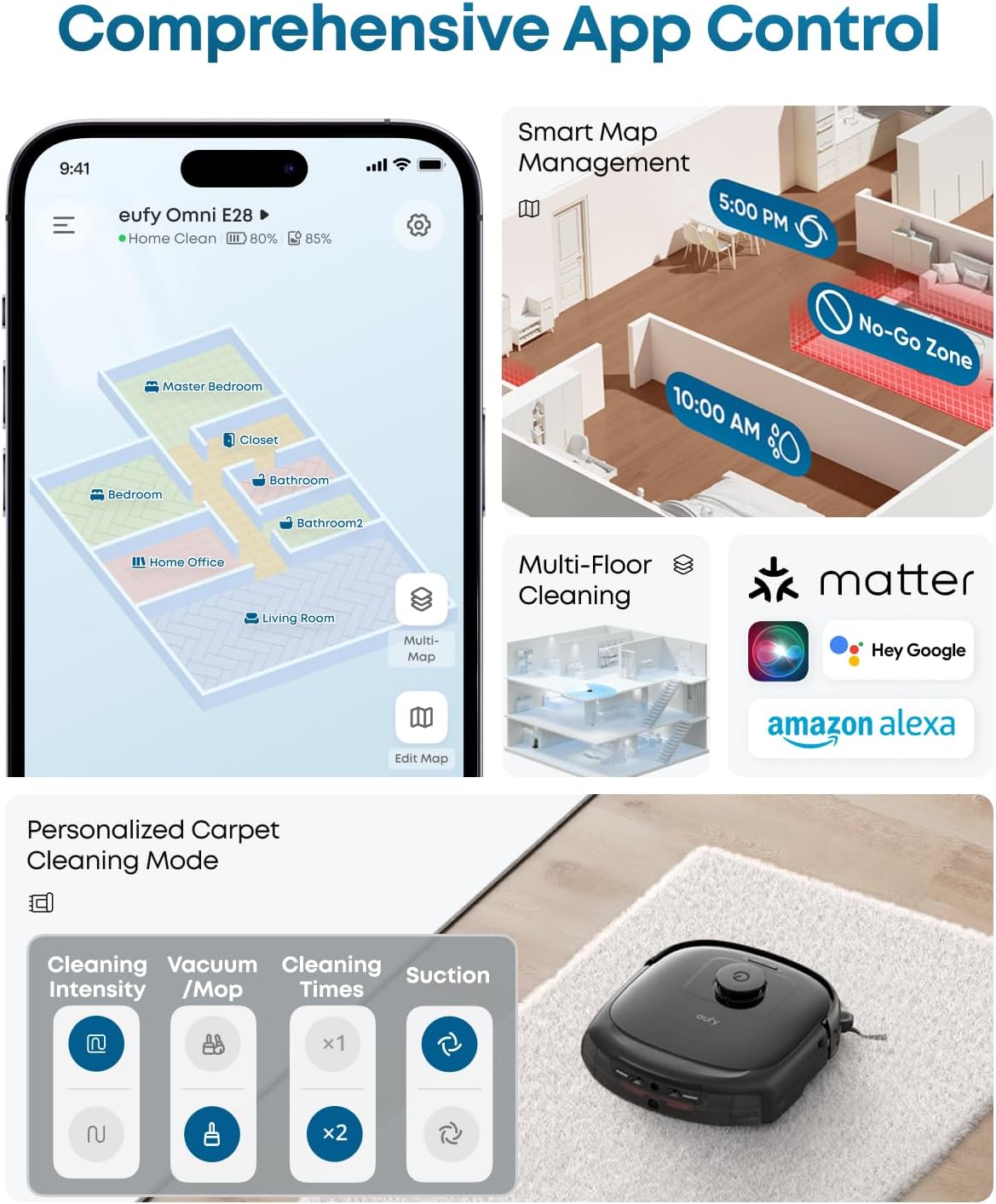

6.4 Smart Features and App Control
Leverage the eufy Clean app for advanced control and customization:
- Smart Map Management: View and edit cleaning maps, set no-go zones, and define specific cleaning areas.
- മൾട്ടി-ഫ്ലോർ മാപ്പിംഗ്: The E28 can map up to 5 different floors, ideal for multi-level homes.
- Personalized Cleaning: Customize cleaning modes, suction power, and water usage for individual rooms or zones.
- ശബ്ദ നിയന്ത്രണം: Integrate with Amazon Alexa, Google Home, or Siri for hands-free operation.






7. പരിപാലനം
Regular maintenance ensures the longevity and optimal performance of your eufy Robot Vacuum E28.
7.1 ഓമ്നി സ്റ്റേഷൻ അറ്റകുറ്റപ്പണികൾ
The Omni Station automates many maintenance tasks:




- Emptying the Dust Bag: The 3L dust bag in the Omni Station can last up to 75 days. Replace when full.
- ശുദ്ധമായ വാട്ടർ ടാങ്ക്: Refill the 2.5L clean water tank as needed.
- Wastewater Tank: Empty the 1.8L dirty water tank regularly.
- ഡിറ്റർജന്റ് ഡിസ്പെൻസർ: Ensure the detergent reservoir is filled for automatic dispensing.
- Mop Washing & Drying: The station automatically washes and hot-air dries the mop after each cleaning session.
7.2 റോബോട്ട് വാക്വം മെയിന്റനൻസ്
- DuoSpiral Detangle Brushes: Regularly check and clean the main brushes for any trapped hair or debris.
- സൈഡ് ബ്രഷുകൾ: Inspect and clean the side brushes. Replace if worn.
- ചവറ്റുകുട്ടയും ഫിൽട്ടറും: Although the Omni Station self-empties, occasionally check the robot's internal dustbin and clean or replace the filter as recommended by the app.
- സെൻസറുകൾ: Wipe all sensors on the robot with a dry cloth to ensure accurate navigation.
7.3 Portable Deep Cleaner Maintenance
- വൃത്തിയുള്ള/വൃത്തികെട്ട ജല ടാങ്കുകൾ: Empty and rinse both tanks after each use.
- ഹോസും നോസലും: Clean the hose and nozzle to prevent blockages. Use the self-cleaning function.
- ബ്രഷ് ഹെഡ്: Clean the brush head regularly for optimal performance.
7.4 ഫേംവെയർ അപ്ഡേറ്റുകൾ
Keep the robot's firmware updated through the eufy Clean app. Firmware updates often include performance improvements, new features, and bug fixes.
8. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your eufy Robot Vacuum E28.
8.1 Optimizing Cleaning Performance

- പെറ്റ് മോഡ്: Enable in More Settings for stronger suction and higher dust collection if you have pets.
- പരവതാനിയിലെ കറകൾ: Use the Portable Deep Cleaner (PDC) with its fabric cleaner for effective removal.
- വൃത്തികെട്ട സ്ഥലം വൃത്തിയാക്കൽ: Activate to detect deep clean stains like coffee spills.
- അഴുക്ക് പരിശോധന: Turn on to auto-check for leftover stains after cleaning.
- വാക്വം-ഒൺലി മോഡ്: Run vacuum-only mode before the first mopping session to remove dust and hair.
- ആക്സസറി മെയിൻ്റനൻസ്: Regularly clean and replace accessories like the roller and dustbin filter.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ: Keep software and firmware updated for optimal performance.
8.2 Ensuring Optimal Obstacle Avoidance

- Enable AI.See: For smarter object recognition and obstacle avoidance via the eufy Clean app.
- തറ വൃത്തിയാക്കുക: Remove wires and small obstacles before cleaning.
- പോകരുതെന്ന് അനുവദിക്കുന്ന മേഖലകൾ സജ്ജമാക്കുക: For dark stairs, thin chair legs (<16mm), and thick carpets (>26mm).
- Secure Carpets: Fix edges of thin carpets to prevent the robot from getting stuck.
- Avoid Dark/Reflective Objects: Keep them away from thresholds if they cause issues.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റ് ചെയ്യുക: Regularly update for better performance.
8.3 Improving Carpet Cleaning Performance

- Short-Pile Carpets: Use "Vacuum Only" mode; the mopping module will lift to avoid wetting.
- Medium/Long-Pile Carpets: Use "Carpet Avoidance" mode to skip carpets entirely.
- Dark Carpets: Set No-Go Zones as they may not be detected by sensors.
- Boost IQ: Enable via the app to auto-increase suction on carpets for better cleaning.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ: Keep software and firmware updated for optimal performance.
8.4 Using the Portable Deep Cleaner (PDC) Effectively

- ശരിയായി ഉപയോഗിക്കുക: Pair with a fabric cleaning solution for liquid stains only (not for fibers, hair, or solids).
- അമിതമായി ചൂടാക്കുന്നത് തടയുക: Cool for 3.5 hours after 30 minutes of continuous use.
- Handle Humidity: Dry cleaned areas with a hairdryer in humid weather to prevent mildew.
- സ്വയം വൃത്തിയാക്കൽ: പൈപ്പുകൾ വൃത്തിയാക്കാൻ സെൽഫ് ക്ലീനിംഗ് ബട്ടൺ 5 സെക്കൻഡ് അമർത്തിപ്പിടിക്കുക.
- Avoid Leaks: Wait 3 seconds after use to drain pipe water.
- Shutdown & Storage: Press the switch to turn off, and avoid pulling the hose tightly when winding.
- പരിപാലനം: Clean the brush head regularly for optimal performance.
9 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | eufy |
| മോഡലിൻ്റെ പേര് | E28 |
| ഇനം മോഡൽ നമ്പർ | T2352 |
| പ്രത്യേക സവിശേഷതകൾ | Auto Mop Washing, Obstacle Avoidance, Self-Emptying |
| നിറം | കറുപ്പ് |
| Product Dimensions (Omni Station) | 14.63"L x 19.07"W x 17.29"H |
| Product Dimensions (Portable Deep Cleaner) | 8.74"L x 15.26"W x 10.90"H |
| Product Dimensions (Robot Vacuum) | 12.83"L x 13.72"W x 4.40"H |
| ഇനത്തിൻ്റെ ഭാരം | 44.6 പൗണ്ട് (21.75 കി.ഗ്രാം) |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Battery, Robot, Water Tank |
| ഫിൽട്ടർ തരം | മറ്റുള്ളവ |
| ബാറ്ററി ലൈഫ് | 24 months (estimated) |
| വാല്യംtage | 110 വോൾട്ട് |
| Capacity (Clean Water Tank) | 2.5 ലിറ്റർ |
| Capacity (Wastewater Tank) | 1.8 ലിറ്റർ |
| പവർ ഉറവിടം | കോർഡഡ് ഇലക്ട്രിക് |
| നിയന്ത്രണ രീതി | App, Push Button, Touch, Voice |
| ഫോം ഫാക്ടർ | റോബോട്ടിക് |
| Wi-Fi അനുയോജ്യത | 2.4GHz Wi-Fi supported (5GHz not supported) |
| പരമാവധി സക്ഷൻ പവർ | 20,000 Pa |
| എഡ്ജ് ക്ലീനിംഗ് | കോർണർ റോവർ ആം |
| കവറേജ് | 1,600 ചതുരശ്ര അടി വരെ |

9.1 മോഡൽ താരതമ്യം
A comparison of key features across different eufy Omni models:
| ഫീച്ചർ | ഓമ്നി E28 | ഓമ്നി E25 | ഓമ്നി എസ്1 പ്രോ |
|---|---|---|---|
| മികച്ചത് | Deep Cleaning Multiple Surfaces (Floors, Carpets, Furniture) | Homes with Pets and Kids | Large Apartments, Tech-Savvy Users |
| സ്വയം വൃത്തിയാക്കൽ | 120 Times/Minute | 170 Times/Minute | |
| HydroJet Deep Cleaning System Mop Cleaning Scrapers | ഇരട്ട | സിംഗിൾ | |
| Downward Pressure | 1.5 കി.ഗ്രാം | 1 കി.ഗ്രാം | |
| ഓമ്നി സ്റ്റേഷൻ | ✔ 新文 | ✔ 新文 | |
| പരമാവധി സക്ഷൻ പവർ | 20,000 Pa | 8,000 Pa | |
| ബ്രഷുകൾ | DuoSpiral Brushes for Zero-Tangling | Detangling Rubber Brush | |
| എഡ്ജ് ക്ലീനിംഗ് | CornerRover Arm for Edge Cleaning | Square Design to Fit in Corners | |
| കവറേജ് | 1,600 ചതുരശ്ര അടി വരെ | 2,100 ചതുരശ്ര അടി വരെ | |
| റോബോട്ട് ഉയരം | 4.40 ഇഞ്ച് (11.2 സെ.മീ) | 3.78 ഇഞ്ച് (9.6 സെ.മീ) |
10. വാറൻ്റിയും പിന്തുണയും
10.1 വാറൻ്റി വിവരങ്ങൾ
The eufy Robot Vacuum E28 comes with a limited warranty. For detailed warranty terms and conditions, please refer to the official eufy webനിങ്ങളുടെ ഉൽപ്പന്നത്തിന്റെ സൈറ്റ് അല്ലെങ്കിൽ വാറന്റി കാർഡ് എന്നിവ വാങ്ങുന്നതിനുള്ള തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
10.2 ഉപഭോക്തൃ പിന്തുണ
If you encounter any issues or have questions regarding your eufy Robot Vacuum E28, please contact eufy customer support. Contact information can typically be found on the eufy webസൈറ്റിലോ ക്വിക്ക് സ്റ്റാർട്ട് ഗൈഡിലോ.
