Letshuoer D02 Hi-Fi Type-C In-Ear Monitors User Manual

1. ആമുഖം

Thank you for choosing the Letshuoer D02 Hi-Fi Type-C In-Ear Monitors. These earphones are designed to deliver high-fidelity audio with a focus on clarity, detail, and comfort. This manual provides essential information for setting up, operating, and maintaining your D02 IEMs to ensure optimal performance and longevity.

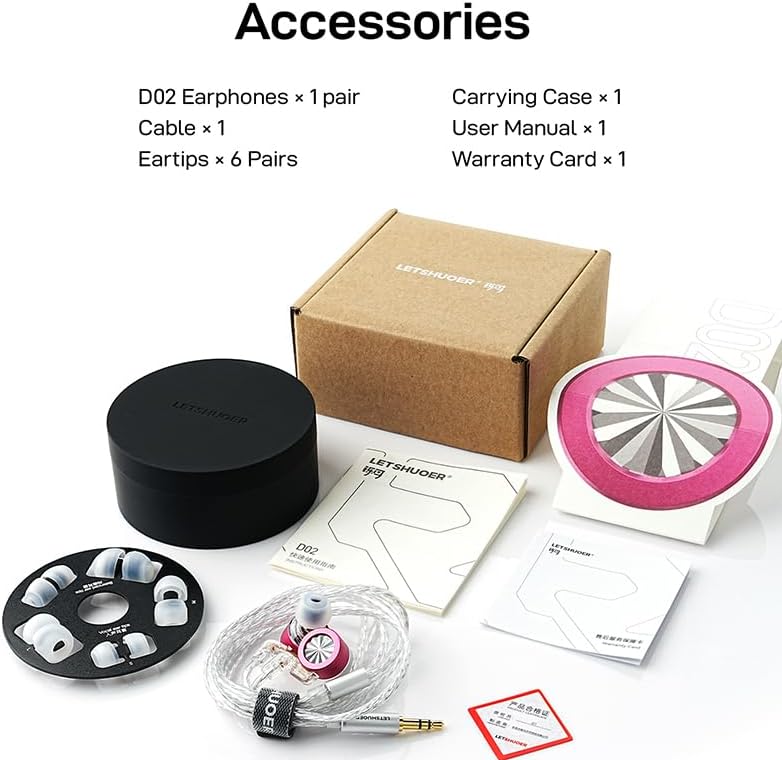

2. ബോക്സിൽ എന്താണുള്ളത്?

• D02 Earphones (1 pair)
• Detachable Cable (1)
• Ear Tips (6 pairs)
• Earphone Storage Case (1)
• ഉപയോക്തൃ മാനുവൽ (1)
• വാറന്റി കാർഡ് (1)

Image: All included accessories for the Letshuoer D02 IEMs.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

• Premium Material and Design: Features an aluminum alloy faceplate and polycarbonate shell for durability and aesthetic appeal.
• 11mm Dual Magnetic Circuit Dynamic Driver: Equipped with a 0.03mm ultra-thin cicada-wing diaphragm and wax-sealed ultralight design for fast transients, high resolution, clear vocals, and precise imaging. German-imported PU suspension provides deep, elastic bass and crisp, extended highs.
• Built-in High-Performance DAC (Type-C Version): The Type-C version includes an independent DAC chip supporting 32Bit/384KHz high-resolution digital audio decoding, enabling direct connection to phones and other devices without an extra source.
• Detachable Silver-Plated Copper Cable: Audiophile-grade cable with high-purity OFC core for efficient signal transmission and minimal loss. Features a 2-pin connector for secure and long-lasting connection.
• High-Sensitivity Directional Microphone: The Type-C version includes an in-line silicone MEMS mic that reduces ambient noise and captures voice clearly, ideal for calls, meetings, or gaming.
• Ergonomically Optimized for Comfort: Designed based on extensive ear canal modeling data for a secure, pressure-free fit. The lightweight body and over-ear design ensure lasting comfort and stability.

Image: Key features and highlights of the D02 In-Ear Monitors.

4. Setup and Wearing Guide

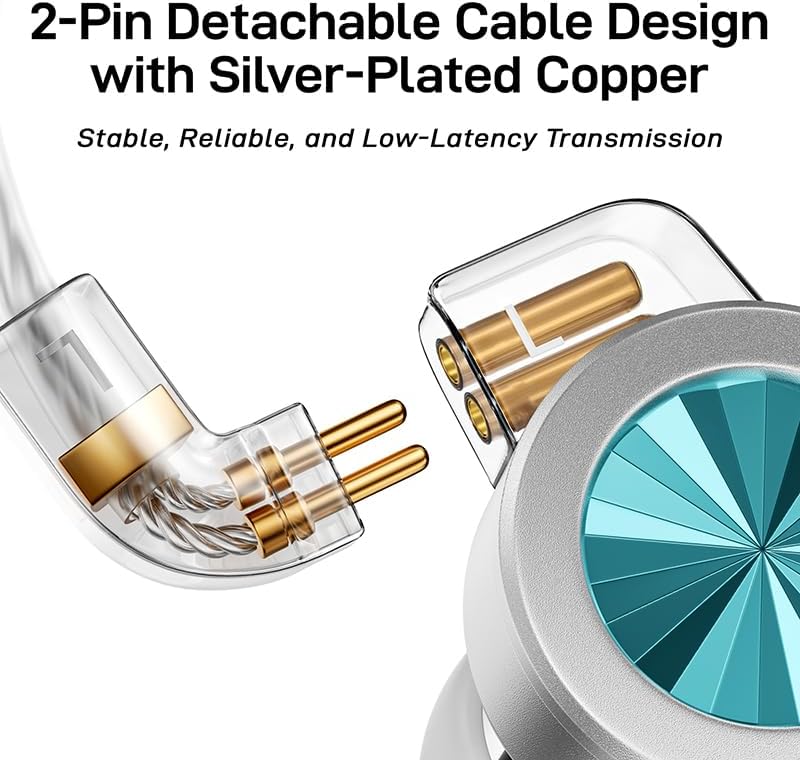

4.1 കേബിൾ ബന്ധിപ്പിക്കുന്നു

The D02 IEMs feature a detachable 2-pin cable. To connect:

1. Identify the left (L) and right (R) earpieces and cable connectors.
2. Align the pins on the cable with the sockets on the earpieces.
3. Gently push the connectors until they are securely in place. Do not force them.

Image: Detachable 2-pin cable design with silver-plated copper.

4.2 IEM-കൾ ധരിക്കൽ

For optimal sound and comfort, follow these steps to wear your D02 IEMs:

1. Identify L/R: Match the "L" and "R" markings on the earphones with your left and right ears.
2. ഇയർടിപ്പുകൾ തിരഞ്ഞെടുക്കുക: Choose the right size for a comfortable in-ear fit. Experiment with the included 6 pairs of ear tips to find the best seal.
3. Over-Ear Fit: Wrap the cable securely behind your ears.
4. സീൽ ഉറപ്പാക്കുക: Gently press the earphones for a tight seal and better sound isolation.
5. ഉപകരണം ബന്ധിപ്പിക്കുക: Lower the volume on your audio source before connecting to protect your hearing.

Image: Quick steps for wearing the D02 IEMs.

Image: Ergonomically optimized design for comfort.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 ഓഡിയോ പ്ലേബാക്ക്

Once properly connected and worn, the Letshuoer D02 IEMs are ready for audio playback. The Type-C version, with its built-in DAC, offers high-resolution digital audio directly from compatible devices. Adjust the volume on your connected device to your preferred listening level.

5.2 Microphone Usage (Type-C Version)

The in-line microphone on the Type-C cable allows for clear communication. Position the microphone appropriately for optimal voice pickup during calls, online meetings, or gaming sessions. The directional pickup helps reduce ambient noise.

Image: High-sensitivity directional microphone for clear communication.

5.3 ഉപകരണ അനുയോജ്യത

The D02 IEMs offer wide compatibility across various devices. Choose the appropriate version (Type-C or 3.5mm) based on your device's available ports.

Image: System and device compatibility notes for D02.

6. പരിപാലനം

• Clean Eartips: Regularly remove and clean the silicone ear tips with mild soap and water. Ensure they are completely dry before reattaching.
• Wipe Earphones: Use a soft, dry cloth to wipe the earpieces and cable to remove any dust or debris. Avoid using harsh chemicals.
• ശരിയായി സംഭരിക്കുക: When not in use, store your D02 IEMs in the provided earphone storage case to protect them from dust, moisture, and physical damage.
• കേബിൾ ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: ആന്തരിക കേടുപാടുകൾ തടയാൻ കേബിളിൽ മൂർച്ചയുള്ള വളവുകളോ അമിതമായി വലിക്കലോ ഒഴിവാക്കുക.

7. പ്രശ്‌നപരിഹാരം

• ശബ്ദമില്ല:
  • Ensure the cable is securely connected to both the earpieces and the audio source.
  • നിങ്ങളുടെ ഓഡിയോ ഉപകരണത്തിലെ വോളിയം ലെവൽ പരിശോധിക്കുക.
  • Test with another audio device to rule out source issues.
  • For Type-C version, ensure your device supports digital audio output via USB-C.
• Poor Sound Quality / Muffled Sound:
  • ചെവിയുടെ അഗ്രഭാഗങ്ങൾ നിങ്ങളുടെ ചെവി കനാലിനുള്ളിൽ ശരിയായ സീൽ നൽകുന്നുണ്ടെന്ന് ഉറപ്പാക്കുക. ആവശ്യമെങ്കിൽ വ്യത്യസ്ത വലുപ്പങ്ങൾ പരീക്ഷിക്കുക.
  • Clean any debris from the eartips or nozzle of the IEMs.
  • Check if the audio source is playing high-quality audio files.
• Microphone Not Working (Type-C Version):
  • മൈക്രോഫോൺ തടസ്സപ്പെട്ടിട്ടില്ലെന്ന് ഉറപ്പാക്കുക.
  • Check your device's audio settings to confirm the external microphone is selected.
  • മറ്റൊരു ആപ്ലിക്കേഷനോ ഉപകരണമോ ഉപയോഗിച്ച് മൈക്രോഫോൺ പരിശോധിക്കുക.
• ഇടവിട്ടുള്ള കണക്ഷൻ:
  • Check for loose connections at the 2-pin interface or the audio jack.
  • കേബിളിന് എന്തെങ്കിലും കേടുപാടുകൾ സംഭവിച്ചിട്ടുണ്ടോ എന്ന് പരിശോധിക്കുക.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

The Letshuoer D02 In-Ear Monitors come with a 1 വർഷത്തെ വാറൻ്റി on the IEMs themselves. The included cable is covered by a 3 മാസ വാറൻ്റി.

For support, warranty claims, or further inquiries, please contact the Letshuoer Official Store or refer to the warranty card included in your package.
