NEXTORCH TA70 EDC Tactical Flashlight User Manual

1. ആമുഖം

This manual provides comprehensive instructions for the safe and effective use of your NEXTORCH TA70 EDC Tactical Flashlight. Please read all instructions carefully before operation and retain this manual for future reference.

പാക്കേജ് ഉള്ളടക്കം:

• NEXTORCH TA70 Flat Flashlight
• USB-C ചാർജിംഗ് കേബിൾ
• Detachable Tactical Ring
• Detachable Stainless Steel Pocket Clip

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• Ultra-Bright & Ultra-Slim Design: Powered by 3 high-performance LEDs, delivering a maximum output of 3500 lumens and a 220-meter beam distance. With a thickness of just 18.77mm and weighing 124 grams, it is designed for easy everyday carry.
• Advanced Thermal Management (U.T.B System): Features NEXTORCH's Ultra Thermal Buffer (U.T.B) system for precise control and lasting brightness, preventing step-down and sustaining high output by absorbing and dissipating heat.
• ബഹുമുഖ ഓപ്പറേറ്റിംഗ് മോഡുകൾ: Offers Tactical, Duty, and Lock modes via a dual tail switch and rotating mode selector.
• USB Type-C Charging & Battery Indicator: Built-in rechargeable battery (1400mAh) with USB Type-C charging port. Provides up to 30 hours of battery life in low mode and fully charges in 2.5 hours. An LED indicator displays battery level.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: One-piece aluminum alloy body, IP67 waterproof and dustproof, and 2-meter impact resistance.
• Nano-Ceramic Strike Bezel: Integrated nano-ceramic bezel for emergency glass breaking and self-defense.
• Flexible Carry Options: Includes a detachable tactical ring for secure grip and quick access, and a stainless steel pocket clip for attachment to pockets, tactical vests, or gear.

3. സജ്ജീകരണം

3.1. പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge the flashlight. The TA70 has a built-in 1400mAh battery.

1. Locate the USB Type-C charging port by flipping up the tail cap button.
2. Connect the provided USB-C charging cable to the flashlight and a power source (e.g., USB wall adapter, computer USB port).
3. The LED indicator will show red during charging and turn blue when fully charged. Full charge takes approximately 2.5 hours.

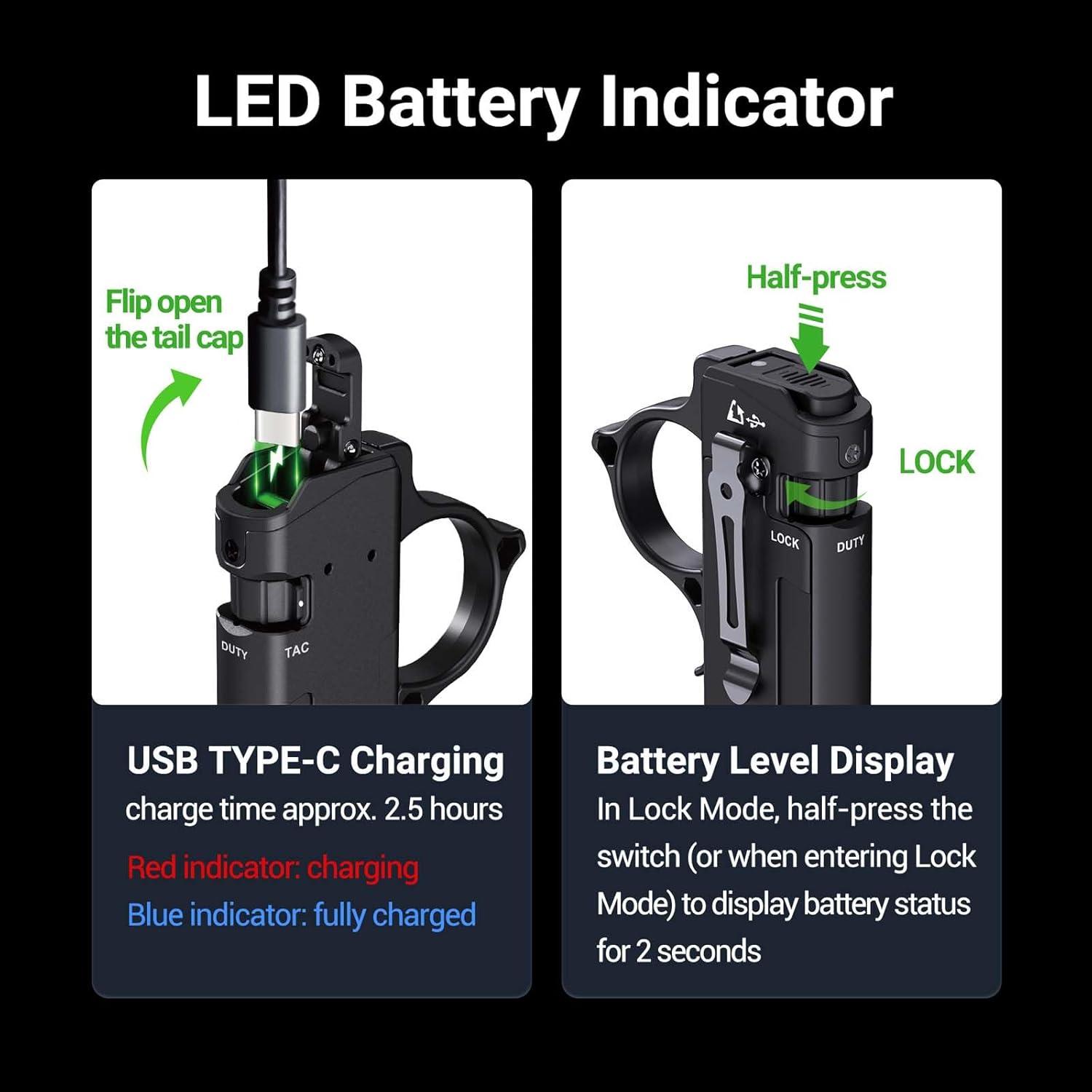

Figure 1: USB Type-C charging port and battery level indicator. The tail cap button flips up to reveal the charging port. A red indicator signifies charging, while a blue indicator means fully charged.

3.2. ആക്സസറികൾ ഘടിപ്പിക്കൽ

The tactical ring and pocket clip are detachable and can be configured to your preference.

• Tactical Ring: Provides a secure grip and quick draw. It can be removed by unscrewing the small screw holding it in place.
• പോക്കറ്റ് ക്ലിപ്പ്: The stainless steel pocket clip can be attached to either side of the flashlight body for versatile carry options.

Figure 2: The NEXTORCH TA70 showing the detachable tactical ring and stainless steel pocket clip, allowing for various carry configurations.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The TA70 features a dual tail switch and a rotating mode selector for intuitive operation.

4.1. മോഡ് തിരഞ്ഞെടുക്കൽ

Rotate the mode selector on the tail cap to choose between three main modes:

• LOCK Mode: Prevents accidental activation for safe storage and transport.
• DUTY Mode: Provides multiple constant-on brightness levels for general tasks.
• TACTICAL Mode: Designed for rapid response with momentary and strobe functions.

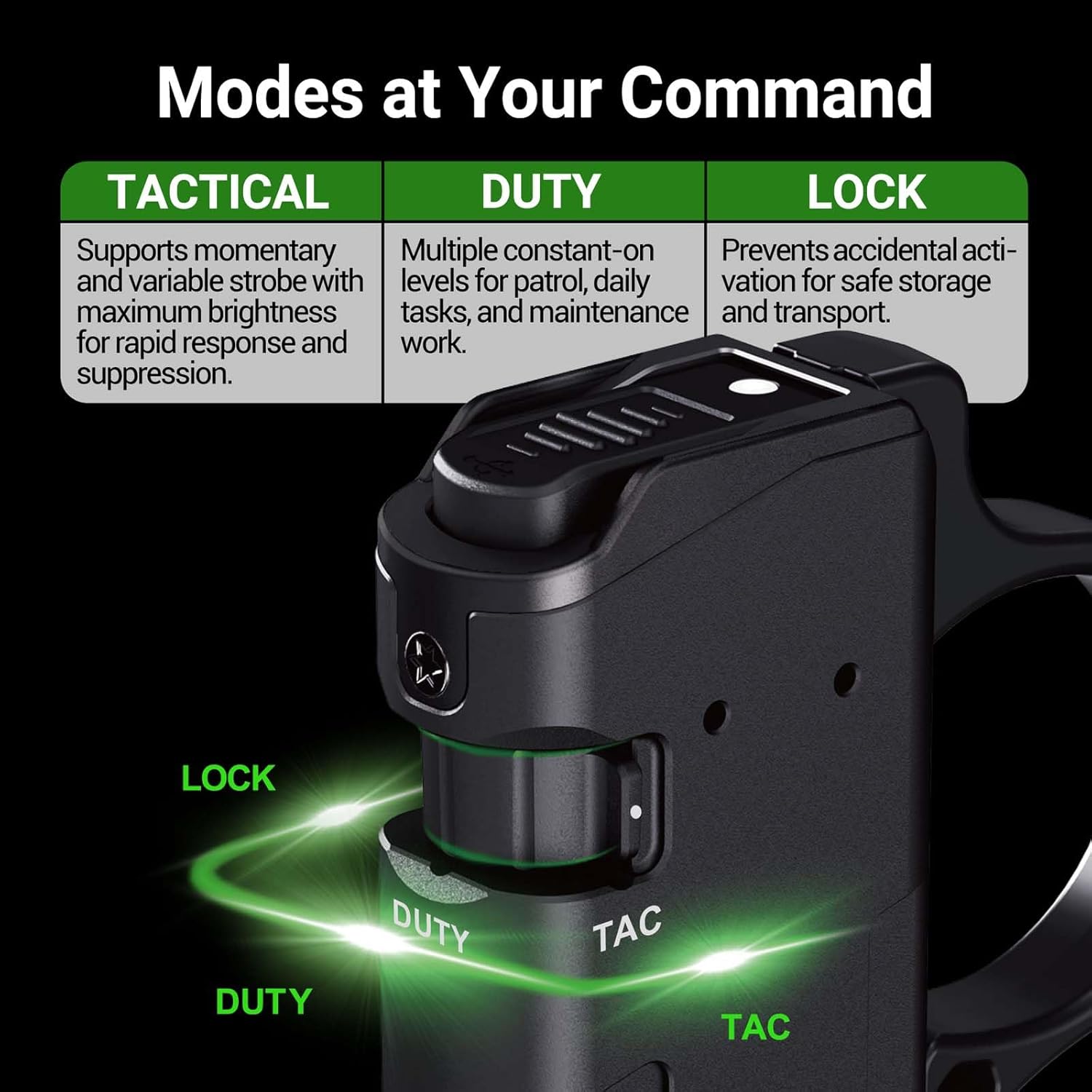

Figure 3: Diagram illustrating the rotating mode selector on the tail cap, allowing selection between LOCK, DUTY, and TACTICAL modes.

4.2. Using the Dual Tail Switch

The tail switch operates differently depending on the selected mode:

• In LOCK Mode: The flashlight will not activate. A half-press of the switch will display the battery status for 2 seconds.
• In DUTY Mode:
  • Half-press the switch for momentary low (28 lumens).
  • Fully press the switch for constant-on low (28 lumens).
  • From constant-on, half-press to cycle through brightness levels: Low (28lm) > Medium (300lm) > High (1300lm).
  • Fully press again to turn off.
• In TACTICAL Mode:
  • Half-press the switch for momentary high (3500 lumens).
  • Fully press the switch for momentary strobe (3500 lumens).
  • Release the switch to turn off.

5. പരിപാലനം

To ensure optimal performance and longevity of your NEXTORCH TA70 flashlight, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe the flashlight body with a clean, soft cloth. For stubborn dirt, use a damp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.
• ചാർജിംഗ് പോർട്ട്: Keep the USB-C charging port clean and free of debris. Ensure the tail cap button is properly closed after charging to maintain IP67 water and dust resistance.
• സംഭരണം: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) and recharge every 3-6 months to prevent battery degradation.
• ഡിസ്അസംബ്ലിംഗ് ഒഴിവാക്കുക: Do not attempt to disassemble the flashlight or replace the built-in battery, as this will void the warranty and may damage the device.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your NEXTORCH TA70, please refer to the following common troubleshooting steps:

• ഫ്ലാഷ്‌ലൈറ്റ് ഓണാകുന്നില്ല:
  • Check if the mode selector is set to 'LOCK'. Rotate it to 'DUTY' or 'TACTICAL'.
  • Ensure the battery is charged. Connect the flashlight to the USB-C charger and check the indicator light.
• Light Output is Dim or Flickering:
  • The battery level may be low. Recharge the flashlight fully.
  • The U.T.B system may be actively managing heat to prevent overheating, causing a temporary step-down in brightness. This is normal operation.
• ചാർജിംഗ് പ്രശ്നങ്ങൾ:
  • Ensure the USB-C cable is securely connected to both the flashlight and the power source.
  • മറ്റൊരു USB-C കേബിളോ പവർ അഡാപ്റ്ററോ ഉപയോഗിക്കാൻ ശ്രമിക്കുക.
  • Check the charging port for any debris that might obstruct the connection.

If these steps do not resolve the issue, please contact NEXTORCH customer support for further assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

NEXTORCH offers a ten-year warranty on all flashlights. If you have any questions about the product or require warranty service, please feel free to contact NEXTORCH customer support.

For more information, visit the official NEXTORCH Store: NEXTORCH Store
