OLIGHT Ostation X ബാറ്ററി ചാർജർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ആമുഖം

The OLIGHT Ostation X is an advanced 3-in-1 smart battery charger designed exclusively for NiMH AA rechargeable batteries. It integrates charging, testing, and storage functionalities into a single, compact unit. Featuring intelligent battery detection, app control, and a unique waterfall charging design, the Ostation X simplifies battery management for a seamless user experience.

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Ostation X charger to ensure optimal performance and longevity.

Image: The Olight Ostation X charger, showcasing its sleek design and the included AA batteries.

ബോക്സിൽ എന്താണുള്ളത്

Upon unboxing your OLIGHT Ostation X, please verify that all the following items are included:

• OLIGHT Ostation X Battery Charger
• 32 x AA 2100mAh NiMH Rechargeable Batteries
• USB-C മുതൽ USB-C കേബിൾ (1.5 മീറ്റർ)
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

ഉൽപ്പന്നം കഴിഞ്ഞുview

Familiarize yourself with the key components of your Ostation X charger:

ചിത്രം: വിശദമായത് view of the Ostation X highlighting its various components.

• സ്ലൈഡിംഗ് ഡസ്റ്റ് കവർ: Protects the battery input slot from dust and debris.
• Easily Detachable 3-Compartment Design: Allows for easy cleaning and maintenance.
• LED Indicator Ring: Provides visual feedback on the charger's status (e.g., ready, charging, malfunction).
• Invalid Battery Bin: Automatically sorts out incompatible or faulty batteries.
• USB-C Input/Output Ports: For power input and charging another device in tandem.
• Vent (Air Outlet): Ensures proper heat dissipation during charging.
• Dispensing Lever: Used to release charged batteries from the storage compartment.

സജ്ജമാക്കുക

1. പവർ കണക്ഷൻ: Connect the provided USB-C to USB-C cable to the Ostation X's input port and to a PD-compatible charger that outputs at least 12V & 1.5A. Ensure the connection is secure. The LED indicator ring will illuminate, indicating the device is powered on.
2. പ്രാരംഭ പരിശോധന: Before first use, ensure there are no foreign objects in the battery slots or compartments.
3. ആപ്പ് ഡൗൺലോഡ്: For full functionality and firmware updates, download the official OLIGHT app from your smartphone's app store.

ഓപ്പറേഷൻ

ചാർജുചെയ്യുന്ന ബാറ്ററികൾ

The Ostation X features an original waterfall charging design, allowing for simple and efficient battery charging.

Image: Visual representation of the drop, charge, and go process.

1. ബാറ്ററികൾ ലോഡുചെയ്യുക: Open the sliding dust cover. Drop NiMH AA rechargeable batteries into the input slot. You do not need to check for positive (+) or negative (-) polarity; the charger will automatically detect it. Load them evenly in the 4 channels of the compartment.
2. യാന്ത്രിക ചാർജിംഗ്: The Ostation X will automatically begin the charging process. It charges up to 4 batteries per round, analyzing and selectively charging them.
3. ചാർജിംഗ് മോഡുകൾ: The charger offers two modes:
   • സ്റ്റാൻഡേർഡ് ചാർജിംഗ്: Approximately 3.8 hours per round.
   • ഫാസ്റ്റ് ചാർജിംഗ്: Approximately 2.5 hours per round.
   You can select the preferred charging mode via the OLIGHT app.

Image: Comparison of Fast Charging and Standard Charging times.

Intelligent Battery Detection and Sorting

The Ostation X features a smart detection system that identifies the battery type and health status. It automatically sorts out incompatible or faulty batteries into a dedicated invalid battery bin.

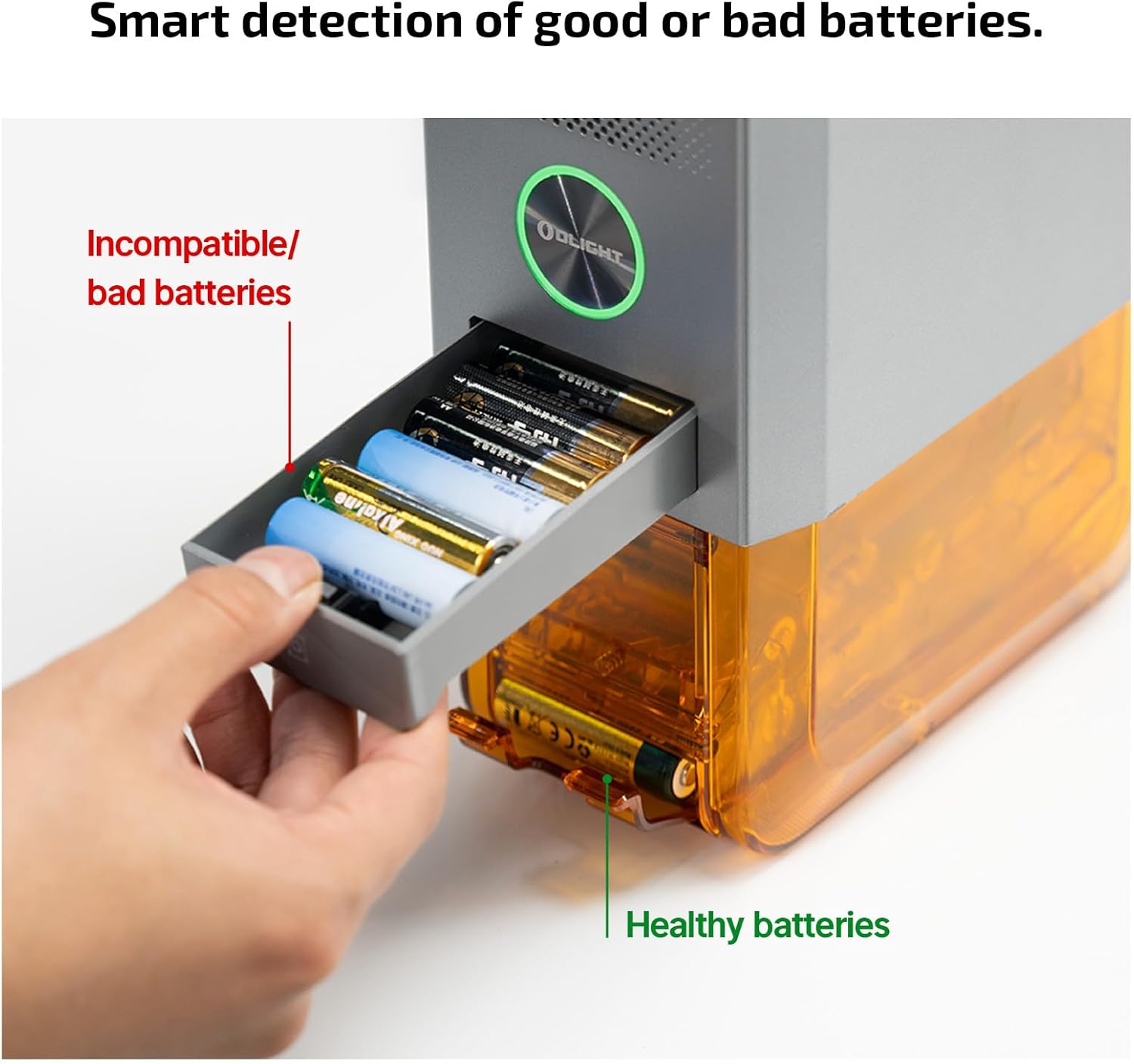

Image: Illustration of the invalid battery bin for incompatible or bad batteries.

Retrieving Charged Batteries

Once batteries are fully charged, they are moved to the dispensing area. You can retrieve up to 32 charged batteries at once by pulling the dispensing lever.

App Control & Monitoring

The OLIGHT app provides comprehensive control and monitoring capabilities for your Ostation X charger. It is highly recommended to use the app for the best user experience and to receive important firmware updates.

Image: Screenshot of the Olight app interface showing battery status and control options.

ആപ്പ് ഉപയോഗിച്ച്, നിങ്ങൾക്ക് ഇവ ചെയ്യാനാകും:

• Turn the charger On/Off.
• Monitor real-time battery status and health.
• Select different charging modes (Standard/Fast).
• View the number of charged cells.
• Set and manage paused charging schedules.
• Receive Over-The-Air (OTA) firmware upgrades for enhanced functionality and bug fixes.

Please update to the latest version of the app before initial use to ensure optimal performance and access to all features.

അനുയോജ്യത

The OLIGHT Ostation X is exclusively designed for NiMH AA rechargeable batteries. It works with various brands of AA NiMH batteries, including Eneloop, EBL, Energizer, Amazon Basics, and Olight's own Ostation B Pro AA batteries.

Image: Visual representation of the Ostation X's compatibility with various NiMH AA battery brands.

Note: This charger is not compatible with alkaline, lithium, or other battery chemistries. Using incompatible batteries may damage the charger or cause safety hazards.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and optimal performance of your Ostation X charger.

• വൃത്തിയാക്കൽ: Regularly clean the exterior of the charger with a soft, dry cloth. For internal components, the 3-compartment design is easily detachable for cleaning. Ensure no dust or debris accumulates in the battery slots or dispensing area.
• ബാറ്ററി കോൺടാക്റ്റുകൾ: If batteries are rejected frequently, check if their surfaces are dirty or corroded. Clean battery contacts with a clean, dry cloth or a cotton swab dipped in rubbing alcohol.
• സംഭരണം: ചാർജർ ദീർഘനേരം ഉപയോഗിക്കാത്തപ്പോൾ, നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും മാറി തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.

ട്രബിൾഷൂട്ടിംഗ്

This section addresses common issues you might encounter with your Ostation X charger.

ഇൻഡിക്കേറ്റർ ലൈറ്റ് അർത്ഥങ്ങൾ

The LED indicator ring provides crucial information about the device's current status:

Image: Visual guide to the different colors of the LED indicator ring.

• വെള്ള: Ready for loading cells.
• പച്ച: Preparing for charging.
• നീല: ചാർജിംഗ് പുരോഗമിക്കുന്നു.
• ചുവപ്പ്: Malfunction detected (e.g., faulty battery).
• മഞ്ഞ: Incompatible adapter connected.

പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും

• Charger not working with adapter / Indicator is Yellow:

  Ensure you are using a PD-compatible charger that outputs at least 12V & 1.5A. The device will not function correctly with an incompatible power source.



  Image: Illustration emphasizing the requirement for a 12V & 1.5A PD-compatible adapter.

• Last 20% of charge takes longer:

  This is normal behavior. To protect battery health and extend lifespan, the charging speed slows down after reaching 80% capacity.
• Noise in fast charging mode:

  The cooling fan activates in fast-charging mode to dissipate heat. This is normal. If the noise is disruptive, consider placing the charger in a less sensitive area or setting a non-charging time in the app.



  Image: Explanations for slower charging at high capacity and fan operation during fast charging.

• Good cells in the invalid bin:

  The battery identification accuracy is 99.5%. If a seemingly good battery is rejected, dirty or corroded surfaces might be the cause. Clean the battery contacts and re-insert it. If the issue persists, the battery might be genuinely faulty.



  Image: Guidance on what to do if a good battery is sorted into the invalid bin.

• Is the APP required to use the Ostation X?

  While the basic charging function can operate without the app, the app is required to monitor charging status, control advanced features, and receive important firmware updates for the Ostation X AA. It is highly recommended for a complete user experience.



  Image: Visual reminder that the app is essential for monitoring and updates.

സ്പെസിഫിക്കേഷനുകൾ

Image: Detailed dimensions and weight of the Ostation X charger.

സുരക്ഷാ വിവരങ്ങൾ

ഉപകരണത്തിന് പരിക്കോ കേടുപാടുകളോ ഉണ്ടാകാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ വായിച്ച് പാലിക്കുക:

• Use only NiMH AA rechargeable batteries with this charger. Do not attempt to charge alkaline, lithium, or other non-rechargeable battery types.
• Ensure the charger is connected to a compatible power adapter (12V & 1.5A PD-compatible) to avoid malfunction or damage.
• Do not disassemble, modify, or attempt to repair the charger yourself. Contact customer support for assistance.
• ചാർജർ വെള്ളം, ഈർപ്പം, ഉയർന്ന താപനില എന്നിവയിൽ നിന്ന് അകറ്റി നിർത്തുക.
• പ്രവർത്തന സമയത്ത് വെന്റിലേഷൻ തുറക്കൽ തടയരുത്.
• കുട്ടികൾക്കും വളർത്തുമൃഗങ്ങൾക്കും ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• The Ostation X incorporates 7-layer protection for safety, including overheat, over-current, over-voltage, over-charging, short circuit, cooling system, and electrostatic breakdown protection.

ചിത്രം: കഴിഞ്ഞുview of the 7-layer protection system integrated into the Ostation X.

വാറൻ്റിയും പിന്തുണയും

OLIGHT products are backed by a manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official OLIGHT webസൈറ്റ്.

For technical support, troubleshooting assistance, or any inquiries regarding your Ostation X charger, please contact OLIGHT customer service through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ.

You can visit the official OLIGHT Store on Amazon for more information: ഒലൈറ്റ് സ്റ്റോർ
