1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The GOOLOO DEEPSCAN DS100 is a Bluetooth-enabled OBD2 diagnostic scanner designed for comprehensive vehicle health checks. It connects wirelessly to your iOS or Android device via a dedicated application, providing access to full-system diagnostics, code reading and clearing, live data, and various maintenance reset functions.
This device is compatible with most US vehicles manufactured in 1996 and newer, EU/Asia gasoline vehicles from 2000 and newer, and diesel passenger vehicles from 2006 and newer that support OBD-II protocols (KWP2000, ISO9141, J1850 PWM/VPW, and CAN).

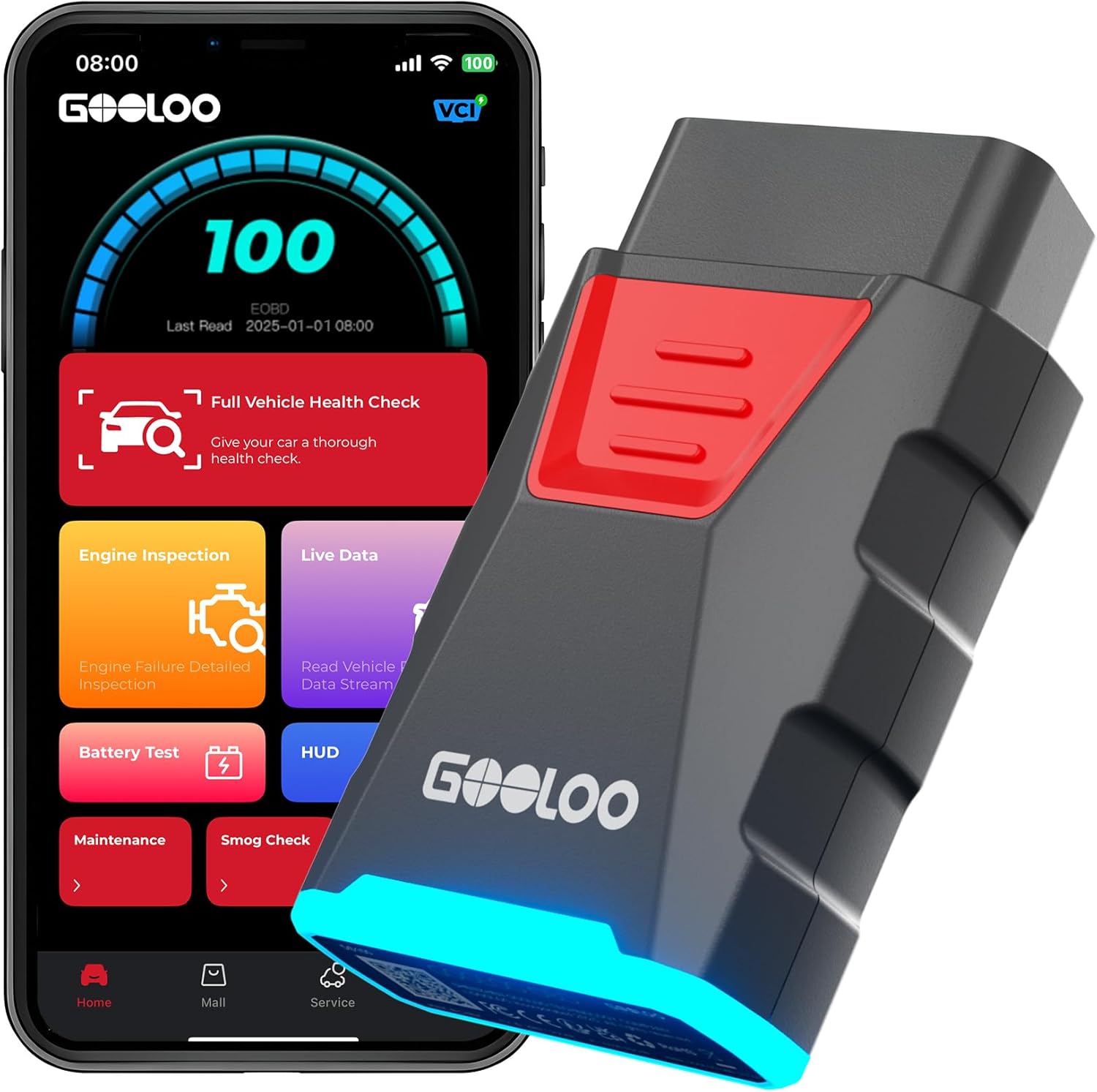

Image 1.1: The GOOLOO DEEPSCAN DS100 OBD2 scanner device and its mobile application interface, showing various diagnostic options.
2. പാക്കേജ് ഉള്ളടക്കം
- DS100 OBD2 Scanner Unit
- ദ്രുത റഫറൻസ് ഗൈഡ്
3. സജ്ജീകരണവും കണക്ഷനും
3.1 അപ്ലിക്കേഷൻ ഇൻസ്റ്റാളേഷൻ
- Download the official GOOLOO OBD app from the App Store (for iOS devices) or Google Play Store (for Android devices).
- ആപ്പിനുള്ളിൽ ഒരു അക്കൗണ്ട് രജിസ്റ്റർ ചെയ്യുക.
3.2 ഉപകരണ കണക്ഷൻ
- Locate your vehicle's OBD-II port. This port is typically found under the dashboard on the driver's side. The app can assist in locating the DLC (Data Link Connector) diagnostic seat.
- Plug the DS100 scanner into the OBD-II port. Ensure a secure connection. The device will illuminate to indicate power.
- Turn your vehicle's ignition to the 'ON' position (engine does not need to be running for most functions).
- Open the GOOLOO OBD app on your smartphone or tablet. The app will automatically connect to the DS100 via Bluetooth.
Image 3.1: Step-by-step guide for setting up the DS100 scanner and connecting it to the mobile application.
Image 3.2: The DS100 maintains a stable Bluetooth connection, allowing users to operate the app from a distance of up to 33 feet (10 meters) from the vehicle.
3.3 Initial Vehicle Identification (AutoVIN)
Upon successful connection, the DS100 app will attempt to automatically identify your vehicle using its AutoVIN feature. This streamlines the diagnostic process by pre-selecting the correct vehicle information.
4. സ്കാനർ പ്രവർത്തിപ്പിക്കൽ
4.1 പൂർണ്ണ സിസ്റ്റം ഡയഗ്നോസ്റ്റിക്സ്
The DS100 can perform comprehensive scans across various vehicle systems, including:
- എഞ്ചിൻ
- പകർച്ച
- എയർബാഗ് (SRS)
- ആൻ്റി ലോക്ക് ബ്രേക്കിംഗ് സിസ്റ്റം (എബിഎസ്)
- Electronic Stability Program (ESP)
- ടയർ പ്രഷർ മോണിറ്ററിംഗ് സിസ്റ്റം (TPMS)
- ഇമ്മൊബിലൈസർ
- ഗേറ്റ്വേ
- സ്റ്റിയറിംഗ്
- റേഡിയോ
- എയർ കണ്ടീഷനിംഗ്
This allows for quick identification of issues across the vehicle's electronic control units (ECUs).
Image 4.1: Illustration of the DS100's capability to perform a full vehicle system check, covering multiple electronic control units.
4.2 ഡയഗ്നോസ്റ്റിക് ട്രബിൾ കോഡുകൾ (ഡിടിസി) വായിക്കുകയും മായ്ക്കുകയും ചെയ്യുന്നു.
The DS100 functions as an engine code reader, allowing you to:
- ഡിടിസികൾ വായിക്കുക: Retrieve current, pending, and permanent diagnostic trouble codes from the vehicle's ECU.
- DTC-കൾ മായ്ക്കുക: Erase stored trouble codes and turn off the Check Engine Light (MIL). Note that if the underlying issue is not resolved, the light may reappear.
Image 4.2: Demonstrates the process of reading and clearing engine codes, which turns off the check engine light.
4.3 ലൈവ് ഡാറ്റ സ്ട്രീം
Monitor real-time sensor data from your vehicle's engine and other systems. This data can be displayed in various formats, including graphs, to help diagnose intermittent issues or verify repairs.
Image 4.3: The app's interface showing real-time sensor data, including engine RPM and temperature, presented as graphs for easy monitoring.
4.4 I/M Readiness Check
Check the readiness status of emission-related monitors to determine if your vehicle is ready for an emissions test (smog check). This function helps avoid failing inspections due to incomplete monitor cycles.
Image 4.4: The I/M Readiness Check feature in the app, indicating whether the vehicle's emission systems are ready for inspection.
4.5 Repair Guidance and References
The app provides actionable repair guidance, including:
- DTC Repair Guide: Explanations of fault codes with possible causes and guided fixes.
- Technical Service Bulletins (TSB): Access to factory technical bulletins for known issues.
- DLC Location: Visual guides to help locate your vehicle's diagnostic port.
- Warning Light Library: A database explaining the meaning and implications of various dashboard warning lights.
Image 4.5: The app's repair guidance section, offering resources like DTC repair guides and a warning light library.
5. Maintenance Reset Functions
The DS100 supports over 6 common maintenance reset services:
- ഓയിൽ റീസെറ്റ്: Resets the oil life monitoring system after an oil change.
- ത്രോട്ടിൽ അഡാപ്റ്റേഷൻ: Relearns the throttle body position after cleaning or replacement.
- Electronic Parking Brake (EPB) Reset: ബ്രേക്ക് പാഡ് മാറ്റിസ്ഥാപിക്കുന്നതിനുള്ള ബ്രേക്ക് കൺട്രോൾ സിസ്റ്റം നിർജ്ജീവമാക്കുകയും വീണ്ടും സജീവമാക്കുകയും ചെയ്യുന്നു.
- Battery Management System (BMS) Reset: Registers a new battery with the vehicle's ECU.
- Diesel Particulate Filter (DPF) Regeneration: Initiates the DPF regeneration process to clear accumulated soot.
- Anti-lock Braking System (ABS) Bleeding: Performs bleeding procedures for the ABS system.
- Tire Pressure Monitoring System (TPMS) Reset: Resets TPMS sensors after tire rotation or replacement.
ചിത്രം 5.1: കഴിഞ്ഞുview of the six professional-level service functions available through the DS100 scanner.
6 സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | ഗൂലൂ |
| മോഡൽ | DS100 OBD2 സ്കാനർ |
| പവർ ഉറവിടം | Battery Powered (via OBD-II port) |
| ഉൽപ്പന്ന അളവുകൾ | 0.25"L x 0.15"W x 0.08"H |
| ഇനത്തിൻ്റെ ഭാരം | 2.89 ഔൺസ് |
| Operating System (App) | iOS & Android |
| ഓട്ടോമോട്ടീവ് ഫിറ്റ് തരം | Universal Fit (OBD-II compliant vehicles) |
| പിന്തുണയ്ക്കുന്ന പ്രോട്ടോക്കോളുകൾ | KWP2000, ISO9141, J1850 PWM/VPW, CAN |
| പിന്തുണയ്ക്കുന്ന ഭാഷകൾ | 12 languages (including English, Spanish) |
7. പ്രധാനപ്പെട്ട വിവരങ്ങൾ
7.1 Subscription Service
The GOOLOO DEEPSCAN DS100 includes a complimentary first year of premium services. After the initial 12 months, continued access to advanced diagnostics and software updates requires a subscription. Pricing options are available at $29.99 per year or $4.99 per month.
7.2 വാഹന അനുയോജ്യത
The DS100 is designed for vehicles that follow OBD-II standards. It is compatible with most 1996 and newer US vehicles, 2000 and newer EU/Asia gasoline vehicles, and 2006 and newer diesel passenger vehicles. It is not compatible with vehicles that do not adhere to OBD-II protocols.
Image 7.1: The DS100 offers extensive vehicle coverage, supporting over 100,000 models and 10+ languages.
8. ട്രബിൾഷൂട്ടിംഗും പിന്തുണയും
8.1 പൊതുവായ ട്രബിൾഷൂട്ടിംഗ്
- കണക്ഷൻ പ്രശ്നങ്ങൾ: Ensure the DS100 is firmly plugged into the OBD-II port and the vehicle's ignition is in the 'ON' position. Verify Bluetooth is enabled on your mobile device.
- ആപ്പ് പ്രകടനം: If the app experiences lag or issues, ensure it is updated to the latest version. Large vehicle data downloads may take time and storage space.
- Clearing Codes: If a check engine light returns shortly after clearing codes, it indicates the underlying vehicle issue has not been resolved. Further diagnosis or professional repair may be necessary.
8.2 Warranty and Customer Support
The GOOLOO DEEPSCAN DS100 comes with a 12-month warranty. Free periodic software updates are provided to ensure compatibility with new vehicle models. For professional support, contact GOOLOO customer service via email or the in-app chat feature, available 24/7.
9. ഉൽപ്പന്ന പ്രദർശന വീഡിയോ
Video 9.1: This video demonstrates the GOOLOO DEEPSCAN DS100 in action, showcasing its ease of connection, full system diagnostic capabilities, and various maintenance functions for both emergency situations and routine car care.
