Alfa Moderno One Natural Gas Pizza Oven User Manual

1. ആമുഖം

This manual provides essential instructions for the safe and efficient use of your Alfa Moderno One Natural Gas Pizza Oven, model FXMD-1P-MRAM-U. This compact yet powerful outdoor oven is designed for preparing high-temperature, wood-fired style pizzas quickly and efficiently. Please read this manual thoroughly before installation, operation, or maintenance.

The Alfa Moderno One features Heat Genius Technology, combining radiant heat from the firebrick cooking floor with convection from recirculated air, ensuring even cooking. Its patented Full Effect Flue System optimizes heat circulation, and the HeatKeeper firebrick provides superior heat retention. Constructed with 304 stainless steel, this oven offers durability and a stylish copper finish.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് തീ, സ്ഫോടനം അല്ലെങ്കിൽ കാർബൺ മോണോക്സൈഡ് വിഷബാധയ്ക്ക് കാരണമാകും, ഇത് സ്വത്ത് നാശത്തിനോ വ്യക്തിപരമായ പരിക്കിനോ മരണത്തിനോ കാരണമായേക്കാം.

• ഔട്ട്ഡോർ ഉപയോഗത്തിന് മാത്രം: This appliance is for outdoor use only. Do not operate indoors or in an enclosed area.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation around the oven. Do not obstruct the flue or any ventilation openings.
• വാതക ചോർച്ച: Before each use, check for gas leaks. Never use an open flame to check for leaks. Use a soapy water solution. If a gas odor is detected, immediately shut off the gas supply and contact a qualified technician.
• ചൂടുള്ള പ്രതലങ്ങൾ: The oven and its components become extremely hot during operation and remain hot for a period after use. Always use heat-resistant gloves and avoid direct contact with hot surfaces. Keep children and pets away from the oven.
• ക്ലിയറൻസ്: Maintain a safe distance from combustible materials. Refer to local codes and manufacturer guidelines for specific clearance requirements.
• ഇന്ധന തരം: This oven is designed for Natural Gas only. Do not attempt to use other fuel types.
• ഇൻസ്റ്റലേഷൻ: Installation must comply with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
• മേൽനോട്ടം: Never leave the oven unattended while in operation.

3. സജ്ജീകരണവും അസംബ്ലിയും

The Alfa Moderno One pizza oven is designed for easy setup on any sturdy, non-combustible tabletop. Follow these steps for initial assembly:

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully remove all parts from the packaging. Ensure all components are present. The oven includes the main body and a chimney.
2. ക്രമീകരിക്കാവുന്ന പാദങ്ങൾ ഘടിപ്പിക്കുക: Screw the adjustable feet onto the bottom of the oven body. Ensure they are securely tightened and level the oven on your chosen surface.
3. Install Chimney: Insert the chimney into the designated opening on the top of the oven. Secure it according to the manufacturer's instructions, ensuring a tight fit to prevent smoke leakage.
4. ഗ്യാസ് സപ്ലൈ ബന്ധിപ്പിക്കുക: Connect the natural gas line to the oven's gas inlet. This connection should be performed by a qualified professional to ensure safety and compliance with local regulations. Perform a leak test using soapy water after connection.

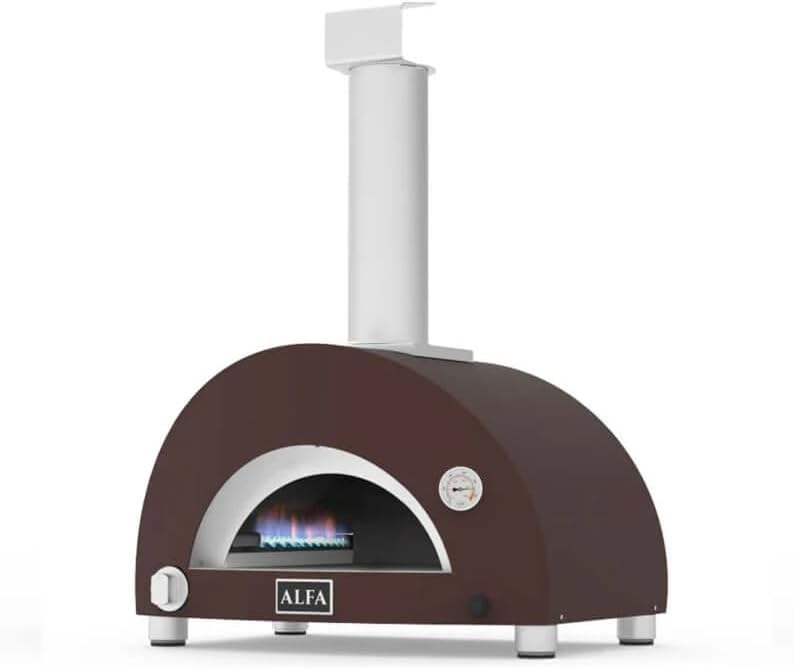

Figure 3.1: Alfa Moderno One Pizza Oven with chimney installed, ready for gas connection.

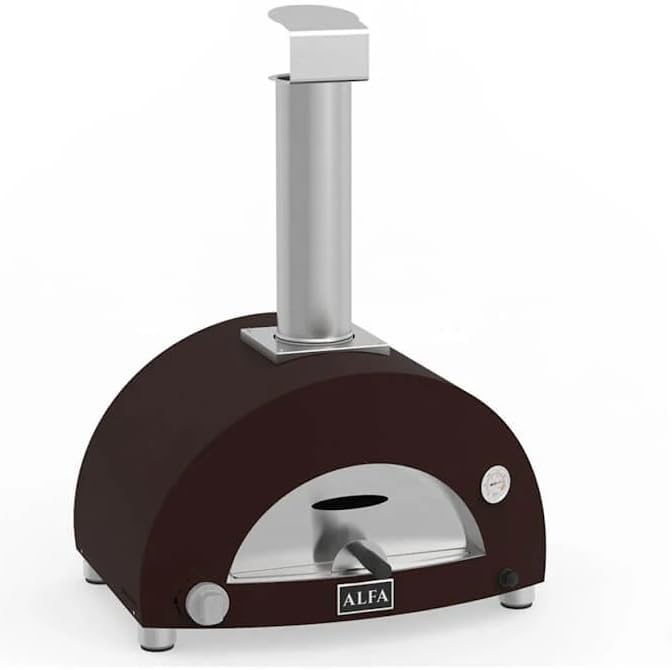

ചിത്രം 3.2: മുൻഭാഗം view of the Alfa Moderno One Pizza Oven, showcasing its compact design and closed door.

4. ഓപ്പറേഷൻ

Operating your Alfa Moderno One oven is straightforward, allowing you to achieve professional results quickly.

1. ജ്വലനം: Ensure the gas supply is open. Follow the ignition instructions provided on the oven or in a separate quick-start guide. Typically, this involves pushing and turning a control knob to the ignition position and holding it until the burner ignites.
2. മുൻകൂട്ടി ചൂടാക്കൽ: Once ignited, allow the oven to pre-heat. The Alfa Moderno One can reach 750°F (400°C) in approximately 10 minutes, with a maximum temperature of 1000°F (538°C). Monitor the built-in thermometer.
3. പാചകം: When the desired temperature is reached, place your pizza onto the HeatKeeper firebrick cooking surface using a pizza peel. The oven's Heat Genius Technology and Full Effect Flue System ensure even heat distribution for a perfectly cooked pizza in as little as 90 seconds.
4. താപനില നിയന്ത്രണം: Adjust the gas flow using the control knob to maintain your desired cooking temperature.
5. ഷട്ട് ഡൗൺ: After cooking, turn the gas control knob to the "OFF" position and close the main gas supply valve. Allow the oven to cool completely before cleaning or covering.

Figure 4.1: The Alfa Moderno One Pizza Oven in operation, showing the natural gas flame heating the cooking chamber.

ചിത്രം 4.2: വിശദമായ ഒരു view of the oven's interior during operation, highlighting the powerful gas burner and the HeatKeeper firebrick.

Figure 4.3: Diagram explaining the Alfa Heat Genius Technology, including HeatKeeper Refractory Brick, DoubleDown Ceramic Superwool® Insulation, and the Full Effect Full Circulation Flue System.

5. പരിപാലനവും ശുചീകരണവും

Regular maintenance ensures the longevity and optimal performance of your pizza oven.

• ശാന്തമാകൂ: ഏതെങ്കിലും വൃത്തിയാക്കൽ അല്ലെങ്കിൽ അറ്റകുറ്റപ്പണികൾ നടത്തുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും അടുപ്പ് പൂർണ്ണമായും തണുക്കാൻ അനുവദിക്കുക.
• ബാഹ്യ ശുചീകരണം: The 304 stainless steel body can be cleaned with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the copper finish.
• ഇന്റീരിയർ ക്ലീനിംഗ്: The HeatKeeper firebrick cooking surface is largely self-cleaning at high temperatures. Any food residue will typically burn off. For stubborn residue, gently scrape with a non-metallic brush or scraper once the oven is cool. Do not use water directly on the hot firebrick.
• ചിമ്മിനി: Periodically inspect the chimney for any blockages or buildup. Clean as necessary to ensure proper ventilation.
• ഗ്യാസ് ബർണർ: Ensure the gas burner ports are clear of debris. Use a soft brush to gently clean if necessary.
• സംഭരണം: When not in use for extended periods, cover the oven with a weather-resistant cover to protect it from the elements.

6. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും അറിയാൻ ഈ വിഭാഗം കാണുക.

• Oven Not Igniting:
  • ഗ്യാസ് വിതരണ വാൽവ് പൂർണ്ണമായും തുറന്നിട്ടുണ്ടോ എന്ന് പരിശോധിക്കുക.
  • Ensure the gas line is properly connected and free of kinks.
  • Verify that the igniter is sparking. If not, check the battery (if applicable) or contact support.
  • Check for blockages in the burner ports.
• അസമമായ പാചകം:
  • Ensure the oven has fully pre-heated to the recommended temperature.
  • Rotate the pizza during cooking for more even results.
  • Verify that the oven is level.
• Low Flame or Insufficient Heat:
  • ഗ്യാസ് വിതരണ സമ്മർദ്ദം പരിശോധിക്കുക.
  • Ensure the gas line is not obstructed.
  • Clean the burner ports if they appear clogged.
• വാതക ഗന്ധം:
  • ഉടൻ തന്നെ ഗ്യാസ് വിതരണം നിർത്തുക.
  • പ്രദേശം ഒഴിപ്പിക്കുക.
  • Do not attempt to ignite the oven.
  • Contact a qualified gas technician or emergency services.

ട്രബിൾഷൂട്ടിംഗ് ഘട്ടങ്ങൾ പ്രശ്നം പരിഹരിക്കുന്നില്ലെങ്കിൽ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റി വിവരങ്ങൾ

Alfa provides the following warranty for the Moderno One Pizza Oven:

• കരകൗശലവിദ്യ: 2-year warranty on craftsmanship.
• ഗ്യാസ് ബർണർ: 3-year warranty on the gas burner.

Please note that labor and installation costs are not included under this warranty. For complete details and terms, refer to the full warranty documents provided with your purchase or contact customer support.

9. ഉപഭോക്തൃ പിന്തുണ

For technical assistance, warranty claims, or general inquiries regarding your Alfa Moderno One Natural Gas Pizza Oven, please contact the retailer or manufacturer.

ബ്രാൻഡ്: Alfa Moderno

വിറ്റത്: BBQ Island Grills & Smokers

Please have your model number (FXMD-1P-MRAM-U) and purchase date available when contacting support.
