Marantz Cinema 50 9.4 Channel 8K Home Theater AV Receiver User Manual

1. ആമുഖം

This manual provides essential instructions for the setup, operation, maintenance, and troubleshooting of your Marantz Cinema 50 9.4 Channel 8K Home Theater AV Receiver. Please read this manual thoroughly before using the product to ensure correct and safe operation.

ചിത്രം 1.1: മുൻഭാഗം view of the Marantz Cinema 50 AV Receiver. This image displays the receiver's elegant front panel with the central display, input selector, and volume knob.

The Marantz Cinema 50 is designed to deliver immersive audio and video experiences, featuring 9.4 channel amplification, 8K Ultra HD support, Dolby Atmos, DTS:X, IMAX Enhanced, Auro 3D, and HEOS Built-in streaming capabilities.

2. സജ്ജീകരണം

Proper setup is crucial for optimal performance. Follow these steps to connect your Marantz Cinema 50 AV Receiver.

2.1 അൺപാക്കിംഗും പ്ലേസ്മെന്റും

Carefully remove the receiver from its packaging. Place the receiver on a stable, level surface with adequate ventilation. Ensure there is sufficient space around the unit for heat dissipation.

2.2 സ്പീക്കറുകൾ ബന്ധിപ്പിക്കുന്നു

Connect your speakers to the corresponding speaker terminals on the rear panel of the receiver. Ensure correct polarity (+ to + and - to -) for each speaker. The Cinema 50 supports a 9.4 channel configuration, allowing for various surround sound setups including height channels.

2.3 ഓഡിയോ/വീഡിയോ ഉറവിടങ്ങൾ ബന്ധിപ്പിക്കൽ

Connect your audio and video sources (e.g., Blu-ray player, game console, streaming device) to the HDMI input ports. The receiver features multiple 8K-compatible HDMI inputs. For audio-only sources, use the optical, coaxial, or analog audio inputs.

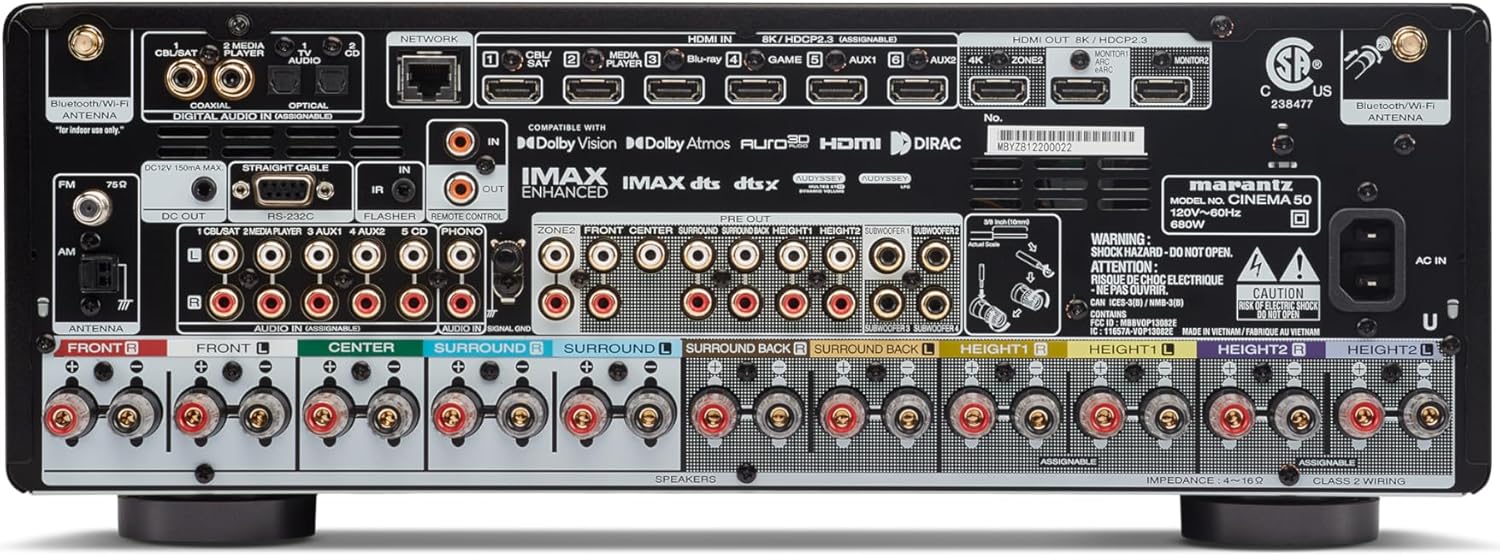

Image 2.1: Rear panel of the Marantz Cinema 50 AV Receiver. This image illustrates the various input and output ports, including HDMI, speaker terminals, and network connections, crucial for system setup.

2.4 Network and Antenna Connections

Connect the receiver to your home network using an Ethernet cable or via Wi-Fi. Attach the supplied Bluetooth/Wi-Fi antennas for wireless connectivity. Connect the FM/AM antennas for radio reception.

2.5 പവർ കണക്ഷനും പ്രാരംഭ സജ്ജീകരണവും

Once all connections are made, connect the power cord to the receiver and then to a wall outlet. Power on the receiver and follow the intuitive on-screen setup assistant for initial configuration, including speaker calibration and network settings.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

This section covers the basic operation of your Marantz Cinema 50 AV Receiver.

3.1 പവർ ഓൺ/ഓഫ്

Press the power button on the front panel or the remote control to turn the receiver on or off.

3.2 ഇൻപുട്ട് തിരഞ്ഞെടുക്കൽ

Use the INPUT selector knob on the front panel or the dedicated input buttons on the remote control to switch between connected audio/video sources (e.g., Blu-ray, Game, TV Audio).

Image 3.1: Front panel of the Marantz Cinema 50 AV Receiver, highlighting the central display which shows the current input and volume level during operation.

3.3 വോളിയം നിയന്ത്രണം

Adjust the volume using the VOLUME knob on the front panel or the volume up/down buttons on the remote control.

3.4 സൗണ്ട് മോഡുകൾ

Select various sound modes to optimize your listening experience. The Cinema 50 supports advanced formats like Dolby Atmos, DTS:X, IMAX Enhanced, and Auro 3D, which can be selected via the remote control's sound mode buttons.

3.5 HEOS Built-in

Utilize the HEOS Built-in feature for multi-room audio and access to various streaming services like Spotify and Tidal. Control HEOS functions via the dedicated HEOS app on your smartphone or tablet.

3.6 വിദൂര നിയന്ത്രണം

The included remote control provides full functionality for the receiver. Familiarize yourself with its layout for easy navigation and control of all features.

4. പരിപാലനം

Regular maintenance helps ensure the longevity and optimal performance of your receiver.

4.1 വൃത്തിയാക്കൽ

Wipe the exterior of the receiver with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the finish. Avoid spraying liquids directly onto the unit.

4.2 വെന്റിലേഷൻ

Ensure that the ventilation openings on the receiver are not blocked. Proper airflow is essential to prevent overheating. Do not place the receiver in an enclosed cabinet without adequate ventilation.

4.3 കേബിൾ മാനേജ്മെന്റ്

Periodically check all cable connections to ensure they are secure and free from damage. Loose connections can lead to signal loss or poor audio/video quality.

5. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Marantz Cinema 50, refer to the following common troubleshooting tips.

5.1 വൈദ്യുതിയില്ല

• Check if the power cord is securely connected to both the receiver and the wall outlet.
• മറ്റൊരു ഉപകരണം പ്ലഗ് ഇൻ ചെയ്‌ത് പവർ ഔട്ട്‌ലെറ്റ് പ്രവർത്തിക്കുന്നുണ്ടെന്ന് ഉറപ്പാക്കുക.

5.2 ശബ്ദമില്ല

• ശരിയായ ഇൻപുട്ട് ഉറവിടം തിരഞ്ഞെടുത്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• Check all speaker wire connections for correct polarity and secure fit.
• Verify that the volume is not muted or set to a very low level.
• Confirm that the audio output settings on your source device are correctly configured.

5.3 No Picture/Video

• ശരിയായ ഇൻപുട്ട് ഉറവിടം തിരഞ്ഞെടുത്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• Check all HDMI cable connections between the source, receiver, and TV. Try a different HDMI cable if necessary.
• Confirm that your TV is set to the correct HDMI input.
• If experiencing handshake issues or no display on TV, pressing the HEOS button on the remote can sometimes help reset the connection.

5.4 റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല

• റിമോട്ട് കൺട്രോളിൽ ബാറ്ററികൾ മാറ്റിസ്ഥാപിക്കുക.
• Ensure there are no obstructions between the remote control and the receiver's remote sensor.
• Point the remote control directly at the receiver.

6 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the Marantz Cinema 50 AV Receiver:

7. വാറൻ്റിയും പിന്തുണയും

As this product is a renewed item, specific warranty details may vary. Please refer to the warranty information provided by your seller at the time of purchase. For technical support, product inquiries, or service, please contact Marantz customer support or visit their official webസൈറ്റ്.

ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കാൻ ശുപാർശ ചെയ്യുന്നു.
