SHANLING M7T ഡിജിറ്റൽ ഓഡിയോ പ്ലെയർ ഉപയോക്തൃ മാനുവൽ

ആമുഖം

This manual provides comprehensive instructions for the SHANLING M7T Digital Audio Player. Please read this manual thoroughly before using your device to ensure proper operation and to maximize your listening experience. Keep this manual for future reference.

ഉൽപ്പന്ന ആമുഖ വീഡിയോ

ഉൽപ്പന്നം കഴിഞ്ഞുview കൂടാതെ പ്രധാന സവിശേഷതകൾ

The SHANLING M7T is a high-resolution digital audio player designed for exceptional sound quality and versatile functionality. It integrates advanced audio components with a modern Android operating system.

Dedicated Tube Output

The M7T features dual JAN6418 tubes, known for their low voltage, low power consumption, and minimal microphonic effect. This design ensures a pure and rich audio output. Users can select between two distinct sound modes: a warm tube mode or a clear transistor mode.

ചിത്രം: ആന്തരികം view of the SHANLING M7T highlighting the dual JAN6418 audio tubes and their placement.

Advanced DAC System

Equipped with a brand-new DAC system from AKM, the M7T utilizes dual AK4498EX DACs combined with an AK4191 modulator. This configuration, refined by SHANLING's audio engineers, aims to deliver benchmark-level portable audio performance.

Image: Visual representation of the dual AKM AK4498EX DACs and AK4191 modulator, central to the player's audio processing.

ഉയർന്ന മിഴിവുള്ള ഓഡിയോ പിന്തുണ

The M7T supports local playback of PCM up to 768kHz and DSD1024. Its XMOS XU316 USB input further extends compatibility to PCM768kHz and DSD512, ensuring support for a wide range of high-fidelity audio formats.

Powerful Processing and Storage

Powered by a Qualcomm Snapdragon 665 CPU with eight cores, 11nm architecture, and Adreno 610 GPU, the device offers robust performance for modern applications. It includes 6GB RAM and 128GB ROM, expandable up to 2TB via a MicroSD card slot.

Image: Close-up of the Qualcomm Snapdragon 665 CPU, illustrating the processing power and internal memory configuration.

Comprehensive Music World Integration

The M7T supports DLNA and AirPlay functions, features a built-in SHANLING Music app, and allows for the download of other popular music streaming applications such as Apple Music, Tidal, Qobuz, and Spotify.

വയർലെസ് കണക്റ്റിവിറ്റി

Enjoy seamless connectivity with Two-Way Bluetooth 5.0, supporting LDAC, SBC, AAC, and aptX HD codecs for transmission, and LDAC/SBC for reception. It also includes 2.4/5G WiFi for stable internet access.

Extended Battery Life and Fast Charging

The device is powered by a 7000mAh battery, providing up to 12.5 hours of continuous playback in balanced mode. It supports QC3.0 and PD2.0 fast charging at 18W.

Image: The SHANLING M7T displaying its long-lasting 7000mAh battery and playback durations for various modes.

Upgraded Android 13 System

Running on the newly upgraded Android 13 system, the M7T offers enhanced app compatibility and features SHANLING's AGLO technology, which bypasses Android SRC restrictions for pure, lossless audio processing.

Image: A user interacting with the upgraded Android 13 system on the SHANLING M7T, showcasing its interface.

ബഹുമുഖ Ampജീവപര്യന്തം

With highly accurate volume control and two levels of gain, the M7T is compatible with a wide range of headphones, from sensitive earphones to demanding full-size models. Output power: Single-Ended: 245mW@32Ω | Balanced: 980mW@32Ω.

Image: The SHANLING M7T connected to a pair of headphones, illustrating its powerful and precise ampജീവൻ.

സജ്ജീകരണ ഗൈഡ്

1. അൺബോക്‌സിംഗും പ്രാരംഭ പരിശോധനയും

പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. "ബോക്സിൽ എന്താണുള്ളത്" എന്ന വിഭാഗത്തിൽ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക.

• 1x SHANLING M7T Android Player
• യുഎസ്ബി എ-ടു-സി കേബിൾ
• മാനുവലുകൾ
• 2x Screen Protectors (one pre-installed)

Image: Contents of the SHANLING M7T package, including the player, USB cable, and documentation.

2 ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the M7T using the provided USB A-to-C cable and a compatible 18W fast charger (not included). The device supports QC3.0 and PD2.0 fast charging protocols.

3. പവർ ഓൺ/ഓഫ്

To power on, press and hold the power button located on the side of the device until the screen illuminates. To power off, press and hold the power button, then select "Power Off" from the on-screen options.

4. പ്രാരംഭ സിസ്റ്റം കോൺഫിഗറേഷൻ

Upon first startup, follow the on-screen prompts to configure basic settings such as language, Wi-Fi connection, and time zone. Connect to a stable Wi-Fi network to enable online features and system updates.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. നാവിഗേഷനും ഉപയോക്തൃ ഇന്റർഫേസും

The M7T runs on a customized Android 13 system. Navigate through menus and applications using the 5-inch touchscreen. Swipe gestures and on-screen buttons are used for control. The physical buttons on the side provide quick access to playback controls and volume adjustment.

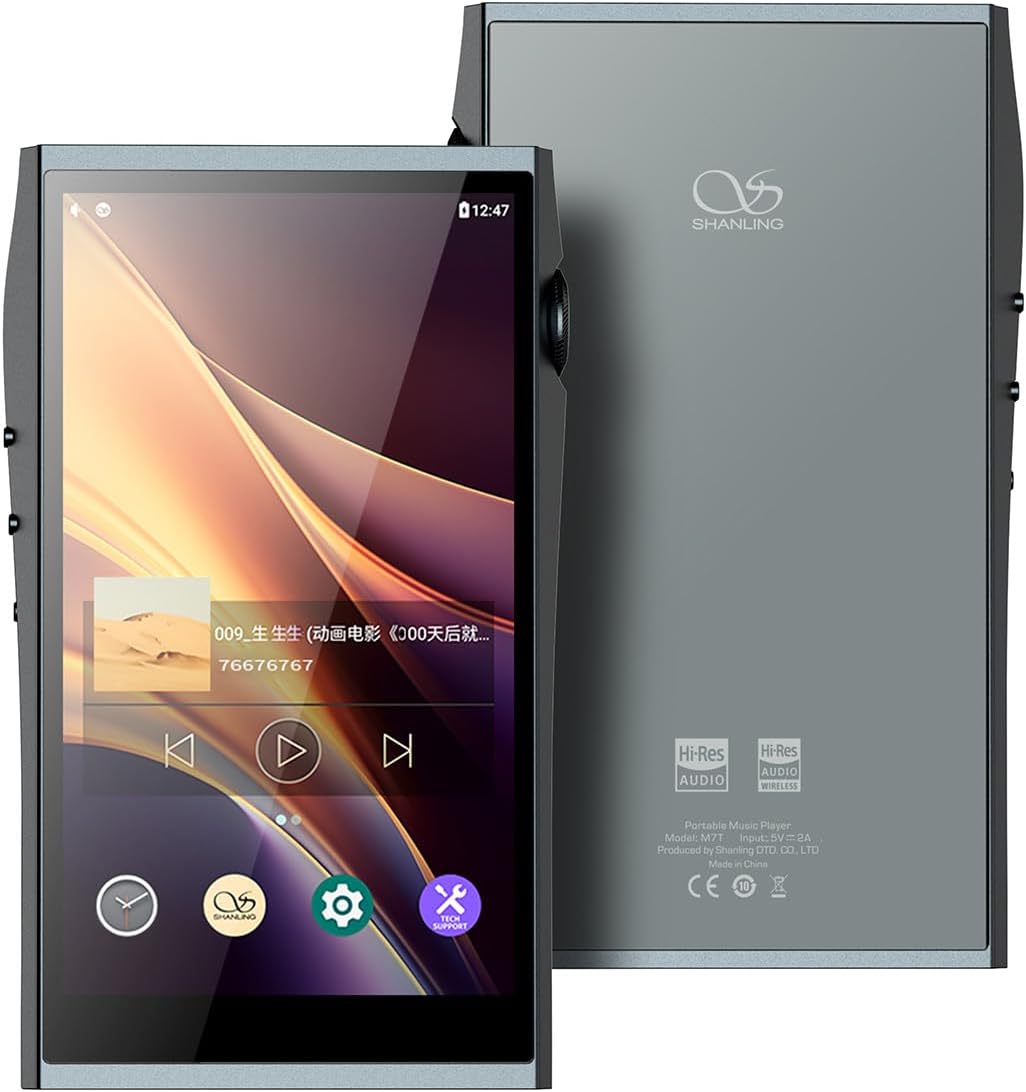

Image: The SHANLING M7T's front display showing the music playback interface.

2. Loading Music

• മൈക്രോ എസ്ഡി കാർഡ്: Insert a MicroSD card (up to 2TB) containing your music files into the dedicated slot. The player will automatically scan and add the music to your library.
• USB കൈമാറ്റം: Connect the M7T to a computer using the USB A-to-C cable. The device will appear as a removable storage device, allowing you to drag and drop music files directly onto its internal storage or MicroSD card.
• സ്ട്രീമിംഗ് ആപ്പുകൾ: Download and log into your preferred streaming services (e.g., Apple Music, Tidal, Spotify) via the Google Play Store or pre-installed SHANLING Music app.

3. Audio Output Modes

The M7T offers multiple audio output options:

• ഹെഡ്ഫോൺ ഔട്ട്പുട്ടുകൾ: Use the 3.5mm single-ended or 4.4mm balanced headphone jacks for direct headphone connection.
• ബ്ലൂടൂത്ത്: Pair with Bluetooth headphones or speakers. Go to Settings > Bluetooth to enable and connect.
• USB DAC മോഡ്: Connect the M7T to a computer to use it as an external DAC.
• SPDIF Coaxial Output: Connect to an external DAC/amplifier via the coaxial output for high-quality digital audio transmission.

Image: The top panel of the SHANLING M7T, detailing the 3.5mm, 4.4mm balanced, and SPDIF coaxial output ports.

4. Switching Sound Modes (Tube/Transistor)

Access the audio settings to switch between the dedicated tube mode for a warmer sound and the transistor mode for a clearer, more detailed sound. Refer to the on-screen menu for this option.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the device. Avoid liquid cleaners or abrasive materials.
• സ്‌ക്രീൻ പരിരക്ഷണം: The device comes with pre-installed screen protectors and spares. Replace them if they become scratched or damaged to maintain screen clarity.
• ബാറ്ററി കെയർ: To prolong battery life, avoid fully discharging the device frequently. Store in a cool, dry place when not in use for extended periods.
• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: Regularly check for system updates via Wi-Fi to ensure optimal performance and access to new features.

ട്രബിൾഷൂട്ടിംഗ്

• ഉപകരണം പവർ ചെയ്യുന്നില്ല: Ensure the battery is charged. Connect to a power source and try again. If unresponsive, perform a hard reset (refer to specific device instructions or contact support).
• സൗണ്ട് ഔട്ട്പുട്ട് ഇല്ല: Check headphone connections, volume levels, and ensure the correct output mode is selected. Verify that the audio fileകൾ കേടായിട്ടില്ല.
• ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure Bluetooth is enabled on both the M7T and the target device. Try unpairing and re-pairing the devices. Move closer to the Bluetooth device to rule out range issues.
• Wi-Fi കണക്ഷൻ പ്രശ്നങ്ങൾ: Verify Wi-Fi password and network stability. Restart the M7T and your router.
• മന്ദഗതിയിലുള്ള പ്രകടനം: Close unused applications. Clear cache if necessary. Consider a factory reset as a last resort (backup data first).

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official SHANLING website or contact your authorized dealer. Keep your proof of purchase for any warranty claims.

Online resources and FAQs may also be available on the SHANLING support page.
