KAIWEETS KT301P സർക്യൂട്ട് ബ്രേക്കർ ഫൈൻഡറും KT301T GFCI ഔട്ട്‌ലെറ്റ് ടെസ്റ്റർ യൂസർ മാനുവലും

ആമുഖം

This manual provides detailed instructions for the safe and effective use of your KAIWEETS KT301P Circuit Breaker Finder and KAIWEETS KT301T GFCI Outlet Tester. These tools are designed to assist in identifying circuit breakers, testing outlet wiring, and verifying GFCI functionality in residential and commercial electrical systems. Please read this manual thoroughly before operation and retain it for future reference.

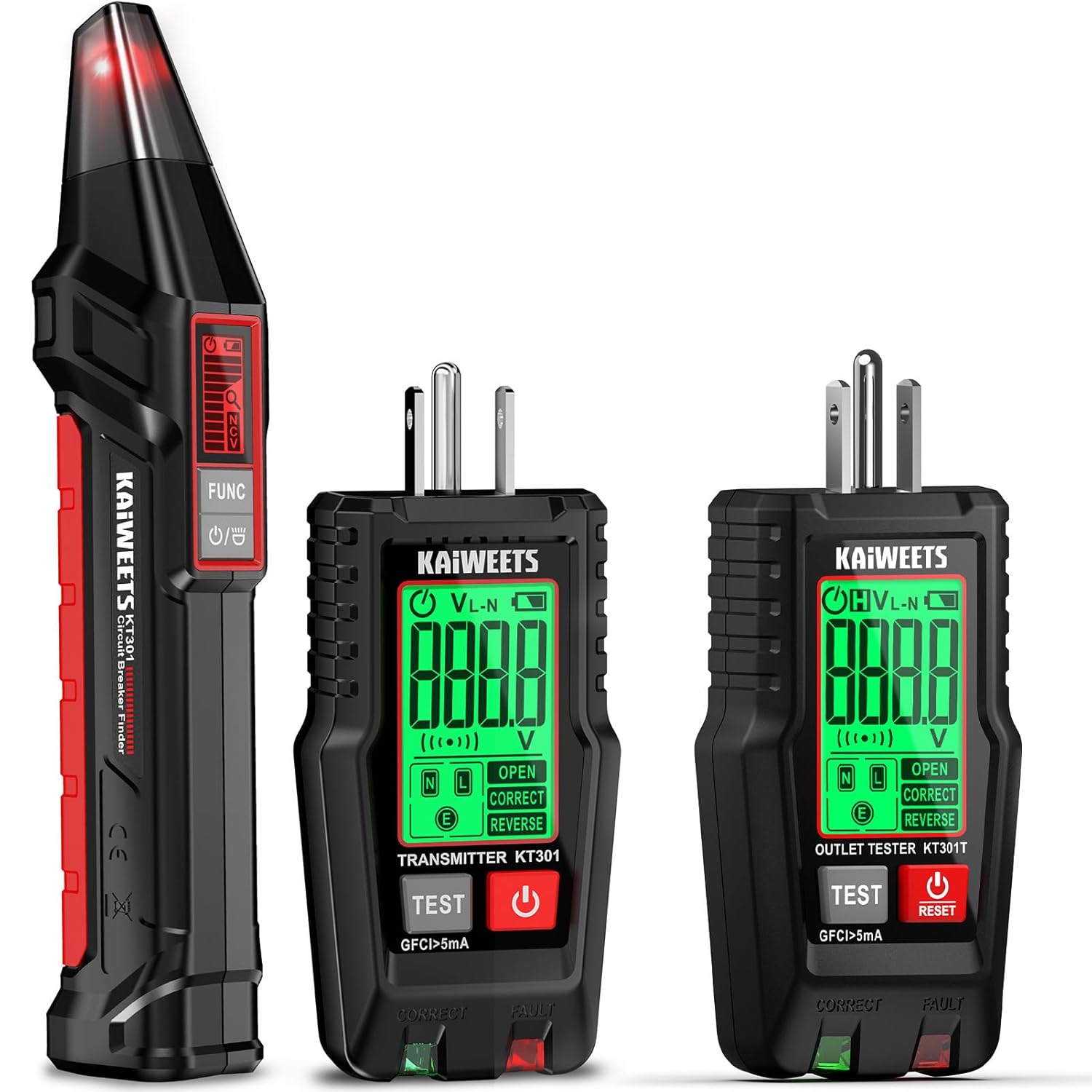

Image: The KAIWEETS KT301P Circuit Breaker Finder (left) and two KAIWEETS KT301T GFCI Outlet Testers (right), showcasing the complete product set.

സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions to prevent injury and damage to the devices:

• Do not use the devices if they appear damaged or are not operating correctly.
• Ensure the devices are rated for the voltage and current of the circuit being tested. These devices are designed for North American 3-wire 120V outlets.
• Always assume circuits are live until verified otherwise.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and insulated gloves, when working with electrical systems.
• Do not attempt to open or modify the devices. There are no user-serviceable parts inside.
• Keep the devices dry and clean. Avoid exposure to moisture or extreme temperatures.
• The KT301P Circuit Breaker Finder is rated CAT II 125V. The KT301T GFCI Outlet Tester is rated CAT II 110-125V. Adhere to these safety ratings.

ഉൽപ്പന്നം കഴിഞ്ഞുview

KAIWEETS KT301P Circuit Breaker Finder (Receiver)

• LCD ഡിസ്പ്ലേ: Shows signal strength, voltage, and NCV status.
• Function Button (FUNC): Toggles between modes.
• പവർ ബട്ടൺ: ഉപകരണം ഓൺ/ഓഫ് ചെയ്യുന്നു.
• എൻ‌സി‌വി സെൻസർ: Detects non-contact voltage.
• LED സൂചകം: Provides visual feedback.

KAIWEETS KT301T GFCI Outlet Tester (Transmitter)

• LCD ഡിസ്പ്ലേ: തത്സമയ വോളിയം കാണിക്കുന്നുtage, wiring status, and GFCI test results.
• Wiring Status Indicators: LEDs (Green/Orange) for correct/faulty wiring.
• ടെസ്റ്റ് ബട്ടൺ: Initiates GFCI trip test.
• റീസെറ്റ് ബട്ടൺ: Resets the GFCI after a trip test.
• പവർ ബട്ടൺ: ഉപകരണം ഓൺ/ഓഫ് ചെയ്യുന്നു.

സജ്ജമാക്കുക

Both devices are typically ready for use out of the box. Ensure any protective films are removed from the displays. No battery installation is typically required for the KT301T as it draws power from the outlet. The KT301P receiver may require batteries (check packaging for type and installation instructions if applicable, usually AAA or 9V).

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

A. Using the KT301P Circuit Breaker Finder

1. ട്രാൻസ്മിറ്റർ ബന്ധിപ്പിക്കുക: Plug the KT301T GFCI Outlet Tester (acting as the transmitter) into the outlet connected to the circuit you wish to identify. Ensure the outlet is live.
2. പവർ ഓൺ റിസീവർ: Turn on the KT301P Circuit Breaker Finder (receiver).
3. First Scan (Learn Mode):

   Slowly scan the receiver along the circuit breakers in your electrical panel. The receiver will emit audible and visual indications. During this "Learn" phase, ignore these initial indications. The device is mapping the electrical signatures of the breakers.



   Image: Illustration of the first scan (Learn mode) where the receiver is passed over circuit breakers in a panel, showing a green indication.
4. Second Scan (Locate Mode):

   Scan the circuit breakers again, moving slowly. The receiver will now accurately identify the correct breaker associated with the plugged-in transmitter by providing a distinct audible tone and a strong visual signal on its LCD display.



   Image: The KT301P receiver accurately identifying a circuit breaker with a clear red visual indication and sound icon.



   Image: Illustration of the second scan (Locate mode) where the receiver pinpoints the correct circuit breaker with a red indication and audible alert.
5. നോൺ-കോൺടാക്റ്റ് വോളിയംtage (NCV) Testing:

   The KT301P receiver also functions as an NCV tester. Hold the NCV sensor near wires, outlets, or other electrical components to detect the presence of AC voltage without direct contact. The device will provide visual and audible alerts if voltagഇ കണ്ടെത്തി.



   Image: A hand holding the KT301P receiver near an electrical outlet, demonstrating its non-contact voltage detection capability with a red light and sound icon.

B. Using the KT301T GFCI Outlet Tester

1. ഔട്ട്ലെറ്റിൽ പ്ലഗ് ഇൻ ചെയ്യുക: Insert the KT301T GFCI Outlet Tester into a standard 3-prong 120V North American outlet.
2. Read Wiring Status: The LCD display will immediately show the real-time voltage and the wiring status. The bottom LED indicators will also illuminate (Green for correct, Orange for fault).


Image: The KT301T GFCI Outlet Tester displaying wiring fault detection and voltage. It lists various wiring conditions like Correct Wiring, Open Ground, Open Neutral, Missing Live, Live & Ground Reversed, and Live & Neutral Reversed.



Image: A grid showing different wiring fault indications on the KT301T, including Correct Wiring, Open Ground, Open Neutral, Missing Live, Live & Ground Reversed, and Live & Neutral Reversed Open Ground, each with a distinct display and LED pattern.

3. GFCI Trip Test:

   For GFCI outlets, press the ടെസ്റ്റ് button. A functional GFCI outlet should trip, cutting power to the outlet. The tester's display will indicate a successful trip (e.g., "PAS" or similar). If the GFCI does not trip, it indicates a fault and the GFCI should be replaced.

   After testing, press the പുനഃസജ്ജമാക്കുക button on the GFCI outlet itself to restore power.



   Image: Comparison of the KT301T testing a standard outlet (displaying voltage) and a GFCI outlet (displaying "PAS" after a successful trip test).

4. Interpreting Display and Indicators:

   The large LCD screen provides detailed information. Refer to the legend on the device or in this manual for specific fault indications. Green LEDs typically signify correct wiring, while orange/red LEDs indicate a fault.



   Image: The KT301T GFCI Outlet Tester highlighting its features: auto-hold data, GFCI and standard outlet testing, intuitive wiring condition display, bright LED indicators, low battery alert, and 5-minute auto power-off.



   Image: The KT301T GFCI Outlet Tester plugged into an outlet, showcasing its 1.8-inch backlit LCD color screen displaying voltage and correct wiring status, with icons for various features.

5. ഓട്ടോ ഹോൾഡ് പ്രവർത്തനം: The KT301T retains the latest outlet test results and voltage reading for 5 minutes even after unplugging, allowing for convenient review.
6. ഓട്ടോ പവർ-ഓഫ്: The KT301T features a 5-minute auto power-off to conserve energy.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Wipe the devices with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• സംഭരണം: Store the devices in a cool, dry place, away from direct sunlight and extreme temperatures.
• Battery Replacement (KT301P): If the KT301P receiver uses batteries, replace them when the low battery indicator appears on the display. Refer to the battery compartment for the correct battery type and orientation.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

KAIWEETS products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official KAIWEETS website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact KAIWEETS customer service through their official channels.

You can visit the KAIWEETS Store for more information: KAIWEETS Official Store
