WALI GSM001XLN Heavy Duty Single Monitor Arm

ആമുഖം

Thank you for choosing the WALI GSM001XLN Heavy Duty Single Monitor Arm. This adjustable gas spring desk mount is designed to enhance your workspace ergonomics and free up valuable desk space. It supports 17-49 inch flat, curved, and ultrawide monitors weighing up to 33 lbs, featuring VESA 75x75mm or 100x100mm mounting patterns. With its robust construction and versatile adjustments, this monitor arm provides a stable and comfortable viewing experience for both home office and gaming environments.

സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്:

• പരമാവധി ഭാര ശേഷി 33 പൗണ്ട് (15 കിലോഗ്രാം) കവിയരുത്.
• Ensure your monitor's VESA pattern is 75x75mm or 100x100mm.
• Verify your desk thickness is between 0.39"-1.96" (10-50mm) for C-clamp ഇൻസ്റ്റലേഷൻ.
• For grommet base installation, ensure your desk is solid wood or composite with no crossbeams underneath.
• Always follow assembly instructions carefully. Improper installation may result in equipment damage or personal injury.
• ചെറിയ ഭാഗങ്ങൾ കുട്ടികളിൽ നിന്ന് അകറ്റി നിർത്തുക.

പാക്കേജ് ഉള്ളടക്കം

Please check that all components are present and undamaged before assembly. If any parts are missing or defective, contact WALI customer support.

• Monitor Arm (2 sections)
• ഡെസ്ക് Clamp അടിസ്ഥാനം
• വെസ പ്ലേറ്റ്
• Hardware Kit (various screws, washers, spacers)
• Allen Wrenches (for assembly and adjustment)
• ഇൻസ്റ്റലേഷൻ മാനുവൽ

സജ്ജമാക്കുക

Follow these steps to install your WALI GSM001XLN monitor arm. Ensure your monitor is disconnected from its original stand before proceeding.

1. Attach VESA Plate to Monitor

1. Carefully place your monitor face down on a soft, clean surface.
2. If your monitor has a recessed VESA area, use the provided spacers (risers) to ensure the VESA plate sits flush.
3. Align the VESA plate with the mounting holes on the back of your monitor (75x75mm or 100x100mm).
4. Select the appropriate screws from the hardware kit and secure the VESA plate to the monitor. Do not overtighten.

2. Install Desk Clamp അടിസ്ഥാനം

Choose either the C-clamp or Grommet base method based on your desk type.

C-Clamp ഇൻസ്റ്റലേഷൻ:

1. C-cl അറ്റാച്ചുചെയ്യുകamp to the desk clamp അടിസ്ഥാനം.
2. cl സ്ഥാനംamp on the edge of your desk and tighten the screw until it is securely fastened. Ensure the desk thickness is within 0.39"-1.96" (10-50mm).

ഗ്രോമെറ്റ് ബേസ് ഇൻസ്റ്റലേഷൻ:

1. നിങ്ങളുടെ മേശയിൽ ഗ്രോമെറ്റ് ദ്വാരമുണ്ടെങ്കിൽ, C-cl ഡിസ്അസംബ്ലിംഗ് ചെയ്യുക.amp and use the grommet base components.
2. Insert the grommet bolt through the desk hole and secure it from underneath with the provided plate and nut.

3. Assemble Monitor Arm

1. Slide the lower arm section onto the desk clamp base pole. Secure it with the provided set screw using an Allen wrench.
2. Slide the upper arm section onto the lower arm section. Secure it with the provided set screw.
3. Attach the VESA plate (with monitor attached) to the end of the upper arm. Slide it into the designated slot and secure it with the locking screw.

Figure 1: Universal Fit and Easy Setup components, showing C-clamp and grommet mount options, and VESA plate.

വീഡിയോ ഗൈഡ് സജ്ജീകരിക്കുക:

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The WALI GSM001XLN monitor arm offers a wide range of adjustments for optimal viewആശ്വാസം.

1. മോണിറ്റർ സ്ഥാനം ക്രമീകരിക്കൽ

• ഉയരം ക്രമീകരിക്കൽ: Gently push or pull the monitor up or down to your desired height. The gas spring mechanism will hold it in place.
• ടിൽറ്റ്: The monitor can tilt ±75° (up/down). Loosen the tilting bolt on the VESA plate, adjust the angle, and then retighten the bolt.
• സ്വിവൽ: Swivel the monitor ±90° (left/right) for collaborative viewing or to change orientation.
• റൊട്ടേഷൻ: Rotate the monitor 360° to switch between landscape and portrait modes.

Figure 2: Full range of motion, including tilt, swivel, and 360° rotation for ergonomic viewing.

Figure 3: Easy screen positioning, illustrating vertical adjustment from 10.12" to 20.79" and horizontal reach from 4.33" to 21.14".

2. Adjusting for Large-Screen Monitors

For monitors over 30 inches, it is crucial to adjust the tilting bolt for stability. Loosen the tilting bolt, tilt the monitor to your desired angle, and then firmly retighten the tilting bolt.

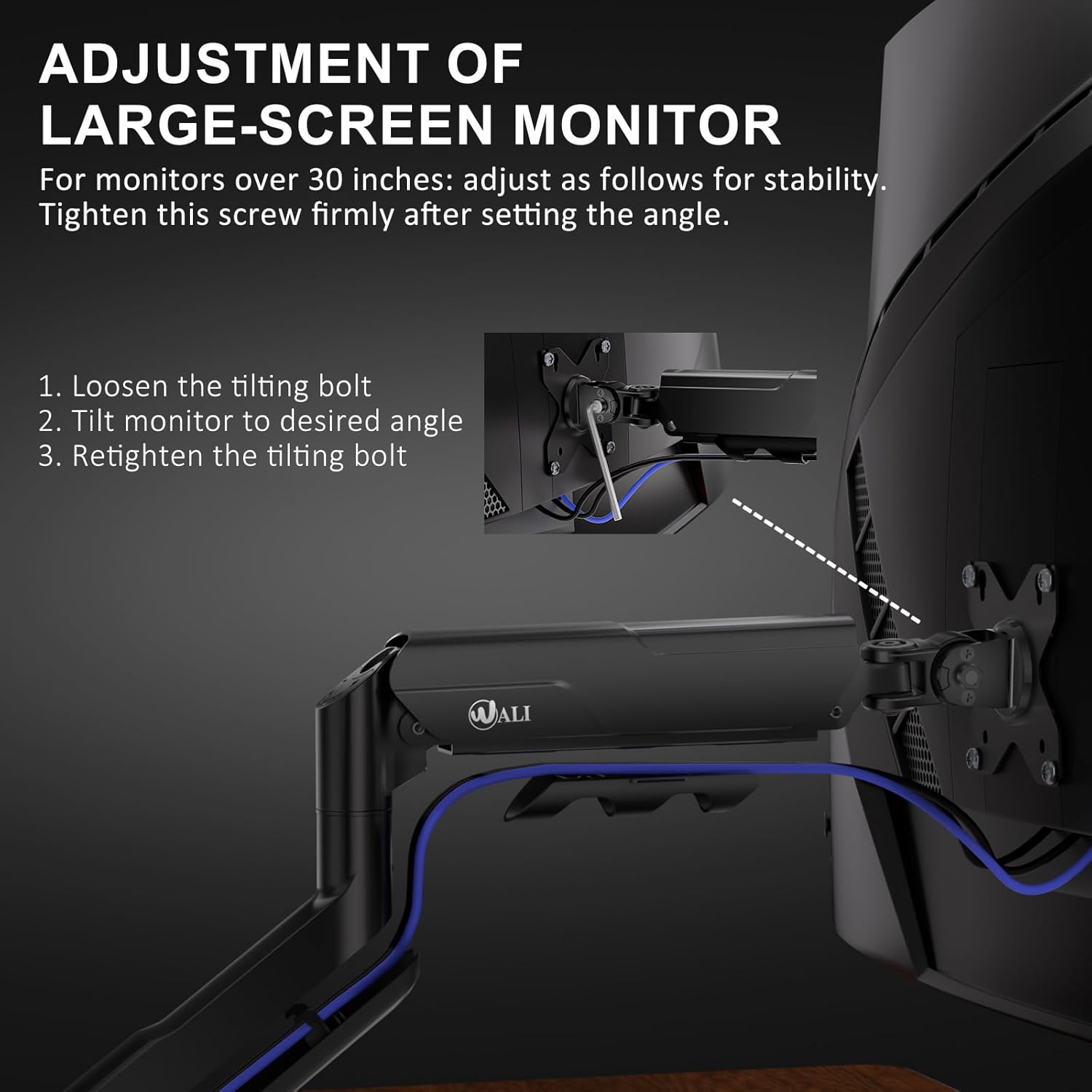

Figure 4: Step-by-step guide for adjusting the tilting bolt on large monitors to maintain stability.

3. ഗ്യാസ് സ്പ്രിംഗ് ടെൻഷൻ ക്രമീകരണം

The gas spring tension needs to be adjusted according to your monitor's weight to ensure it holds its position without sagging or floating. Use the provided Allen wrench:

• Turn clockwise (towards '-') for lighter monitors.
• Turn counter-clockwise (towards '+') for heavier monitors.

You may need to turn it several times to find the optimal tension.

Figure 5: Gas spring tension adjustment points for fine-tuning the arm's hold based on monitor weight.

കേബിൾ മാനേജ്മെൻ്റ്

To maintain a clean and organized workspace, utilize the integrated cable management system. Route your monitor cables through the designated clips or channels along the arm. This helps to reduce clutter and keeps your desk tidy.

Figure 6: Integrated cable management system for routing cables neatly along the monitor arm.

സ്പെസിഫിക്കേഷനുകൾ

ട്രബിൾഷൂട്ടിംഗ്

• Monitor Sags/Doesn't Hold Position: Adjust the gas spring tension. Turn the adjustment screw counter-clockwise (towards '+') to increase tension for heavier monitors.
• മോണിറ്റർ നീക്കാൻ വളരെ ബുദ്ധിമുട്ടുള്ളതാണ്: Adjust the gas spring tension. Turn the adjustment screw clockwise (towards '-') to decrease tension for lighter monitors.
• Monitor Tilts Downward: For large or heavy monitors, ensure the tilting bolt on the VESA plate is securely tightened after adjusting the desired tilt angle.
• Arm is Loose on Desk: C-cl വീണ്ടും മുറുക്കുകamp or grommet base screw to ensure a secure attachment to the desk.
• നഷ്ടപ്പെട്ട ഭാഗങ്ങൾ അല്ലെങ്കിൽ കേടായ ഘടകങ്ങൾ: Contact WALI customer support immediately for assistance.

വാറൻ്റിയും പിന്തുണയും

The WALI GSM001XLN Heavy Duty Single Monitor Arm is backed by US-based customer support and a 3-Year Warranty. For any questions, concerns, or warranty claims, please contact WALI customer support. Ensure you have your purchase information and model number (GSM001XLN) ready when contacting support.
