YESWELDER FLUX-135 MINI 3-in-1 Welding Machine

1. ആമുഖം

Thank you for choosing the YESWELDER FLUX-135 MINI 3-in-1 Welding Machine. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new welding equipment. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

The YESWELDER FLUX-135 MINI is a versatile welding machine designed for Flux Core, Lift TIG, and Stick welding processes, suitable for various applications from automotive to DIY projects.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

മുന്നറിയിപ്പ്: വെൽഡിംഗ് അപകടകരമാണ്. ഗുരുതരമായ പരിക്കുകളോ മരണമോ തടയാൻ എല്ലായ്പ്പോഴും സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക.

• വൈദ്യുതാഘാതം: Can kill. Do not touch live electrical parts. Wear dry welding gloves and protective clothing. Ensure the work area is dry.
• പുകയും വാതകങ്ങളും: Can be hazardous to your health. Keep your head out of the fumes. Use ventilation or exhaust to remove fumes from the breathing zone.
• ആർക്ക് കിരണങ്ങൾ: Can injure eyes and burn skin. Wear a welding helmet with a proper shade filter. Wear protective clothing to cover all exposed skin.
• തീയും സ്ഫോടനവും: Welding sparks can cause fire or explosion. Keep flammable materials away from the welding area. Have a fire extinguisher readily available.
• ചൂടുള്ള ഭാഗങ്ങൾ: Can cause severe burns. Allow equipment to cool before touching.
• Machine Safety Features: This unit includes automatic compensation for voltage fluctuation and robust protections against over-current, over-load, and over-heating. However, these features do not replace safe operating practices.

Always refer to national and local safety standards for welding operations.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 പ്രധാന സവിശേഷതകൾ

• Multi-Process Capability: 3-in-1 functionality for Flux Core, Lift TIG, and Stick welding.
• Welding Capacity: 135A output, 110V input, suitable for various light to medium duty welding tasks.
• Synergic MIG Mode: Automatically matches voltage to wire feeding speed, with fine-tuning capability (-3V to +3V). Ideal for beginners.
• Manual MIG Mode: Allows experienced users to manually adjust wire feeding speed and voltage.
• ഡിജിറ്റൽ ഡിസ്പ്ലേ: Provides clear monitoring of operational parameters for enhanced control.
• സുരക്ഷാ പരിരക്ഷകൾ: Includes safeguards against over-current, over-load, over-heating, and automatic voltage fluctuation compensation.

3.2 ഘടകങ്ങളും നിയന്ത്രണങ്ങളും

The YESWELDER FLUX-135 MINI welding machine features a compact design with an intuitive control panel and essential connections.

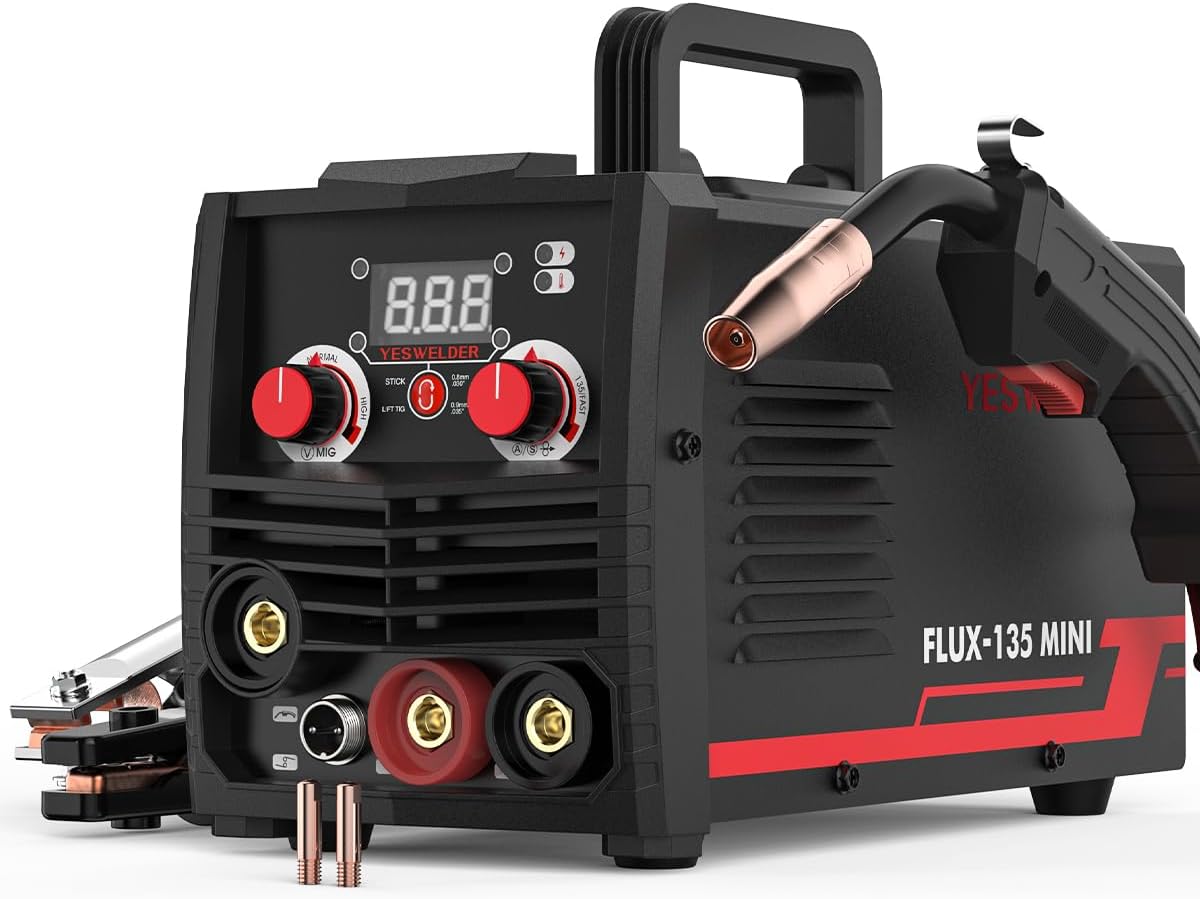

ചിത്രം 1: YESWELDER FLUX-135 MINI Welding Machine with included Lift TIG Torch and accessories. This image shows the compact size and the various connections on the front panel.

ചിത്രം 2: ഫ്രണ്ട് view of the YESWELDER FLUX-135 MINI, highlighting the MIG gun connection and the main control panel with digital display and adjustment knobs.

ചിത്രം 3: വിശദമായി view of the control panel, showing the digital display for current/voltage, mode selection switch (MIG, STICK, LIFT TIG), and adjustment knobs for welding parameters. The panel is designed for simple and efficient operation.

ഫ്രണ്ട് പാനൽ നിയന്ത്രണങ്ങൾ:

• ഡിജിറ്റൽ ഡിസ്പ്ലേ: Shows welding current, voltage, or other selected parameters.
• മോഡ് സെലക്ടർ: Switch to select between MIG (Flux Core), Stick, and Lift TIG welding modes.
• Current/Wire Speed Knob: Adjusts welding current in Stick/TIG mode or wire feed speed in MIG mode.
• വാല്യംtagഇ ക്രമീകരണ നോബ്: Fine-tunes voltage in MIG mode (Synergic or Manual).
• Putട്ട്പുട്ട് ടെർമിനലുകൾ: Connections for welding cables (positive and negative).
• MIG Gun Connection: For connecting the MIG torch.
• TIG Torch Connection: For connecting the Lift TIG torch.

പിൻ പാനൽ:

• പവർ ഇൻപുട്ട്: For connecting the 110V power cord.
• കൂളിംഗ് ഫാൻ: Ensures proper ventilation and prevents overheating.

4. സജ്ജീകരണം

4.1 പവർ കണക്ഷൻ

1. Ensure the welding machine's power switch is in the OFF position.
2. Connect the power cord to a grounded 110V AC power outlet. Ensure the outlet can provide sufficient amperage for the welder's maximum output.

4.2 Wire Spool Installation (Flux Core MIG)

ചിത്രം 4: Illustration of a 2LB flux cored welding wire spool being installed into the wire feeder compartment of a welding machine. The image emphasizes compatibility with 2LB spools (4" diameter).

1. വയർ ഫീഡർ കമ്പാർട്ട്മെന്റ് കവർ തുറക്കുക.
2. Place the 2LB (4-inch diameter) flux core wire spool onto the spool holder. Ensure the wire unwinds from the bottom.
3. Thread the wire through the guide tube and into the drive roller mechanism.
4. Close the drive roller tension arm and adjust the tension. The wire should feed smoothly without slipping or deforming.
5. With the MIG gun pointed away from yourself and others, press the trigger to feed the wire through the MIG gun liner until it exits the contact tip.
6. Trim the wire to approximately 1/2 inch (12-15mm) stick-out.

Compatible Wire Sizes: .023" (0.6mm), .030" (0.8mm), .035" (0.9mm) flux core wire.

4.3 Connecting Welding Accessories

1. ഗ്രൗണ്ട് Clamp: ഗ്രൗണ്ട് cl കണക്ട് ചെയ്യുകamp cable to the appropriate output terminal (usually negative for Flux Core MIG). Secure the clamp വർക്ക്പീസിലേക്കോ വെൽഡിംഗ് ടേബിളിലേക്കോ നല്ല വൈദ്യുത സമ്പർക്കം ഉറപ്പാക്കുന്നു.
2. മിഗ് തോക്ക്: Connect the MIG gun cable to the MIG gun connection port on the front panel.
3. Lift TIG Torch: For Lift TIG welding, connect the TIG torch to its designated port and the ground clamp to the appropriate terminal (usually positive for DC TIG, check specific polarity requirements for your application).
4. Stick Electrode Holder: For Stick welding, connect the electrode holder cable to the appropriate output terminal (polarity depends on electrode type) and the ground clamp to the other terminal.

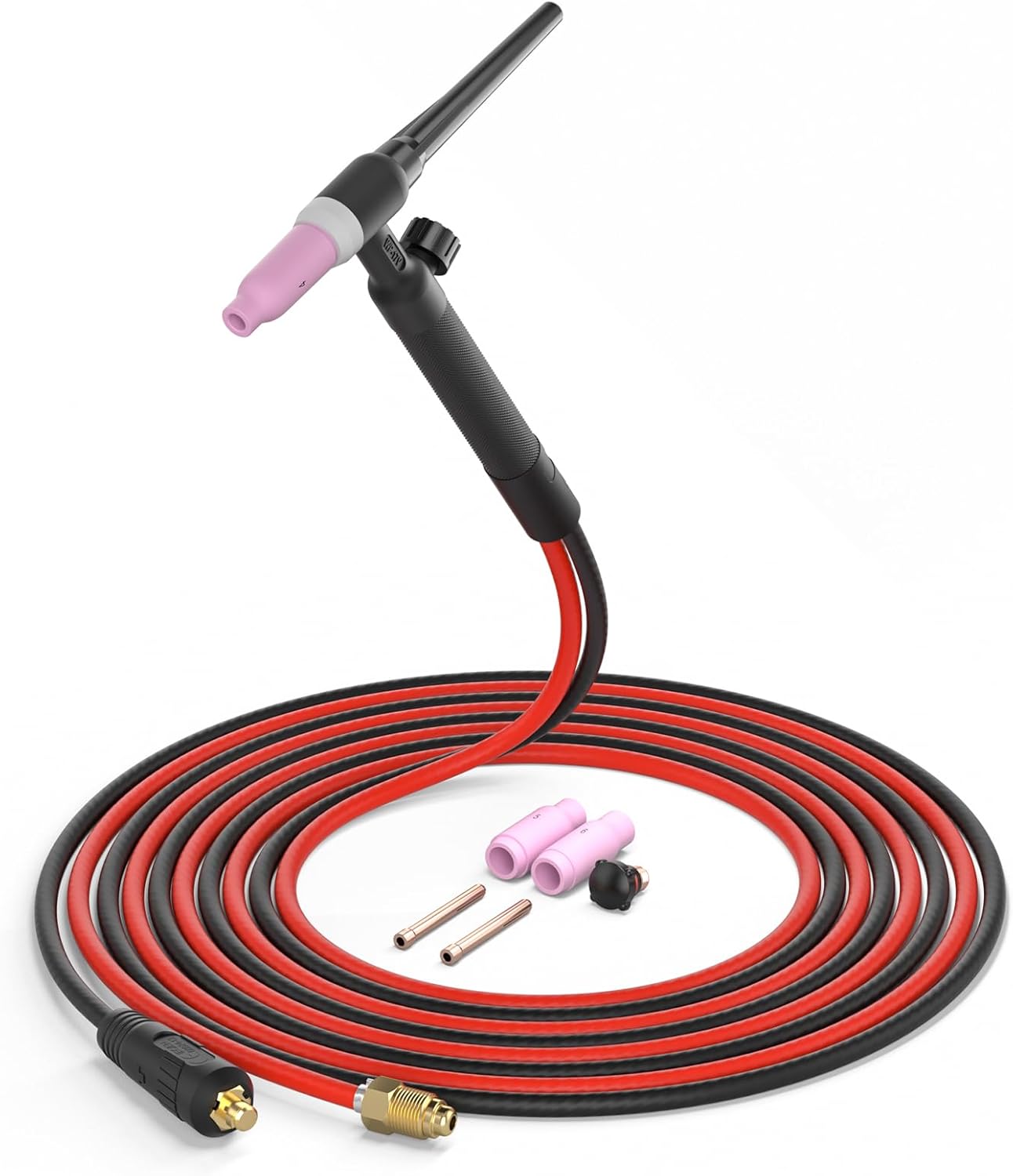

ചിത്രം 5: The Lift TIG torch with its cable and various consumables (collets, ceramic cups) ready for connection to the welding machine. This image shows the complete TIG torch assembly.

ചിത്രം 6: A selection of TIG torch accessories, including different sizes of alumina ceramic cups (#4, #5, #6), collet bodies (1/8"), collets (3/23", 1/16", .078"), and short/long back caps. These are essential for various TIG welding applications.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 General Operation Steps

1. Ensure all connections are secure and correct for the chosen welding process.
2. Turn on the welding machine using the power switch. The digital display will illuminate.
3. Select the desired welding mode (MIG, STICK, or LIFT TIG) using the mode selector switch.
4. Adjust welding parameters (current, voltage, wire speed) according to the material thickness and welding process. Refer to welding charts or practice on scrap material.
5. Wear all necessary Personal Protective Equipment (PPE) including welding helmet, gloves, and protective clothing.
6. വെൽഡിംഗ് ആരംഭിക്കുക.
7. After welding, turn off the machine and allow it to cool.

5.2 Flux Core MIG Welding

ചിത്രം 7: An illustration showing Flux Cored Welding in action, demonstrating the arc and molten puddle. This image is part of a "3-IN-1 Multi-function welding machine" graphic.

Flux Core MIG welding uses a continuously fed tubular wire containing flux, eliminating the need for external shielding gas. This mode is suitable for outdoor use and on dirty or rusty materials.

1. Select "MIG" mode.
2. Synergic Control: Adjust the wire feeding speed knob. The machine will automatically suggest a corresponding voltage. You can fine-tune this voltagഇ വോള്യം ഉപയോഗിക്കുന്നുtage adjustment knob (-3V to +3V).
3. സ്വമേധയാലുള്ള നിയന്ത്രണം: For experienced users, manually set both wire feeding speed and voltage.
4. Ensure correct polarity (typically DCEN - Direct Current Electrode Negative for flux core).
5. Maintain a consistent stick-out and travel speed for optimal results.

5.3 ലിഫ്റ്റ് ടിഐജി വെൽഡിംഗ്

Lift TIG welding provides precise control and high-quality welds, especially on thinner materials. This machine uses a Lift TIG start, which minimizes tungsten contamination.

1. Select "LIFT TIG" mode.
2. Connect the Lift TIG torch and ground clamp with appropriate polarity (typically DCEN for steel/stainless steel).
3. Install a sharpened tungsten electrode and ceramic cup into the TIG torch.
4. Adjust the current using the current knob.
5. To start the arc, gently touch the tungsten to the workpiece and then lift it slightly. The arc will initiate.
6. ഒരു ചെറിയ ആർക്ക് നീളം നിലനിർത്തുക, ആവശ്യമെങ്കിൽ ഫില്ലർ റോഡ് സ്വമേധയാ ഫീഡ് ചെയ്യുക.

5.4 Stick Welding (MMA)

Stick welding is versatile and suitable for various materials and outdoor conditions.

1. Select "STICK" mode.
2. Connect the electrode holder and ground clamp with the correct polarity for your chosen electrode type (refer to electrode manufacturer's recommendations).
3. Insert the electrode into the holder.
4. Adjust the current using the current knob.
5. Strike the arc by lightly scratching or tapping the electrode on the workpiece.
6. Maintain a consistent arc length and travel speed.

6. പരിപാലനം

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ വെൽഡിംഗ് മെഷീനിന്റെ ദീർഘായുസ്സും ഒപ്റ്റിമൽ പ്രകടനവും ഉറപ്പാക്കുന്നു.

• വൃത്തിയാക്കൽ: Periodically clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust and debris from inside the machine, especially around the cooling fan and circuit boards. Ensure the machine is unplugged before cleaning.
• കേബിൾ പരിശോധന: Regularly inspect all welding cables, ground clamp, electrode holder, and torches for damage, cuts, or loose connections. Replace damaged components immediately.
• MIG Gun Maintenance:
  • Clean the nozzle regularly to remove spatter.
  • Replace contact tips as they wear out to ensure good electrical contact and wire feeding.
  • Check the wire liner for blockages or wear. Replace if wire feeding becomes inconsistent.
• TIG Torch Maintenance:
  • Inspect and replace ceramic cups if cracked or damaged.
  • Sharpen or replace tungsten electrodes as needed.
  • Ensure collets and collet bodies are clean and secure.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന സാധാരണ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു. ഇവിടെ പട്ടികപ്പെടുത്തിയിട്ടില്ലാത്ത പ്രശ്നങ്ങൾക്ക്, ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റി വിവരങ്ങൾ

Specific warranty terms and conditions may vary. Please refer to the warranty card included with your product or visit the official YESWELDER website for detailed warranty information and registration procedures.

ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

10. ഉപഭോക്തൃ പിന്തുണ

If you encounter any issues or have questions regarding your YESWELDER FLUX-135 MINI welding machine, please contact YESWELDER customer support through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ.

When contacting support, please have your product model number (FLUX-135 MINI) and purchase details ready.
