1. ആമുഖം
The Antec FLUX M Mini-Tower Case is designed for micro-ATX systems, emphasizing efficient cooling and versatile functionality. It incorporates the F-LUX Platform for optimized airflow and supports a range of high-performance components within a compact form factor.
2 പ്രധാന സവിശേഷതകൾ
2.1. F-LUX Platform and Airflow Design
The case utilizes the F-LUX Platform with a vertical airflow design, promoting efficient heat exhaust from bottom to top. A large mesh front panel and multi-directional vents ensure extensive air intake and heat dissipation.

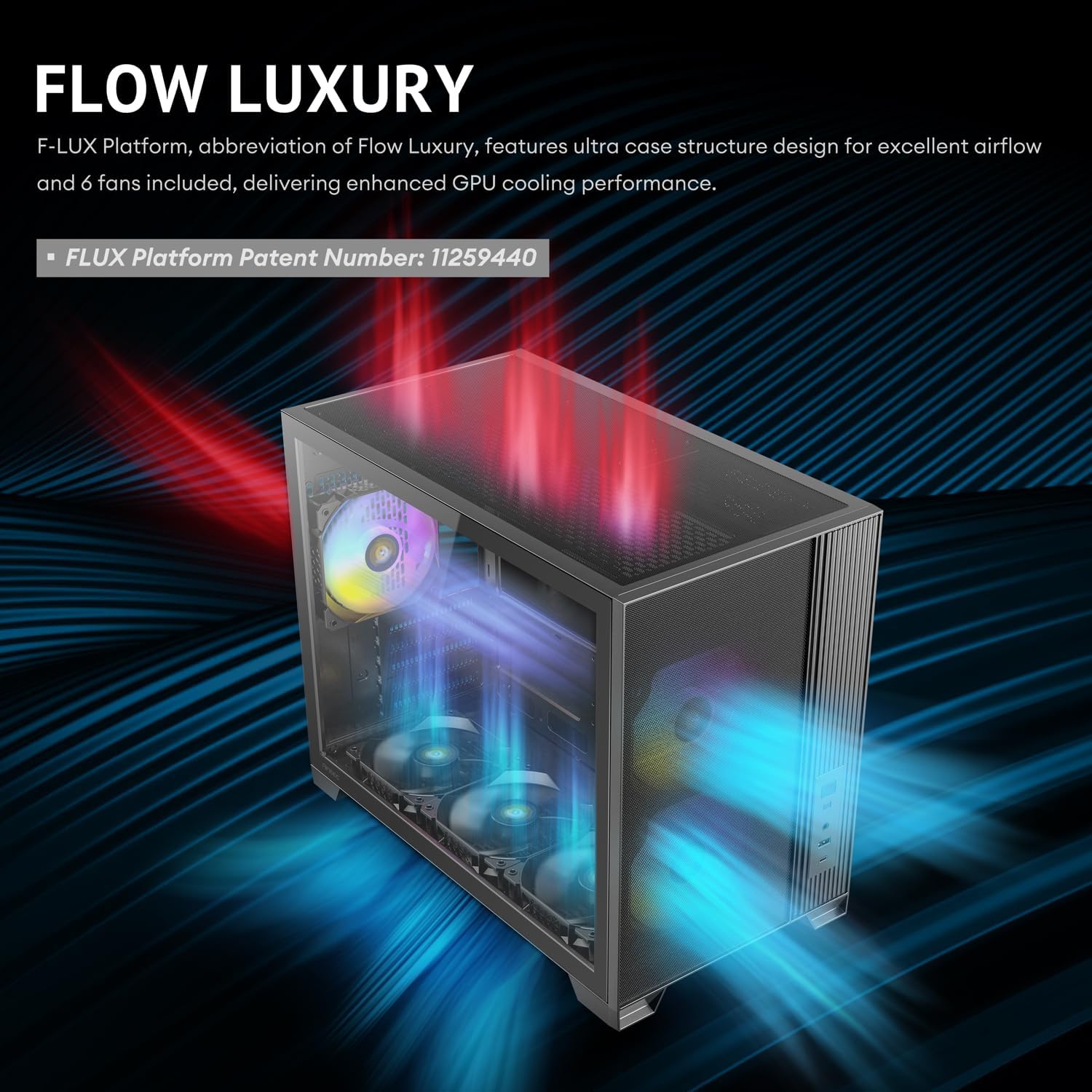

Image: Illustration of the F-LUX Platform's vertical airflow design within the Antec Flux M case, showing cool air entering from the bottom and front, and hot air exiting from the top and rear.
2.2. Pre-installed High-Performance Fans
The FLUX M comes equipped with six pre-installed 120mm PWM fans for immediate cooling performance:
- 2 x 120mm ARGB PWM fans (front)
- 3 x 120mm PWM reverse fans (bottom)
- 1 x 120mm ARGB PWM fan (rear)
ചിത്രം: ക്ലോസ്-അപ്പ് view of the two types of 120mm fans included with the Antec Flux M case: a colorful ARGB PWM fan and a black PWM reverse fan.
2.3. Radiator Support
The case supports up to a 360mm radiator at the top, allowing for advanced liquid cooling solutions to manage high thermal loads.

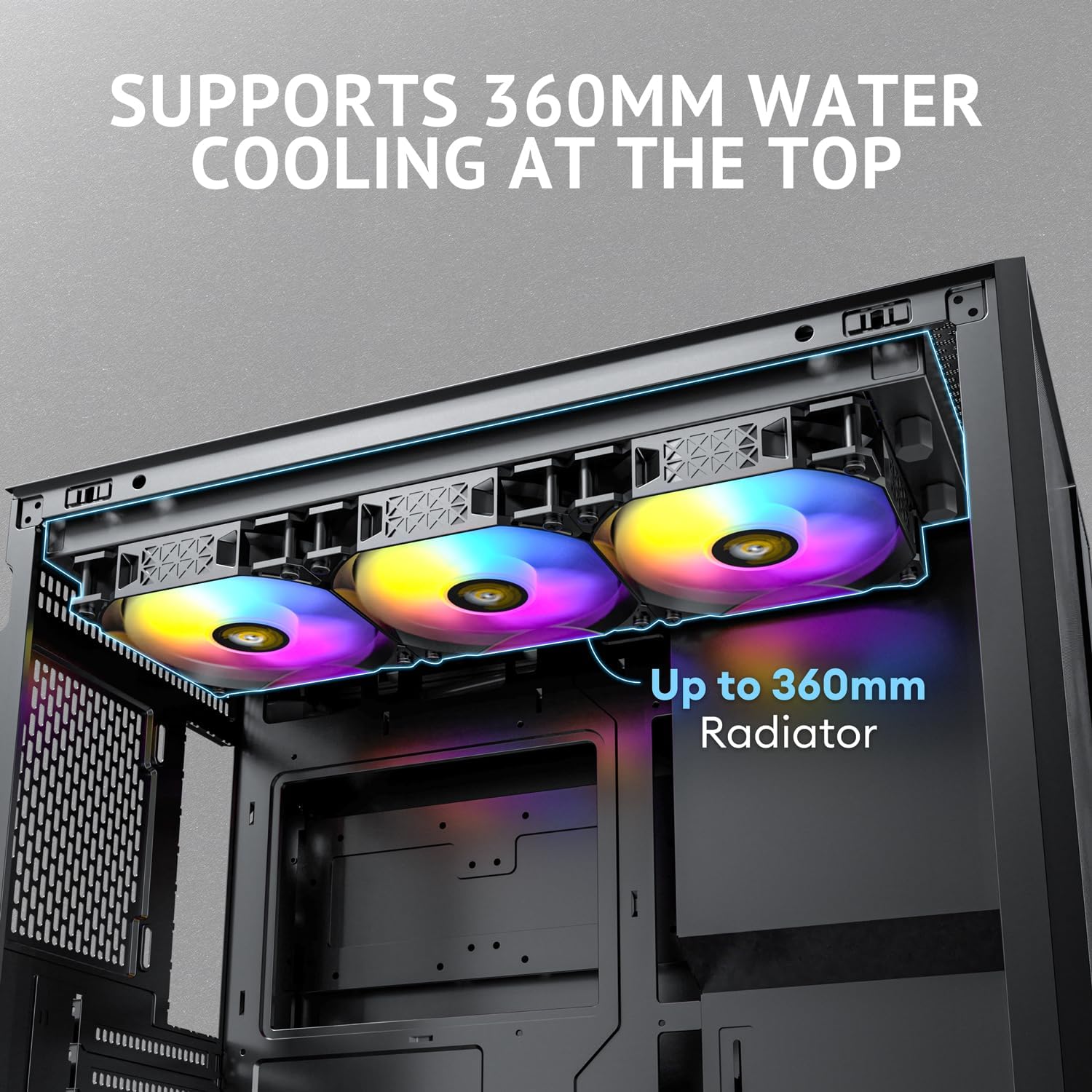

Image: Interior top view of the Antec Flux M case, highlighting the mounting points for a 360mm liquid cooling radiator.
2.4. കേബിൾ മാനേജ്മെന്റ്
Generous cable management space is provided with up to 59mm at the front and 49mm at the rear of the motherboard tray, facilitating clean and organized builds.
Image: Diagram illustrating the available cable management space behind the motherboard tray in the Antec Flux M case, indicating 59mm at the front and 49mm at the rear.
2.5. Front-Mounted PSU Chamber & Extension Cable
The case features a front-mounted PSU chamber to optimize internal airflow and free up space. An included 13A extension cable ensures stable power delivery and flexible PSU installation.
ചിത്രം: ആന്തരികം view of the Antec Flux M case, highlighting the front-mounted power supply chamber and the routing of the 13A power extension cable.
2.6. Built-in GPU Bracket
A built-in GPU support bracket is included to prevent graphics card sag, compatible with high-performance graphics cards.

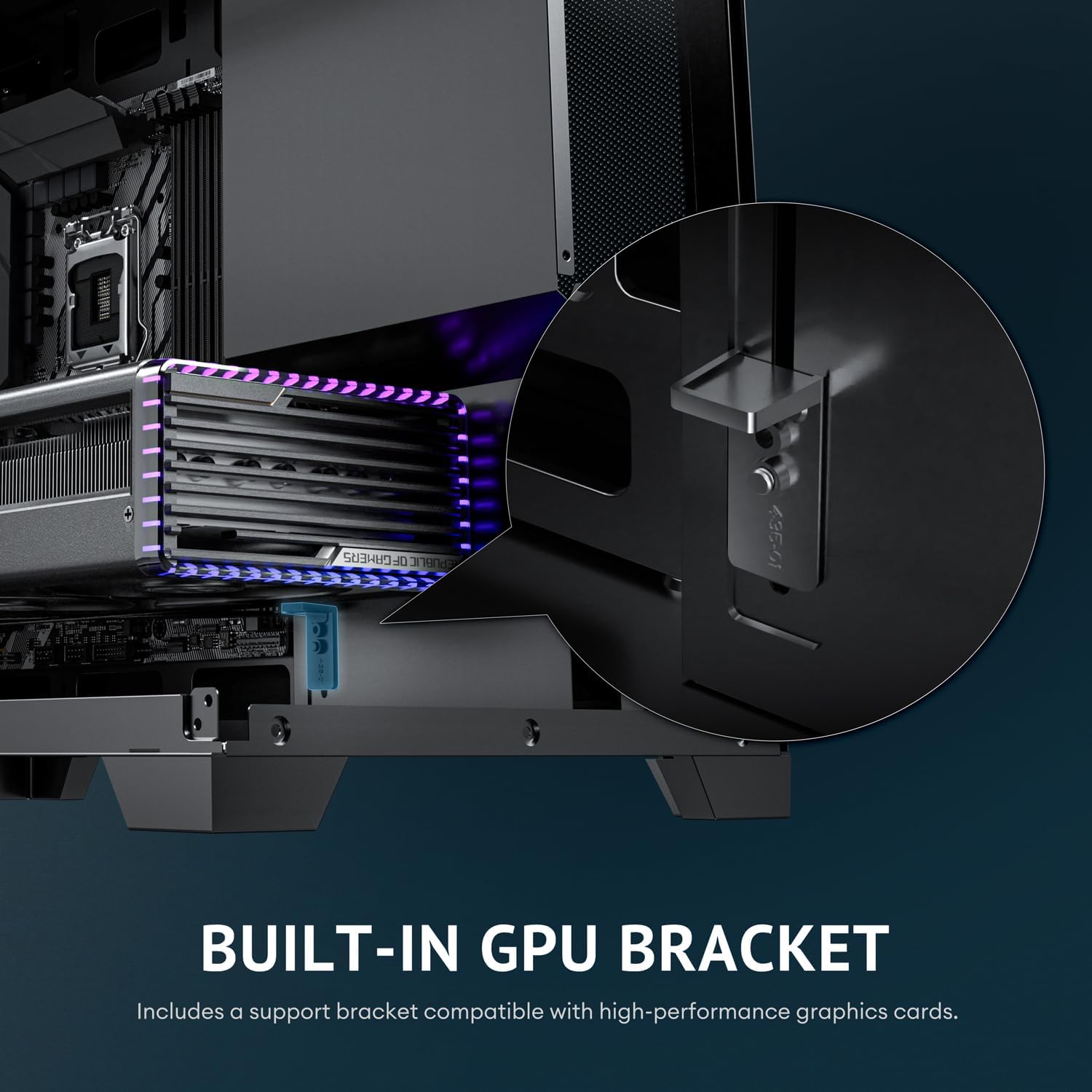

ചിത്രം: ക്ലോസ്-അപ്പ് view of the adjustable built-in GPU support bracket within the Antec Flux M case, designed to prevent graphics card sag.
2.7. Tool-Free Panel Design
The tempered glass side panel features a tool-free design for easy access to internal components.
Image: The Antec Flux M case with its tempered glass side panel swung open, illustrating the tool-free access mechanism.
2.8. I/O പാനൽ
The front I/O panel includes essential ports for connectivity:
- പവർ ബട്ടൺ
- റീസെറ്റ് ബട്ടൺ
- Mic / HD-AUDIO Jack
- USB 3.0 പോർട്ട്
- Type-C 3.2 Gen 2 Port
ചിത്രം: വിശദമായത് view of the Antec Flux M case's front I/O panel, showing the power and reset buttons, audio jacks, USB 3.0, and Type-C 3.2 Gen 2 ports.
2.9. Full-Size Dust Filters
Equipped with full-size dust filters to protect internal components from dust buildup and simplify maintenance.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
3.1. കേസ് തയ്യാറാക്കൽ
Before installing components, remove the tempered glass side panel by gently pulling it open. The top panel can also be removed for easier access during installation.
Image: The Antec Flux M case with its side and top panels detached, revealing the internal chassis structure and fan mounts.
3.2. മദർബോർഡ് ഇൻസ്റ്റാളേഷൻ
The Antec Flux M supports Micro ATX and Mini ITX motherboards. Install your motherboard onto the pre-installed standoffs. Ensure all necessary cables (front panel connectors, USB, audio) are routed through the designated cutouts.
Image: Internal diagram of the Antec Flux M case, illustrating the placement areas for the motherboard, CPU, and GPU, along with fan and radiator support.
3.3. ഫാൻ, റേഡിയേറ്റർ ഇൻസ്റ്റാളേഷൻ
The case comes with pre-installed fans. For additional cooling or liquid cooling, refer to the following:
- മുകളിൽ: Supports up to 3 x 120mm fans or a 360mm radiator.
- പിൻഭാഗം: 1 x 120mm fan (pre-installed).
- മുൻഭാഗം: 2 x 120mm fans (pre-installed).
- താഴെ: 3 x 120mm reverse fans (pre-installed).

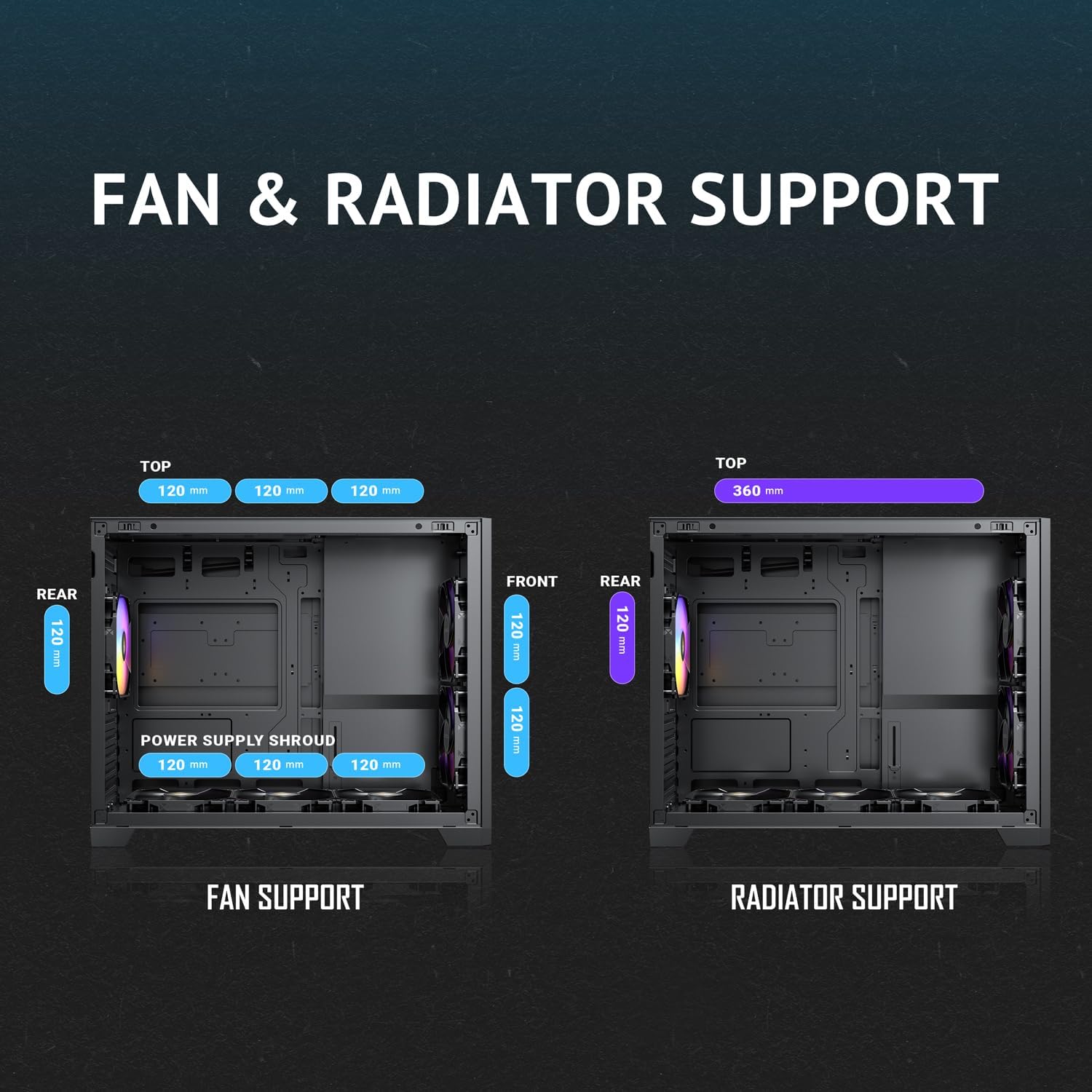

Image: Diagram illustrating the various fan and radiator mounting locations within the Antec Flux M case, including top, rear, front, and power supply shroud areas.
3.4. ജിപിയു ഇൻസ്റ്റാളേഷൻ
Install your graphics card into the appropriate PCIe slot on your motherboard. Utilize the built-in GPU support bracket to prevent sag. The case supports GPUs up to 405mm in length.
ചിത്രം: ആന്തരികം view of the Antec Flux M case with a graphics card installed, demonstrating the bottom air intake optimization and clearance for the GPU.
3.5. Power Supply and Storage Installation
Install your ATX power supply into the front-mounted chamber. Connect the included 13A extension cable. The case provides space for SSD/HDD storage behind the motherboard tray.
Image: Internal diagram of the Antec Flux M case, indicating the placement areas for the power supply unit and SSD/HDD storage drives.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once all components are installed and connected, replace the side and top panels. Connect your peripherals and power cable. Use the power button on the front I/O panel to start your system. The ARGB fans can be controlled via your motherboard's RGB software or a compatible controller.
5. പരിപാലനം
Regular cleaning of the dust filters is recommended to maintain optimal airflow and cooling performance. The full-size dust filters can be easily removed for cleaning.
6. പ്രശ്നപരിഹാരം
If your system experiences unexpected shutdowns or overheating, verify that all fans are spinning correctly and that dust filters are clean. Ensure all power connections are secure. Consult your component manuals for specific troubleshooting steps related to individual hardware.
7 സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | Antec |
| മോഡലിൻ്റെ പേര് | Flux M |
| കേസ് തരം | മിനി-ടവർ |
| മദർബോർഡ് അനുയോജ്യത | മൈക്രോ എടിഎക്സ്, മിനി ഐടിഎക്സ് |
| മെറ്റീരിയൽ | അലോയ് സ്റ്റീൽ |
| ഉൽപ്പന്ന അളവുകൾ (LxWxH) | 18.07" x 14.37" x 9.72" |
| ഇനത്തിൻ്റെ ഭാരം | 14 പൗണ്ട് |
| തണുപ്പിക്കൽ രീതി | വായു |
| മുൻകൂട്ടി ഇൻസ്റ്റാൾ ചെയ്ത ഫാനുകൾ | 6 x 120mm PWM (3 ARGB, 3 Reverse) |
| ടോപ്പ് റേഡിയേറ്റർ പിന്തുണ | 360 മില്ലിമീറ്റർ വരെ |
| GPU Max Length | 405 മി.മീ |
| സിപിയു കൂളർ മാക്സ് ഉയരം | 175 മി.മീ |
| ഫ്രണ്ട് ഐ / ഒ പോർട്ടുകൾ | 1x USB 3.0, 1x Type-C 3.2 Gen 2, Mic/HD-AUDIO |
8. വാറൻ്റിയും പിന്തുണയും
വാറന്റി വിവരങ്ങൾക്കും സാങ്കേതിക പിന്തുണയ്ക്കും, ദയവായി ഔദ്യോഗിക Antec കാണുക. website or contact Antec customer service directly. Protection plans may be available for purchase separately through your retailer.
- 3-Year Protection Plan (available)
- 4-Year Protection Plan (available)
- Complete Protect (monthly plan available)
