TREAFLOW Walking Pad Treadmill Model 3120WK User Manual

1. ആമുഖം

Thank you for choosing the TREAFLOW Walking Pad Treadmill Model 3120WK. This portable under-desk treadmill is designed to integrate seamlessly into your home or office, providing a convenient way to stay active. Featuring an 8% fixed incline, a powerful 2.5HP motor, and a user-friendly remote control with an LED display, this walking pad supports various activity levels from light walking to brisk jogging.

• 8% Incline: Simulates uphill walking for increased calorie burn and leg muscle strengthening.
• Anti-Slip & Shock-Absorbing Belt: 5-layer belt with 6 silicone shock absorbers for joint protection.
• ഒതുക്കമുള്ളതും കൊണ്ടുപോകാവുന്നതും: Slim design with built-in transport wheels for easy storage under desks, beds, or sofas.
• LED Display & Remote Control: Tracks speed, time, distance, and calories; remote allows convenient speed adjustments.
• ഒന്നിലധികം സ്പീഡ് മോഡുകൾ: Adjustable speed from 0.6 to 4.0 MPH for various walking and light jogging activities.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all instructions carefully before using the TREAFLOW Walking Pad Treadmill. Retain this manual for future reference. Always ensure the treadmill is placed on a flat, stable surface. Keep children and pets away from the equipment during operation. Do not use the treadmill if you are unwell or under the influence of medication. Consult a physician before starting any new exercise program.

3. ബോക്സിൽ എന്താണുള്ളത്?

അൺപാക്ക് ചെയ്യുമ്പോൾ, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• TREAFLOW Walking Pad Treadmill
• റിമോട്ട് കൺട്രോൾ
• പവർ കോർഡ്
• Tool Kit (includes L-Wrench)
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

Image: All components included in the TREAFLOW Walking Pad package.

4. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the walking pad from its packaging. The unit comes pre-assembled.


   Image: The TREAFLOW Walking Pad being removed from its box.

2. പവർ കണക്ഷൻ: Connect the power cord to the treadmill's power input port and then plug it into a standard electrical outlet. Ensure the power switch is in the OFF position before plugging in.


   Image: A hand plugging the power cord into the treadmill.

3. ചരിവ് ക്രമീകരണം: The walking pad features an 8% fixed incline. To activate the incline, locate the orange pedals on the underside of the treadmill. Flip these pedals into the upright position to raise the front of the unit, simulating an uphill walk. Ensure the treadmill is powered off before adjusting the incline.

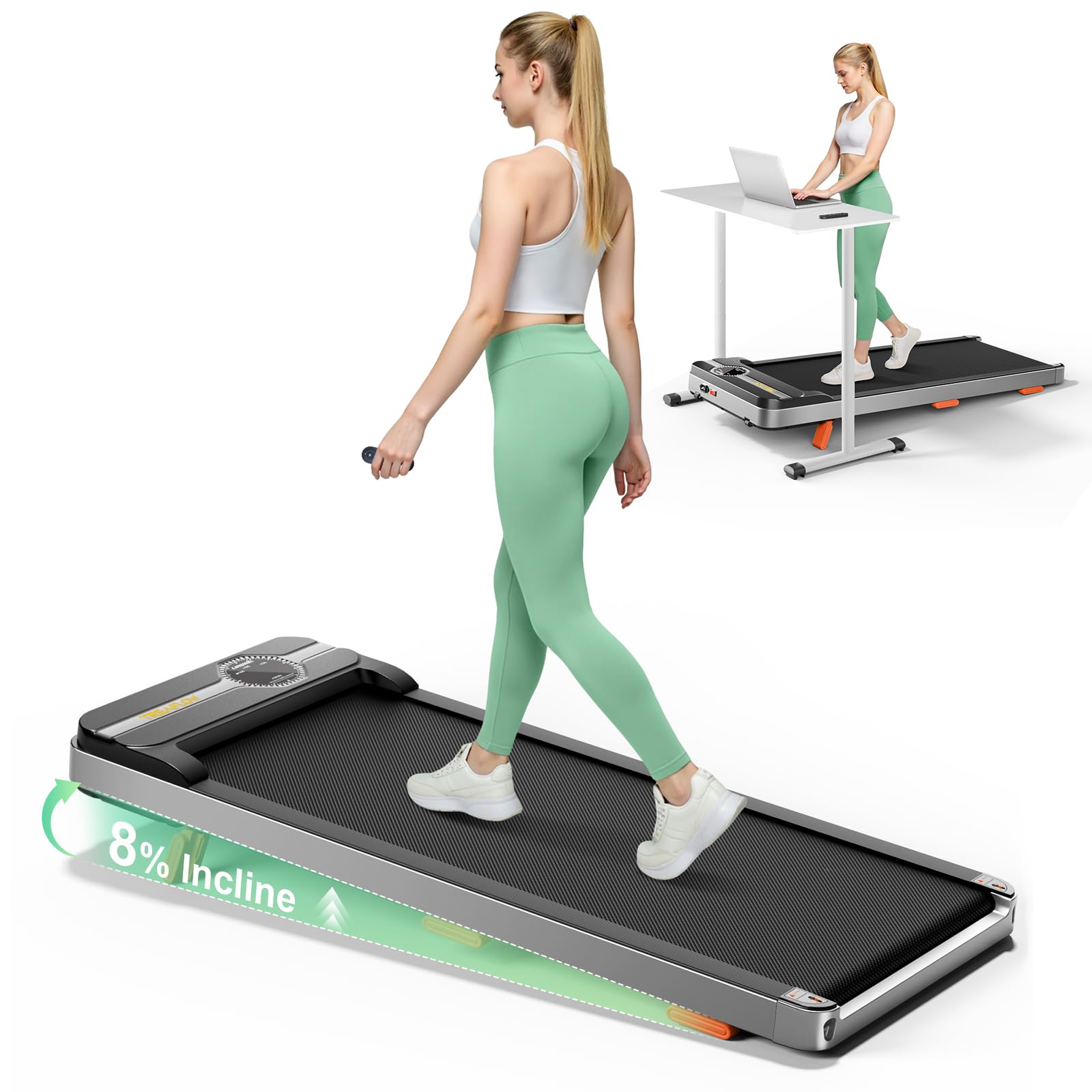

   Image: The walking pad with its 8% manual incline engaged.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ: Flip the main power switch to the ON position. The LED display will illuminate.


   Image: The LED display of the walking pad.

2. ആരംഭിക്കുക/നിർത്തുക: Use the remote control to operate the treadmill. Press the "START" button to begin. The treadmill will initiate a 3-second countdown before the belt starts moving. Press the "STOP" button to safely bring the treadmill to a halt.
3. വേഗത ക്രമീകരിക്കൽ: Use the "+" and "-" buttons on the remote control to increase or decrease the walking speed. The speed range is 0.6 to 4.0 MPH.
4. മോഡ് തിരഞ്ഞെടുക്കൽ: Press the "M" button on the remote to cycle through different display modes: Time, Distance, and Calories. The LED screen will show your real-time workout data.
5. സ്പീഡ് മോഡുകൾ:
   • 0.6–1.5 MPH: Ideal for work mode or very light activity.
   • 0.6–2.5 MPH: Suitable for casual walking.
   • 2.5–4.0 MPH: For brisk walking or light jogging.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your TREAFLOW Walking Pad.

• ലൂബ്രിക്കേഷൻ: Periodically lubricate the running belt according to the instructions provided in the included tool kit. This helps maintain smooth operation and reduces wear.
• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് ട്രെഡ്മില്ലിൽ വൃത്തിയാക്കുകamp ഓരോ ഉപയോഗത്തിനു ശേഷവും വിയർപ്പും പൊടിയും നീക്കം ചെയ്യാൻ തുണി ഉപയോഗിക്കുക. അബ്രാസീവ് ക്ലീനറുകൾ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.
• ബെൽറ്റ് ക്രമീകരണം: If the running belt becomes misaligned or too loose/tight, refer to the user manual for instructions on how to adjust it using the provided L-wrench.

7. സംഭരണം

The TREAFLOW Walking Pad is designed for easy storage due to its slim profile and built-in wheels.

• പോർട്ടബിലിറ്റി: The integrated transport wheels allow you to easily tilt and roll the treadmill to your desired storage location.
• ഒതുക്കമുള്ള സംഭരണം: Its slim body allows it to be stored under desks, beds, or sofas, making it ideal for small spaces.

Image: The walking pad being easily moved and stored.

8. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your TREAFLOW Walking Pad, please refer to the following common solutions:

• Treadmill not powering on: Ensure the power cord is securely plugged into both the treadmill and the wall outlet, and the main power switch is in the ON position.
• ബെൽറ്റ് സ്ലിപ്പിംഗ്: The belt may need adjustment or lubrication. Refer to the maintenance section for guidance.
• അസാധാരണമായ ശബ്ദങ്ങൾ: Check for any loose parts or foreign objects under the belt. Lubrication may also resolve some noises.
• റിമോട്ട് കൺട്രോൾ പ്രതികരിക്കുന്നില്ല: Ensure the remote has working batteries.

For persistent issues, please contact TREAFLOW customer support.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

TREAFLOW provides a warranty for this product. Please refer to the warranty information included in your package for specific terms and conditions. For technical support, replacement parts, or any inquiries, please contact TREAFLOW customer service through the contact information provided in your purchase documentation or on the official TREAFLOW webസൈറ്റ്.
