ZOSI 1080p HD-TVI Pan/Tilt Dome Surveillance Camera Instruction Manual

ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your ZOSI 1080p HD-TVI Pan/Tilt Dome Surveillance Camera. Please read this manual thoroughly before using the product to ensure proper setup and functionality. This camera is designed for both indoor and outdoor surveillance, offering 360° pan and 140° tilt capabilities, 1080p full HD video, audio recording, and infrared night vision.

പാക്കേജ് ഉള്ളടക്കം

• ZOSI 1080p HD-TVI Pan/Tilt Dome Camera (x4)
• പവർ അഡാപ്റ്റർ (x1)
• 1 to 4 Power Splitter (x1)
• 60ft BNC Cable (x4)
• ദ്രുത ആരംഭ ഗൈഡ് (x1)
• Mounting Screw Bag (x4)
• മൗണ്ടിംഗ് ടെംപ്ലേറ്റ് (x4)
• Warning Sticker (x4)

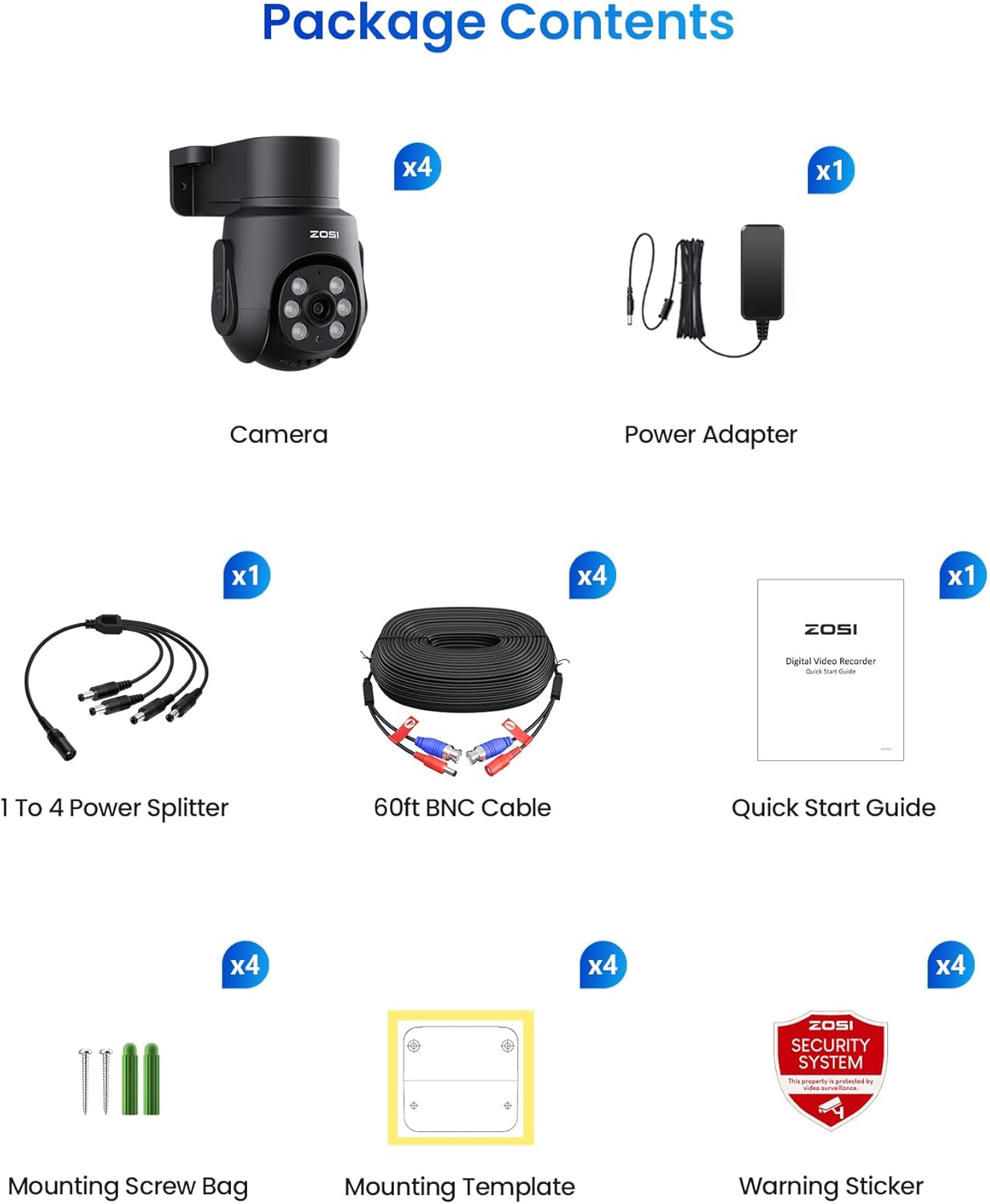

Figure 1: Contents of the ZOSI 1080p HD-TVI Pan/Tilt Dome Camera package.

പ്രധാന സവിശേഷതകൾ

• 1080p ഫുൾ എച്ച്ഡി വീഡിയോ: വ്യക്തവും വിശദവുമായ foo പകർത്തുന്നുtage with a 2MP CMOS sensor (1920×1080 resolution).
• 360° പാൻ & 140° ചരിവ്: Allows comprehensive monitoring without blind spots, controllable via app or DVR.
• ബിൽറ്റ്-ഇൻ ഓഡിയോ: Records high-quality audio along with video for enhanced situational awareness.
• Powerful Infrared Night Vision: Provides up to 65ft (20m) of clear black-and-white night vision using 6 IR LEDs and an automatic ICR filter.
• IP66 കാലാവസ്ഥാ പ്രതിരോധ രൂപകൽപ്പന: Durable ABS housing protects against rain, dust, and snow, operating reliably from -20°C to 55°C.
• Easy Installation & DVR Compatibility: Connects via BNC cable and DC12V power supply, compatible with ZOSI 1080P/5MP TVI DVRs (requires specific DVR firmware versions).
• മനുഷ്യ/വാഹന കണ്ടെത്തൽ: AI-driven motion detection to classify humans and vehicles, reducing false alarms.

സജ്ജമാക്കുക

ഇൻസ്റ്റലേഷൻ ആവശ്യകതകൾ

• This camera is an add-on analog camera and is not a standalone device. It requires a compatible ZOSI 1080P/5MP TVI DVR for operation.
• Ensure your DVR firmware is updated to v1.8.1 or above for 8CH DVRs (ZM08JM/ZR08JN/ZR08VM/ZR08VN) and v1.8.1+ for ZOSI 16CH DVRs.
• For stable pan/tilt operation, use a 2-in-1 BNC video + DC power Siamese cable made of CCA (copper-clad aluminum) or pure copper.
• The camera can be mounted on a ceiling or wall. Use the provided mounting template and screws.

കണക്ഷൻ ഡയഗ്രം

Figure 2: Connection diagram for the ZOSI Pan/Tilt camera to a compatible DVR. Note that the DVR, power adapter, and BNC cable are not included with the camera unit itself.

Connect the camera to your ZOSI DVR using the BNC cable for video transmission and the DC12V power supply. Ensure all connections are secure. Refer to your DVR's manual for specific port identification and setup procedures.

ഓപ്പറേഷൻ

പാൻ & ടിൽറ്റ് പ്രവർത്തനം

The camera features 360° horizontal rotation (pan) and 140° vertical tilt, allowing you to adjust the viewing angle remotely. This functionality is controlled through the ZOSI mobile application or directly from your connected DVR interface.

Figure 3: Remote control of camera pan and tilt via the ZOSI mobile application.

നൈറ്റ് വിഷൻ

The camera is equipped with infrared (IR) LEDs and an automatic ICR filter to provide clear surveillance in low-light or complete darkness. It automatically switches between color mode during the day and black-and-white IR mode at night, with a night vision range of up to 65 feet (20 meters).

Figure 4: Comparison of daytime color footage and nighttime black-and-white infrared footage.

ഓഡിയോ റെക്കോർഡിംഗ്

A built-in microphone allows the camera to record audio along with video footage. This provides additional context and information for surveillance. The audio is one-way, meaning you can listen to the camera's surroundings but cannot speak through the camera.

Figure 5: The camera's one-way audio capability captures sound from its environment.

മനുഷ്യൻ/വാഹനം കണ്ടെത്തൽ

The camera utilizes AI-driven motion detection to intelligently distinguish between human and vehicle movements. This feature helps to minimize false alarms caused by environmental factors and ensures you receive relevant notifications.

Figure 6: Human and vehicle detection with corresponding app push, email, or buzzer alerts.

റിമോട്ട് ആക്സസും പ്ലേബാക്കും

Access your surveillance system and review രേഖപ്പെടുത്തി footage from any device, whether locally or remotely. The ZOSI app provides full control and smart playback features, allowing you to easily review key moments with event detection.

Figure 7: Remote access and smart playback across multiple devices.

മെയിൻ്റനൻസ്

വെതർപ്രൂഫ് ഡിസൈൻ

The camera features an IP66-rated ABS housing, providing protection against dust and water ingress. This design ensures reliable operation in various weather conditions, including rain and snow, within a temperature range of -20°C to 55°C.

Figure 8: The camera's IP66 weatherproof construction for outdoor durability.

Regularly inspect the camera's housing and mounting for any signs of damage or loose connections. Clean the lens periodically with a soft, damp cloth to ensure optimal image clarity. Avoid using harsh chemicals or abrasive materials.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter any issues with your ZOSI camera, please refer to the troubleshooting section of your ZOSI DVR manual or contact ZOSI customer support for assistance. Common issues may include:

• No video signal: Check BNC cable connections, power supply, and DVR compatibility.
• Pan/Tilt not responding: Ensure the 2-in-1 BNC video + DC power Siamese cable is correctly installed and made of appropriate material (CCA or pure copper).
• Poor night vision: Verify the camera lens is clean and there are no obstructions.
• False motion alerts: Adjust detection sensitivity settings in your DVR or app.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി

• ZOSI offers a 2-Year Coverage for this product.
• A 30-Day Hassle-Free Return Policy is also available.

സാങ്കേതിക സഹായം

• ZOSI provides Lifetime Technical Support for its products.
• For any technical inquiries or assistance, please contact ZOSI customer service.
