VSDINSIDE K1 Pro Mechanical Keyboard Instruction Manual

1. ആമുഖം

The VSDINSIDE K1 Pro Mechanical Keyboard is a versatile and highly customizable input device designed to enhance productivity and gaming experiences. Featuring full-key programmability, a macro pad with an integrated screen and knob, and multi-mode connectivity, this keyboard offers advanced control and a premium typing feel.

Key features include a gasket mount structure for reduced vibration, hot-swappable Linear Red Switches for personalized tactile feedback, and vibrant RGB backlighting with extensive customization options. Its ergonomic design ensures comfort during extended use, while universal compatibility makes it suitable for Windows, Mac, PC, and laptops.

Image 1.1: VSDINSIDE K1 Pro Mechanical Keyboard with programmable LCD keys for one-tap execution of tasks.

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• VSDINSIDE K1 Pro Mechanical Keyboard
• USB-A to USB-C Cable (for wired connection and charging)
• 2.4G USB വയർലെസ് ഡോംഗിൾ
• കീക്യാപ് പുള്ളർ
• സ്വിച്ച് പുള്ളർ
• Spare Switches (Linear Red Switches)
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

Image 2.1: The VSDINSIDE K1 Pro Mechanical Keyboard shown with its standard accessories, including cables and tools.

3. സജ്ജീകരണം

3.1 കണക്റ്റിവിറ്റി മോഡുകൾ

The K1 Pro keyboard supports three flexible connectivity modes: Wired, 2.4G Wireless, and Bluetooth. A switch on the side of the keyboard allows you to select your preferred mode.

• വയർഡ് മോഡ്: Connect the keyboard directly to your device using the provided USB-A to USB-C cable. This mode offers stable performance without the need for batteries.
• 2.4G വയർലെസ് മോഡ്: Insert the 2.4G USB wireless dongle into your computer's USB port. Switch the keyboard to 2.4G mode for a low-latency wireless connection.
• ബ്ലൂടൂത്ത് മോഡ്: Switch the keyboard to BT mode. Pair with up to 5 different devices, allowing seamless switching between them. This is ideal for users with multiple computers or mobile devices.

3.2 ഭൗതിക സജ്ജീകരണം

Adjust the keyboard's height and angle using the integrated adjustable stands (3-6-13° options) on the underside for optimal ergonomic comfort during long sessions. The non-slip silicone feet ensure stability on any desk surface.

3.3 സോഫ്റ്റ്‌വെയറും ഇഷ്ടാനുസൃതമാക്കലും

The K1 Pro offers multiple customization options:

• Hardware-Only Mode: For quick, stable performance without software. Adjust RGB, switch OS (Windows/Mac), and control volume directly from the keyboard.
• App-Controlled Mode: Download the companion app to unlock custom icons, LCD shortcuts, and access over 100 downloadable plugins for multi-tasking.
• Web-Based Custom Mode: Utilize the intuitive web പോർട്ടൽ (https://device.vsdinside.com/auth) for full-key programming and macro editing without coding skills.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 അടിസ്ഥാന കീബോർഡ് പ്രവർത്തനങ്ങൾ

The K1 Pro functions as a standard mechanical keyboard for typing and input. Its 81-key layout includes number rows and function keys (F1-F12), along with dedicated page navigation and delete keys.

4.2 Programmable LCD Keys & Knob

The keyboard features 6 programmable LCD keys and a custom knob for enhanced control:

• LCD Keys: Assign macros, launch applications, open URLs, or auto-fill text with a single tap.
• Custom Knob: Control system volume, adjust RGB lighting effects, and switch between operating systems (Windows/Mac).

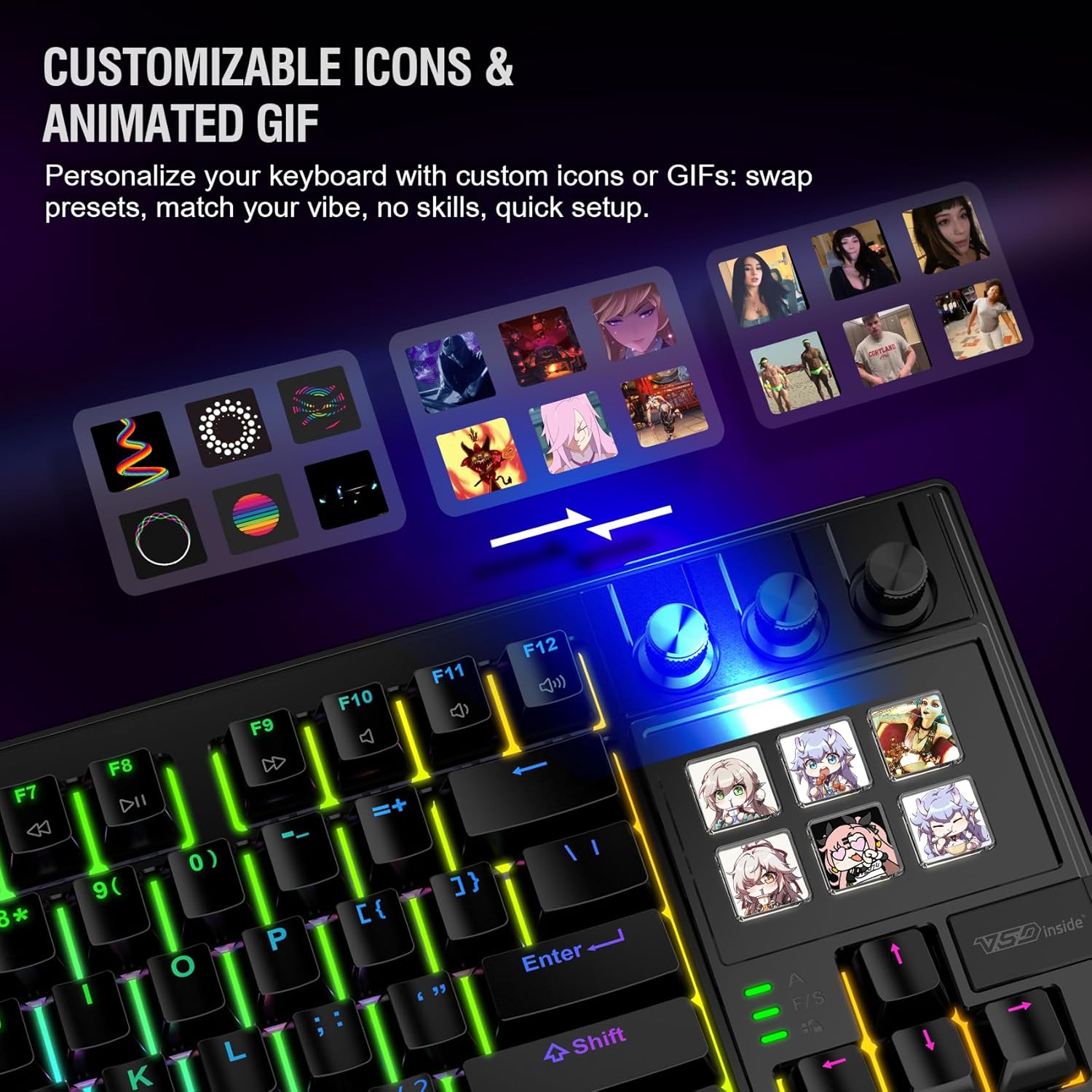

Image 4.1: Personalize your keyboard with custom icons or GIFs on the LCD keys.

Image 4.2: App-Controlled Mode allows for customizable icons, LCD shortcuts, and multi-task execution.

ചിത്രം 4.3: Web-Based Custom Mode provides full-key programming and macro editing.

4.3 RGB ബാക്ക്‌ലൈറ്റ് നിയന്ത്രണം

The keyboard features over 70 RGB light effects with brightness control. Use the knob or companion software to cycle through effects, adjust colors, and modify animation speed.

4.4 ഹോട്ട്-സ്വാപ്പബിൾ സ്വിച്ചുകൾ

The K1 Pro comes with pre-lubricated Linear Red Switches, offering a smooth and quiet typing experience. The hot-swappable design supports both 3-pin and 5-pin switches, allowing you to easily customize your typing feel without soldering. Use the included switch puller to remove and replace switches.

Image 4.4: Close-up of the Linear Red Switches and the hot-swappable design.

5. പരിപാലനം

To ensure the longevity and optimal performance of your K1 Pro keyboard, regular maintenance is recommended:

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to wipe down the keyboard surface. For deeper cleaning, remove keycaps using the provided keycap puller and use compressed air to clear debris from beneath the switches.
• സ്വിച്ച് കെയർ: While switches are pre-lubricated, you may re-lube them if desired for a customized feel. Refer to online guides for proper switch lubing techniques.
• കേബിൾ മാനേജുമെന്റ്: Keep the USB-C cable tidy to prevent damage and ensure stable wired connections.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your VSDINSIDE K1 Pro keyboard, try the following:

• കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure the mode switch (Wired/2.4G/BT) is correctly set. For wireless modes, check battery levels. For Bluetooth, ensure proper pairing.
• RGB ലൈറ്റിംഗ്: Use the knob or software to adjust brightness and effects. If lights are unresponsive, check software settings or restart the keyboard.
• സോഫ്റ്റ്വെയർ അനുയോജ്യത: Some users have reported software compatibility issues with macOS. Ensure you have the latest software version and drivers for optimal performance. If issues persist, try the hardware-only mode.
• പ്രതികരിക്കാത്ത കീകൾ: Check if the switch is properly seated. If not, remove and reinsert the switch using the switch puller. If the issue persists, replace the switch with a spare.

For persistent issues not resolved by these steps, please contact VSDINSIDE customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

വാറന്റി വിവരങ്ങൾക്കും സാങ്കേതിക പിന്തുണയ്ക്കും, നിങ്ങളുടെ വാങ്ങലിനൊപ്പം നൽകിയിരിക്കുന്ന ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുകയോ നിർമ്മാതാവിനെ നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
