Spigen Essential MagFit Qi2 Ultra-Thin 15W MagSafe Car Mount Charger Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Spigen Essential MagFit Qi2 Ultra-Thin 15W MagSafe Car Mount Charger is designed to provide efficient wireless charging and secure phone mounting in your vehicle. It features advanced Qi2 certification for fast charging, strong magnetic attachment, and an air vent mounting system for stability.

പ്രധാന സവിശേഷതകൾ:

• Next-Gen Qi2 Certified Charging: Delivers up to 15W of wireless charging for optimal efficiency and compatibility.
• Superior N52 Magnetic Grip: Industrial-grade N52 magnets ensure a secure hold for your device.
• Intelligent Airboost Technology: Automatically detects device power requirements for safe and efficient 15W charging.
• Rock-Solid Stability & Versatility: Reinforced triangular structure and non-slip base provide a secure grip on various air vent styles.
• 360° Precision Viewing: Premium ball-joint head allows for effortless 360° rotation without camera interference.
• സംയോജിത കേബിൾ മാനേജ്മെൻ്റ്: Includes a 4.9 Ft USB-C to USB-C cable (60W) with a built-in clip organizer for a tidy setup.

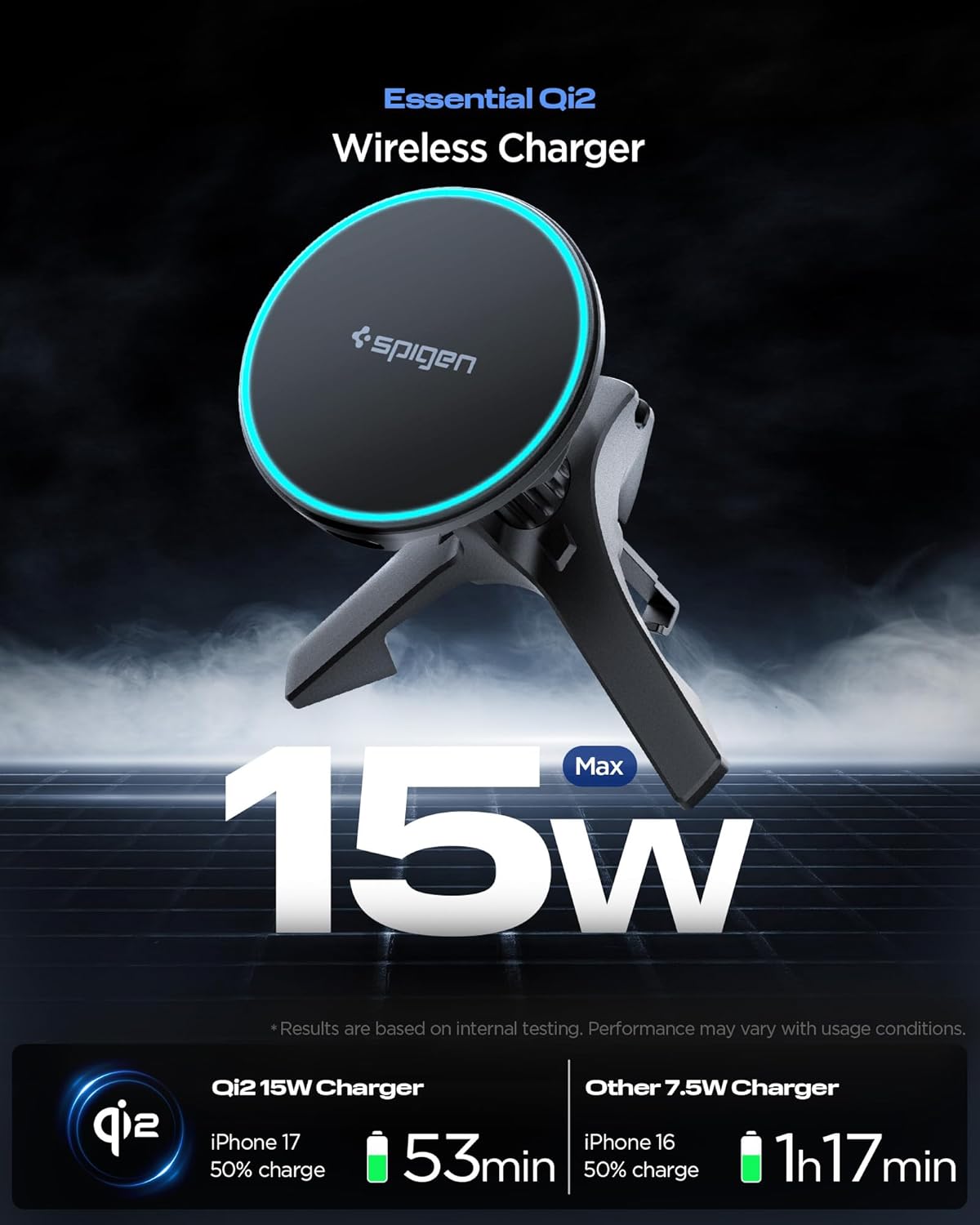

Figure 1: Spigen Essential MagFit Qi2 Wireless Charger. This image highlights the 15W maximum charging capability and comparative charging times for iPhone models.

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Spigen Essential MagFit Qi2 Car Mount Charger
• 1 USB-C to USB-C cable (4.9 Ft, 60W)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to properly install your car mount charger:

1. മൗണ്ട് കൂട്ടിച്ചേർക്കുക:

   Attach the magnetic charging pad to the air vent mount. Ensure the locking bolt is securely tightened to prevent wobbling.



   Figure 2: Hands demonstrating the assembly of the magnetic charging pad onto the air vent mount.

2. എയർ വെന്റിൽ ഘടിപ്പിക്കുക:

   Extend the hook from the air vent mount and secure it to one of your car's air vent blades. Use the tightening mechanism to ensure a firm grip. The mount features a reinforced triangular structure and anti-slip pads for enhanced stability.

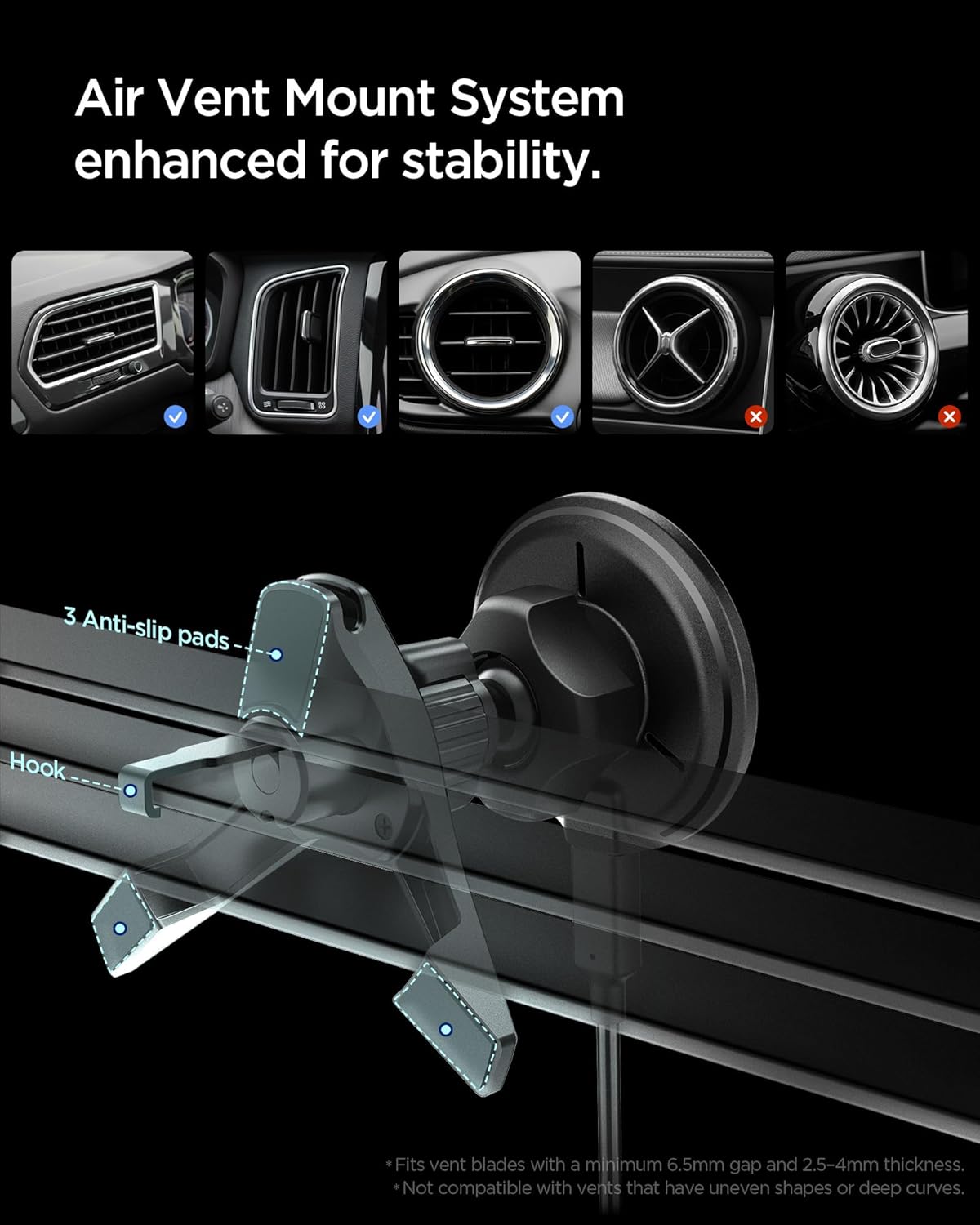

   Figure 3: Illustration of the air vent mount system, highlighting the hook and anti-slip pads for secure attachment. Compatible with vent blades with a minimum 6.5mm gap and 2.5-4mm thickness. Not compatible with uneven or deeply curved vents.

3. പവർ ബന്ധിപ്പിക്കുക:

   Plug the provided USB-C to USB-C cable into the charging port on the bottom of the magnetic pad and connect the other end to a compatible car charger (minimum 27W recommended, sold separately). Utilize the integrated cable clip for neat cable management.

ഔദ്യോഗിക സജ്ജീകരണ വീഡിയോ:

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. നിങ്ങളുടെ ഫോൺ അറ്റാച്ചുചെയ്യുന്നു:

   Place your MagSafe-compatible iPhone (12 series or newer) or other compatible smartphone with a MagSafe case onto the magnetic charging pad. The N52 magnets will securely hold your device in place.



   Figure 4: A smartphone securely attached to the magnetic charging pad, demonstrating the strong N52 magnetic grip.
2. ക്രമീകരിക്കുന്നു Viewഇൻ ആംഗിൾ:

   The premium ball-joint head allows for 360° rotation. Adjust your phone to the desired portrait or landscape viewing angle. The specialized round design prevents camera interference.



   Figure 5: The car mount's ball-joint head allows for 360° rotation, enabling perfect viewing angles in both portrait and landscape modes.

3. Charging Indication (LED Lights):

   The dimmed RGB lights indicate the charger's status:

   • പവർ ഓൺ: RGB (Cycle)
   • സ്റ്റാൻഡ്‌ബൈ മോഡ്: പച്ച
   • ചാർജിംഗ് മോഡ്: Ice Blue (Breathing)

   *The LED color cannot be changed from the preset default setting.

5 അനുയോജ്യത

The Spigen Essential MagFit Qi2 Car Mount Charger is universally compatible with:

• iPhone 17-12 Series
• Pixel 10 Series
• MagSafe Cases

*MagSafe Case is not included. Not compatible with non-MagSafe phone cases. Please check if your device supports Qi2 and/or MagSafe charging. Please use a power supply with 9V/3A (27W) or higher output (not included).

Figure 6: Visual representation of the charger's universal compatibility with various iPhone and Pixel models, and MagSafe-enabled cases.

6 സുരക്ഷാ വിവരങ്ങൾ

നിങ്ങളുടെ ഉപകരണത്തിന്റെ സുരക്ഷിതമായ പ്രവർത്തനം ഉറപ്പാക്കുന്നതിനും അതിന്റെ ആയുസ്സ് വർദ്ധിപ്പിക്കുന്നതിനും, ഇനിപ്പറയുന്ന കാര്യങ്ങൾ ശ്രദ്ധിക്കുക:

• Use only the provided USB-C cable or a certified equivalent.
• Ensure your car charger (power adapter) provides at least 27W (9V/3A) output for optimal 15W wireless charging.
• Avoid placing metal objects or foreign materials between your phone and the charging pad, as this may interfere with charging and cause overheating.
• Do not expose the device to extreme temperatures, direct sunlight for prolonged periods, or moisture.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• The charger incorporates multi-layer battery defense technology including overcharge prevention, temperature control, and Foreign Object Detection (FOD).

ചിത്രം 7: ഓവർview of Spigen's Intelligent Safety features, including Overcharge Prevention, Temperature Control, Foreign Object Detection (FOD), and Airboost technology.

7 സ്പെസിഫിക്കേഷനുകൾ

8. പ്രശ്‌നപരിഹാരം

• Charger not providing 15W fast charging: Ensure your car charger (power adapter) provides at least 27W (9V/3A) output. Standard car USB ports may not provide sufficient power.
• Phone not charging or charging slowly:
  • Verify your phone or phone case is MagSafe compatible. Non-MagSafe cases may prevent proper magnetic alignment and charging.
  • Remove any foreign objects (e.g., metal plates, credit cards) between your phone and the charging pad.
  • Ensure the phone is centered on the charging pad for optimal alignment.
• Mount feels loose on the air vent: Re-tighten the hook mechanism on the air vent mount. Ensure the mount is compatible with your specific vent style (refer to Figure 3).
• Overheating during charging: The charger has built-in temperature control. If overheating persists, ensure there are no obstructions to the charger's vents and that your phone is properly aligned.

9. വാറൻ്റിയും പിന്തുണയും

Spigen products are designed for durability and performance. For warranty information, product support, or to contact customer service, please visit the official Spigen website or refer to your purchase documentation. Keep your proof of purchase for warranty claims.
