Shimano Deore RD-M6100 12-Speed Rear Derailleur

1. ആമുഖം

This manual provides essential instructions for the proper installation, adjustment, operation, and maintenance of your Shimano Deore RD-M6100 12-Speed Rear Derailleur. Adhering to these guidelines will ensure optimal performance and longevity of the component. The RD-M6100 is designed for 1x12 speed drivetrains, compatible with cassettes ranging from 10 to 51 teeth.

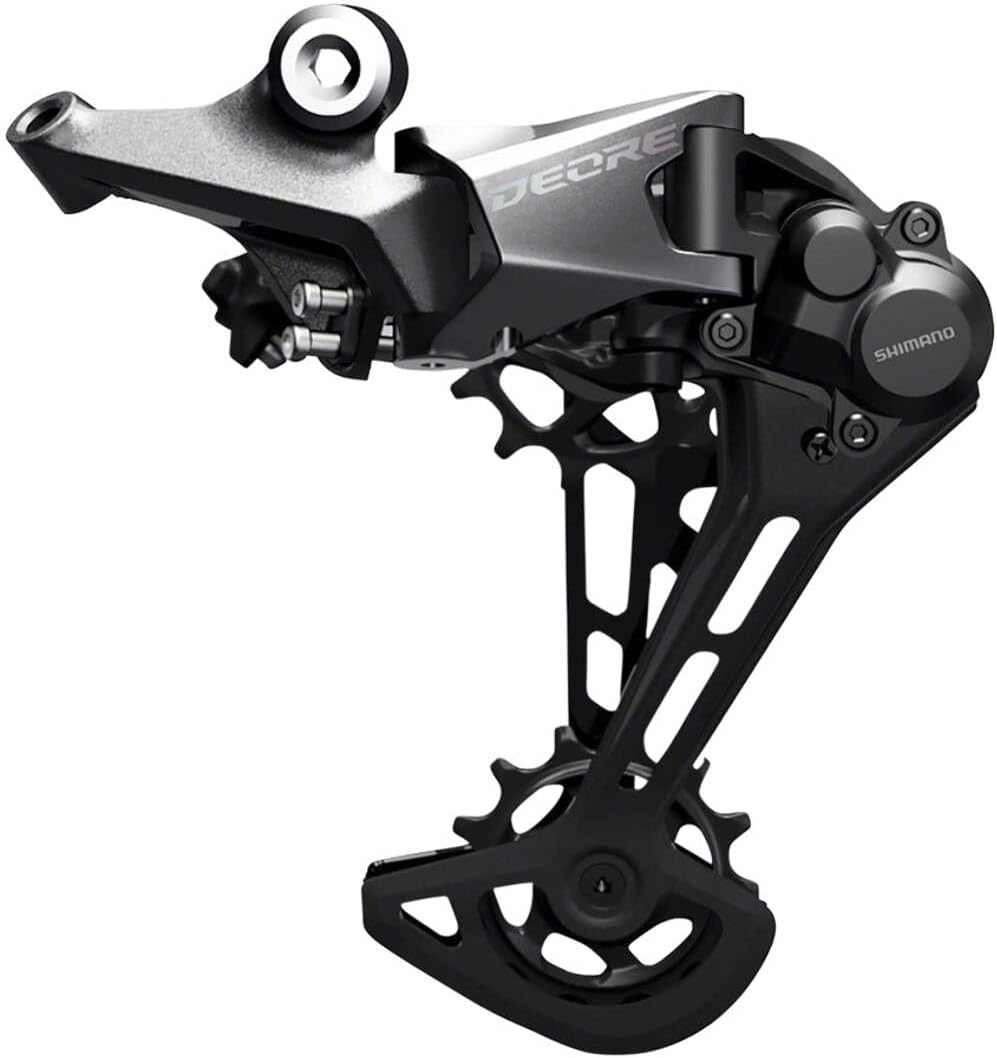

ചിത്രം 1.1: Shimano Deore RD-M6100 12-Speed Rear Derailleur. This image displays the complete rear derailleur unit, highlighting its cage, pulleys, and mounting mechanism.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety when working with bicycle components. Incorrect installation or adjustment can lead to serious injury or damage to your bicycle. If you are unsure about any step, consult a professional bicycle mechanic.

• Always wear appropriate safety gear, including eye protection, during installation and maintenance.
• Ensure all bolts are tightened to the manufacturer's specified torque values. Overtightening can strip threads, while undertightening can lead to component failure.
• Keep hands and clothing clear of moving parts, especially the chain and derailleur pulleys, when the bicycle is in motion or being adjusted.
• Regularly inspect the derailleur and chain for wear, damage, or loose connections.
• Do not modify the derailleur. Use only genuine Shimano replacement parts.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജ് തുറക്കുമ്പോൾ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Shimano Deore RD-M6100 12-Speed Rear Derailleur (SGS cage)

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper installation and initial adjustment of your rear derailleur.

4.1. Mounting the Derailleur

1. Ensure your bicycle frame has a compatible derailleur hanger.
2. Apply a small amount of grease to the derailleur hanger threads.
3. Thread the derailleur mounting bolt into the hanger.
4. Tighten the mounting bolt to the manufacturer's specified torque (typically 8-10 Nm). Do not overtighten.

4.2. കേബിൾ ഇൻസ്റ്റാളേഷൻ

1. Route the shift cable from the shifter through the frame and outer casing to the derailleur.
2. Ensure the cable housing ends are properly seated in the stops.
3. With the shifter in the highest gear (smallest cog), pull the cable taut and secure it to the derailleur's cable fixing bolt. Tighten the bolt to the specified torque (typically 5-7 Nm).
4. Trim any excess cable, leaving approximately 3-5 cm, and crimp an end cap onto the cable.

4.3. ചെയിൻ ഇൻസ്റ്റലേഷൻ

1. Determine the correct chain length. Shift the chain onto the largest chainring and largest cog, then route the chain through the derailleur without passing through the pulleys. Add two full links (one inner and one outer) to this length.
2. Install the chain, ensuring it passes correctly through the derailleur pulleys.
3. Connect the chain using a master link or connecting pin according to the chain manufacturer's instructions.

4.4. Limit Screw Adjustment

The H (High) and L (Low) limit screws prevent the chain from shifting beyond the smallest and largest cogs, respectively.

1. H-Screw (High Limit): Shift the chain to the smallest cog. Adjust the H-screw so that the upper guide pulley is directly aligned with the center of the smallest cog. The chain should run smoothly without rubbing.
2. L-Screw (Low Limit): Shift the chain to the largest cog. Adjust the L-screw so that the upper guide pulley is directly aligned with the center of the largest cog. Ensure the derailleur does not hit the spokes and the chain does not over-shift off the cog.

4.5. B-Tension Adjustment

The B-tension screw adjusts the gap between the upper guide pulley and the cassette cogs.

1. Shift the chain to the largest cog.
2. Adjust the B-tension screw to achieve the recommended gap between the upper guide pulley and the largest cog. For Shimano 12-speed, this is typically 5-6mm. Refer to Shimano's technical documentation for precise measurements, often using a B-tension adjustment tool.

4.6. Indexing Adjustment

Fine-tune shifting performance using the barrel adjuster.

1. Shift the chain to the second smallest cog.
2. Pedal slowly and listen for any chain noise or hesitation.
3. If the chain struggles to shift to a larger cog, turn the barrel adjuster counter-clockwise (out).
4. If the chain struggles to shift to a smaller cog, turn the barrel adjuster clockwise (in).
5. Adjust in small increments until shifting is smooth and quiet across all gears.

5. ഡെറൈലിയർ പ്രവർത്തിപ്പിക്കൽ

The Shimano Deore RD-M6100 derailleur operates in conjunction with a compatible 12-speed shifter. To shift gears, actuate the shifter levers. The larger lever typically shifts to a larger cog (easier gear), and the smaller lever shifts to a smaller cog (harder gear).

• Shift gears smoothly and avoid excessive force on the pedals during shifts.
• Anticipate terrain changes and shift proactively to maintain a consistent cadence.
• Avoid cross-chaining (e.g., largest chainring with largest cog, or smallest chainring with smallest cog) as this can increase wear and reduce shifting performance.

6. പരിപാലനം

Regular maintenance is crucial for the performance and lifespan of your derailleur.

• വൃത്തിയാക്കൽ: After each ride, especially in wet or dirty conditions, clean the derailleur body, pulleys, and cage with a mild degreaser and brush. Rinse thoroughly and dry.
• ലൂബ്രിക്കേഷൻ: Apply a small amount of bicycle-specific lubricant to the pivot points of the derailleur and the chain. Wipe off any excess lubricant to prevent dirt accumulation.
• പരിശോധന: Periodically check for bent derailleur hangers, worn pulley wheels, loose bolts, or any signs of damage to the derailleur body. Replace worn or damaged parts immediately.
• Cable and Housing: Inspect shift cables and housing for fraying, kinks, or contamination. Replace them if necessary to maintain crisp shifting.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:

For persistent or complex issues, it is recommended to seek assistance from a qualified bicycle mechanic.

8 സ്പെസിഫിക്കേഷനുകൾ

• മോഡലിൻ്റെ പേര്: Deore M6100 Rear Derailleur
• ഭാഗം നമ്പർ: IRDM6100SGS
• ബ്രാൻഡ്: ഷിമാനോ
• ഗിയറിംഗ്: 1 x 12 Speed
• Cage Length: SGS (Long)
• Cassette Range: 10 - 51 ടി
• മൊത്തം ശേഷി: 51 ടി
• അനുയോജ്യത: Shimano Deore 12-speed drivetrain
• മൗണ്ടിംഗ് തരം: Clamp-മലയിൽ
• മെറ്റീരിയൽ: മൾട്ടി
• ഇനത്തിൻ്റെ അളവുകൾ (LxWxH): 5 x 3.75 x 6.75 ഇഞ്ച്
• പാക്കേജ് ഭാരം: 0.35 കിലോഗ്രാം
• UPC: 192790618692

9. വാറൻ്റിയും പിന്തുണയും

This Shimano product is covered by a Limited Warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Shimano website. For technical support or service inquiries, please contact Shimano customer service or your authorized Shimano dealer.
