ആമുഖം
Thank you for choosing the EAGLE PEAK Wheeled Snow Shovel. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new snow shovel. Designed for ease of use, this wheeled snow pusher helps clear snow from driveways, sidewalks, and patios with reduced effort compared to traditional shoveling. Please read this manual thoroughly before first use and retain it for future reference.
സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: ഈ സുരക്ഷാ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് പരിക്കോ സ്വത്ത് നാശമോ ഉണ്ടാക്കിയേക്കാം.
- Always wear appropriate safety gear, including eye protection and sturdy footwear, when using this product.
- Be aware of your surroundings and avoid contact with underground utilities, obstacles, or uneven surfaces.
- Always lift with your legs, not your back, to prevent injury, even with the wheeled design.
- ഓപ്പറേഷൻ ഏരിയയിൽ നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.
- Do not use the snow shovel on excessively steep slopes where control may be lost.
- Inspect the shovel for any damage or loose parts before each use. Do not operate if damaged.
- Keep the product clean and dry when not in use to prevent rust and maintain its longevity.
- Store the shovel in a secure location, away from extreme temperatures and moisture.
പാക്കേജ് ഉള്ളടക്കം
Verify that all components are present before assembly. If any parts are missing or damaged, please contact EAGLE PEAK customer service.
- Wheeled Snow Shovel Blade Assembly
- ക്രമീകരിക്കാവുന്ന ഹാൻഡിൽ അസംബ്ലി
- Wheel Axle with Wheels (2)
- Hardware Pack (bolts, nuts, pins)
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ
അസംബ്ലി നിർദ്ദേശങ്ങൾ
Follow these steps to assemble your EAGLE PEAK Wheeled Snow Shovel. It is recommended to assemble on a flat, clear surface.
- Attach Wheels to Axle: Securely attach the two wheels to the wheel axle using the provided pins or fasteners. Ensure wheels spin freely.
- Connect Wheel Assembly to Blade: Align the wheel axle frame with the mounting points on the back of the snow shovel blade. Insert the necessary bolts and tighten them securely.
- Install Handle to Wheel Assembly: Insert the lower part of the adjustable handle into the designated receiver on the wheel assembly. Secure it with the provided locking pin or bolt.
- ഹാൻഡിൽ ഉയരം ക്രമീകരിക്കുക: Loosen the adjustment knob or pull the quick-release pin on the handle. Extend or retract the handle to your desired height (refer to "Adjustments" section for details). Secure the handle at the chosen height.
- Adjust Blade Angle: If your model features an adjustable blade, set the desired angle using the locking mechanism near the blade (refer to "Adjustments" section for details).
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The EAGLE PEAK Wheeled Snow Shovel is designed for efficient snow clearing. Follow these guidelines for optimal performance.
- പ്രദേശം തയ്യാറാക്കുക: Ensure the area to be cleared is free of hidden obstacles that could damage the blade or cause injury.
- ഹാൻഡിൽ പിടിക്കുക: Hold the ergonomic T-shaped handle firmly with both hands.
- Pushing Motion: Push the shovel forward, allowing the blade to collect snow. The 10-inch anti-slip wheels will assist in gliding the shovel across the surface.
- Clear Snow: Once a sufficient amount of snow has accumulated on the blade, push it to the desired disposal area. For deeper snow, it may be necessary to clear in smaller passes.
- Adjust Blade Angle (if applicable): Utilize the adjustable blade angle feature to direct snow to the left or right, preventing it from piling up directly in front of you. This is particularly useful for clearing along edges or in tight spaces.
ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോകൾ
Video: Demonstrates the EAGLE PEAK Wheeled Snow Shovel in action, clearing snow from a driveway. This video provides a visual guide to the product's operation and effectiveness.
Video: Shows the EAGLE PEAK Personal Snow Pusher with Wheels being used to clear snow, highlighting its maneuverability and ease of use for personal snow removal tasks.
ക്രമീകരണങ്ങൾ

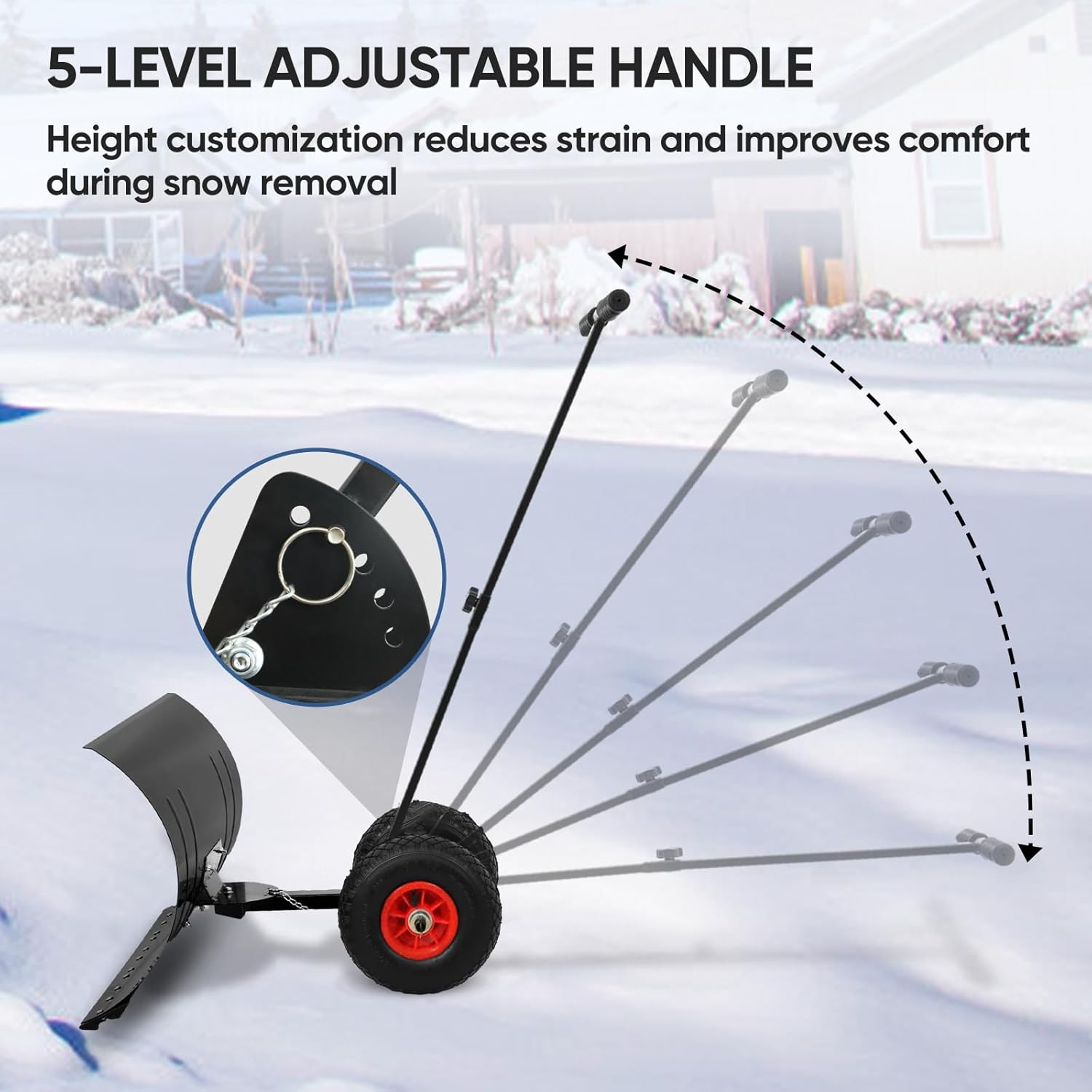

ഉയരം ക്രമീകരിക്കൽ കൈകാര്യം ചെയ്യുക
The handle can be adjusted to 5 different height settings, ranging from 14 inches to 45 inches, to accommodate users of various heights and reduce back strain.
- Locate the quick-release pin or adjustment knob on the handle shaft.
- Pull the pin or loosen the knob to unlock the handle.
- Slide the upper handle section up or down to the desired height.
- Re-insert the pin or tighten the knob to secure the handle firmly in place.

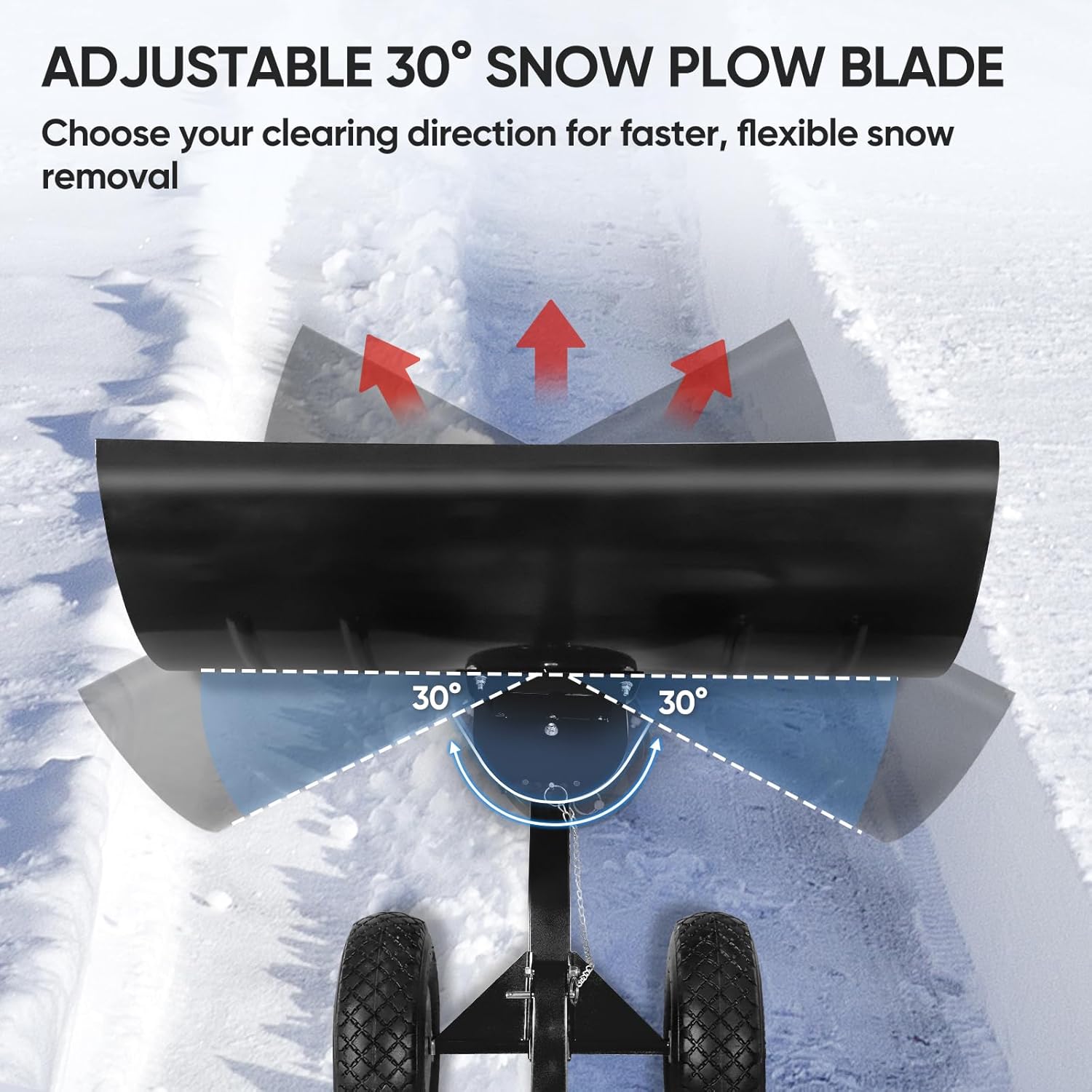

Blade Angle Adjustment
The snow plow blade can be tilted up to 30 degrees to the left or right, allowing you to direct snow efficiently.
- Locate the blade angle adjustment mechanism, typically near the connection point of the blade to the wheel assembly.
- Release the locking pin or lever.
- Pivot the blade to the desired angle (left, right, or straight).
- Secure the blade by re-engaging the locking pin or lever. Ensure it is fully locked before use.
മെയിൻ്റനൻസ്
Proper maintenance ensures the longevity and optimal performance of your snow shovel.
- വൃത്തിയാക്കൽ: After each use, remove any snow, ice, or debris from the blade, wheels, and frame. Use a damp വൃത്തിയാക്കാനുള്ള തുണി.
- ഉണക്കൽ: Thoroughly dry all metal components to prevent rust.
- ലൂബ്രിക്കേഷൻ: Periodically apply a light lubricant to moving parts, such as the wheel axles and blade adjustment mechanism, to ensure smooth operation.
- സംഭരണം: Store the snow shovel in a dry, protected area when not in use. Avoid prolonged exposure to moisture or direct sunlight.
- പരിശോധന: Regularly check all bolts, nuts, and pins for tightness. Tighten any loose fasteners. Inspect the blade for wear or damage and replace if necessary.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your EAGLE PEAK Wheeled Snow Shovel, refer to the following common problems and solutions.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Difficulty pushing the shovel | Deep or heavy wet snow; blade angle incorrect; loose wheels. | Clear snow in smaller passes; adjust blade angle to direct snow; check and tighten wheel fasteners. |
| ഹാൻഡിൽ ഇളകുന്നതായി തോന്നുന്നു | Handle adjustment pin not fully engaged or knob loose. | Ensure the quick-release pin is fully inserted or the adjustment knob is securely tightened. |
| Blade not holding angle | Blade angle locking mechanism loose or damaged. | Check and tighten the locking mechanism. If damaged, contact customer service for replacement parts. |
| ചക്രങ്ങൾ സുഗമമായി തിരിയുന്നില്ല | Debris in axle; lack of lubrication; damaged wheel. | Clean debris from axles; apply lubricant; inspect wheels for damage. |

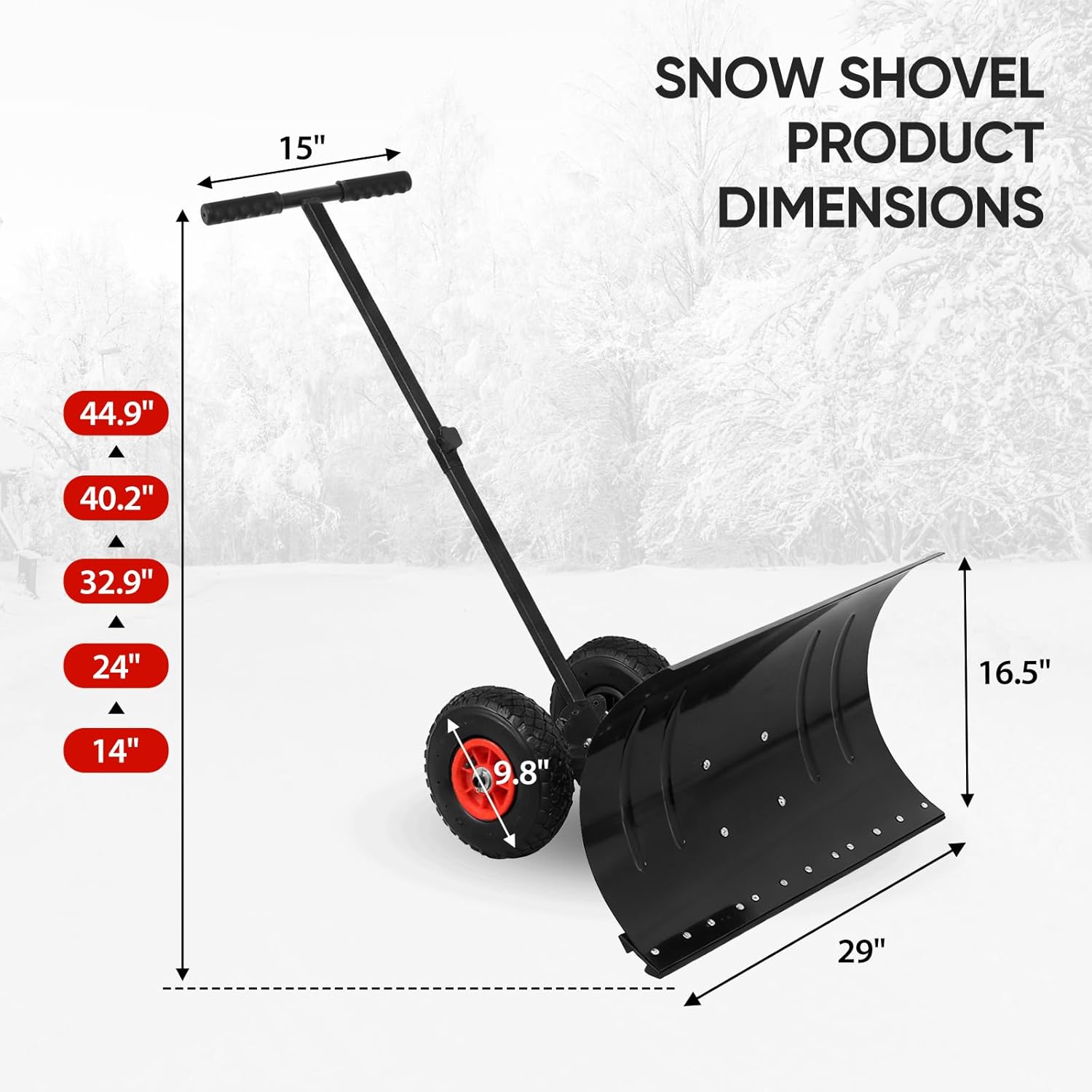

സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഈഗിൾ പീക്ക് |
| മോഡൽ നമ്പർ (ASIN) | B0G6Z2C7Z8 |

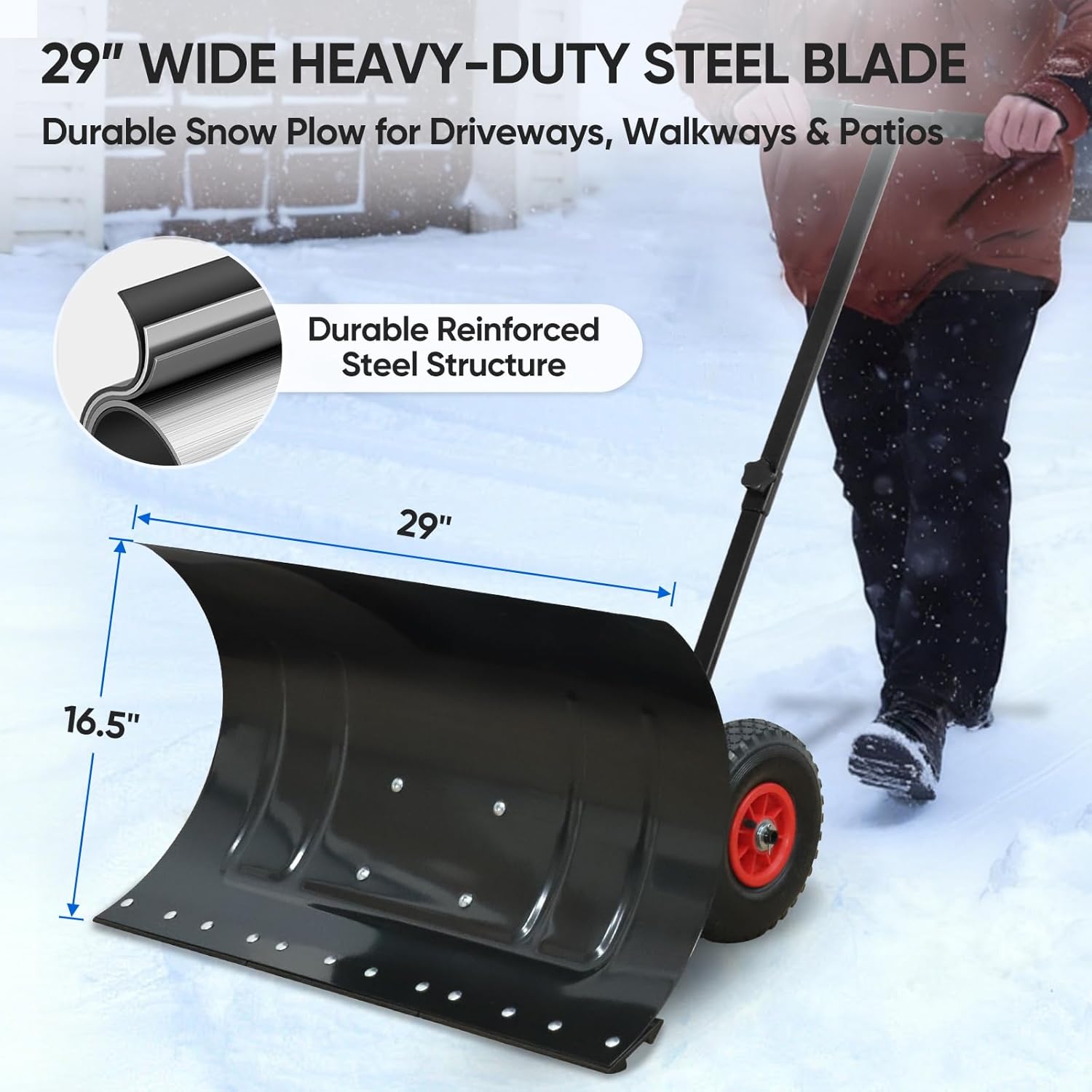

| ബ്ലേഡ് അളവുകൾ | 29 ഇഞ്ച് (വീതി) x 16.5 ഇഞ്ച് (ഉയരം) |
| ബ്ലേഡ് മെറ്റീരിയൽ | ഹെവി-ഡ്യൂട്ടി സ്റ്റീൽ |
| Blade Angle Adjustment | Up to 30° left or right |
| ചക്രത്തിൻ്റെ വലിപ്പം | 10 ഇഞ്ച് (വ്യാസം) |
| Handle Adjustment Range | 14 ഇഞ്ച് മുതൽ 45 ഇഞ്ച് വരെ (5 ക്രമീകരണങ്ങൾ) |
| ഹാൻഡിൽ മെറ്റീരിയൽ | Plastic or Metal Alloy |
| ഗ്രിപ്പ് തരം | എർഗണോമിക് |
| ഇനത്തിൻ്റെ ഭാരം | 25.4 പൗണ്ട് |
| നിറം | കറുപ്പ് |
വാറൻ്റിയും പിന്തുണയും
EAGLE PEAK offers a 1-year limited after-sale protection from the original date of purchase. This warranty covers manufacturing defects and ensures your product performs as expected under normal use.
For any questions, concerns, or assistance with your EAGLE PEAK Wheeled Snow Shovel, please do not hesitate to contact our professional service team. We are dedicated to providing superior service and support.
ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Refer to the product packaging or the official EAGLE PEAK webഏറ്റവും പുതിയ ഉപഭോക്തൃ സേവന കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായുള്ള സൈറ്റ്.
