KATOOL KT-4H120x 12000lbs 4-Post Repair and Alignment Lift User Manual

ആമുഖം

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your KATOOL KT-4H120x 12000lbs 4-Post Repair and Alignment Lift. Please read all instructions carefully before installation and use to ensure proper function and safety.

സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: ഈ സുരക്ഷാ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് ഗുരുതരമായ പരിക്കോ മരണമോ ഉണ്ടാക്കിയേക്കാം.

• Always ensure the lift is installed on a level, solid concrete surface capable of supporting the lift's weight and maximum load.
• Never exceed the maximum rated load capacity of 12000 lbs.
• Ensure all safety locks are engaged before working under the lift.
• ജോലി ചെയ്യുമ്പോൾ കൈകളും കാലുകളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ മാത്രമേ ഇൻസ്റ്റാളേഷൻ, അറ്റകുറ്റപ്പണികൾ, അറ്റകുറ്റപ്പണികൾ എന്നിവ നടത്താവൂ.
• എല്ലായ്പ്പോഴും ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
• ഏതെങ്കിലും അറ്റകുറ്റപ്പണികൾ അല്ലെങ്കിൽ സേവനം നടത്തുന്നതിന് മുമ്പ് വൈദ്യുതി വിച്ഛേദിക്കുക.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

ഡെലിവറിയും അൺബോക്സിംഗും

The KATOOL KT-4H120x lift is delivered in a large, heavy package. A forklift or similar heavy-duty equipment is required for unloading and initial placement. Inspect the packaging for any signs of damage upon arrival and note any issues on the delivery receipt.

Image: KATOOL KT-4H120x 4-Post Lift components securely packaged on a trailer, ready for unboxing and assembly.

അസംബ്ലി കഴിഞ്ഞുview

Assembly requires careful attention to detail. It is crucial to follow the manufacturer's instructions step-by-step to ensure correct alignment of components, especially the cables and hydraulic lines. The power-side column can be installed on either side (front or rear) for versatile shop layouts.

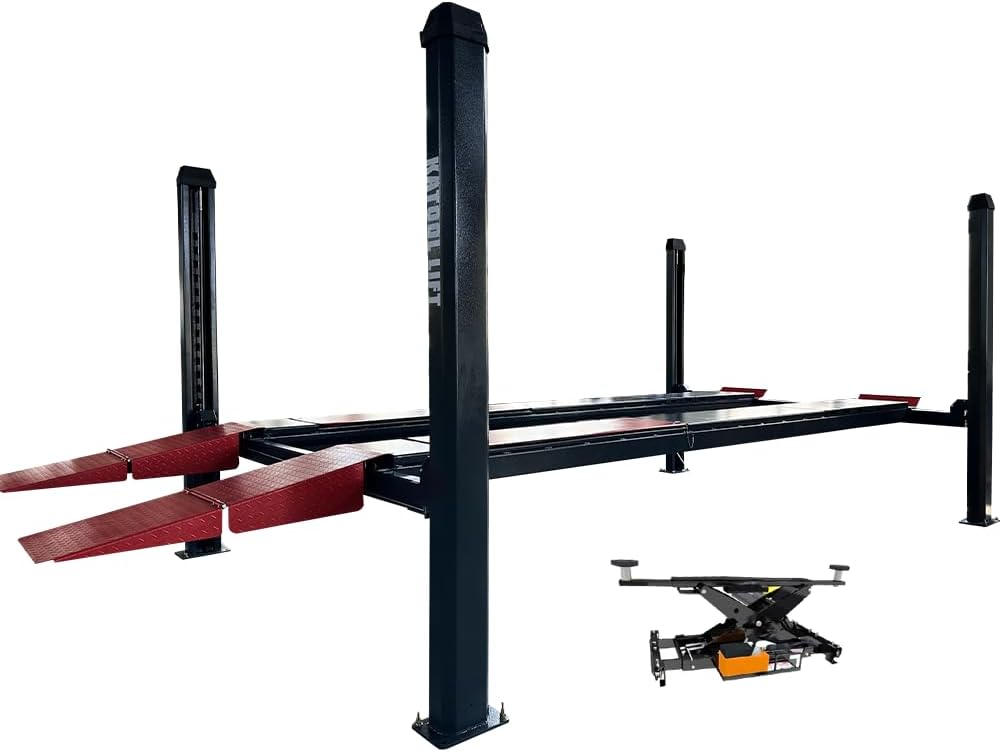

Image: Fully assembled KATOOL KT-4H120x 4-Post Lift with a rolling jack, ready for vehicle lifting in a garage setting.

പ്രധാന അളവുകൾ

Understanding the dimensions is vital for proper installation and ensuring adequate space in your workshop or garage.

Image: Detailed technical drawing illustrating the key dimensions of the KATOOL KT-4H120x 4-Post Lift, including height, width, and length measurements.

അസംബ്ലി വീഡിയോ

വീഡിയോ: ഈ വീഡിയോയിൽ ഒരു ഓവർ നൽകുന്നുview of the assembly process for a 4-post lift, demonstrating key steps and component installation.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ഒരു വാഹനം ഉയർത്തൽ

1. Position the vehicle centrally on the lift runways.
2. Ensure all personnel and obstructions are clear of the lift.
3. Press and hold the 'UP' button on the control unit. The lift will begin to rise.
4. Once the desired height is reached, release the 'UP' button. The lift will automatically engage the nearest safety lock.
5. For added safety, slightly lower the lift until it rests firmly on the mechanical safety locks.

ഒരു വാഹനം താഴ്ത്തുന്നു

1. Ensure the area beneath and around the lift is clear.
2. Slightly raise the lift by pressing the 'UP' button to disengage the safety locks.
3. Locate and release the manual safety lock mechanism (typically a lever or button).
4. Press and hold the 'DOWN' button on the control unit. The lift will begin to descend.
5. Continue holding the 'DOWN' button until the lift is fully lowered and the vehicle is safely on the ground.

Using the Rolling Jack

The optional rolling jack allows for lifting individual axles or the entire vehicle off the runways for wheel service. The width of the jack can be adjusted to accommodate different vehicle wheel tracks.

Image: A diagram illustrating the correct placement and applicability of the oil tray and jack tray for standard width vehicles on the lift.

Video: This video demonstrates the operational features of a 4-post car lift, including lifting, lowering, and the use of the rolling jack for vehicle maintenance.

മെയിൻ്റനൻസ്

Regular maintenance is crucial for the longevity and safe operation of your KATOOL lift. While specific maintenance schedules are detailed in the full product manual, general practices include:

• പ്രതിദിന പരിശോധന: Check for any visible damage, loose bolts, or unusual wear on cables, pulleys, and hydraulic lines.
• ലൂബ്രിക്കേഷൻ: Periodically lubricate all moving parts, including cables, pulleys, and lock mechanisms, as specified by the manufacturer.
• ഹൈഡ്രോളിക് ദ്രാവക പരിശോധന: Monitor hydraulic fluid levels and top up as needed. Use only recommended hydraulic fluid.
• ശുചിത്വം: Keep the lift and surrounding area clean. The included drip trays help manage fluid leaks and maintain a tidy workspace.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the lift's cable and pulley system, highlighting the components that require regular inspection and lubrication.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the lift's mechanical safety lock mechanism, showing the engagement points for secure vehicle support.

ട്രബിൾഷൂട്ടിംഗ്

Lift Not Lifting or Uneven Lifting

If the lift motor runs but the lift does not raise, or if it lifts unevenly, air may be trapped in the hydraulic system. This requires an exhaust procedure to bleed the air.

1. Prepare the lift and install the tubing for the exhaust process.
2. Press the lift button to raise the lift. If uneven, exhaust treatment is required.
3. Remove the tubing and hold the joint with a sharp tool until oil is released, indicating air is being purged.
4. Repeat the process for the other side if applicable.
5. Reconnect the tubing and continue lifting until the lift reaches its peak. Hold the lift button for approximately 10 seconds to ensure all air is expelled.
6. When lowering, the equipment should be assisted by heavy weights (about 80kg) to ensure a complete descent and full air discharge.
7. If the motor works but the lift still doesn't raise, remove the motor back valve as instructed in the video.
8. Press the rise key 8-10 times to discharge any remaining air inside the motor.
9. After exhausting, reinstall the valve.
10. Run the lift test again to confirm stable operation.

Video: This video demonstrates the exhaust method for bleeding air from the hydraulic system of a car lift, addressing issues with uneven lifting or failure to lift.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

For detailed warranty information regarding your KATOOL KT-4H120x lift, please refer to the warranty card included with your product or contact KATOOL customer service directly. Warranty terms typically cover manufacturing defects and specific components for a defined period.

ഉപഭോക്തൃ പിന്തുണ

Should you require assistance with installation, operation, maintenance, or troubleshooting that is not covered in this manual, please contact KATOOL customer support. Contact details can typically be found on the product packaging, the official KATOOL webസൈറ്റ്, അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷൻ.
