1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The ABSINA Surface-Mounted Socket and Switch Combination (Model 501050) is designed for reliable electrical installations in environments requiring protection against splashing water. This unit integrates a 16A Schuko socket and a 10A switch, making it ideal for various applications in damp rooms or protected outdoor areas. Its robust thermoplastic housing ensures durability and safety.
ചിത്രം 1.1: മുൻഭാഗം view of the ABSINA Surface-Mounted Socket and Switch Combination.
2 പ്രധാന സവിശേഷതകൾ
- ലളിതമായ ഇൻസ്റ്റാളേഷൻ: Features a removable interior, ample wiring space, and terminal connections for cable cross-sections up to 2.5mm², ensuring quick and easy setup.
- IP44 പ്രൊട്ടക്ഷൻ ക്ലാസ്: The socket is protected against splashing water (IP44), and the switch offers IP54 protection, making the unit suitable for damp rooms or protected outdoor use.
- സംയോജിത സുരക്ഷ: Equipped with plastic shutters that close the socket contacts for enhanced safety.
- നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from robust thermoplastic material for long-lasting performance.
- ബഹുമുഖ ആപ്ലിക്കേഷൻ: Ideal for basements, laundry rooms, garages, boiler rooms, workshops, or protected outdoor areas.

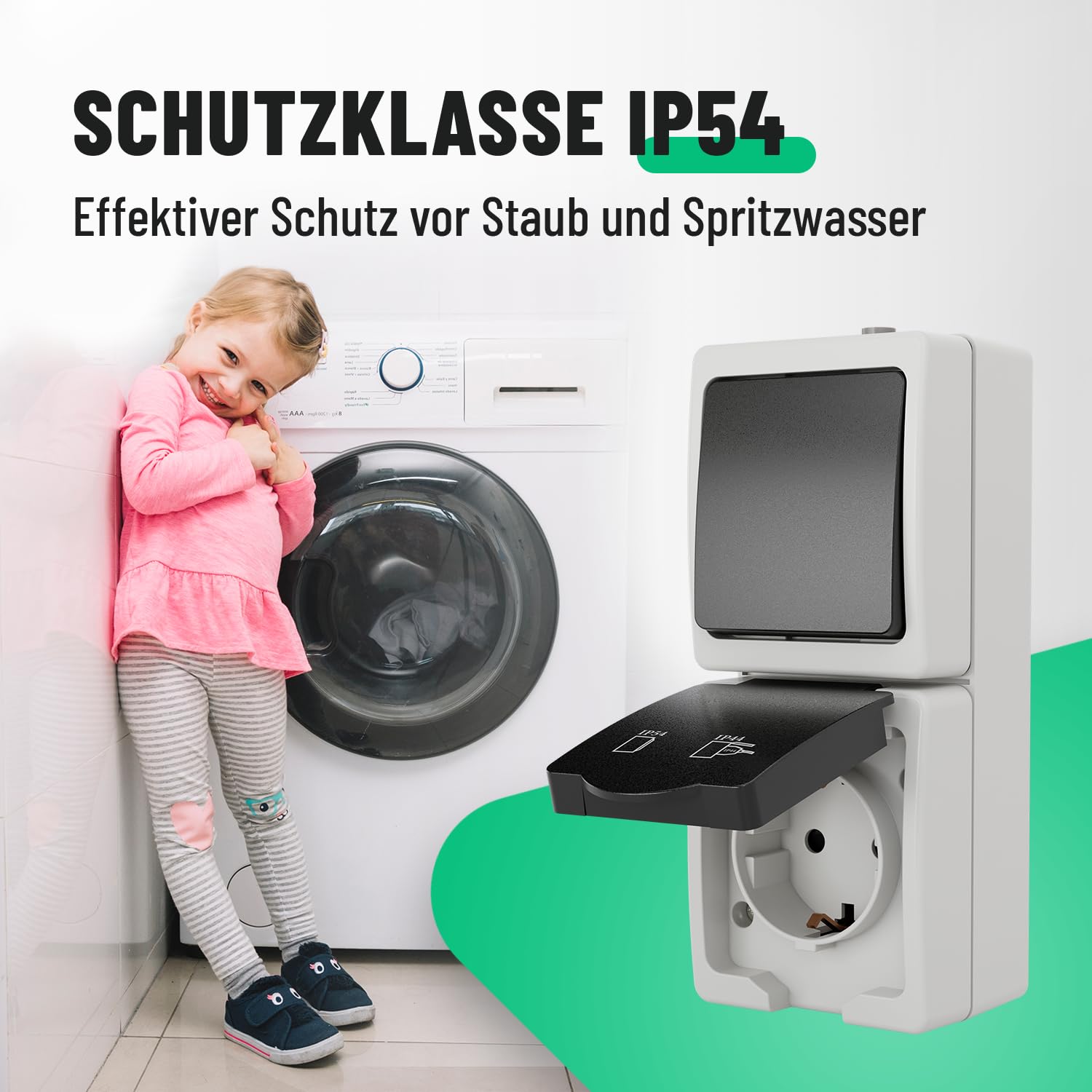

Image 2.1: Illustration of IP54 protection, indicating effective protection against dust and splashing water for the switch component.
Image 2.2: The socket features a hinged protective cap to shield against water and dust when not in use.
Image 2.3: The integrated switch functions as a changeover switch for controlling connected devices.
3 സാങ്കേതിക സവിശേഷതകൾ
| ആട്രിബ്യൂട്ട് | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡൽ നമ്പർ | 501050 |
| അളവുകൾ (L x W x H) | 15.5 x 6.5 x 5.5 സെ.മീ |
| ഭാരം | 210 ഗ്രാം |
| മെറ്റീരിയൽ | Plastic (Thermoplastic) |
| ഓപ്പറേറ്റിംഗ് വോളിയംtage | 250 V എസി |
| സോക്കറ്റ് Ampഉന്മേഷം | 16 എ |
| മാറുക Ampഉന്മേഷം | 10 എ |
| സോക്കറ്റ് തരം | ഷുക്കോ |
| Protection Class (Socket) | IP44 |
| Protection Class (Switch) | IP54 |
| കേബിൾ എൻട്രികൾ | 2 |
| Max. Cable Cross-Section | 2.5mm² |
| നിറം | ചാരനിറം |
Image 3.1: Detailed dimensions of the unit, including the maximum cable cross-section of 15mm diameter.
ചിത്രം 3.2: പിൻഭാഗം view highlights the robust thermoplastic housing, designed for durability and secure mounting.
4. ഇൻസ്റ്റലേഷനും സജ്ജീകരണവും
WARNING: Electrical installation should only be performed by qualified personnel. Always disconnect power at the main circuit breaker before beginning any electrical work.
4.1. വയറിംഗ് നിർദ്ദേശങ്ങൾ
- Ensure the power supply is OFF.
- Open the housing by carefully detaching the front cover. The interior is removable for easier access.
- Feed the electrical cables through the designated cable entries.
- Connect the wires to the terminal blocks. Ensure correct polarity (Live, Neutral, Earth) and secure all connections firmly. The large wiring space facilitates this process.
- Verify all connections are tight and no bare wires are exposed.
ചിത്രം 4.1: ആന്തരികം view കാണിക്കുന്നു ample space for wiring and the terminal connections for quick and easy installation.
4.2. മൗണ്ടിംഗ്
- Once wiring is complete and verified, position the unit on the desired surface.
- Mark the drilling points through the mounting holes on the back of the housing.
- ആവശ്യമെങ്കിൽ, ഉചിതമായ ദ്വാരങ്ങൾ തുരന്ന് വാൾ പ്ലഗുകൾ ഇടുക.
- Secure the unit to the surface using suitable screws.
- Carefully reattach the front cover, ensuring it clicks securely into place to maintain the IP rating.
- സർക്യൂട്ടിലേക്ക് വൈദ്യുതി പുനഃസ്ഥാപിക്കുക.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The ABSINA combination unit is straightforward to operate:
- Socket Operation: To use the socket, lift the hinged protective cap. Insert the plug of your electrical appliance into the Schuko socket. Ensure the cap is closed when the socket is not in use to maintain its IP44 protection.
- സ്വിച്ച് ഓപ്പറേഷൻ: The integrated switch controls the power supply to a connected circuit or device. Press the rocker switch to toggle between ON and OFF positions.
6. പരിപാലനം
Regular maintenance ensures the longevity and safe operation of your ABSINA unit:
- വൃത്തിയാക്കൽ: Clean the exterior of the unit periodically with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the protective cap is clean and free of debris to maintain its seal.
- പരിശോധന: Annually inspect the unit for any signs of damage, cracks, or loose connections. Check the integrity of the protective cap and cable entries. If any damage is found, disconnect power and have the unit inspected or replaced by a qualified electrician.
- പരിസ്ഥിതി സംരക്ഷണം: For outdoor installations, ensure the unit remains in a protected area as per its IP44 rating (e.g., under an overhang or within an enclosure).
7. പ്രശ്നപരിഹാരം
If you encounter issues with your ABSINA unit, refer to the table below for common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സോക്കറ്റിൽ നിന്ന് വൈദ്യുതിയില്ല | Circuit breaker tripped; Loose wiring connection; Faulty appliance | Check circuit breaker; Verify wiring (power off first); Test with another appliance |
| Switch does not operate | No power to the unit; Internal switch fault | Check power supply; If power is present, consult a qualified electrician for inspection |
| Water ingress observed | Protective cap not closed properly; Damaged housing or seal; Unit exposed to direct water jets (exceeds IP44) | Ensure cap is fully closed; Inspect for damage and replace if necessary; Relocate unit to a more protected area |
| യൂണിറ്റിന് ചൂട് തോന്നുന്നു | Overload; Loose connection | Reduce load on the circuit; Disconnect power and check wiring connections |
If the problem persists after attempting these solutions, please contact a qualified electrician or ABSINA customer support.
8. Recommended Application Areas
This ABSINA combination unit is specifically designed for environments where protection against moisture and dust is required. Its robust construction and IP ratings make it suitable for:
- നിലവറകൾ: For general power and lighting control.
- Laundry Rooms: Safe operation near washing machines and dryers.
- ഗാരേജുകൾ: Powering tools and lighting in a workshop environment.
- Boiler Rooms: Reliable electrical access in utility spaces.
- ശിൽപശാലകൾ: Providing protected power for various tasks.
- Protected Outdoor Areas: Such as covered patios, sheds, or carports, where the unit is not directly exposed to heavy rain or water jets.
Image 8.1: Visual representation of suitable application areas including garden, outdoor (protected), and indoor damp പരിസരങ്ങൾ.
9. വാറൻ്റിയും പിന്തുണയും
For information regarding warranty coverage, technical support, or spare parts availability, please contact ABSINA GmbH directly. Contact details can typically be found on the product packaging or the official ABSINA website. Please have your model number (501050) ready when contacting support.
