XSDTS സ്മാർട്ട് ഡോർ ലോക്ക് ഉപയോക്തൃ മാനുവൽ

ആമുഖം

This user manual provides comprehensive instructions for the installation, setup, operation, and maintenance of your XSDTS Smart Door Lock, Model 3DR-Q8-Pro (6068-R). This advanced smart lock integrates multiple security features including 3D facial recognition, fingerprint scanning, password entry, smart card access, and traditional mechanical keys, all controllable via the TUYA App. Please read this manual carefully before installation and use to ensure optimal performance and security.

ഉൽപ്പന്നം കഴിഞ്ഞുview

പ്രധാന സവിശേഷതകൾ

• 7-ഇൻ-1 അൺലോക്കിംഗ് രീതികൾ: Supports 3D facial recognition, fingerprint, password, smart card, mechanical key, TUYA App remote unlock, and one-time access codes.
• Integrated Intercom & Doorbell: Features a built-in doorbell and intercom system with real-time video monitoring via the TUYA App.
• വിപുലമായ സുരക്ഷ: ടി ഉൾപ്പെടുന്നുamper alarm, anti-peeping password function, and automatic locking.
• High-Speed Recognition: Fingerprint recognition in less than 0.5 seconds with a 99.9% success rate.
• വിശാലമായ അനുയോജ്യത: Suitable for wooden or metal doors with a thickness of 45mm to 110mm.
• ഉപയോക്തൃ-സൗഹൃദ ഇൻ്റർഫേസ്: Features a Portuguese language operating system, voice prompts, and screen display for easy setup and operation.
• റിമോട്ട് മാനേജ്മെൻ്റ്: Control and monitor your lock from anywhere using the TUYA App, including remote unlocking and access log viewing.

പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• ഫ്രണ്ട് പാനൽ x 1
• ബാക്ക് പാനൽ x 1
• Lock Plug x 1 (optional, depending on model)
• സ്മാർട്ട് കാർഡ് x 4
• മെക്കാനിക്കൽ കീ x 2
• സ്ക്രീൻ കിറ്റ് x 1

Image: Illustration of the smart lock components and various lock body dimensions, including the main panels, lock body, and accessories.

ഇൻസ്റ്റലേഷൻ ഗൈഡ്

Professional installation is highly recommended for this smart door lock due to the precision required for fitting the mortise lock and panels. Ensure your door meets the thickness requirement of 45mm to 110mm.

വാതിൽ അളക്കൽ

Before installation, accurately measure your door according to the following steps:

1. വാതിൽ ഫ്രെയിമിന്റെ കനം അളക്കുക.
2. Measure the length of the guide piece (mortise lock).
3. Measure the width of the guide piece (mortise lock).
4. Measure the distance from the door edge to the center of the lock body.
5. Measure the distance from the center of the handle to the center of the lower screw hole on the back panel.

Image: Visual guide demonstrating how to measure various parts of the door and existing lock for proper smart lock installation.

Image: Detailed diagram showing the dimensions of the mortise lock body (Model 6068) and its compatibility with the smart lock panels.

Image: Guide on how to select the correct mortise lock size based on existing door measurements, highlighting various available sizes.

Setup: Initial Configuration & App Pairing

Your XSDTS Smart Door Lock is designed for easy integration with the TUYA Smart App, allowing for remote control and advanced features.

TUYA App Connection

1. Download the "Tuya Smart" or "Smart Life" App from your smartphone's app store (iOS or Android).
2. നിങ്ങളുടെ അക്കൗണ്ടിലേക്ക് രജിസ്റ്റർ ചെയ്യുക അല്ലെങ്കിൽ ലോഗിൻ ചെയ്യുക.
3. Ensure your smart lock is powered on and in pairing mode (refer to the lock's screen or voice prompts for specific instructions).
4. In the App, tap "Add Device" or the "+" icon, then select "Security & Video Surveillance" > "Smart Lock (Wi-Fi)".
5. Follow the on-screen instructions in the App to connect your lock to your home Wi-Fi network. This typically involves confirming the Wi-Fi network and entering the password.
6. Once connected, you can manage users, view access logs, and remotely unlock your door.

Image: Screenshot of the TUYA App interface demonstrating features like mobile unlock, temporary password generation, door opening records, and alert messages.

Image: Diagram illustrating the functions of the Tuya WiFi Module, including remote APP unlock, smart scene linkage, doorbell message promotion, and door unlock record viewing.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your XSDTS Smart Door Lock offers multiple convenient ways to unlock your door.

അൺലോക്ക് രീതികൾ

• 3D മുഖം തിരിച്ചറിയൽ: Stand in front of the lock, and it will automatically recognize your face and unlock. Ensure your face is properly registered in the system.
• ഫിംഗർപ്രിന്റ്: നിങ്ങളുടെ രജിസ്റ്റർ ചെയ്ത വിരൽ ഫിംഗർപ്രിന്റ് സെൻസറിൽ വയ്ക്കുക. ലോക്ക് 0.5 സെക്കൻഡിനുള്ളിൽ അൺലോക്ക് ചെയ്യും.
• പാസ്‌വേഡ്: Enter your registered password on the keypad. Use the anti-peeping function by entering random digits before or after your actual password.
• സ്മാർട്ട് കാർഡ്: Tap your registered smart card on the designated area of the lock.
• മെക്കാനിക്കൽ കീ: In case of emergency or power failure, use the provided mechanical keys to unlock the door manually.
• TUYA App Remote Unlock: Open the TUYA App on your smartphone, select your lock, and tap the unlock button. This is useful for granting access remotely.
• One-Time Access Codes: Generate temporary, single-use codes via the TUYA App for guests or service personnel. These codes automatically expire after use.

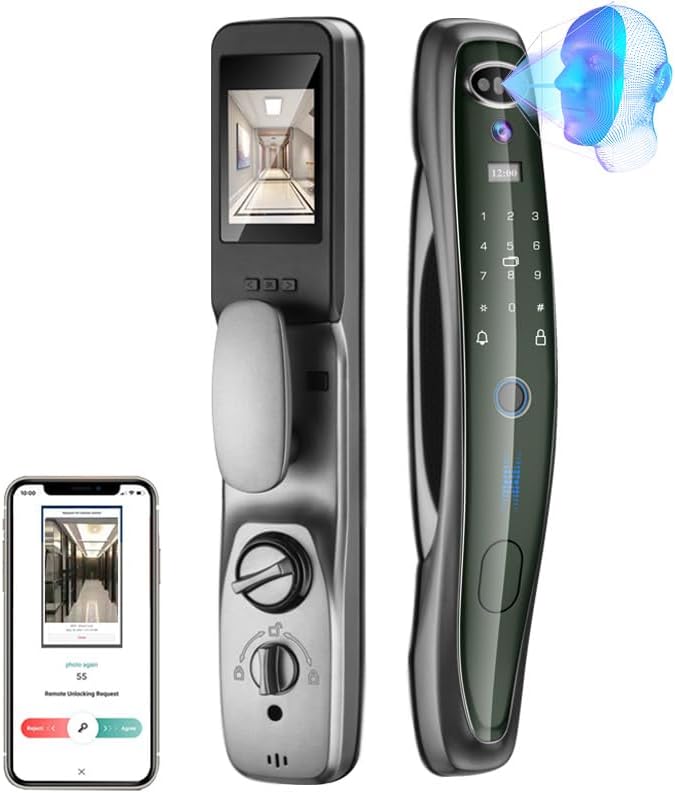

Image: The smart lock displaying its 3D facial recognition capability and the mobile app interface for remote unlocking requests.

Image: Visual representation of the various unlocking methods: 3D facial recognition, fingerprint, password, smart card, mechanical key, and mobile application.

Image: Highlights the speed and accuracy of the fingerprint recognition feature, showing less than 0.5 seconds recognition time and 99.98% success rate.

Intercom and Monitoring

The integrated doorbell and camera allow you to see who is at your door in real-time, either on the lock's screen or via the TUYA App. When someone presses the doorbell, the App will send a notification with an image, allowing you to view live video and decide whether to unlock the door remotely.

Image: Diagram showing the wide-angle "cat's eye" lens for binocular recognition and intelligent light filling, providing a broad view of the area outside the door.

മെയിൻ്റനൻസ്

To ensure the longevity and optimal performance of your XSDTS Smart Door Lock, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe the lock's surface with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as they can damage the finish and electronic components.
• ബാറ്ററി: The lock features a rechargeable battery. Monitor the battery level via the lock's screen or the TUYA App. Recharge the battery promptly when indicated to prevent loss of function.
• സെൻസറുകൾ: Keep the fingerprint sensor, camera lens, and facial recognition area clean and free of dust or smudges for accurate operation.
• മെക്കാനിക്കൽ ഭാഗങ്ങൾ: Periodically check the mechanical components for smooth operation. Do not lubricate the lock cylinder unless specifically instructed by the manufacturer.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your XSDTS Smart Door Lock, please refer to the following common solutions:

If the problem persists, please contact XSDTS customer support for further assistance.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please contact XSDTS customer service. Keep your purchase receipt as proof of purchase.

For inquiries related to your purchase or delivery, please contact the seller: Shan Tou Tong Sheng Trading CO., LTD.

For the most up-to-date support resources, including FAQs and software updates, please visit the official XSDTS website or the product page on Amazon.
