ABSINA Mobile Wallbox 11 kW 16A with App Control

1. ആമുഖം

The ABSINA Mobile Wallbox 11 kW 16A is a versatile and portable charging solution for electric vehicles. Designed for both home and travel use, it offers convenient and safe charging with integrated app control and RFID activation. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your device.

Figure 1: ABSINA Mobile Wallbox 11 kW 16A. This image shows the compact design of the wallbox with its CEE plug and Type 2 charging connector.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

ഉപകരണം ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ സുരക്ഷാ നിർദ്ദേശങ്ങളും ശ്രദ്ധാപൂർവ്വം വായിക്കുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് വൈദ്യുതാഘാതം, തീപിടുത്തം അല്ലെങ്കിൽ ഗുരുതരമായ പരിക്കിന് കാരണമായേക്കാം.

• Ensure the power supply meets the specified requirements (3 phases 415 V 50/60 Hz).
• കേബിൾ അല്ലെങ്കിൽ പ്ലഗ് കേടായെങ്കിൽ ഉപകരണം ഉപയോഗിക്കരുത്.
• Do not attempt to open or repair the device yourself. Contact qualified personnel for service.
• Keep the device away from water and extreme temperatures. The device is IP65 rated, but avoid submersion.
• Always ensure proper grounding.
• The integrated Type A+DC6 mA residual current circuit breaker provides enhanced safety. Do not bypass or modify it.
• Before installation, contact your local grid operator to register the wallbox as required.

Figure 2: Maximum Safety Features. The image highlights the Type A 30mA AC residual current protection and Type B 6mA DC fault current protection for enhanced user safety.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• ABSINA Mobile Wallbox 11 kW 16 A (three-phase)
• 3 x RFID Chips
• 3 x RFID കാർഡുകൾ
• വാൾ മൗണ്ട് ബ്രാക്കറ്റ്
• Mounting Material (screws, anchors)
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The ABSINA Mobile Wallbox is designed for "Plug and Play" use, requiring no complex installation. However, for permanent mounting, a wall bracket is included.

4.1 Initial Setup (Plug and Play)

1. പവറിലേക്ക് ബന്ധിപ്പിക്കുക: Insert the CEE plug of the Wallbox into a compatible 3-phase 415 V 50/60 Hz CEE socket.
2. പവർ ഓൺ: The Wallbox will power on automatically. If the indicator light blinks red, press the emergency stop button once to reset.
3. ഉപയോഗത്തിന് തയ്യാറാണ്: The Wallbox is now ready for charging, which can be activated via RFID or the app.

Figure 3: Plug & Play Functionality. This image illustrates the simple connection of the CEE plug to a power outlet, emphasizing ease of use without complex electrical installation.

4.2 വാൾ മൗണ്ടിംഗ് (ഓപ്ഷണൽ)

For a more permanent setup, use the provided wall mount bracket and hardware.

1. ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a suitable wall location near a compatible CEE socket, ensuring adequate ventilation and protection from direct weather exposure (though the unit is IP65 rated).
2. ഡ്രില്ലിംഗ് പോയിന്റുകൾ അടയാളപ്പെടുത്തുക: Use the wall mount bracket to mark the drilling points on the wall.
3. തുളകൾ: Drill holes at the marked points and insert the provided anchors.
4. സുരക്ഷിത ബ്രാക്കറ്റ്: Attach the wall mount bracket to the wall using the screws.
5. Mount Wallbox: Carefully slide the Wallbox onto the mounted bracket until it clicks securely into place.

Figure 4: Easy Operation. The image shows the Wallbox mounted on a wall, connected to a vehicle, demonstrating its simple "Connect. Charge." principle.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Charging Your Electric Vehicle

1. Connect Vehicle: Plug the Type 2 charging cable from the Wallbox into your electric vehicle's charging port.
2. Activate Charging:
   • Using RFID: Hold one of the provided RFID chips or cards over the RFID reader area on the Wallbox. The Wallbox will activate, and charging will begin.
   • ആപ്പ് ഉപയോഗിക്കുന്നത്: Open the ABSINA app (or compatible smart home app like Tuya Smart) on your smartphone. Select the Wallbox and initiate charging from the app interface.
3. മോണിറ്റർ ചാർജിംഗ്: The app provides real-time data including charging voltage (V), current (A), power (kW), charged energy (kWh), and charging time.
4. ചാർജ് ചെയ്യുന്നത് നിർത്തുക:
   • Using RFID: Hold the RFID chip/card over the reader again to stop charging.
   • ആപ്പ് ഉപയോഗിക്കുന്നത്: Stop charging directly from the app.
5. Disconnect Vehicle: Once charging is complete or stopped, unplug the Type 2 cable from your vehicle.

Figure 5: Misuse Protection. The image shows a hand activating the Wallbox with an RFID chip, illustrating the secure activation method.

5.2 ആപ്പ് നിയന്ത്രണ സവിശേഷതകൾ

The dedicated app (or compatible smart home app) provides advanced control and monitoring capabilities:

• Adjust Charging Current: Set the charging current from 8 A to 16 A in 1 A increments to manage charging speed.
• Set Charging Mode: Choose preferred charging modes.
• ഷെഡ്യൂൾ ചാർജിംഗ്: Utilize the charging delay function to start charging at a later time.
• തത്സമയ ഡാറ്റ നിരീക്ഷിക്കുക: View live charging statistics.
• Remote Start/Stop: Control charging sessions from your smartphone.

കുറിപ്പ്: While the app displays charging data, this data is typically not stored permanently on the device once the charging cable is disconnected. For historical charging data, refer to your vehicle's own app if available.

6. പരിപാലനം

To ensure the longevity and optimal performance of your ABSINA Mobile Wallbox, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe the exterior of the Wallbox with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the device is unplugged before cleaning.
• കേബിൾ പരിശോധന: Regularly inspect the charging cable and CEE plug for any signs of damage, fraying, or wear. If damage is found, discontinue use immediately and contact support.
• കണക്റ്റർ കെയർ: Keep the Type 2 connector clean and free of debris. Ensure the protective cap is in place when not in use.
• സംഭരണം: When not in use, especially during travel, store the Wallbox in a dry, cool place, protected from direct sunlight and extreme temperatures.

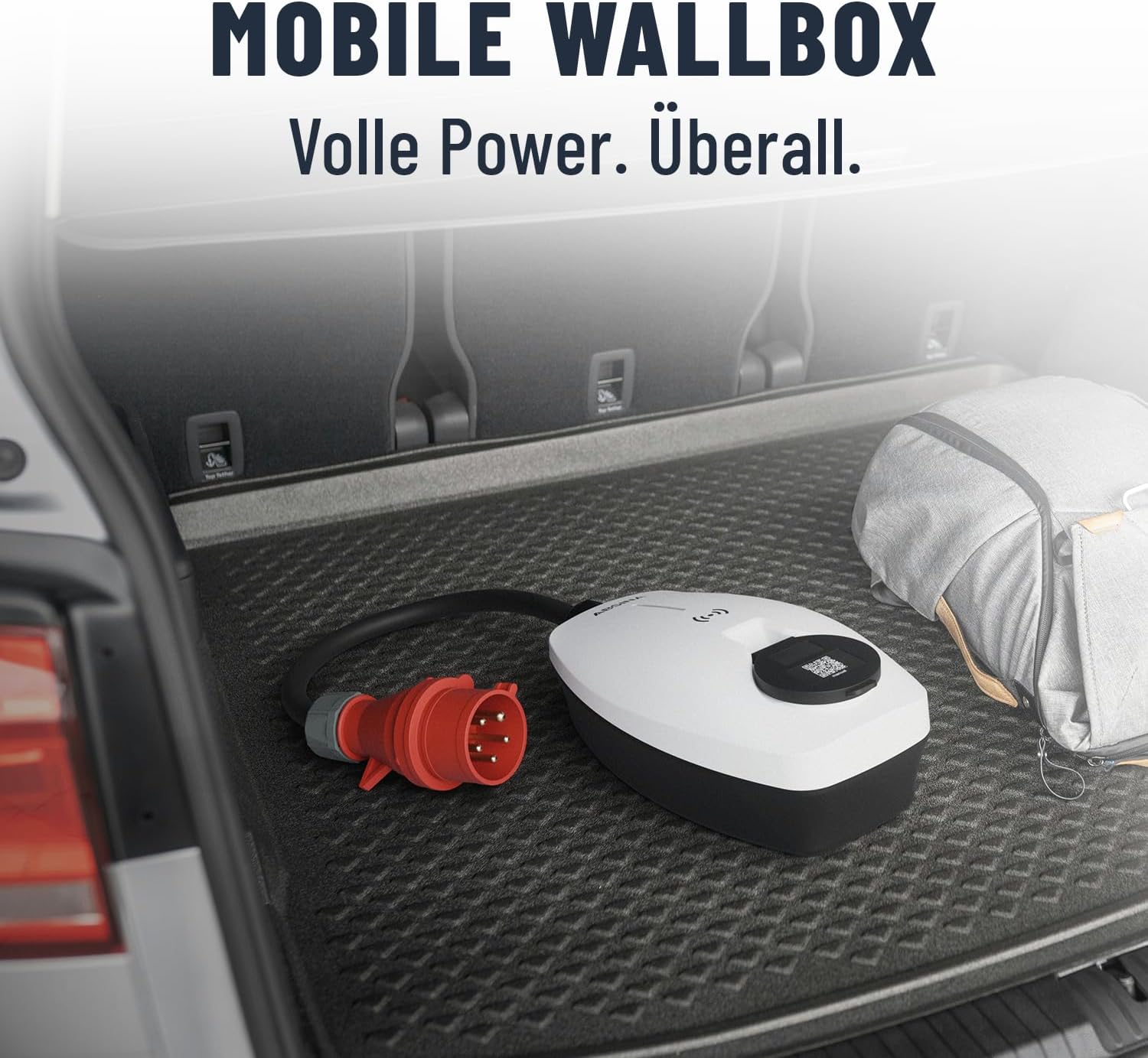

Figure 6: Mobile Wallbox for Travel. This image shows the Wallbox conveniently stored in a car trunk, highlighting its portability and ease of transport.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ABSINA Mobile Wallbox, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact ABSINA customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

ABSINA products are designed for reliability and performance. For warranty information and technical support, please refer to the official ABSINA webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.

The manufacturer, ABSINA GmbH, is based in Germany and is committed to providing competent support.

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Please visit the official ABSINA website for the most up-to-date contact details for customer support and warranty claims.
